Name: Bernstein bidet pre-wall element mounting element G30013A
Brand: bernstein
SKU: 21658
Price: 131.9 EUR
Availability: InStock

Bernstein bidet pre-wall element mounting element G30013A

Product information

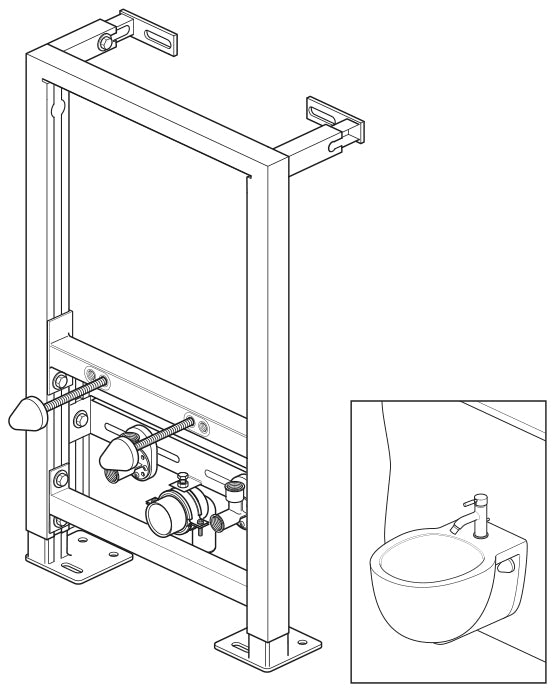

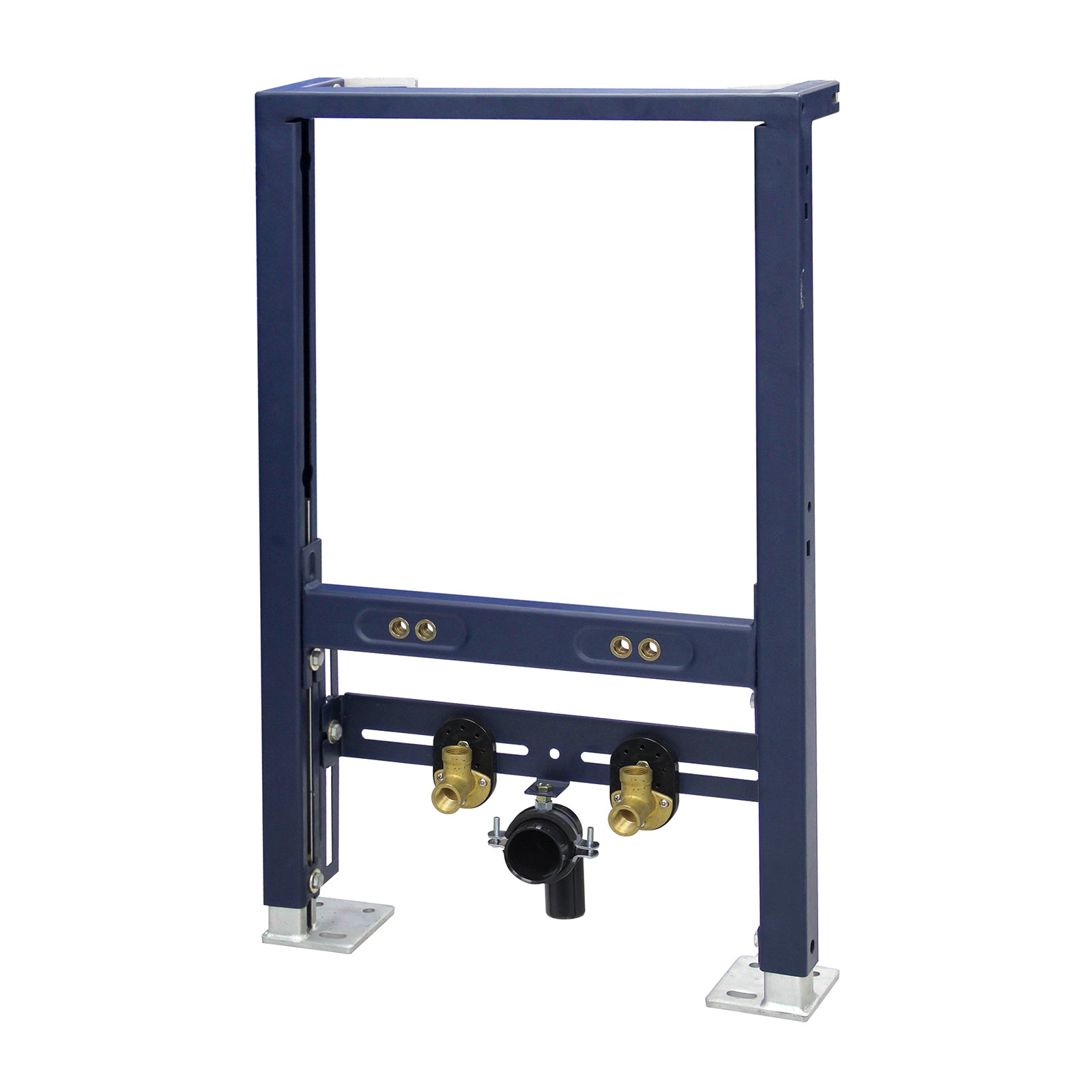

Wall-bidet pre-wall element G30013A - with adjustable elements

BERNSTEIN pre-wall element G30013A for easy installation of wall-mounted bidets. It is suitable for drywall construction, as well as height and depth adjustable.

The steel frame construction holds your bidet securely to the wall. The connections for the water pipes as well as for the drain bend are already pre-assembled.

The footrests and faucet connections have an individual adjustment range. Use the BERNSTEIN pre-wall element G30013A for bathroom renovations or new construction.

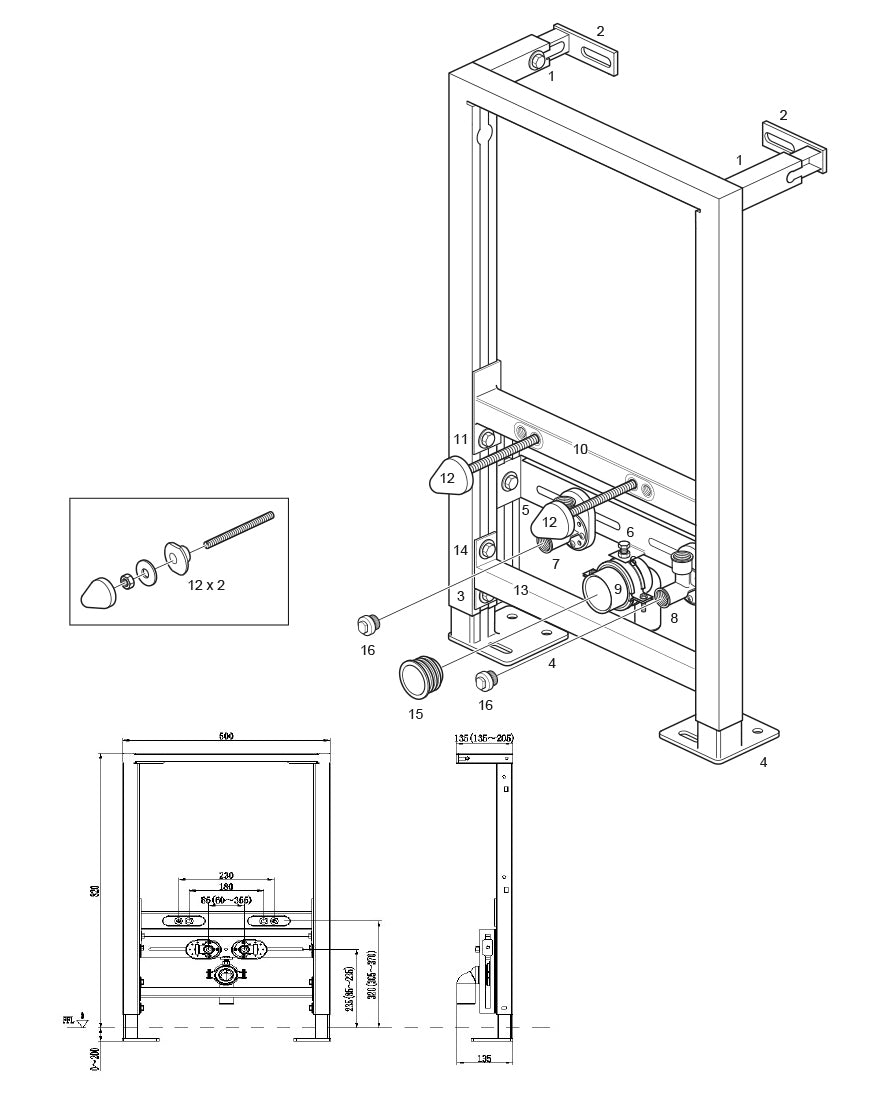

Dimensions and specifications

Material	Steel frame
Width	500 mm
Mounting height	adjustable: 820-1020 mm
Mounting depth	adjustable: 135-205 mm
Floor construction	adjustable: 0-200 mm
Screw spacing	180 mm or 230 mm
Distance fittings connections	85 mm (adjustable: 60-355 mm)
Fitting connections	G1/2"
Load capacity	400 kg
Weight	net 10,85 kg / gross 12,85 kg
Packing size	840 x 530 x 145 mm
	For drywall installation
	Suitable for installation in part-high or room-high pre-wall installation
	Height adjustable footrests
	Height-adjustable object and fitting connections
	Connections for hot/cold water made of brass
	Incl. kit for pre-wall installation of the pre-wall element to the wall
	Incl. mounting material

Scope of delivery

Wall bidet pre-wall element G30013A
Incl. kit for pre-wall installation
Incl. mounting material
