Name: Shower enclosure corner shower EX416
Brand: bernstein
SKU: 2714
Price: 509.9 EUR
Availability: OutOfStock

10-year warranty
Sold out

Product information

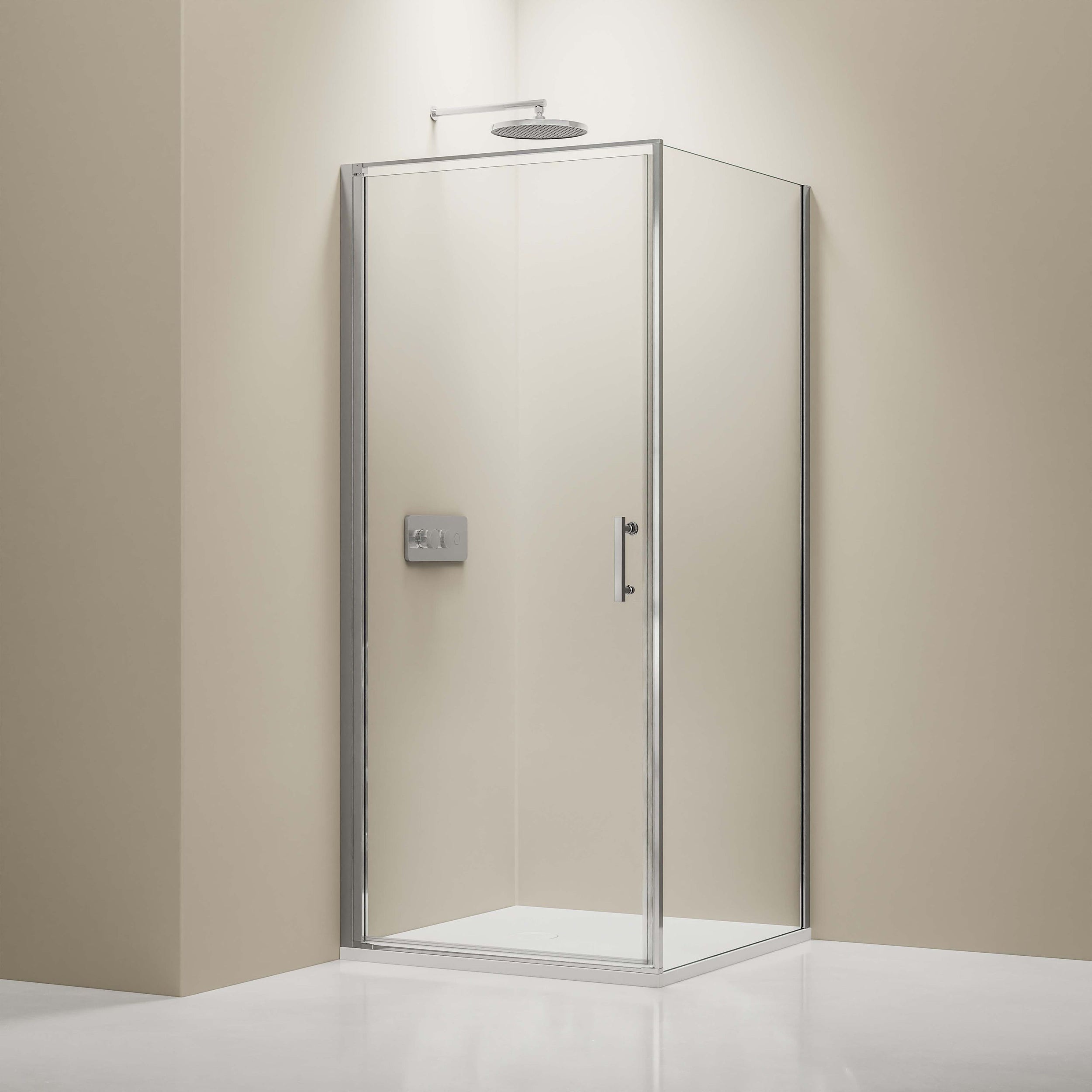

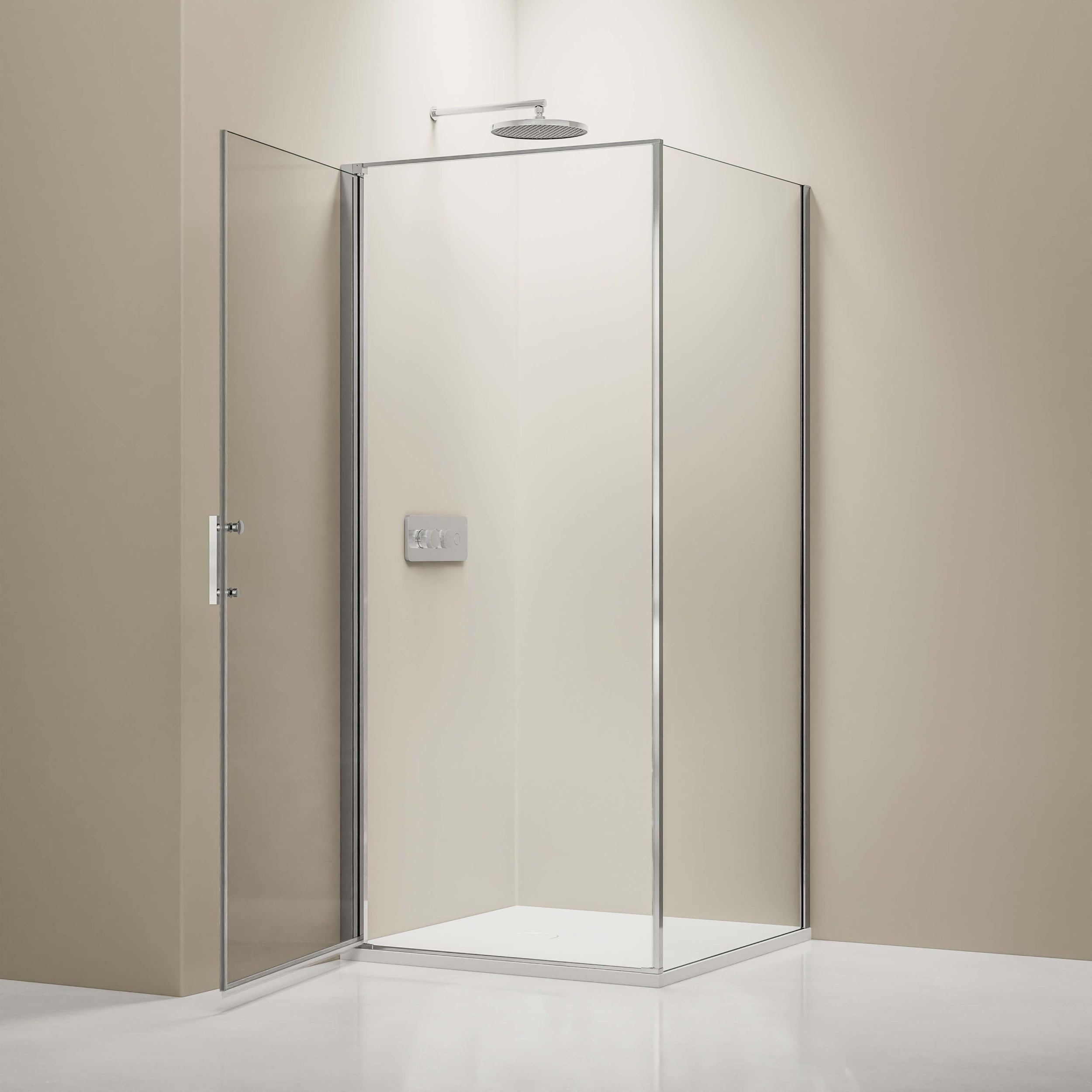

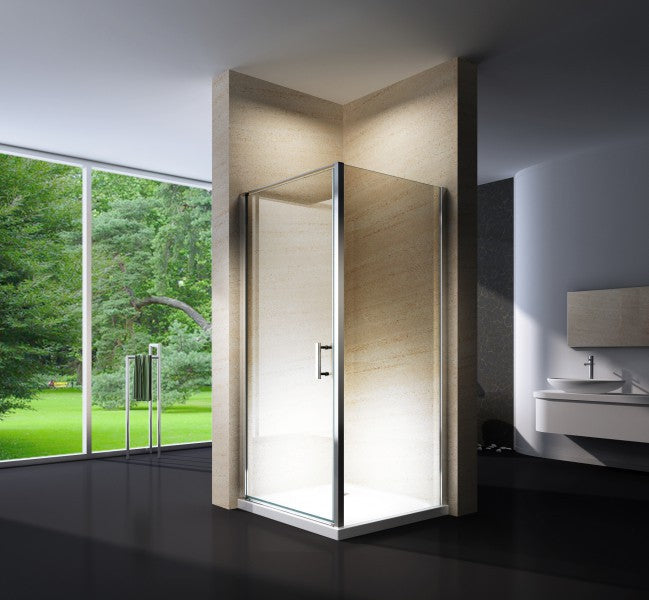

Shower enclosure corner shower 8 mm nano real glass EX416 - 100 x 100 x 195 cm - incl. shower tray

Corner solution with lift/lower pivot door and fixed side panel

Exclusive design - quick, easy installation - great price: The EX416 series meets all the requirements for your new, modern bathroom.

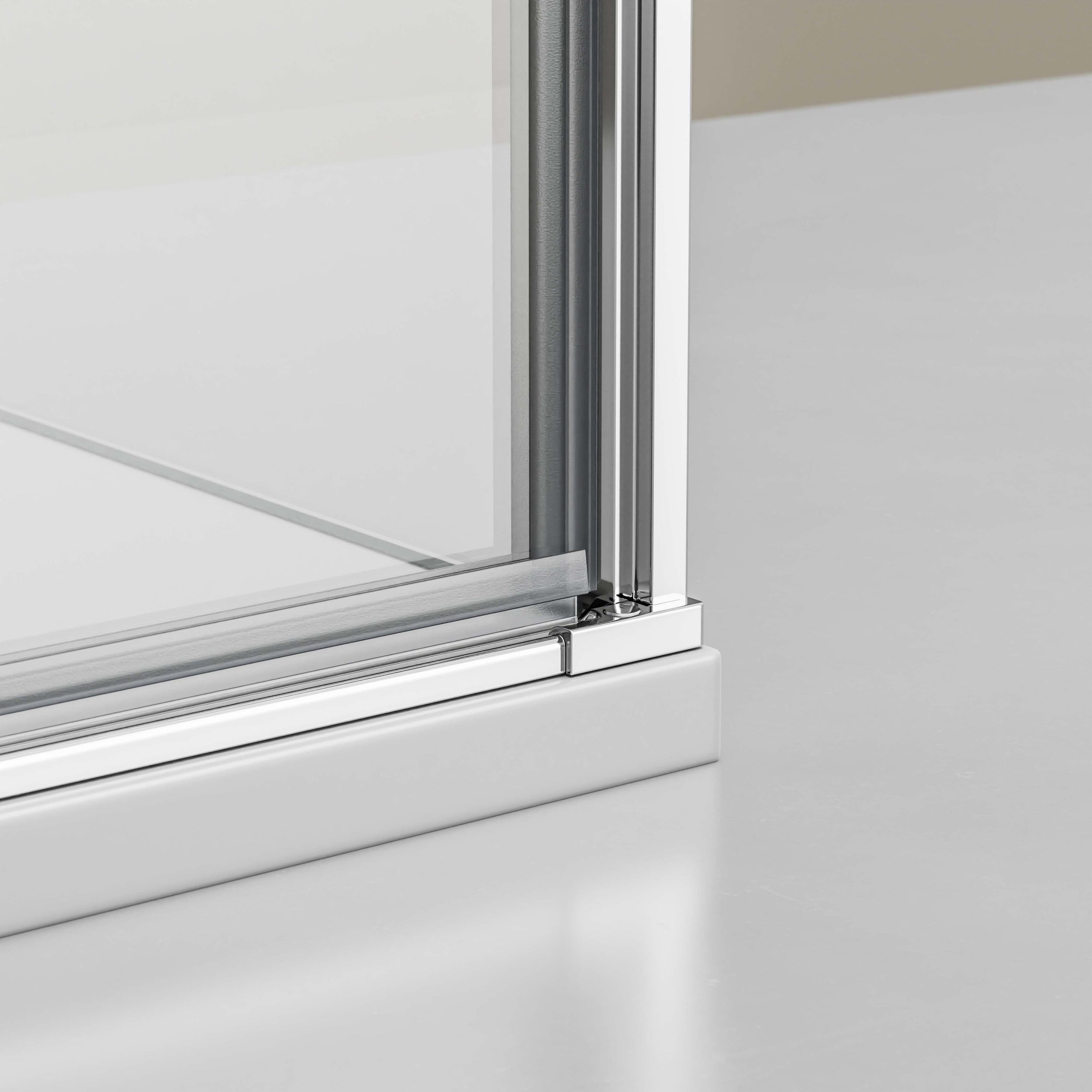

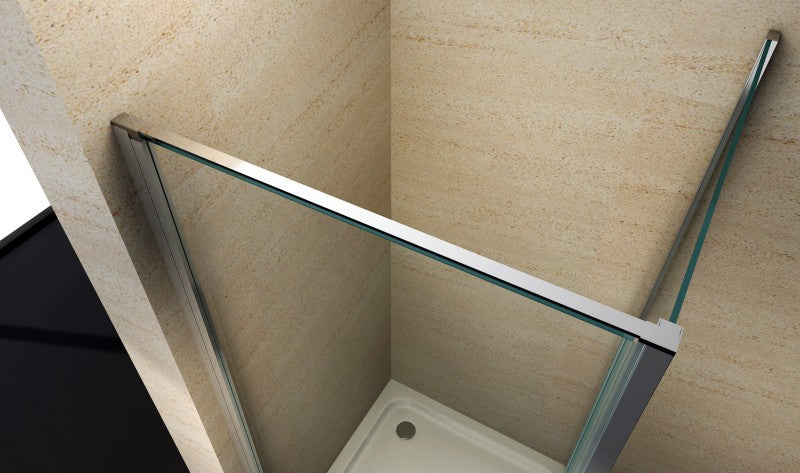

Straight lines, subtle, minimalist profiles that serve only their purpose, and yet with 1.5 cm (fixed glass) offer enough room to compensate for wall irregularities. The stabilization bar is subtly integrated into the door profile. No additional bars need to be installed!

Installation is quick and easy, the door with lifting/lowering mechanism is already pre-installed. Without the shower tray, an installation time of approx. 1 to 1.5 hours can be estimated as a guideline. The German instructions are consistent and easy to understand.

The EX416 offers a very good price-performance ratio. 8 mm thick ESG safety glass, 195 cm high, flexible door hinge, subtle, modern design, top quality at an unbelievably low price.

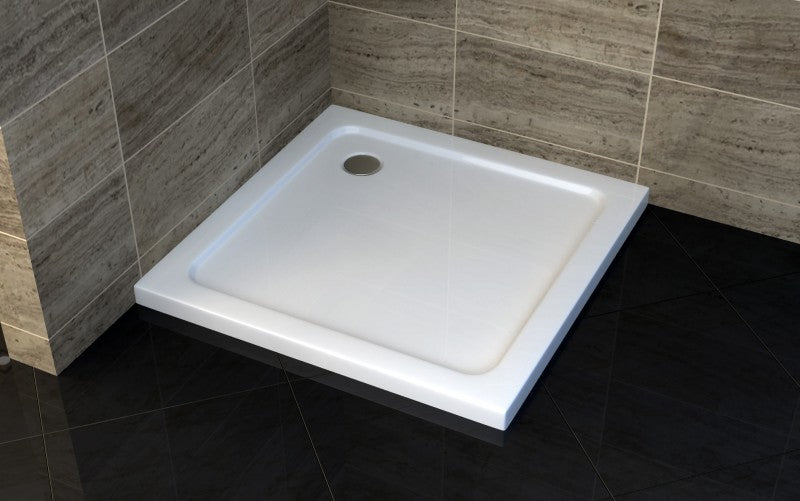

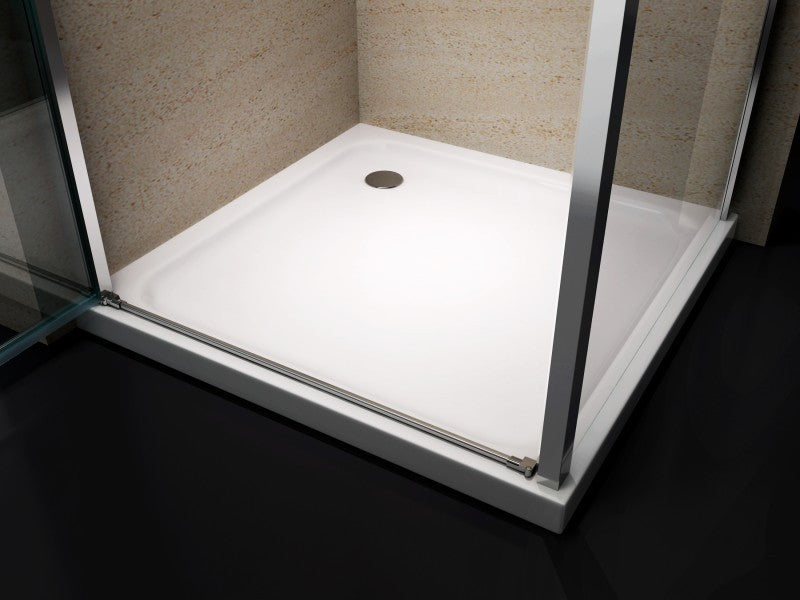

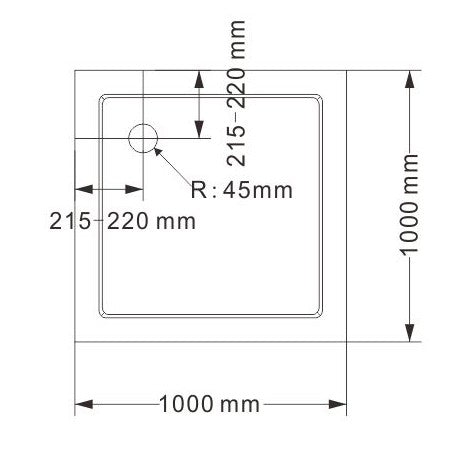

The shower tray impresses with its very flat height of 5 cm. The drain fitting is also included. A floor-level installation of the shower tray is theoretically possible. If your circumstances do not allow this, of course you can also obtain suitable flexible feet for tubs from MEPA from us.

TÜV and warranty:

TÜV Rheinland has confirmed and certified the quality of BERNSTEIN brand showers. Test models in the laboratory: the Premium models: EX416 in 90x90cm, clear glass 8mm. Also the EX101 in 90cm and 140cm, clear glass 10mm as well as EX101 in 120cm, clear glass 8mm.

We feel reassured and are extending the warranty period for all EX416 and EX101 models to 10 years.

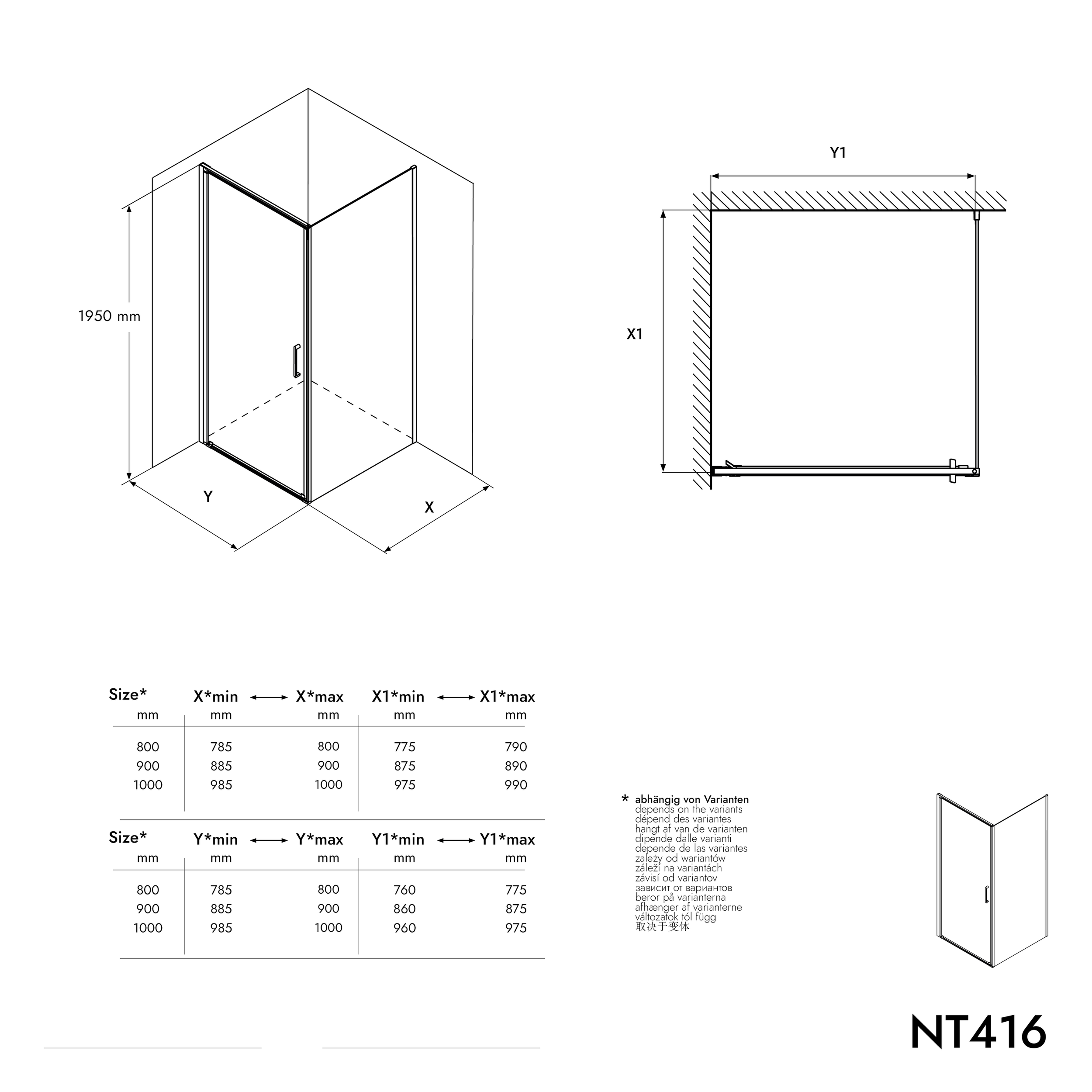

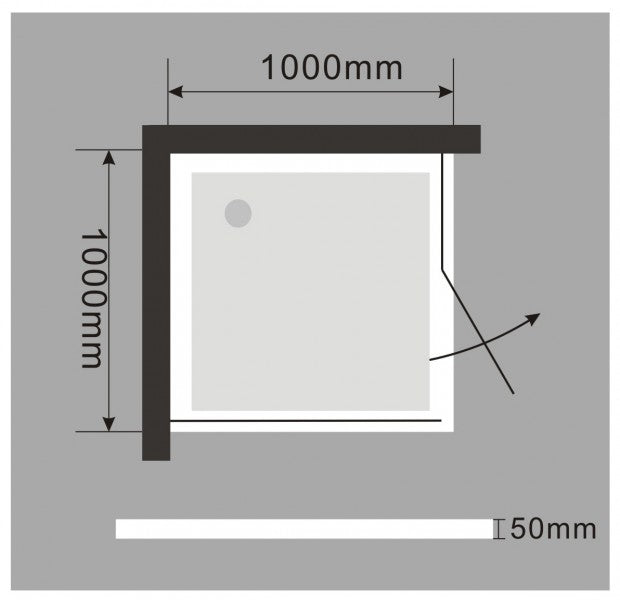

Dimensions and specifications

Please note for a floor-level installation that the specified dimensions of the shower enclosure refer to the installation dimensions of the shower tray! Our shower enclosures are therefore manufactured to be correspondingly smaller by the appropriate set-back dimension.

Model	NT416_100_100
Installation situation	Corner installation
Shower type	Corner shower
Door type	Pivot door
Door hinge	Flexible \| Left \| Right
Door opening	Outwards
Door sealing magnetic closure	Yes

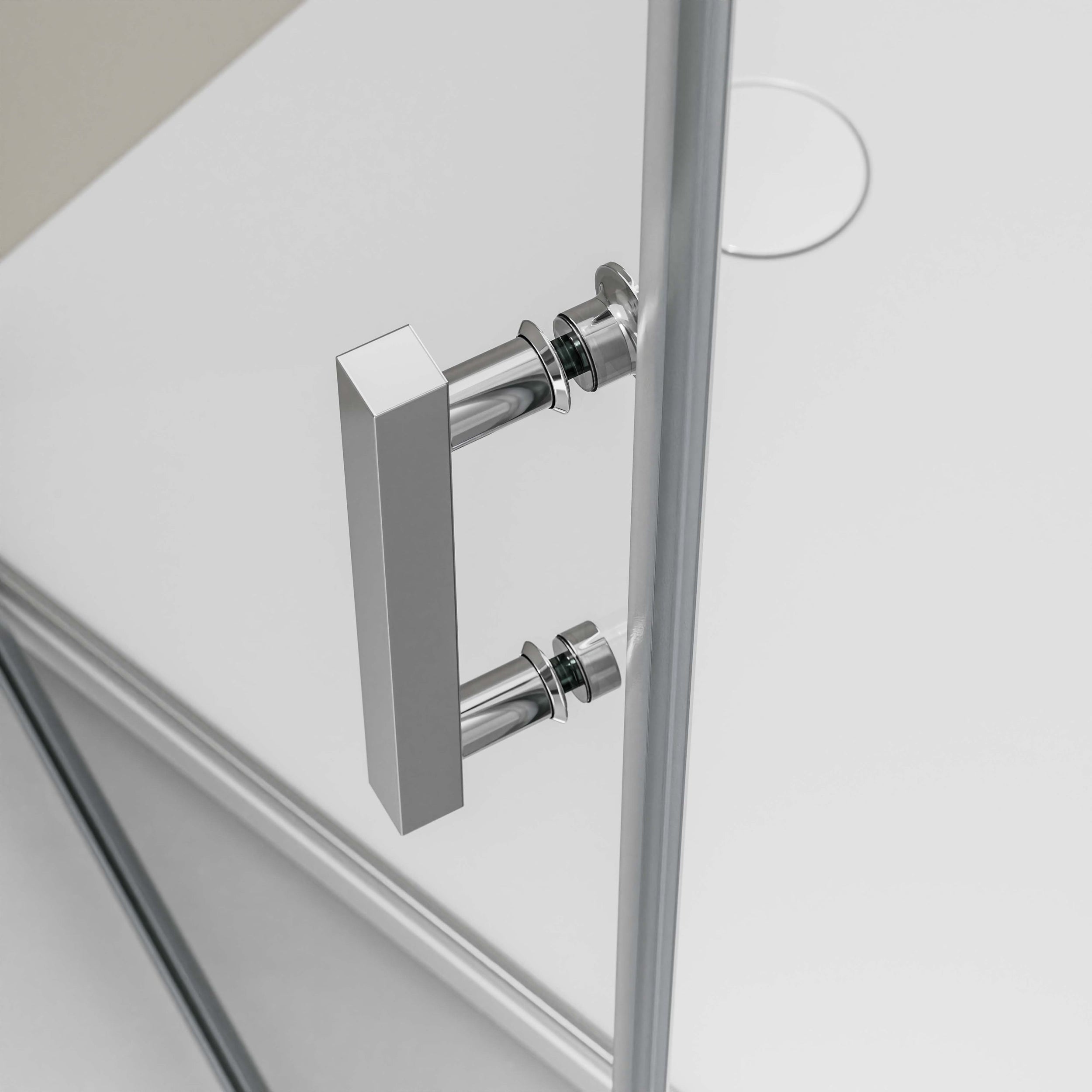

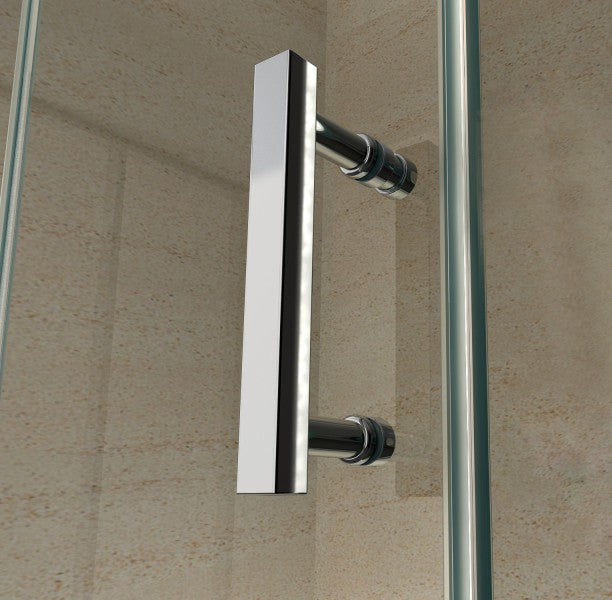

Handle type	Bar handle
Material door handle	Stainless steel
Base area (W x L)	100 x 100 cm
Door width	approx. 98.5 cm
Side panel width	approx. 98.5 cm
Entry	Front entry
Entry width	approx. 93 cm
Glass property	Tempered safety glass (DIN EN 12150)
Glass type	Clear glass
Nano coating	Yes
Glass thickness	8 mm
Glass height	195 cm
Profile type	Partly framed
Profile material	Aluminum
Compensation area in wall profile	15 mm
Profile color	Chrome
Profile surface	Glossy
Stabilization bar included	Yes, integrated in the door frame
Flush-mounted hinges	Yes
Lift-lower mechanism	With lift-lower function
Type of installation	With shower tray \| Floor level \| Without shower tray
Packing dimensions (L x W x H)	205 x 107 x 9.5 cm
Shipping weight	78 kg
Extended warranty	10 years

Scope of delivery

Shower enclosure EX416
Door handle
Aluminium profiles
Magnetic door strip, rubber seals
Mounting material
Installation instructions
Shower tray
Waste fitting
Without decorative items

Downloads

Assembly instructions

NT416 FLEX Eckdusche mit Drehtür_PrNr. 38515_131124.pdf

Other instructions

EX416_DX416_EX101_JUL23.pdf
