Name: Shower enclosure corner shower EX416
Brand: bernstein
SKU: 2661
Price: 337.5 EUR
Availability: InStock

10-year warranty
-25%

Product information

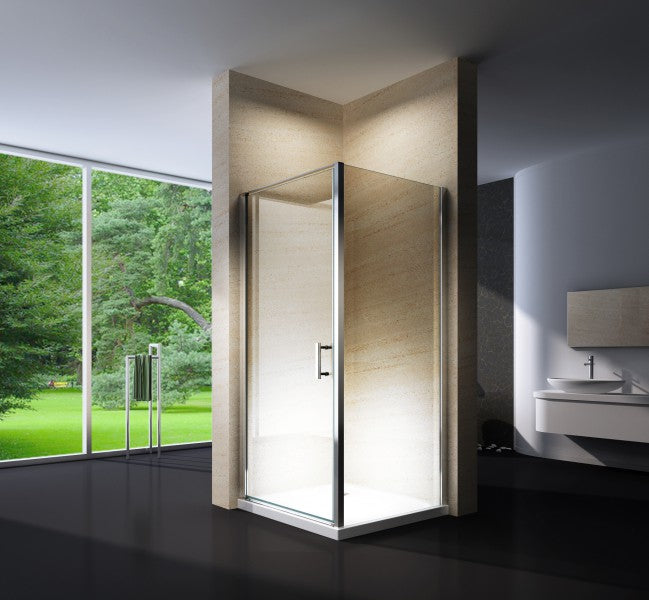

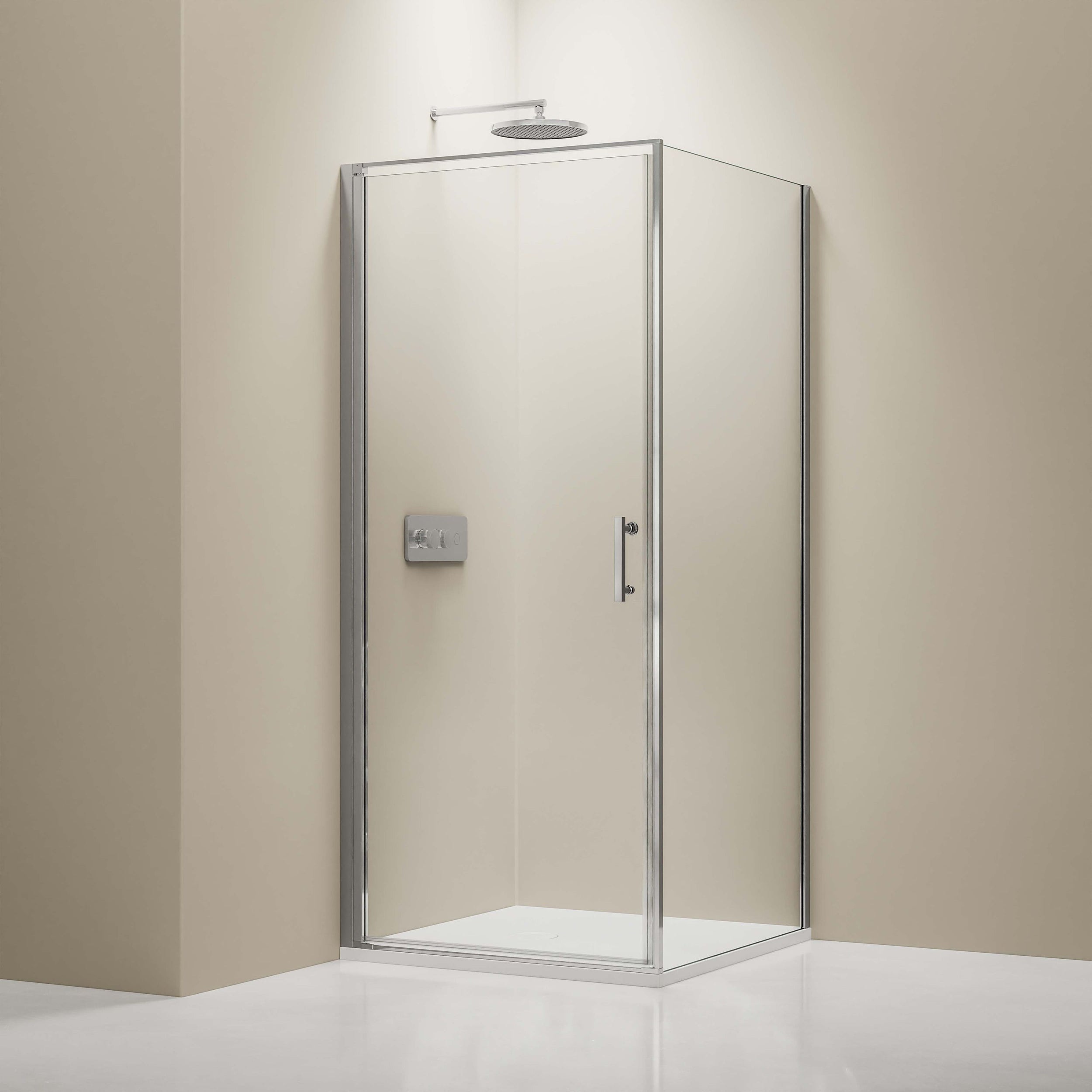

Shower Enclosure Corner Shower 8 mm Nano Real Glass EX416 - 100 x 100 x 195 cm

Corner solution with lift/lower pivot door and fixed side panel

The EX416 corner shower in size 100 x 100 x 195 cm is, with its exclusive design and high-quality workmanship, the optimal corner solution for your new bathroom.

Top quality at an unbeatable low price: The stability of this corner shower enclosure is ensured by the 8 mm thick ESG safety glass. Additional stabilizing bars are not required. The glass surfaces are modified with a nano-coating. As a result, this corner shower is resistant to dirt particles. The discreet profiles are made of high-quality aluminum, which can compensate for wall unevennesses of up to 15 mm.

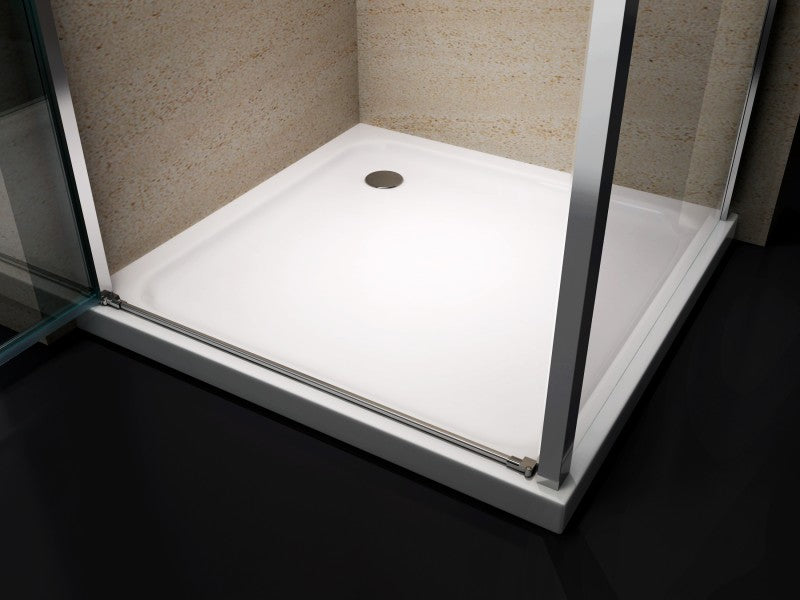

This corner shower is suitable for flush floor installation. Please note that the pictured shower tray is not included in the delivery. Suitable shower trays as well as shower drains can also be found in our online shop.

Thanks to a very detailed installation manual, installing the shower enclosure is relatively simple and fast.

TÜV and Warranty:

TÜV Rheinland has confirmed and certified the quality of BERNSTEIN branded showers. Test models in the laboratory the premium models: EX416 in 90x90cm, clear glass 8mm. Likewise, the EX101 in 90cm and 140cm, clear glass 10mm as well as EX101 in 120cm, clear glass 8mm.

We feel confirmed and extend the warranty period to 10 years for all EX416 and EX101 models.

Dimensions and specifications

Please note that with a flush-to-floor installation, the specified dimensions of the shower enclosure refer to the installation dimensions of the shower tray! Our shower enclosures are therefore manufactured smaller by the corresponding offset dimension.

Model	NT416_100_100
Installation situation	Corner installation
Shower shape	Corner shower

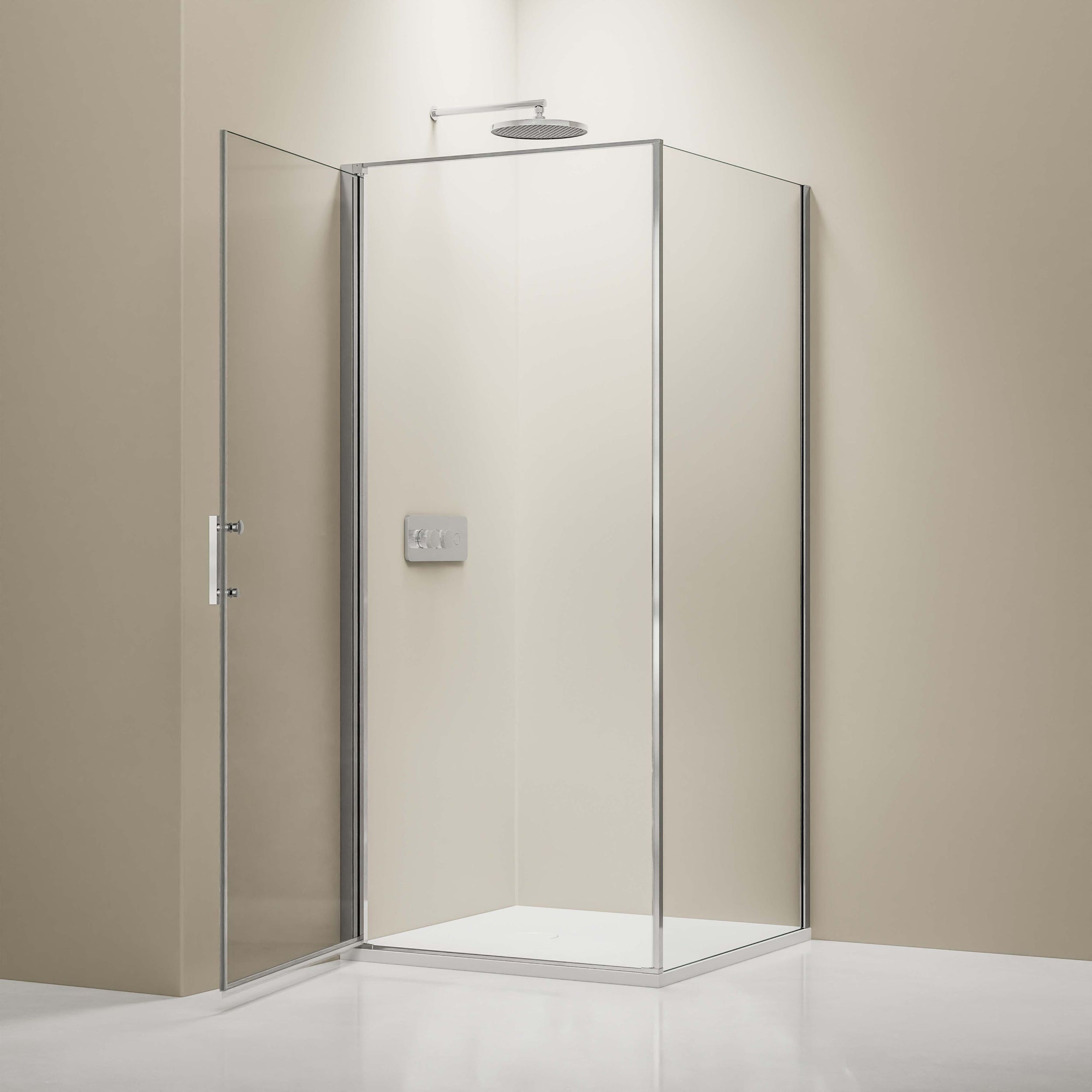

Door type	Hinged door
Door hinge	Flexible \| Left \| Right

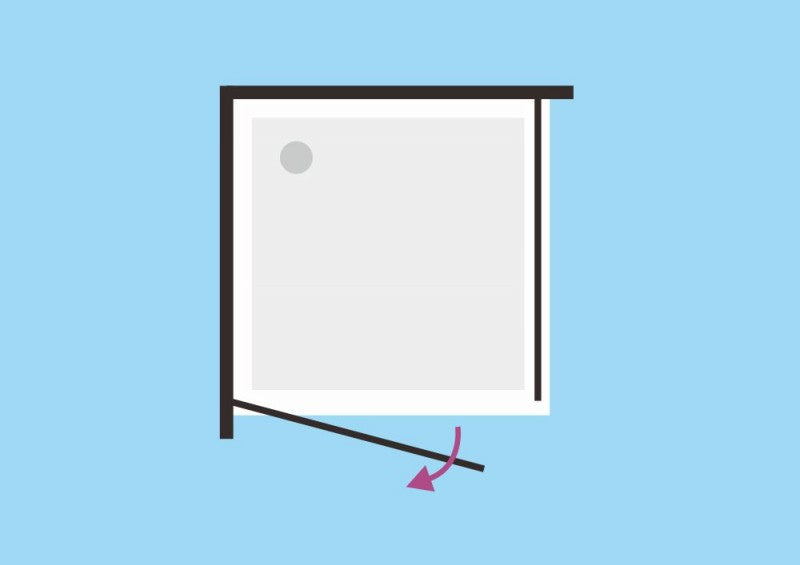

Door opening	Outwards
Magnetic door seal	Yes

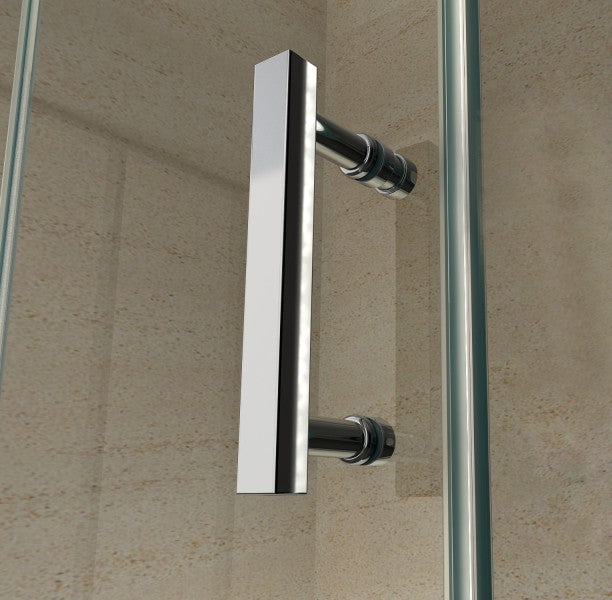

Door handle type	Bar handle
Door handle material	Stainless steel
Base dimensions (W x L)	100 x 100 cm
Door width	approx. 98.5 cm
Side wall width	approx. 98.5 cm
Entry	Front entry
Entry width	approx. 93 cm
Glass property	Toughened safety glass (DIN EN 12150)
Glass type	Clear glass
Nano-sealing	Yes
Glass thickness	8 mm
Glass height	195 cm
Profile type	Partially framed
Profile material	Aluminium
Compensation range in wall profile	15 mm
Profile color	Chrome
Profile surface	Glossy

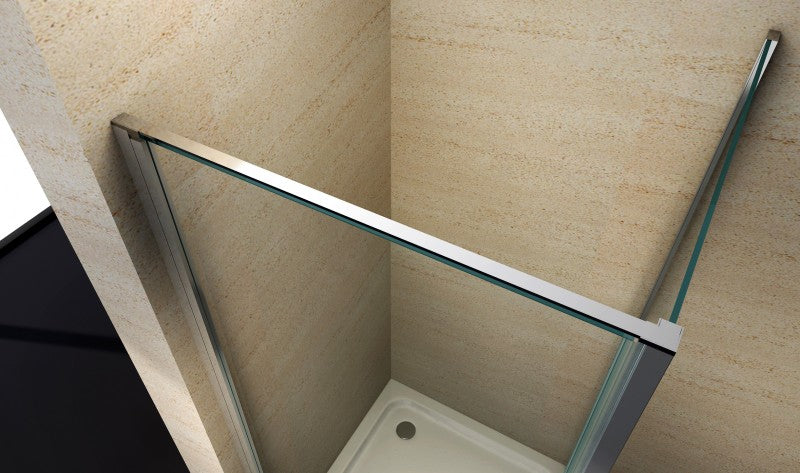

Stabilizing bar included	Yes, integrated into the door frame
Flush-mounted interior hinges	Yes
Lift-and-lower mechanism	With lift-and-lower function
Type of installation	With shower tray \| Floor-level \| Without shower tray
Packing dimensions (L x W x H)	205 x 107 x 9.5 cm
Shipping weight	78 kg
Extended warranty	10 years

Scope of delivery

Shower enclosure EX416
Door handle
Aluminum profiles
Magnetic door strip, rubber seals
Assembly material
Assembly instructions
Without shower tray
Without decorative items

Downloads

Assembly instructions

NT416 FLEX Eckdusche mit Drehtür_PrNr. 38515_131124.pdf

Other instructions

EX416_DX416_EX101_JUL23.pdf

Shipping costs

99 EUR

Delivery by freight forwarder

Your order will be collected from us and taken to a distribution warehouse. From there, it will be transported on to the delivery warehouse in your area. As soon as your consignment has arrived there, you will be notified (notification) and finally the delivery will be made directly to you (kerbside).

For items in stock, your order will be with you in approx. 9-12 working days.
