Corner shower with hinged doors DX407
8 mm - Nano real glass - selectable widths
Product number: 6442
Product number: 6400
Product number: 6382
Product number: 6418
Product number: 6436
Product number: 6384
Product number: 6402
Product number: 6420
Product number: 6438
Product number: 6386
Product number: 6404
Product number: 6422
Product number: 6440
Product number: 6388
Product number: 6406
Product number: 6424
- Save 105,98 €
- -20%
The lowest price in the last 30 days: 424,00 €
- Save 104,98 €
- -20%
The lowest price in the last 30 days: 420,00 €
- Save 107,18 €
- -20%
The lowest price in the last 30 days: 429,00 €
- Save 106,98 €
- -20%
The lowest price in the last 30 days: 428,00 €
- Save 107,98 €
- -20%
The lowest price in the last 30 days: 432,00 €
- Save 109,18 €
- -20%
The lowest price in the last 30 days: 437,00 €
Product information

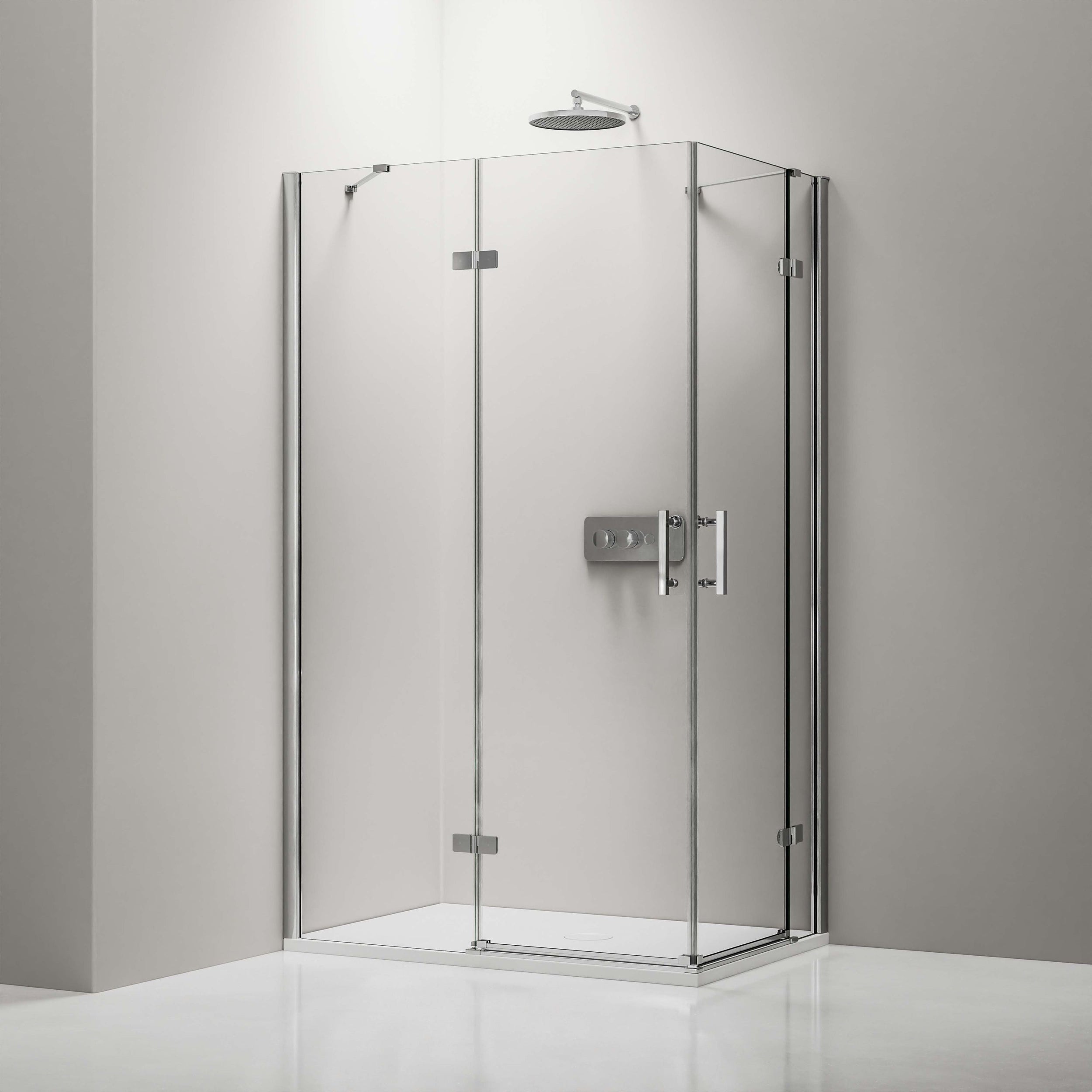

Shower enclosure corner shower 8 mm nano real glass DX407 - width selectable
Freely combinable swing doors with fixed panel incl. lift-and-lower mechanism in 8 mm thick toughened safety glass (ESG) with nano coating.
The wall stabilisation ensures high stability and durability of the shower enclosure. Thanks to the nano-sealing, water beads up and thus prevents calcification and dirt.
High-quality profiles made of anodised aluminium, combined with hinges between the door and fixed panel that are flush with the surface on the inside, with a lift-and-lower mechanism. This lifts the door slightly when it is opened and ensures optimum door closure. In addition, this function prevents wear and tear on the lower sealing strips.

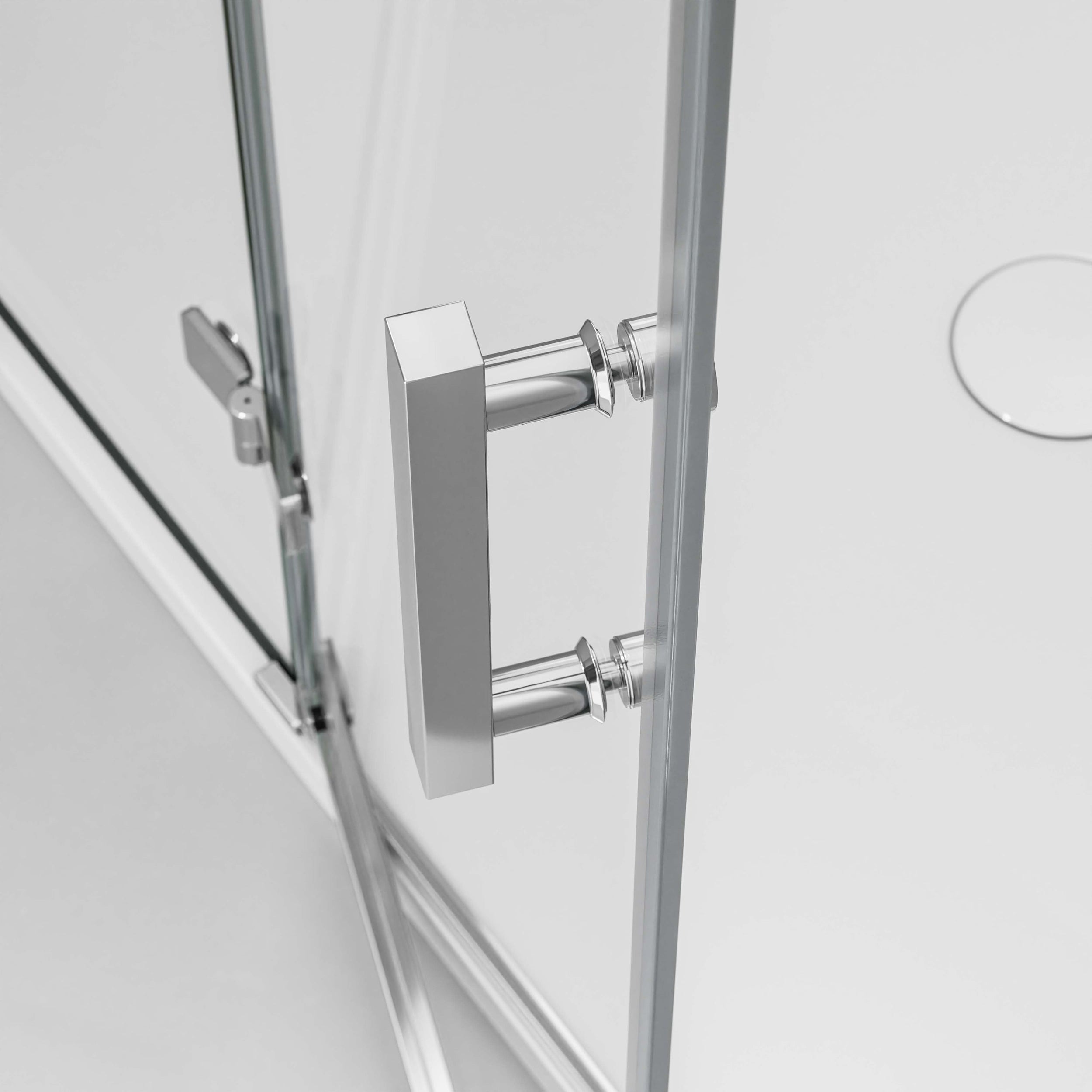

The combined bar and knob handle made of high-quality stainless steel makes this model easy to operate and clean. Horizontal sealing strip in gutter shape, directs the water into the shower area and thus prevents dripping into the room when the door is open.

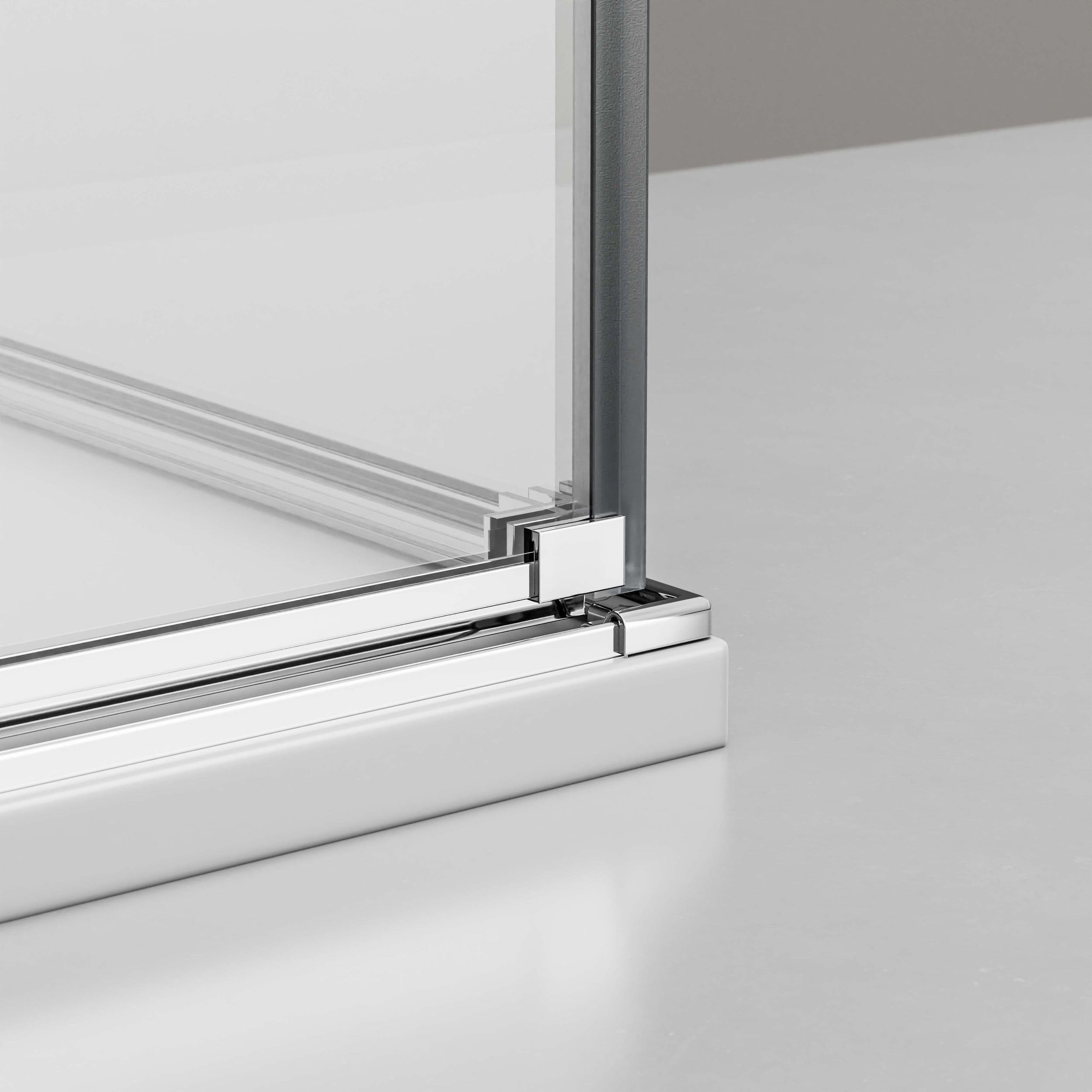

The shower enclosure is suitable for installation on shower tray as well as on tiled floor. This model can optionally be installed barrier-free or with a discreet anti-swing strip for increased tightness.
Door element LEFT: the door opens to the left
Door elementRIGHT: the door opens to the right
Note on assembly: Due to the double door assembly, the enclosed silver end pieces are not required for assembly at the points where the two door edges meet and seal the doors tightly .

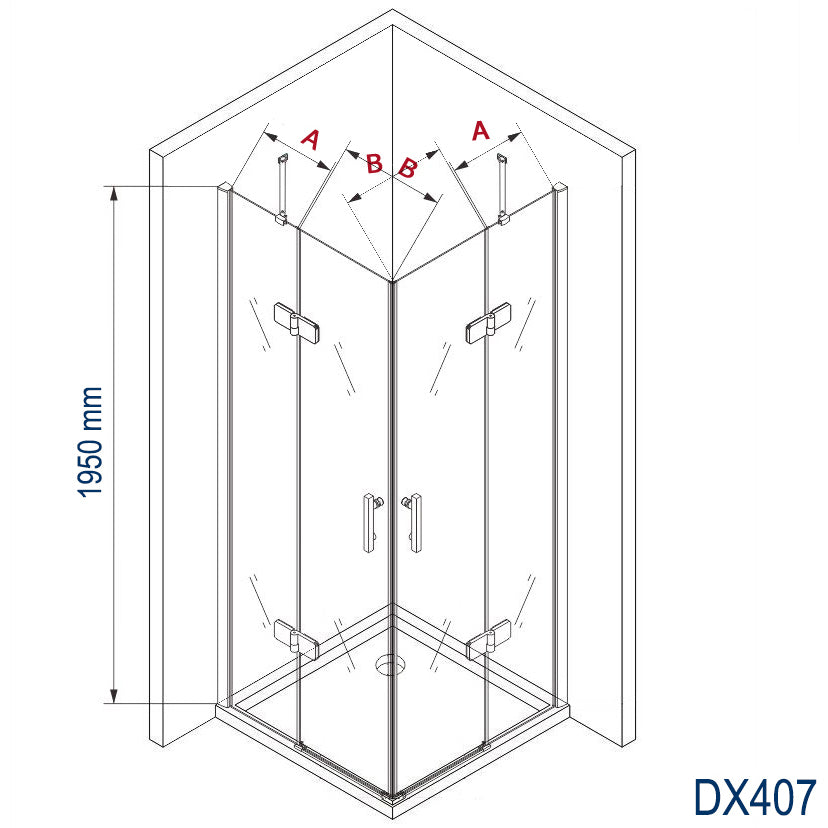

Dimensions and specifications
| Glass type | Clear glass |
| Glass thickness | 8 mm toughened safety glass (toughened safety glass to DIN-EN12150), nano-coating |

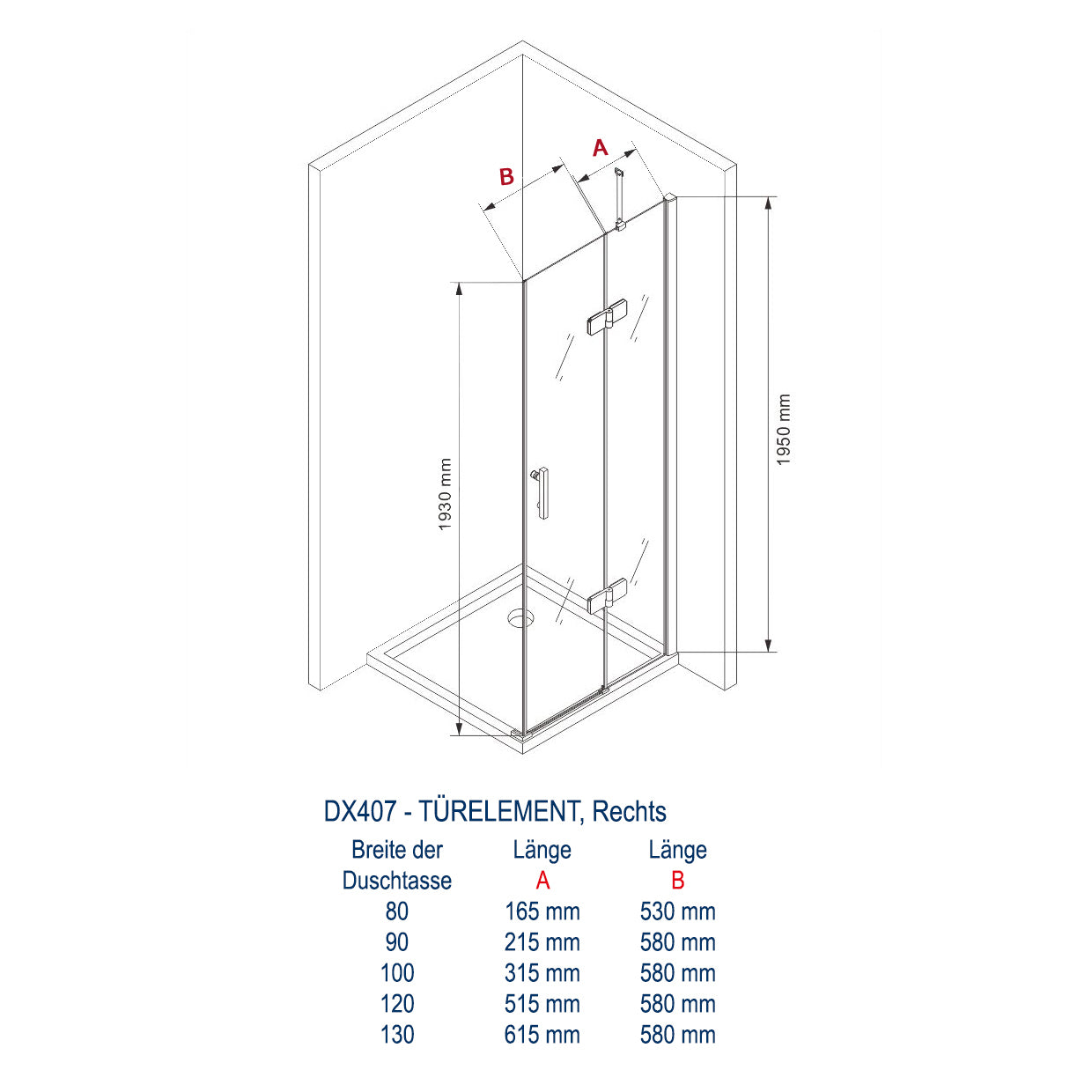

| Dimensions door element RIGHT | selectable 80 x 195 cm (glass size incl. wall rail approx. 78 x 195 cm) 90 x 195 cm (glass size incl. wall rail approx. 88 x 195 cm) 100 x 195 cm (glass size incl. wall rail approx. 98 x 195 cm) 120 x 195 cm (glass size incl. wall rail approx. 118 x 195 cm) |

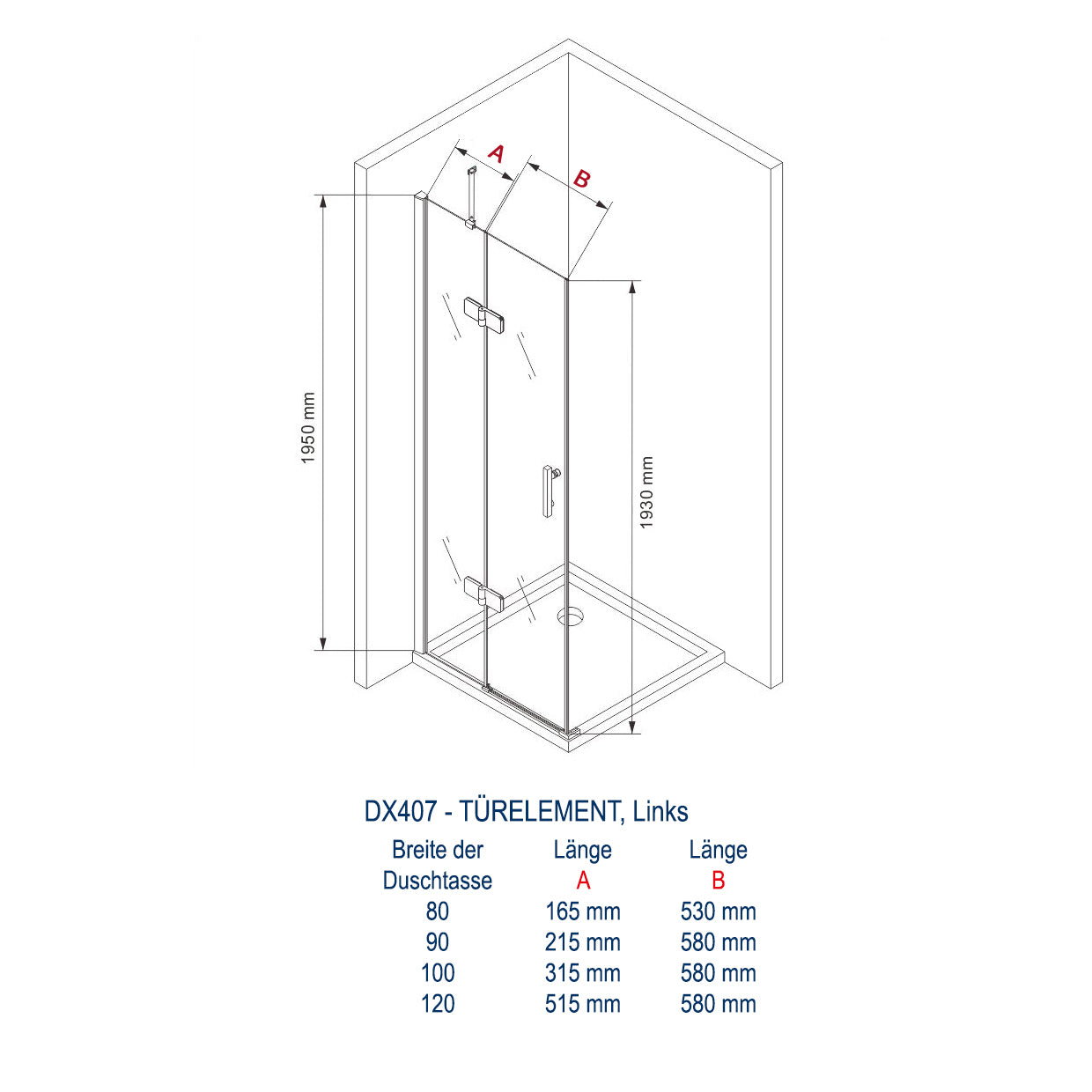

| Dimensions door element LEFT | selectable 80 x 195 cm (glass size incl. wall rail approx. 78 x 195 cm) 90 x 195 cm (glass size incl. wall rail approx. 88 x 195 cm) 100 x 195 cm (glass size incl. wall rail approx. 98 x 195 cm) 120 x 195 cm (glass size incl. wall rail approx. 118 x 195 cm) |
| Aluminium wall profiles | |
| Convenient lifting and lowering mechanism for the doors | |
| Gutter-shaped sealing strip | |
| Flush hinges on the inside | |
| Modern, discreet magnetic strips | |
| Stainless steel door handle | |
| Incl. assembly material | |
| Without shower tray |
Scope of delivery
- Shower enclosure DX407
- Door handle
- Aluminium profiles
- Magnetic door strip, rubber seals
- Assembly material
- Assembly instructions
- Without shower tray
Delivery
Pallet shipments are delivered curbside. Please consider that the carrier will call you to fix delivery date/time, so kindly remember to indicate your phone number (landline or mobile phone) when placing your order.
For deliveries to islands, additional charges will apply for sea transport. In order to calculate this charge with precision, your postal code (ZIP Code) will be required.
Downloads
Assembly instructions
montage.pdfCare instructions
CMA-Shower-enclosure_130326.pdf
Shipping costs
Product safety
- Clear, exclusive design
- Extra strong 8 mm ESG safety glass
- Convenient lifting and lowering mechanism
- Coated glass surface
for easy cleaning (nano-coating) - Easy to install
- Horizontal sealing strip in the shape of a gutter
prevents dripping onto the floor - Can be mounted on shower tray and tiled floor
- Flush hinges on the inside
