Duravit thermostat fitting concealed
Brass - 1 consumer - Ø 17 cm
Product number: 172196
Product number: 172197
Product number: 172198
Product number: 172199
Product number: 172200
Product information

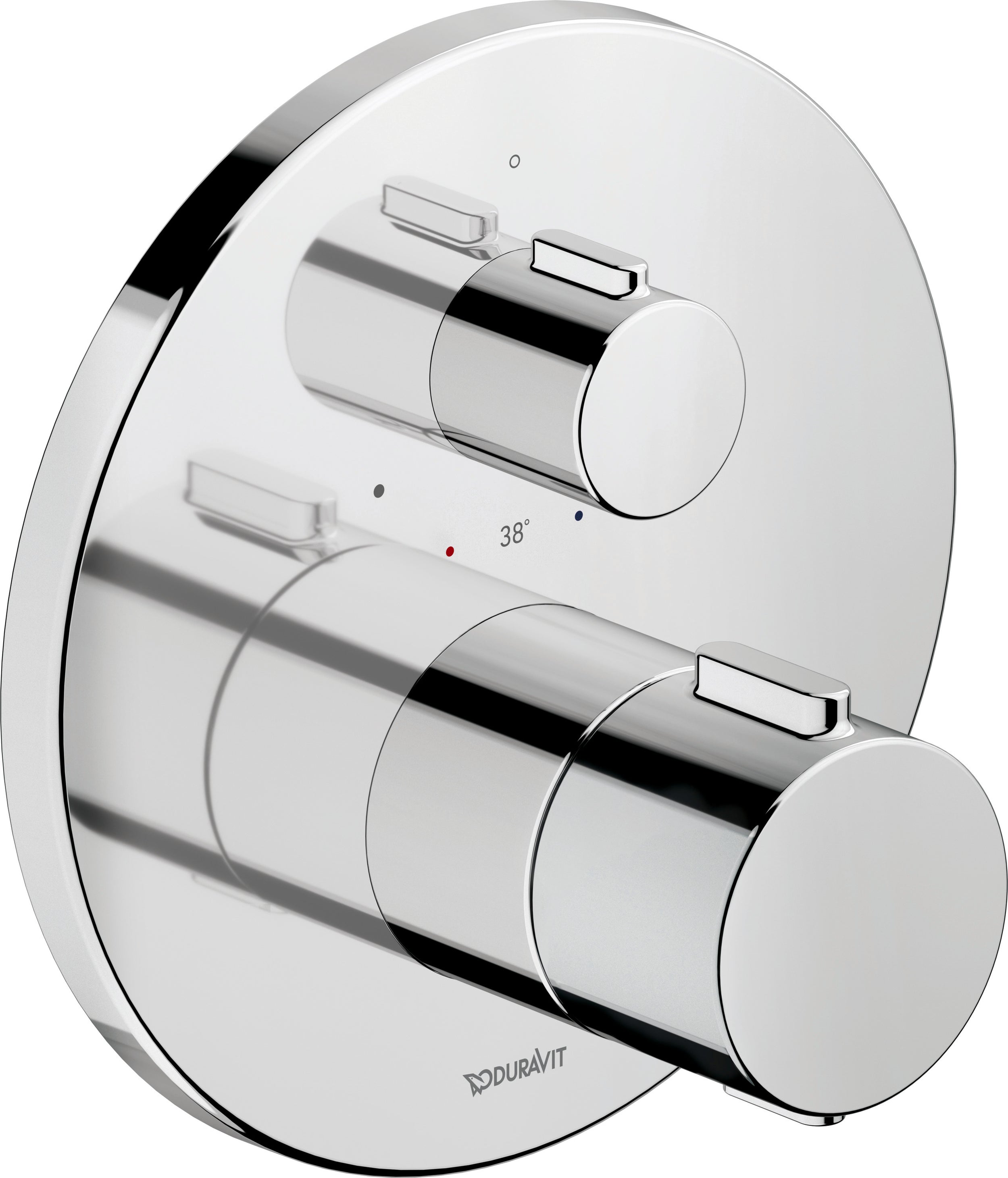

Duravit concealed thermostat fitting - 1 outlet, modern design and maximum safety - color selectable
With precise temperature control and discreet concealed installation, the Duravit thermostat fitting offers comfort and safety in one. The elegant concealed installation gives it a purist look that blends harmoniously into any bathroom. The high-quality thermostat cartridge ensures a constant water temperature and maximum ease of use.
For additional safety, the fitting is equipped with a HeatLock safety lock at 38°C, which reliably protects against scalding. With a flow rate of 20.5 l/min at 3 bar pressure, it offers high water capacity, making it suitable for use with instantaneous water heaters.

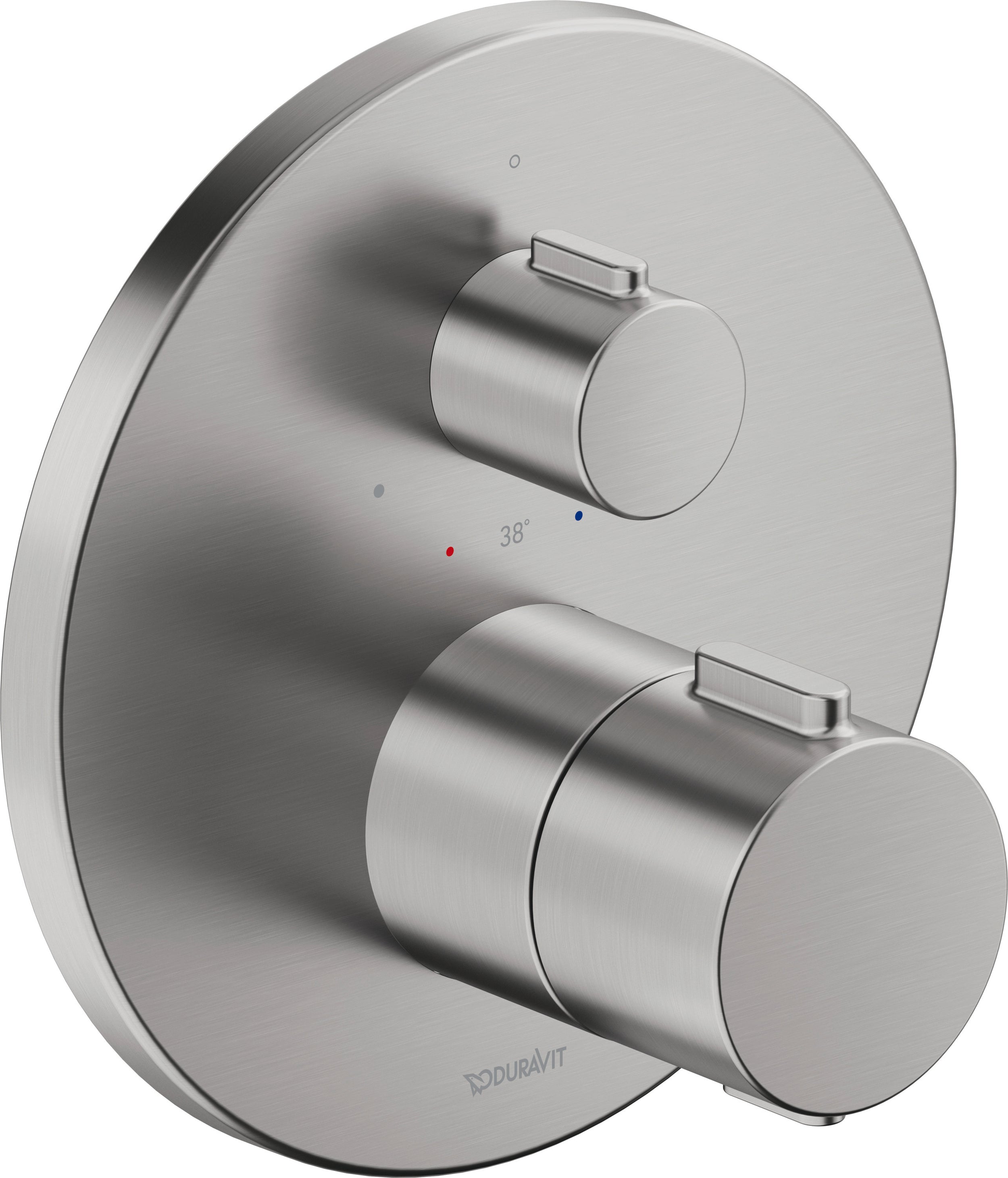

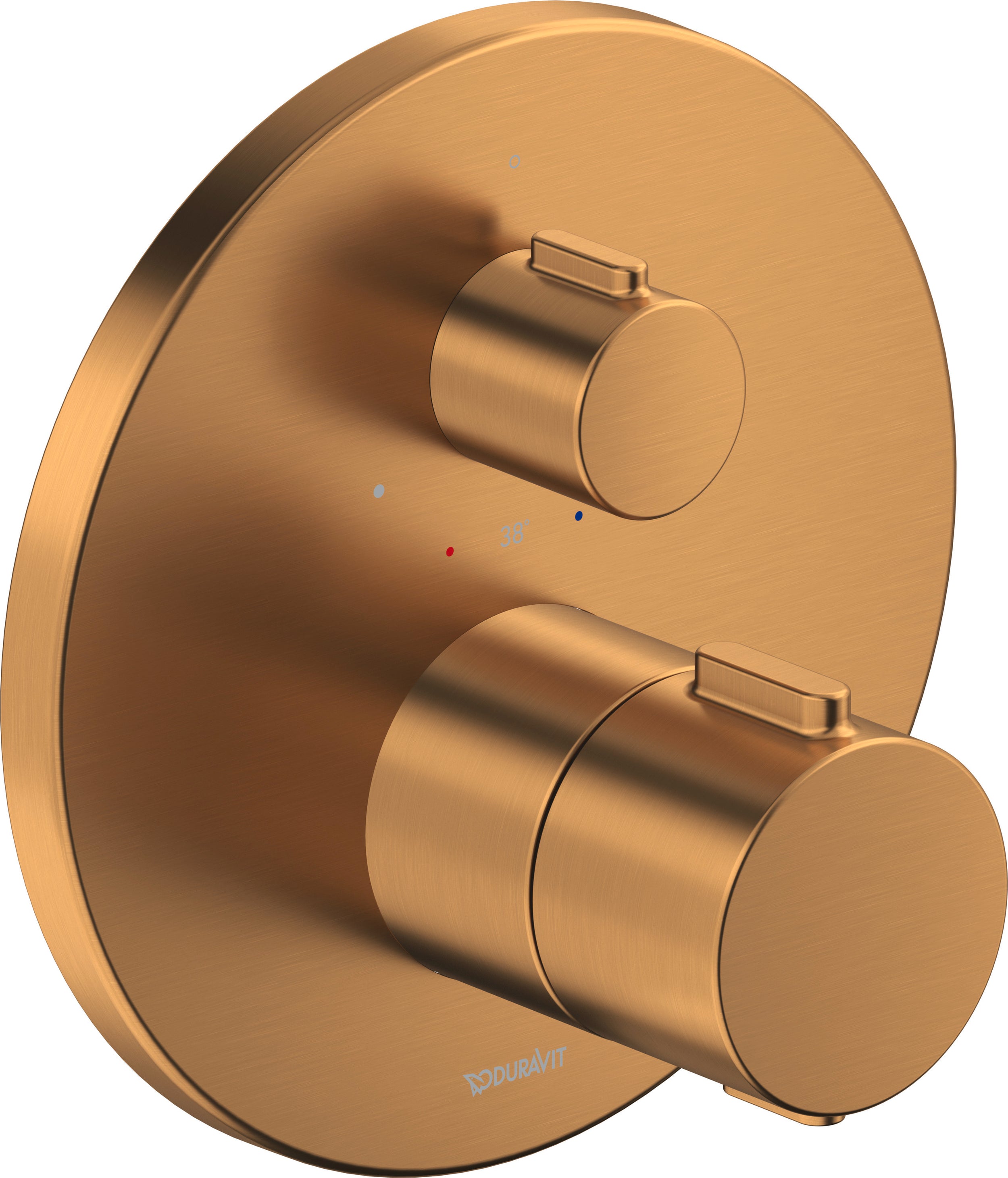

The thermostat fitting is available in five elegant color variants – chrome, matt black, brushed stainless steel, brushed bronze and polished gold – and can be perfectly combined with the other bathroom fittings from Duravit.

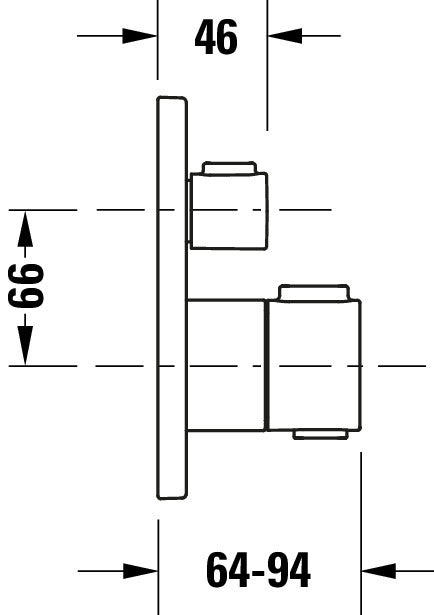

Dimensions and specifications
Material | Brass | |
Color selectable | Chrome | Matte black | Brushed stainless steel | Brushed bronze | Polished gold | |
Dimensions | Ø 17 cm | |
Number of outlets | 1 outlet | |
Shape | Round | |
Temperature control | Thermostatic cartridge | |
Water connection type | Body | |
Flow rate (3 bar) | 20.5 l/min | |
Min. recommended operating pressure | 1 bar | |
Max. recommended operating pressure | 5 bar | |
Mounting type | Concealed installation | |
Suitable for instantaneous water heater | Yes |
Scope of delivery
- Duravit concealed thermostat fitting in selected color
- Installation instructions
- Without basic body
Downloads
Assembly instructions
Duravit_MI_100176.pdfCare instructions
Duravit_CI_3100187.pdf
