Duravit concealed thermostat fitting for the shower

Duravit concealed thermostat fitting for the shower

Name: Duravit concealed thermostat fitting for the shower
Brand: duravit
SKU: 173563
Price: 594.9 EUR
Availability: InStock

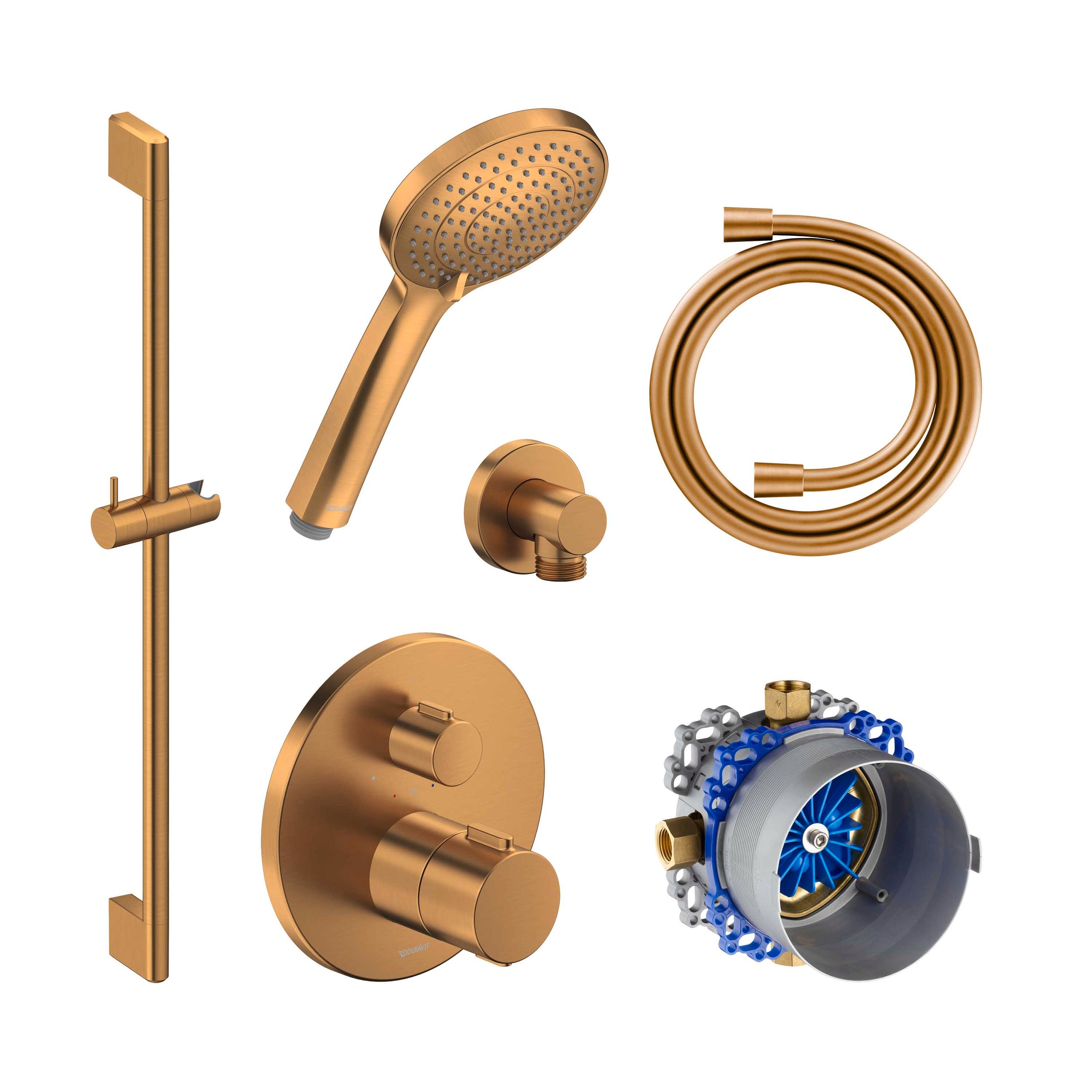

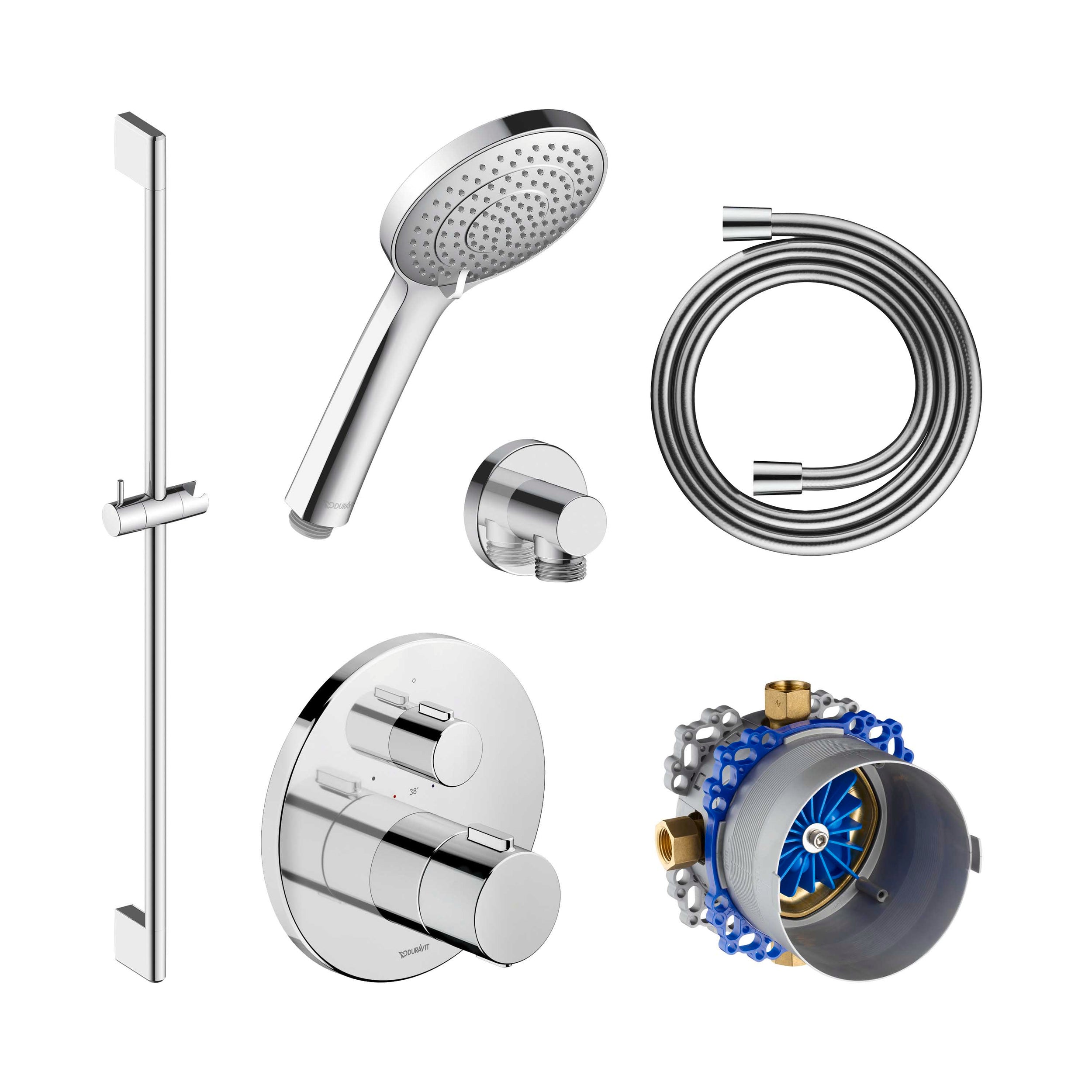

incl. hand shower, shower rail and concealed body to choose from

Product number: 173561

Product number: 173562

Product number: 173563

Product number: 173564

Product number: 173565

Product number: 173566

Product number: 173567

Product number: 173568

Product number: 173569

Product number: 173570

594,90 €

669,90 €

689,90 €

694,90 €

769,90 €

789,90 €

794,90 €

Color: Brushed stainless steel

chrome
Black matt
Brushed stainless steel
Brushed bronze
Polished gold

In-wall body:

Without shut-off valve
With shut-off valve

This item is incoming, pre-order now

Ready for shipping from early March, pre-order now

Ready for shipping from early April, pre-order now

Ready for shipping from early March, pre-order now

This item is incoming, pre-order now

Ready for shipping from early March, pre-order now

Ready for shipping from early April, pre-order now

Ready for shipping from early March, pre-order now

Only 999 available

Price incl. VAT and excl. shipping

This variant is currently unavailable. Please select another option.

Product information

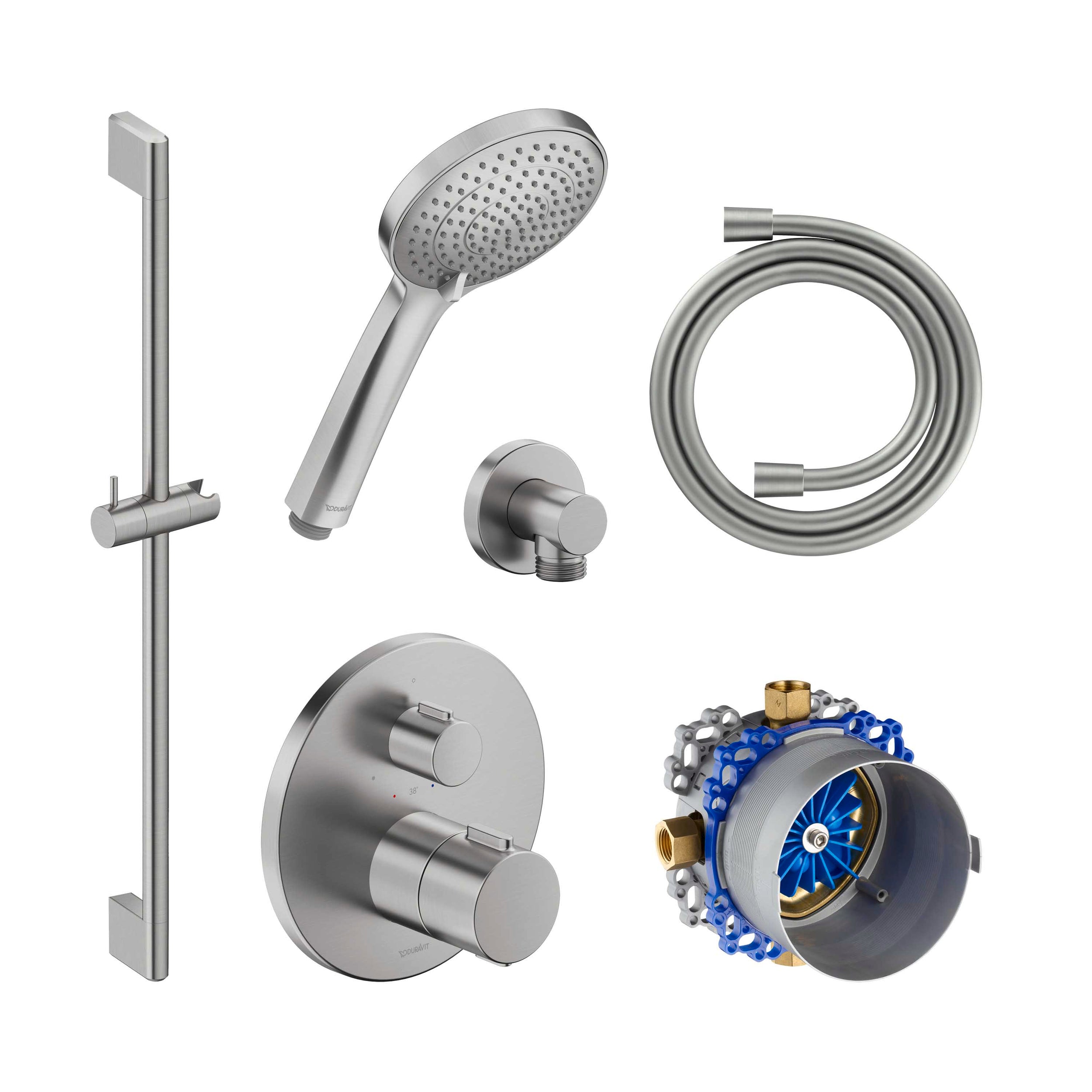

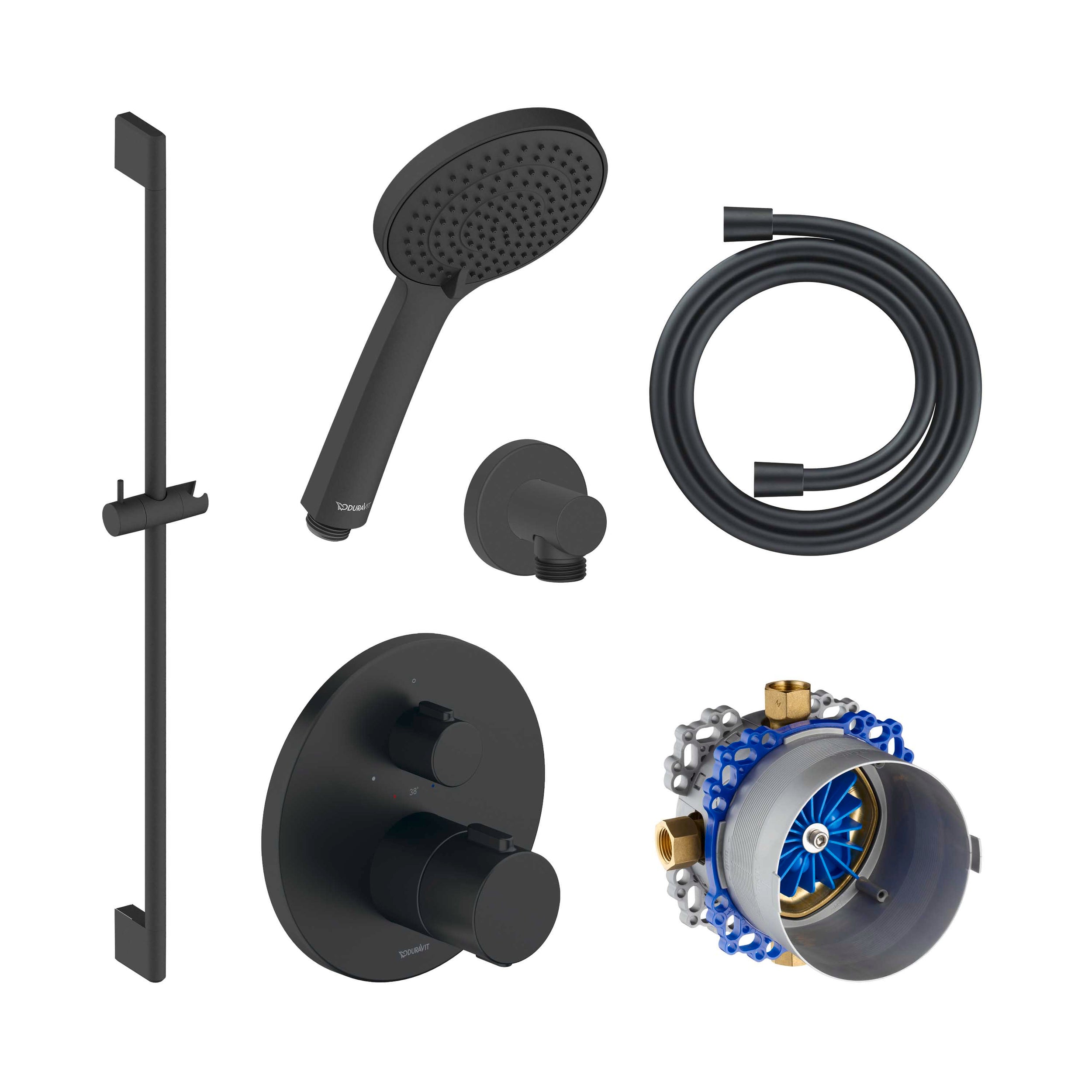

Complete concealed shower set for comfort and safety

The Duravit shower set combines proven components with modern concealed technology and ensures a comfortable, safe shower experience.

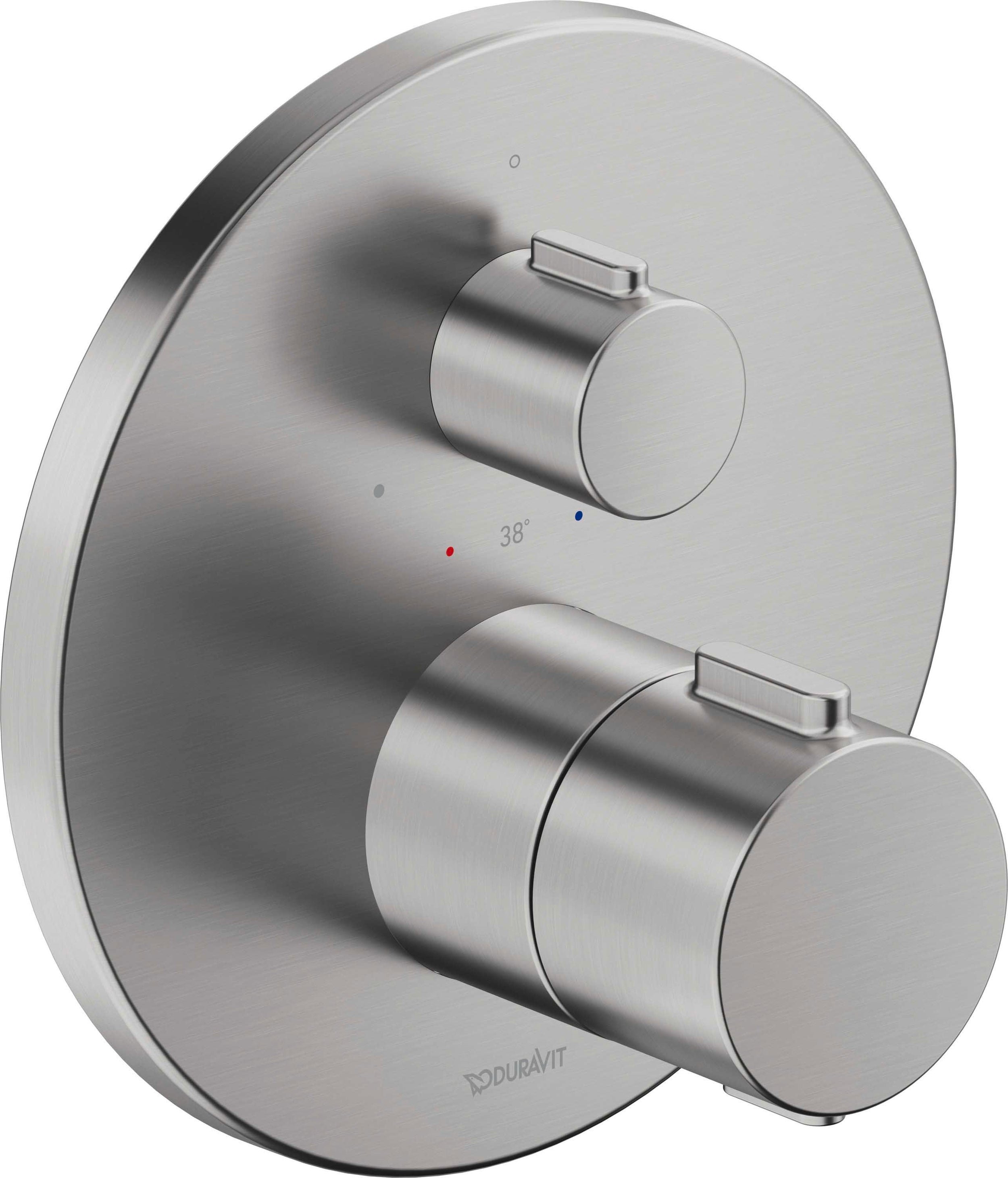

The thermostatic mixer for concealed installation impresses with its clear, minimalist design and precise temperature control. The high-quality thermostat cartridge keeps the water temperature constant, while the integrated HeatLock safety stop at 38 °C reliably protects against scalding. With a flow rate of 20.5 l/min at 3 bar, the fitting is also suitable for operation with instantaneous water heaters.

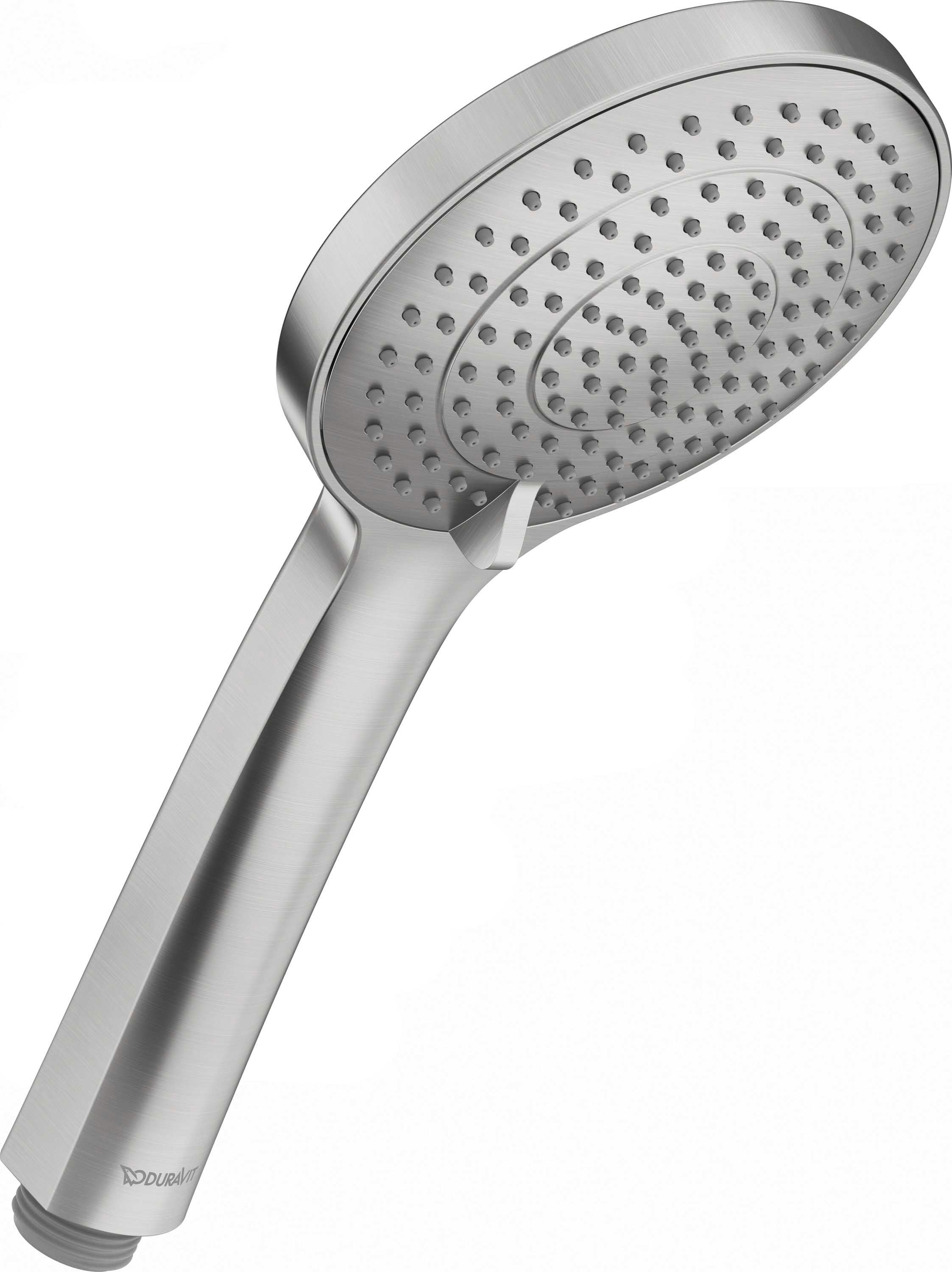

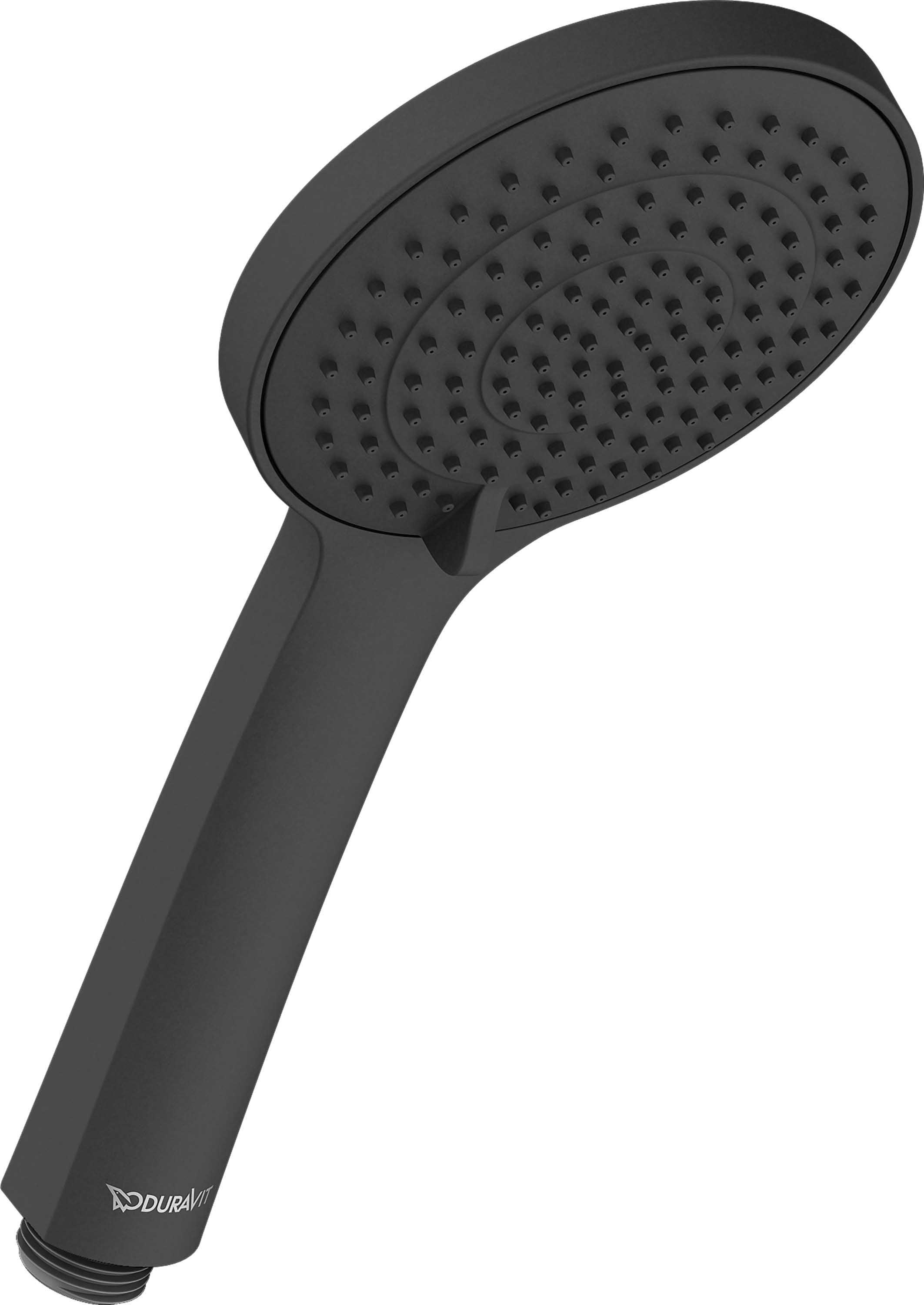

The system is complemented by the hand shower, which offers individual shower comfort with three spray modes and is particularly easy to clean thanks to the EasyClean function. In combination with the flexible shower hose with twist and kink protection and the height-adjustable shower rail, the shower can be conveniently adapted to different needs.

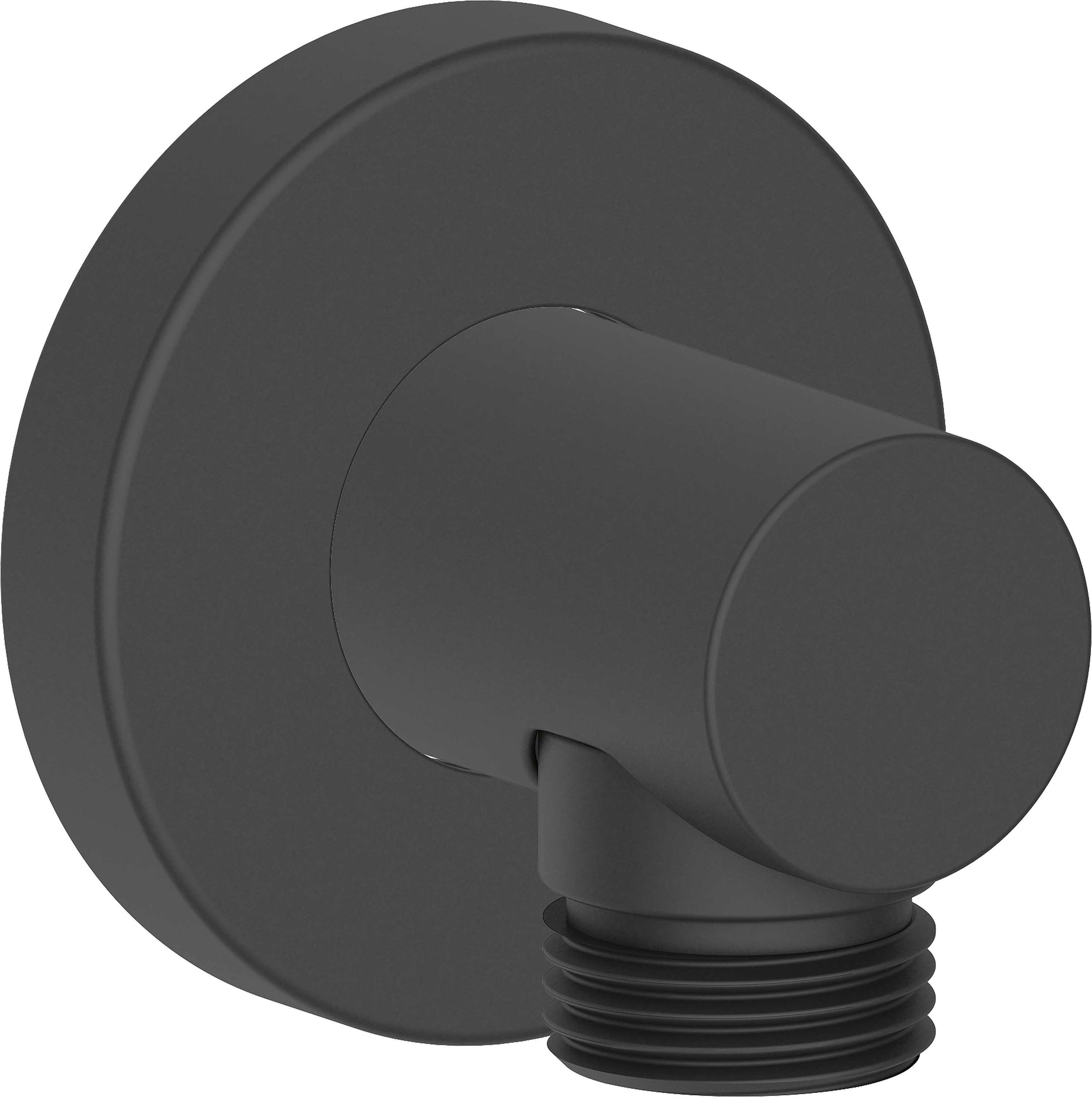

Additionally, the wall elbow with concealed fastening system ensures a clean appearance and reliably protects the installation thanks to the integrated backflow preventer. The set is rounded off by the Duravit BlueBox, which allows a flexible installation depth from 75 to 105 mm and supports precise, clean installation. The BlueBox is optionally available with or without pre-shutoff, offering additional flexibility during installation.

All components are easy to maintain, durable and designed for long-term reliable use. Duravit underscores the quality of the set with a 5-year warranty.

Dimensions and specifications

Shower set
Colour selectable	Chrome \| Matt black \| Brushed stainless steel \| Brushed bronze \| Polished gold

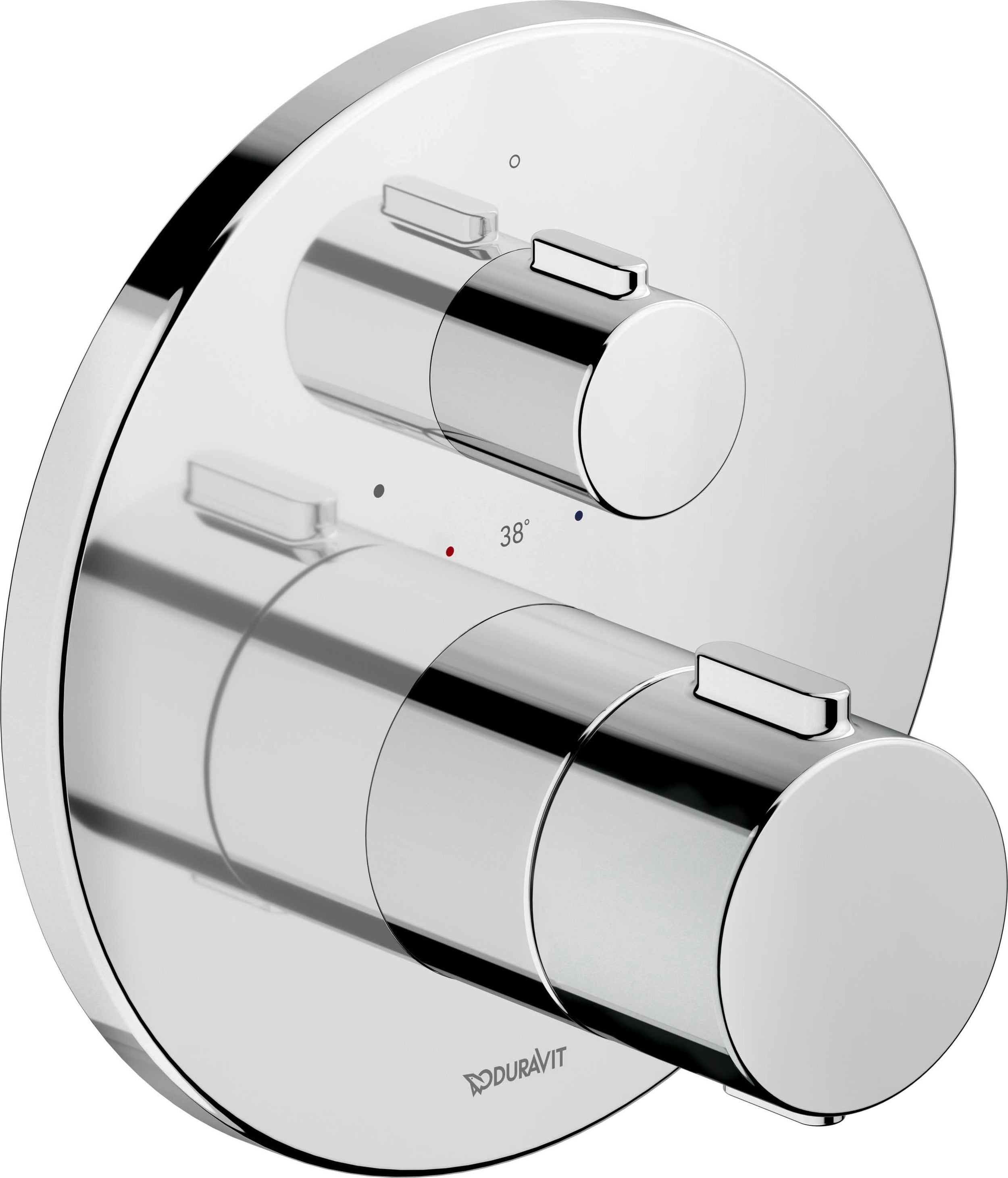

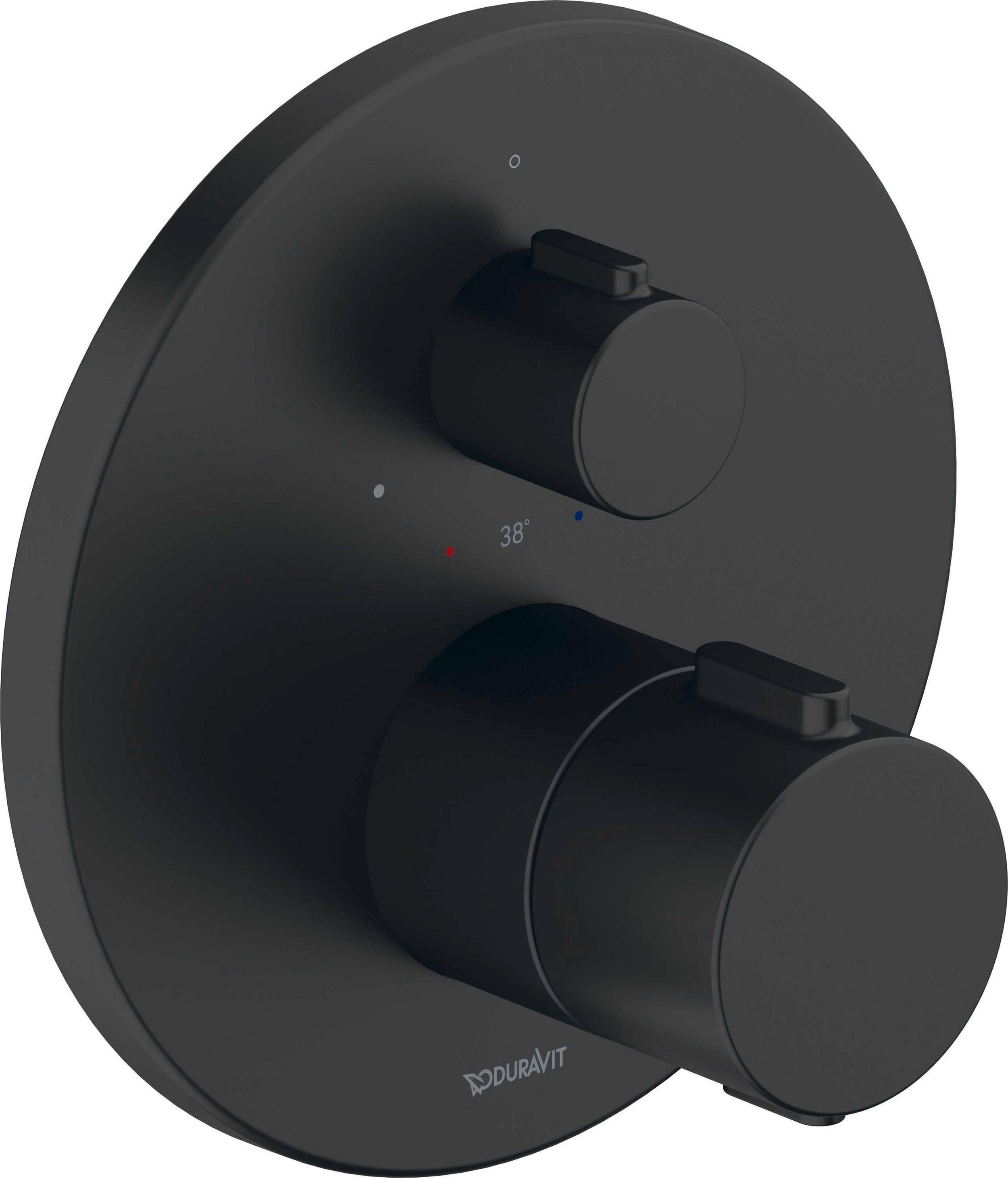

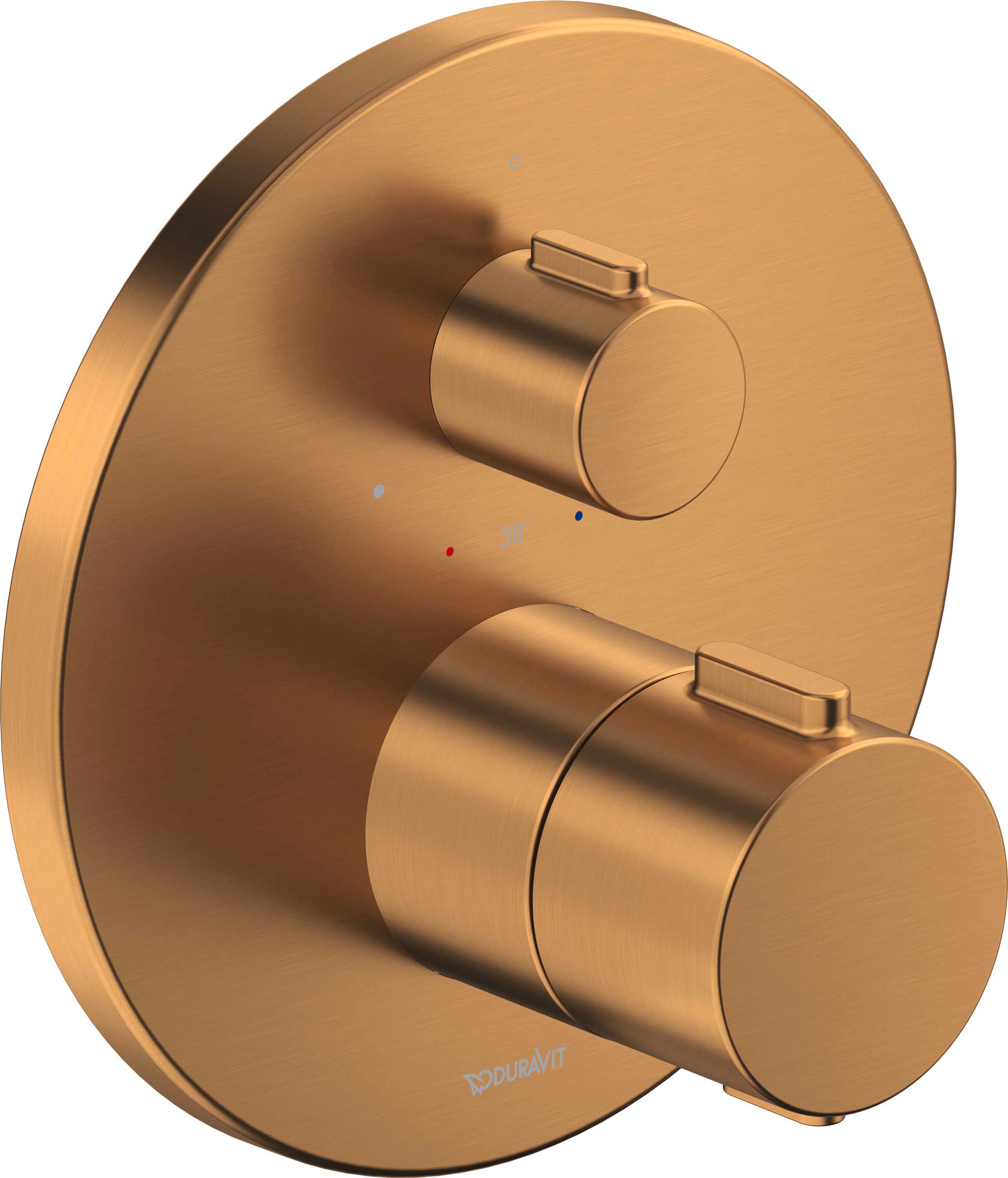

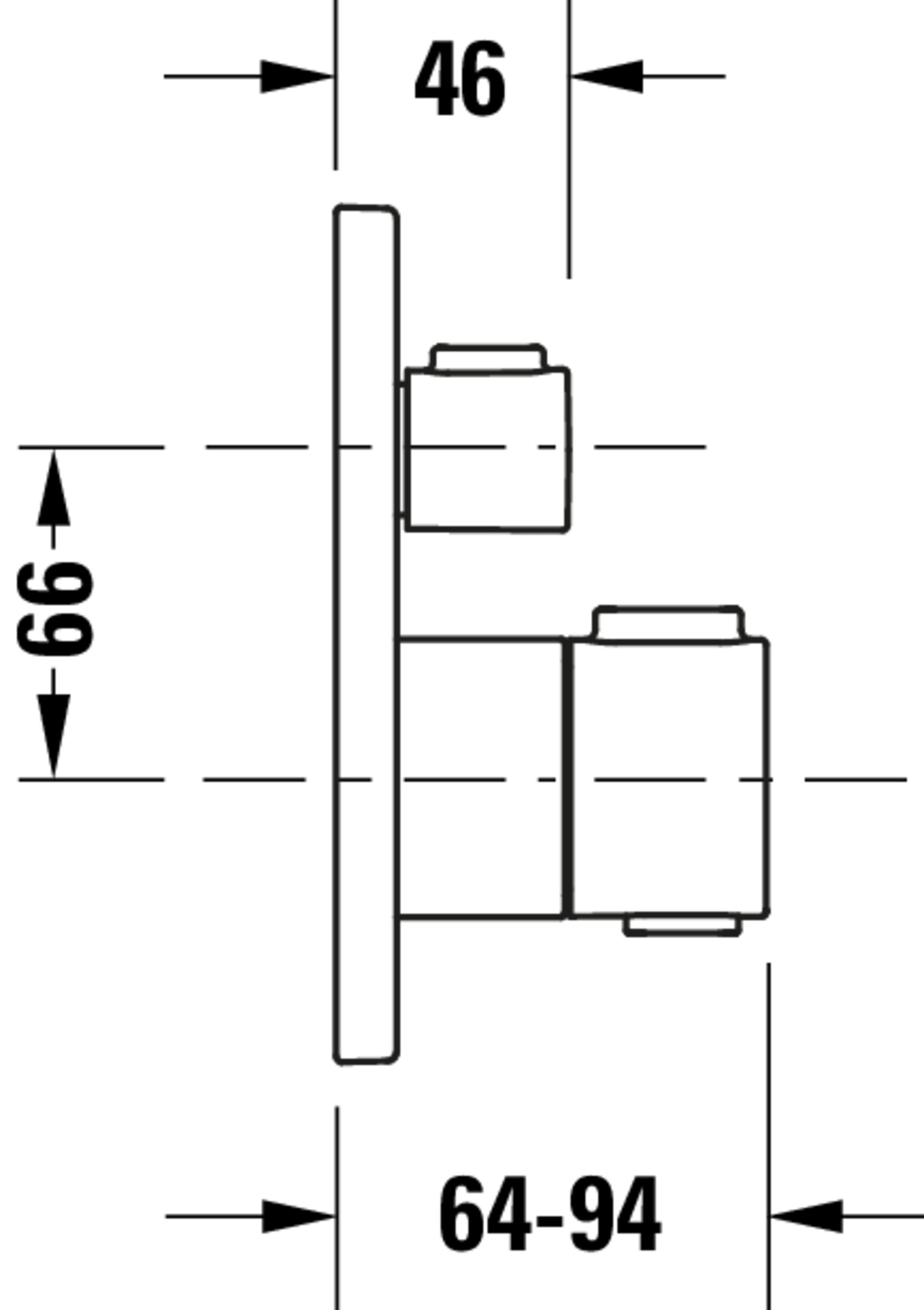

Thermostatic fitting
Material	Brass
Dimensions	Ø 17 cm
Shape	Round
Number of consumers	1 consumer
Temperature control	Thermostatic cartridge
Type of water connection	Base unit
Flow rate (3 bar) [l/min]	20.5
Min. recommended operating pressure (bar)	1
Max. recommended operating pressure (bar)	5
Type of installation	Concealed

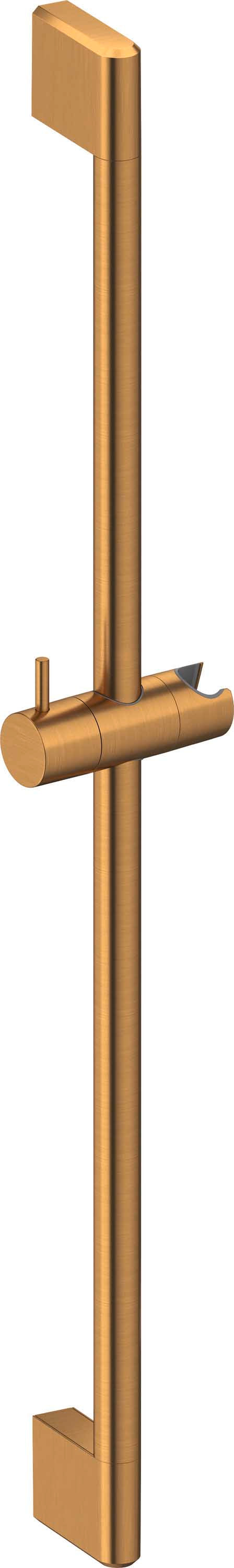

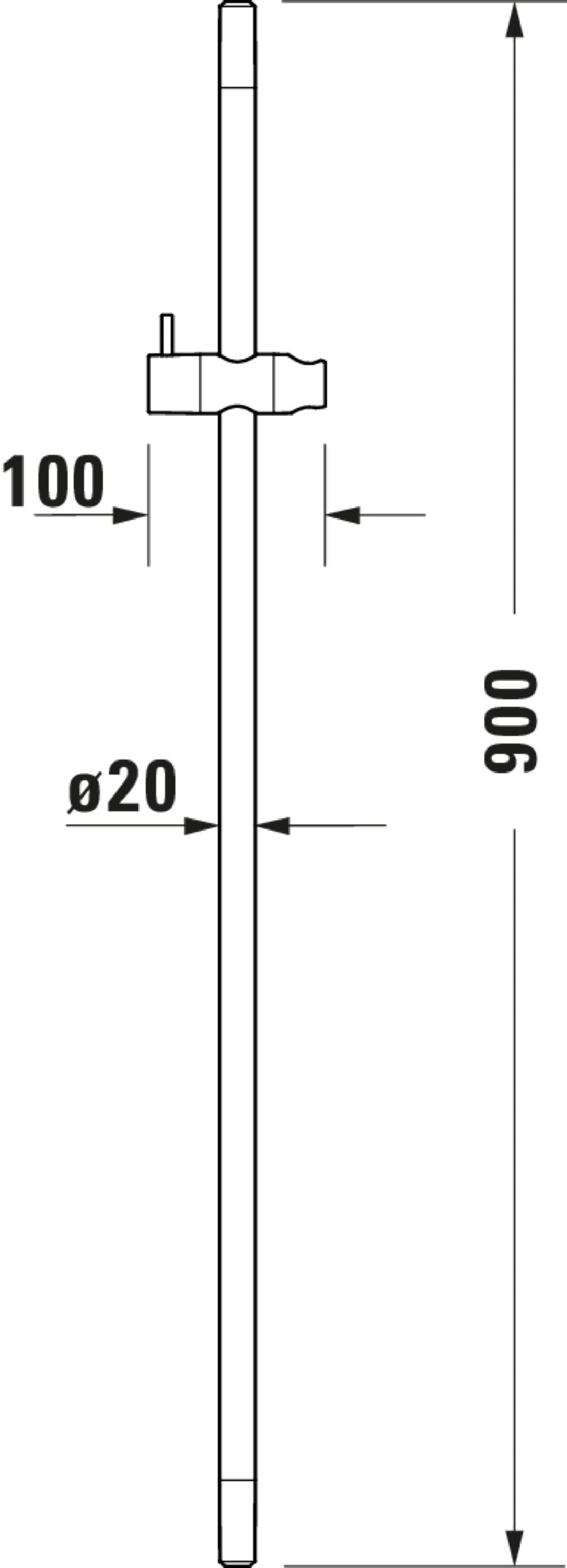

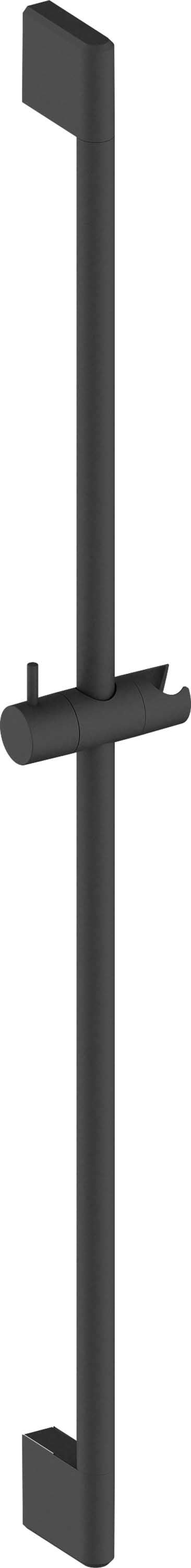

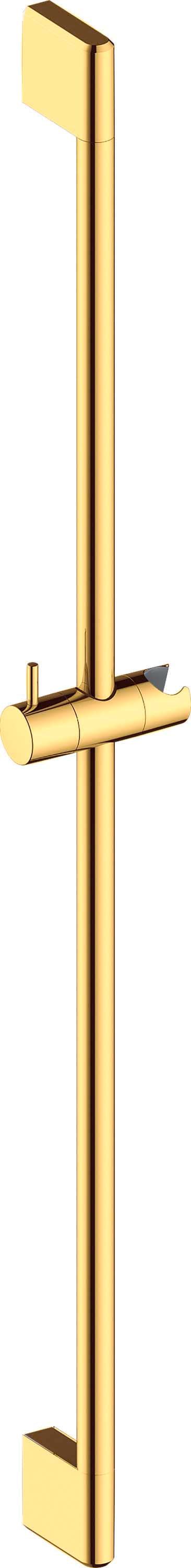

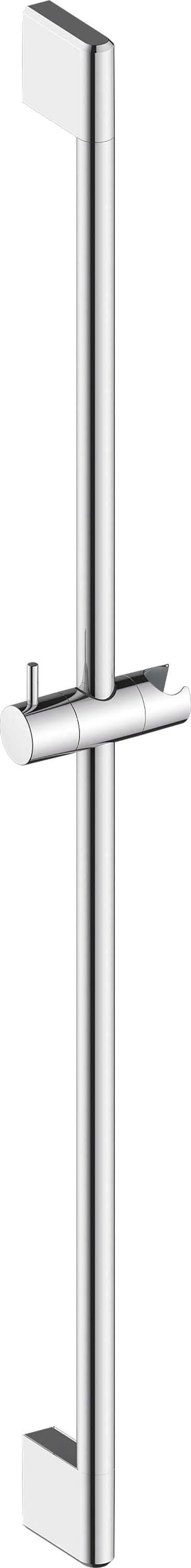

Shower rail
Length	900 mm
Material	Brass \| Plastic
Installation	For drilling
Further details	Angle adjustable, Concealed fixing

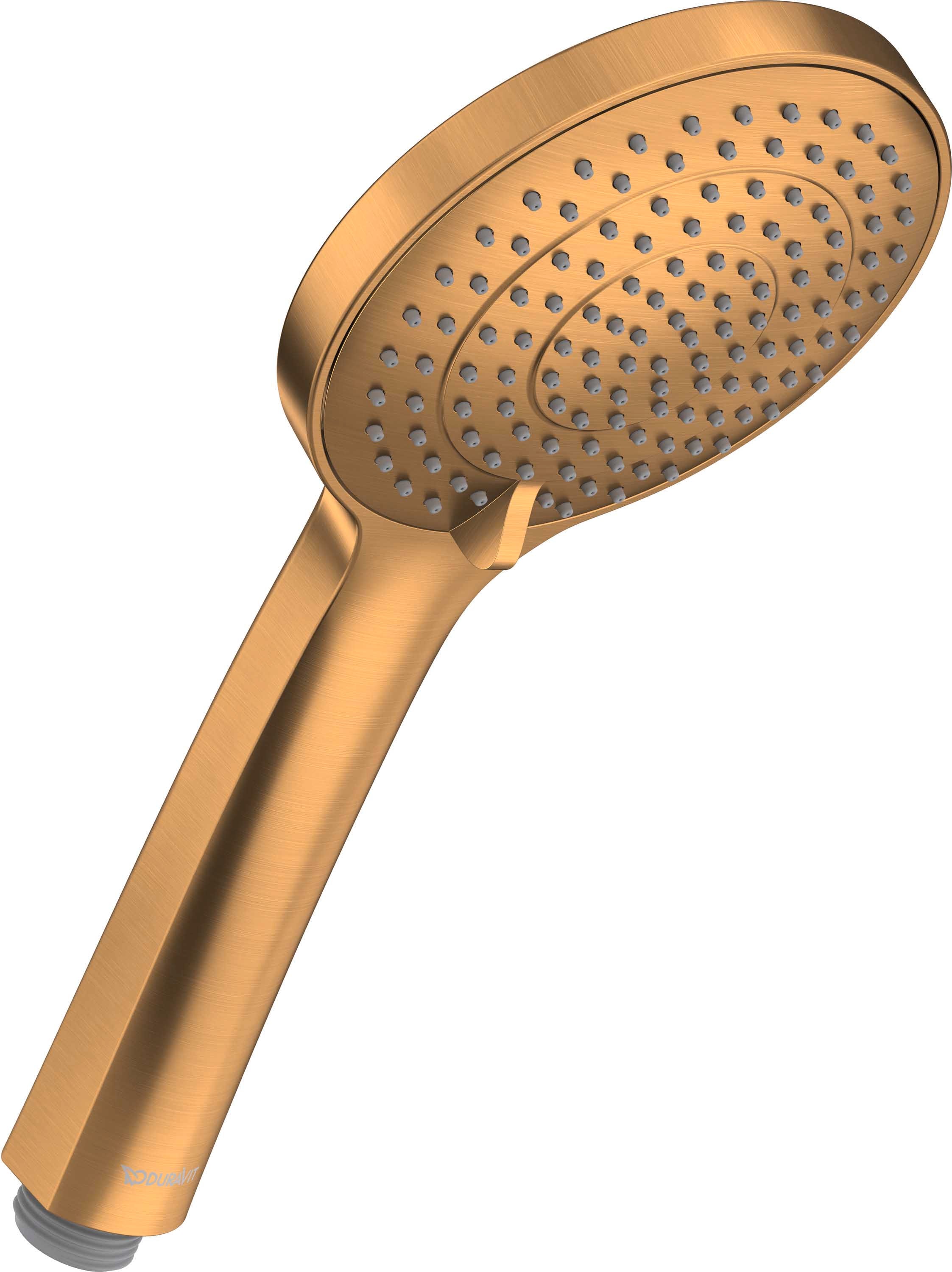

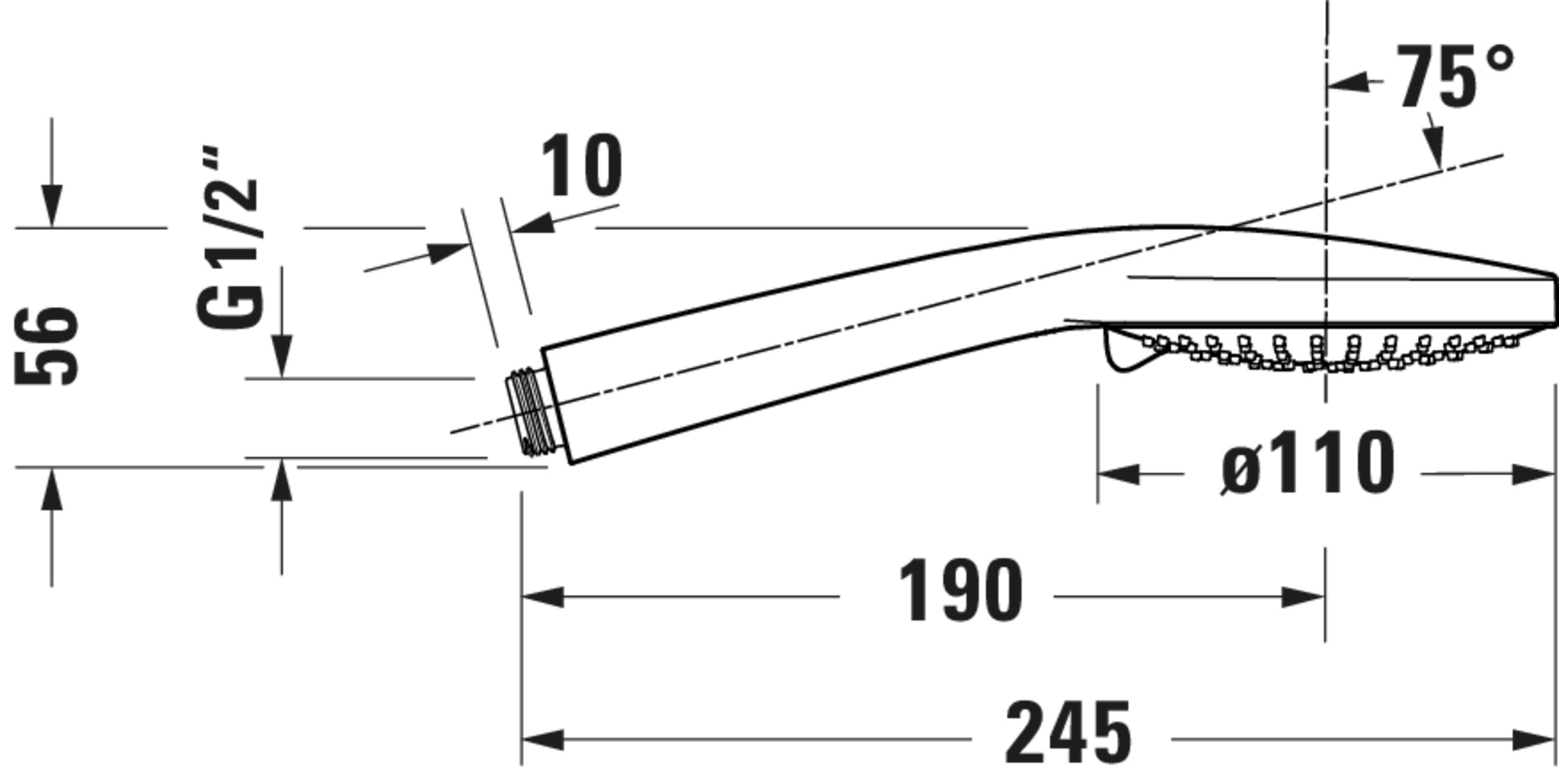

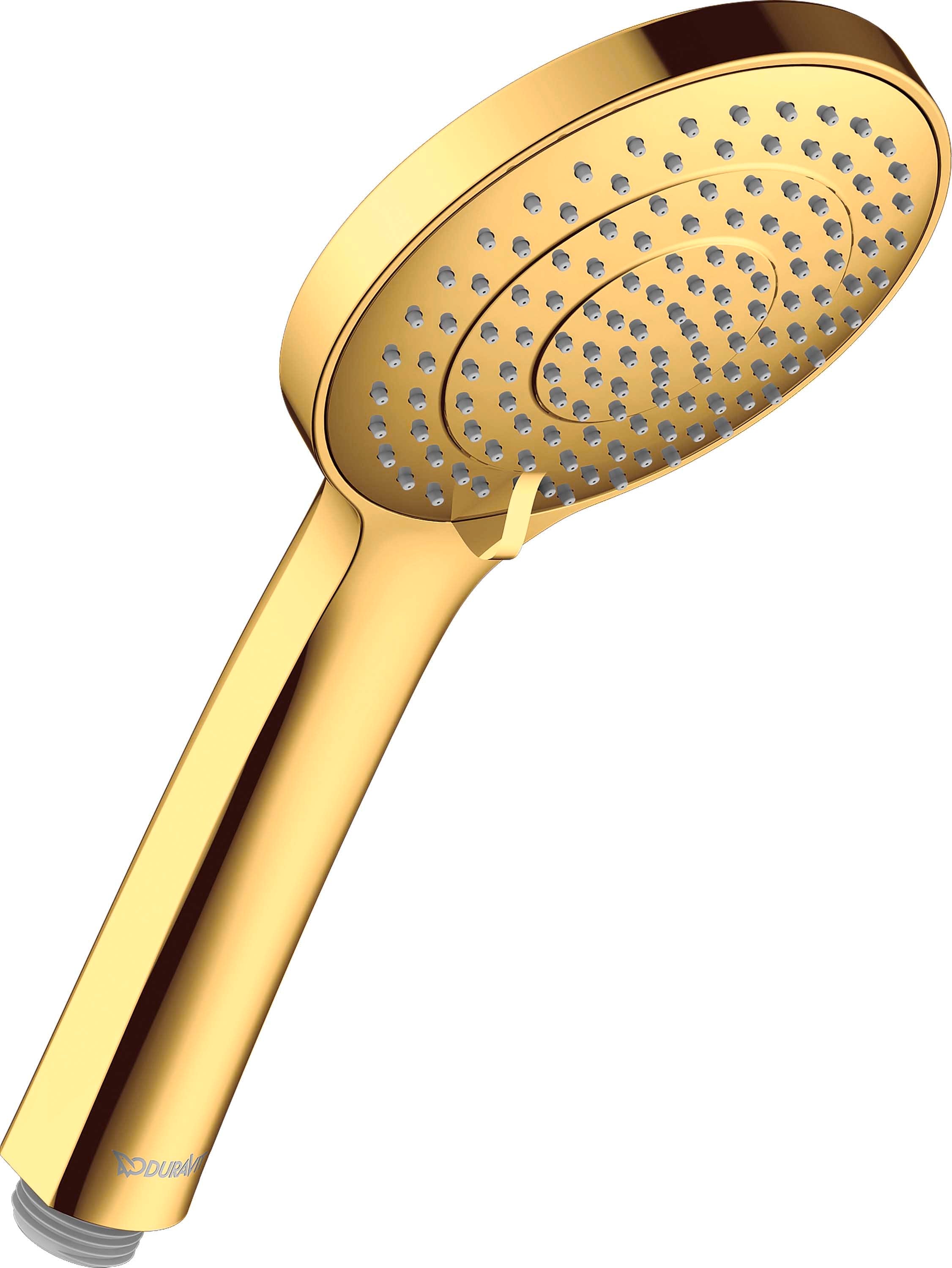

Hand shower
Shape	Round
Spray type	Rain, Intense Rain, Soft Rain
Further details	EasyClean

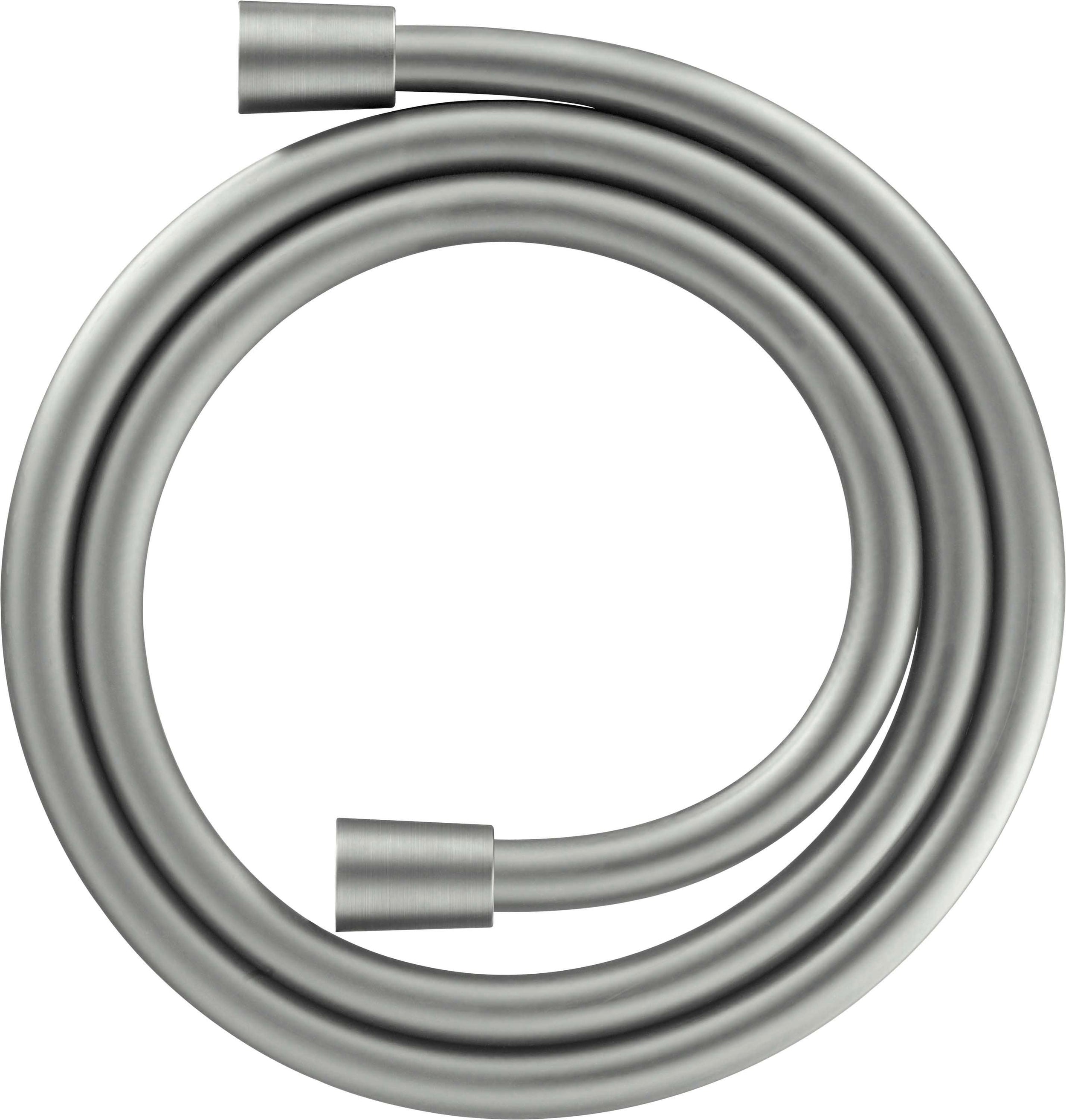

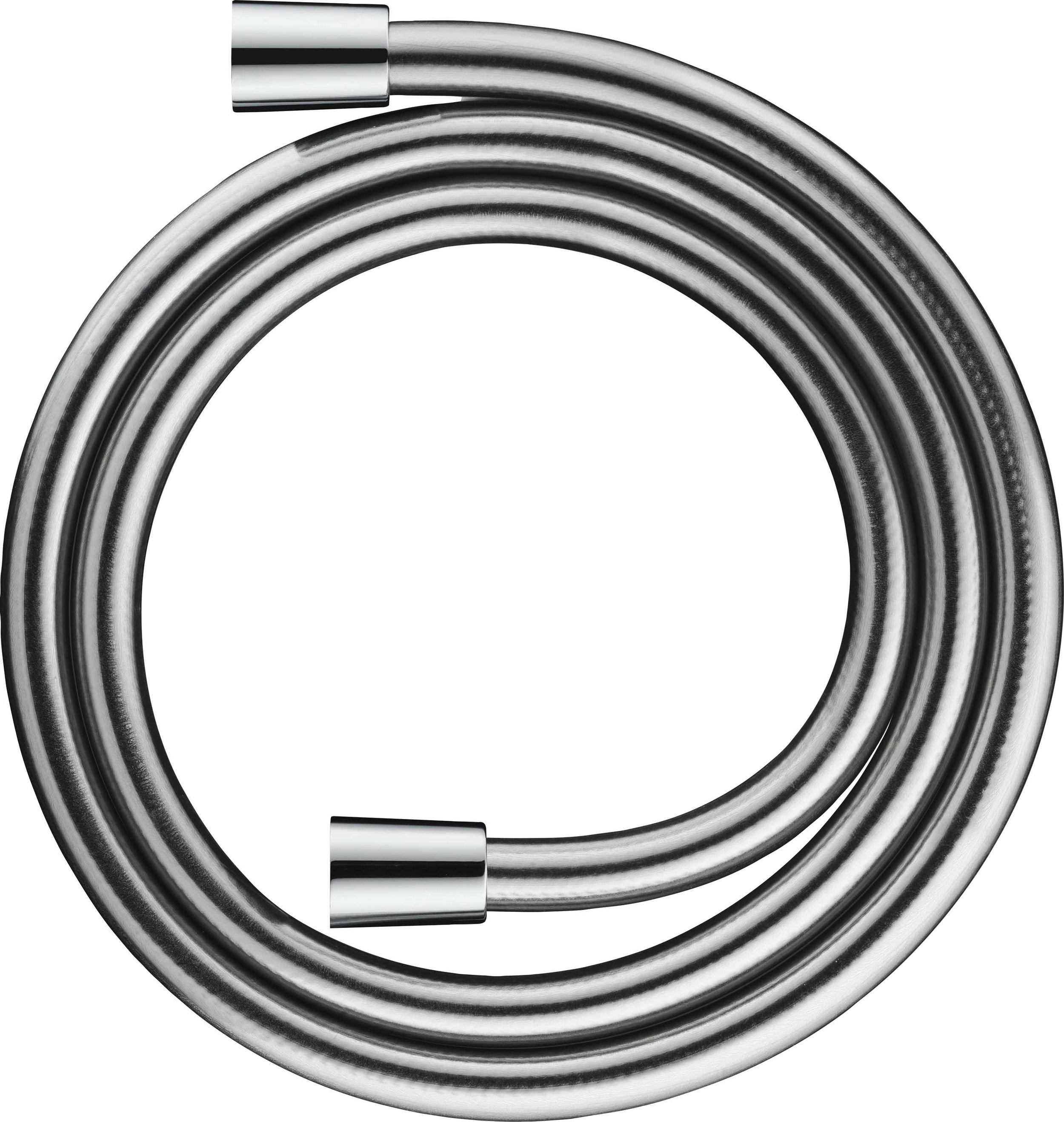

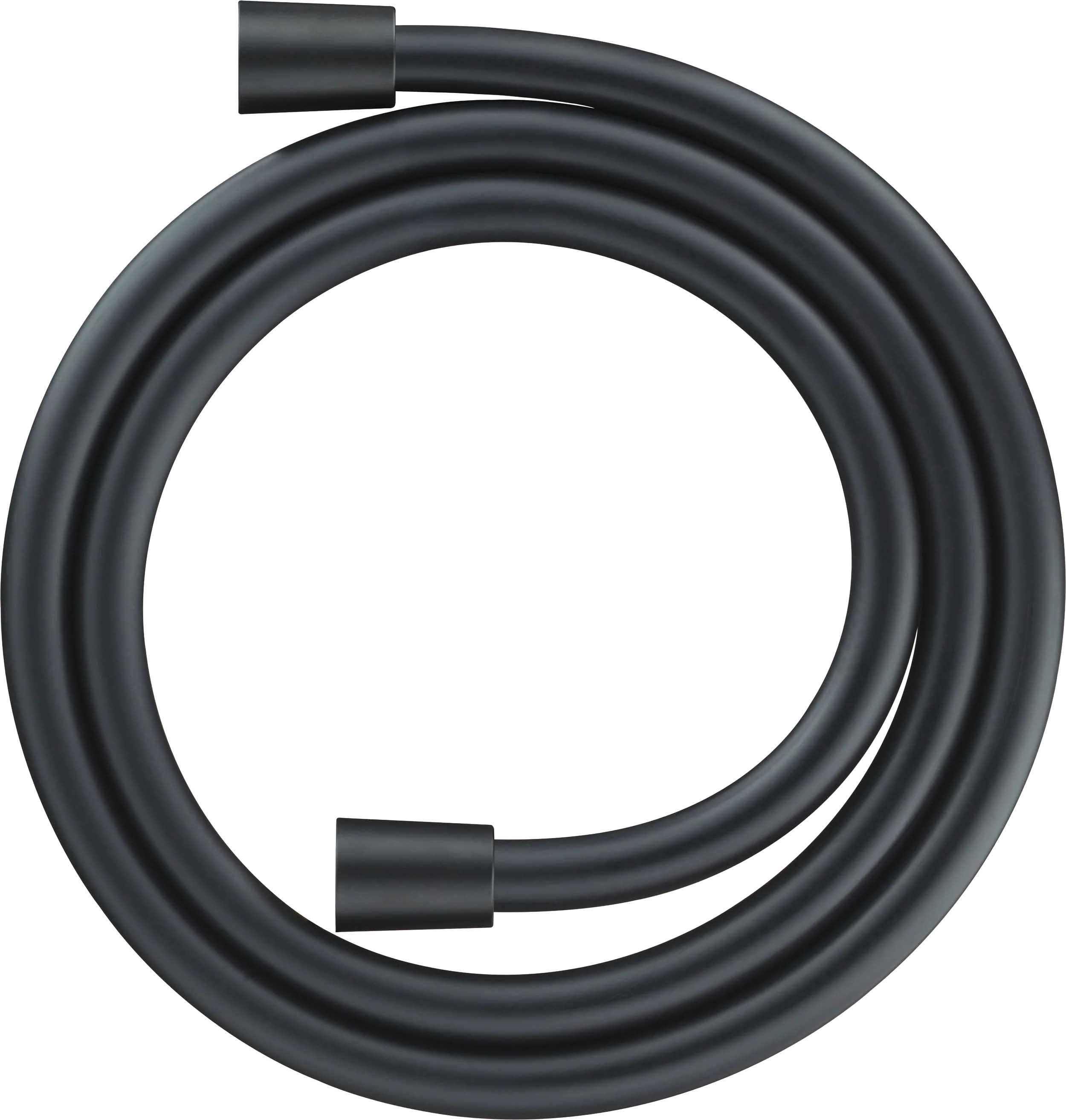

Shower hose
Material	Plastic
Length	1.6 m
Further details	Kink and twist protection

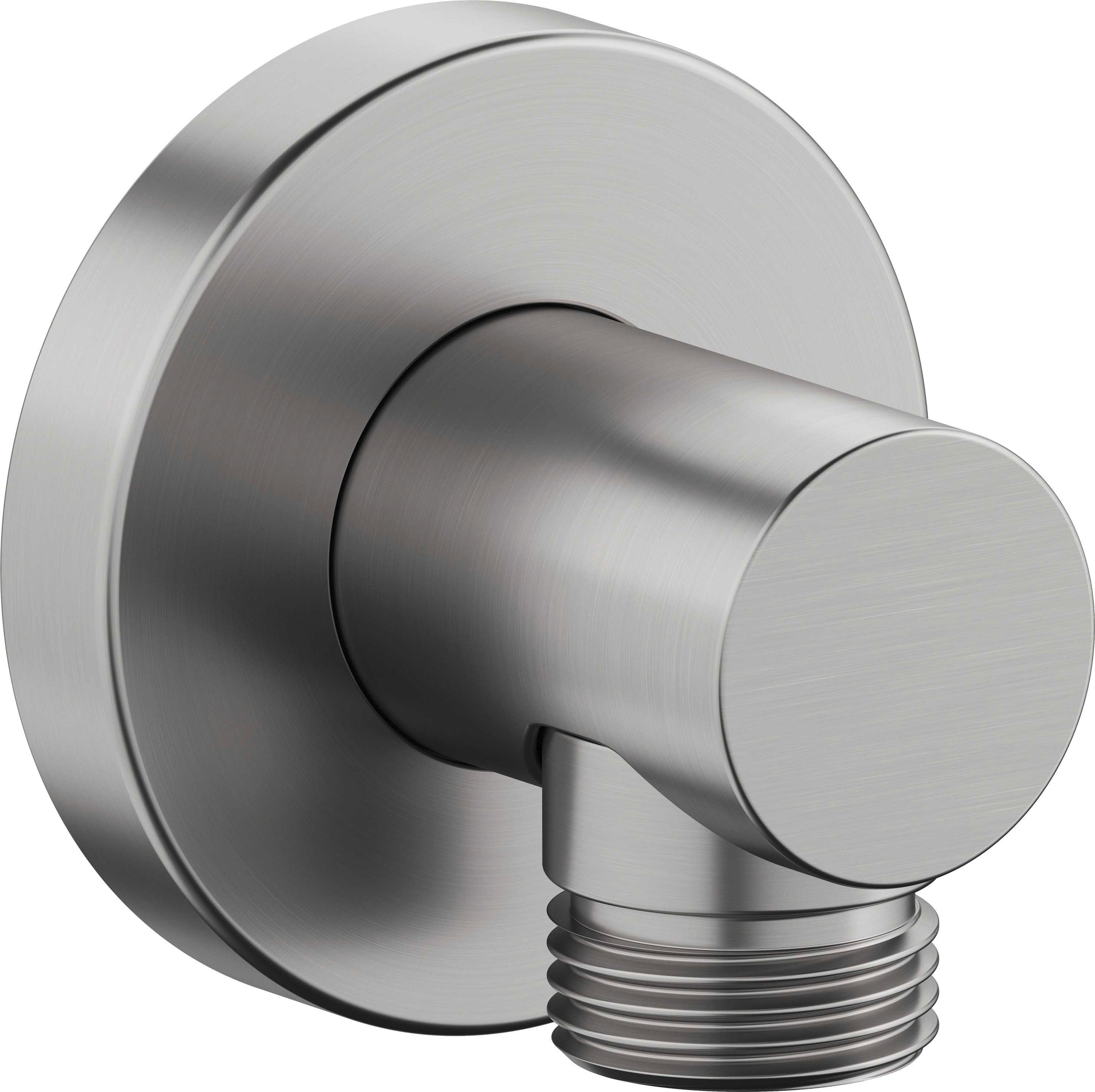

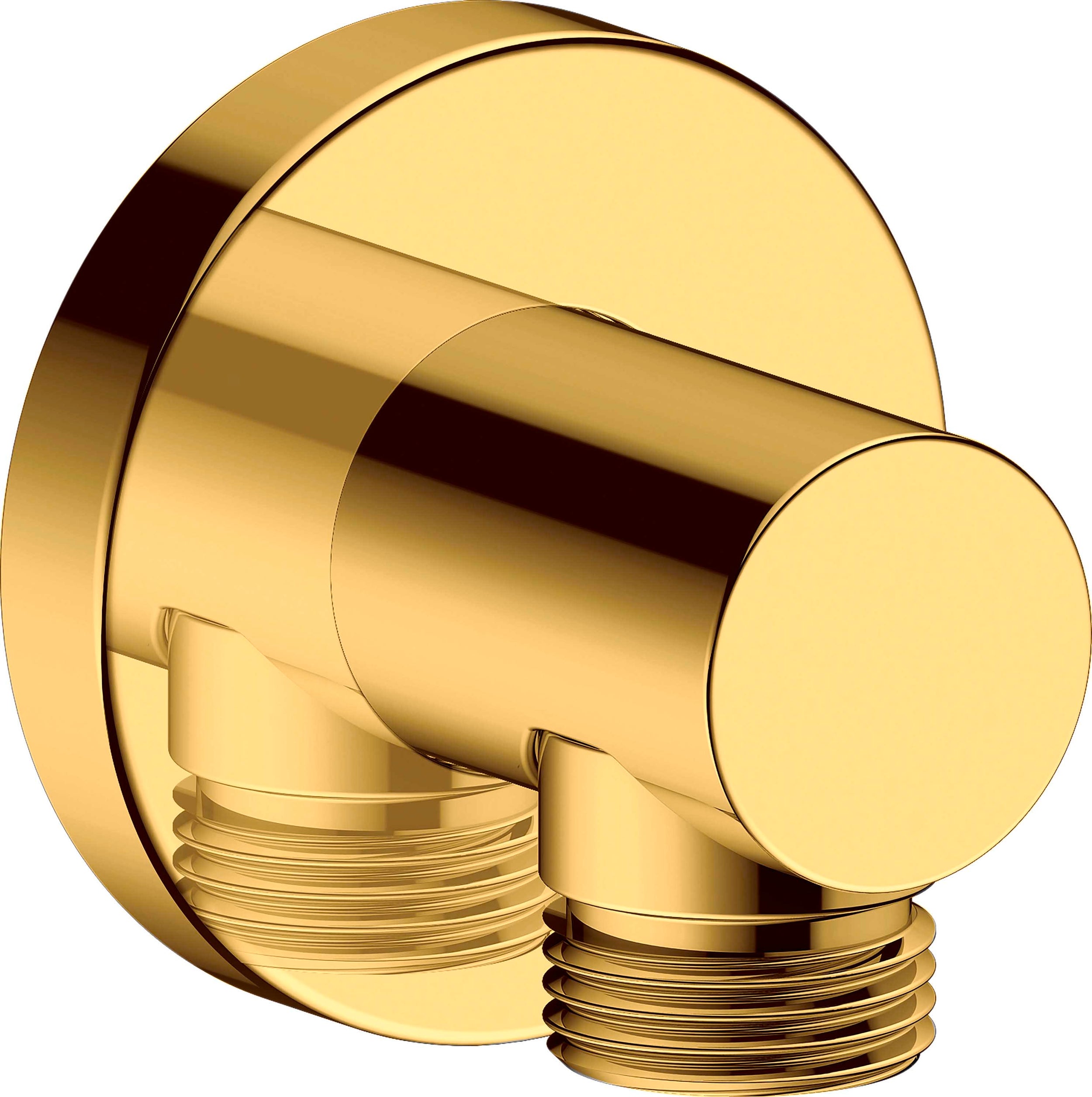

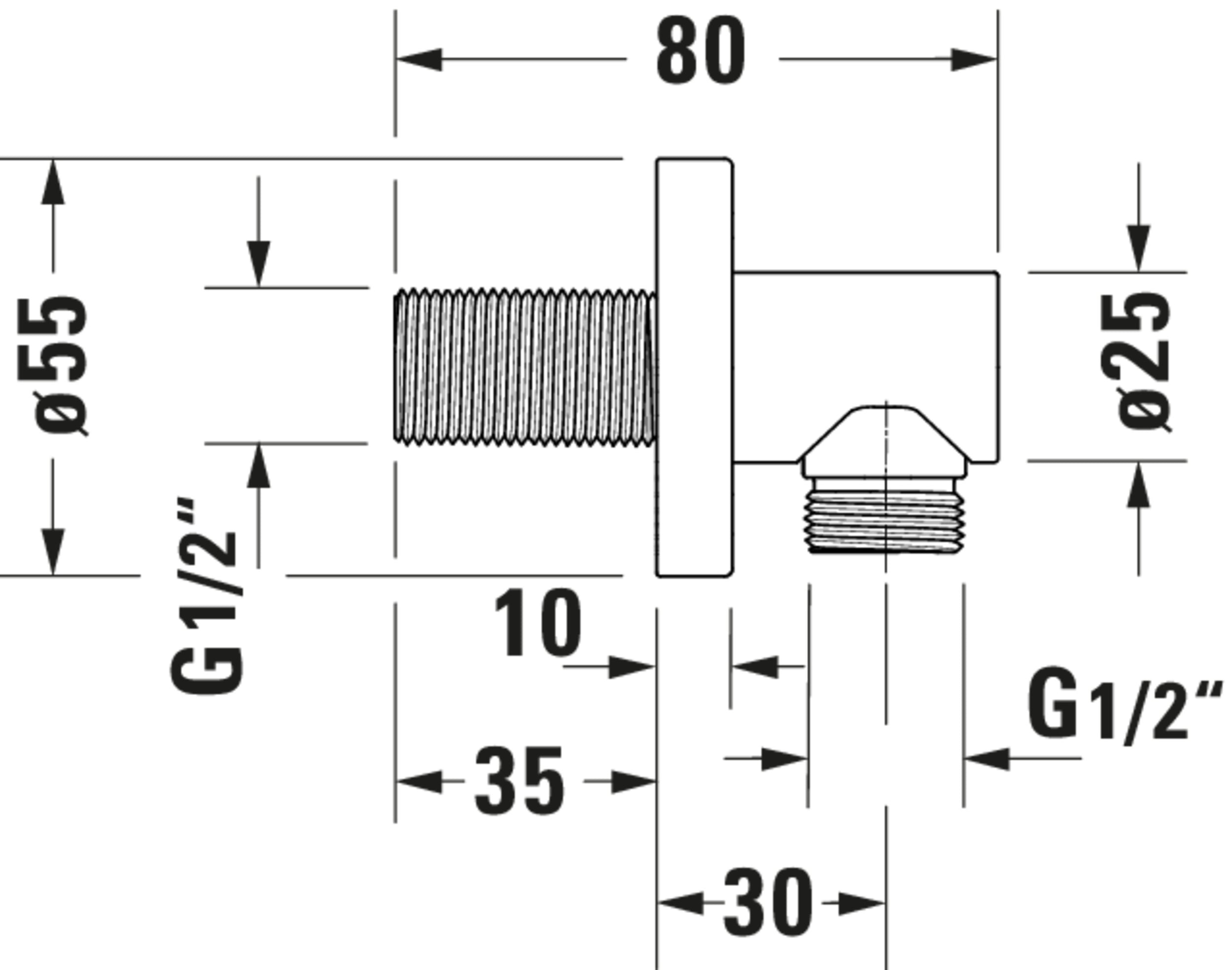

Wall connection elbow
Material	Brass
Connection dimension	G 1/2
Further details	With backflow preventer

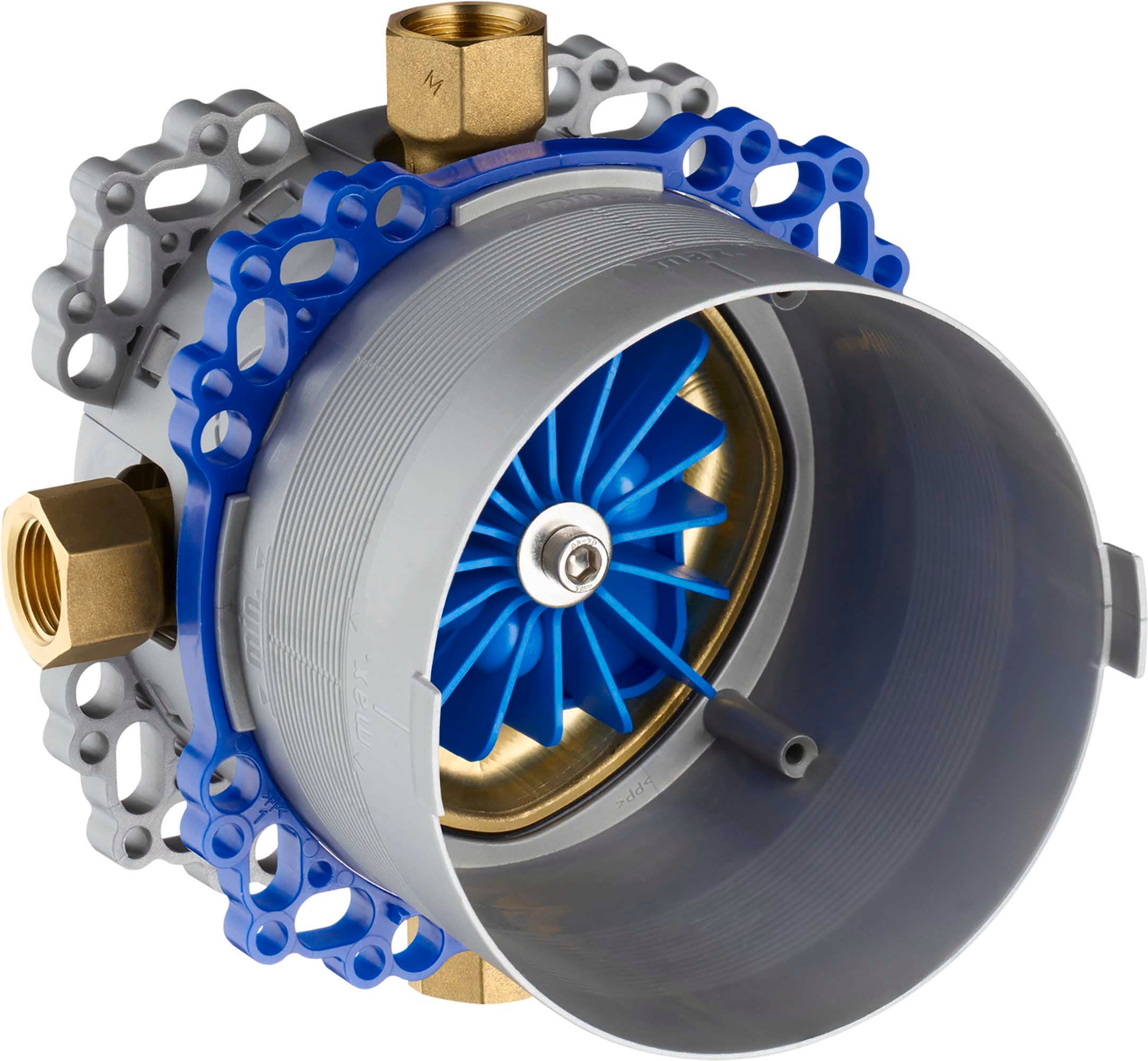

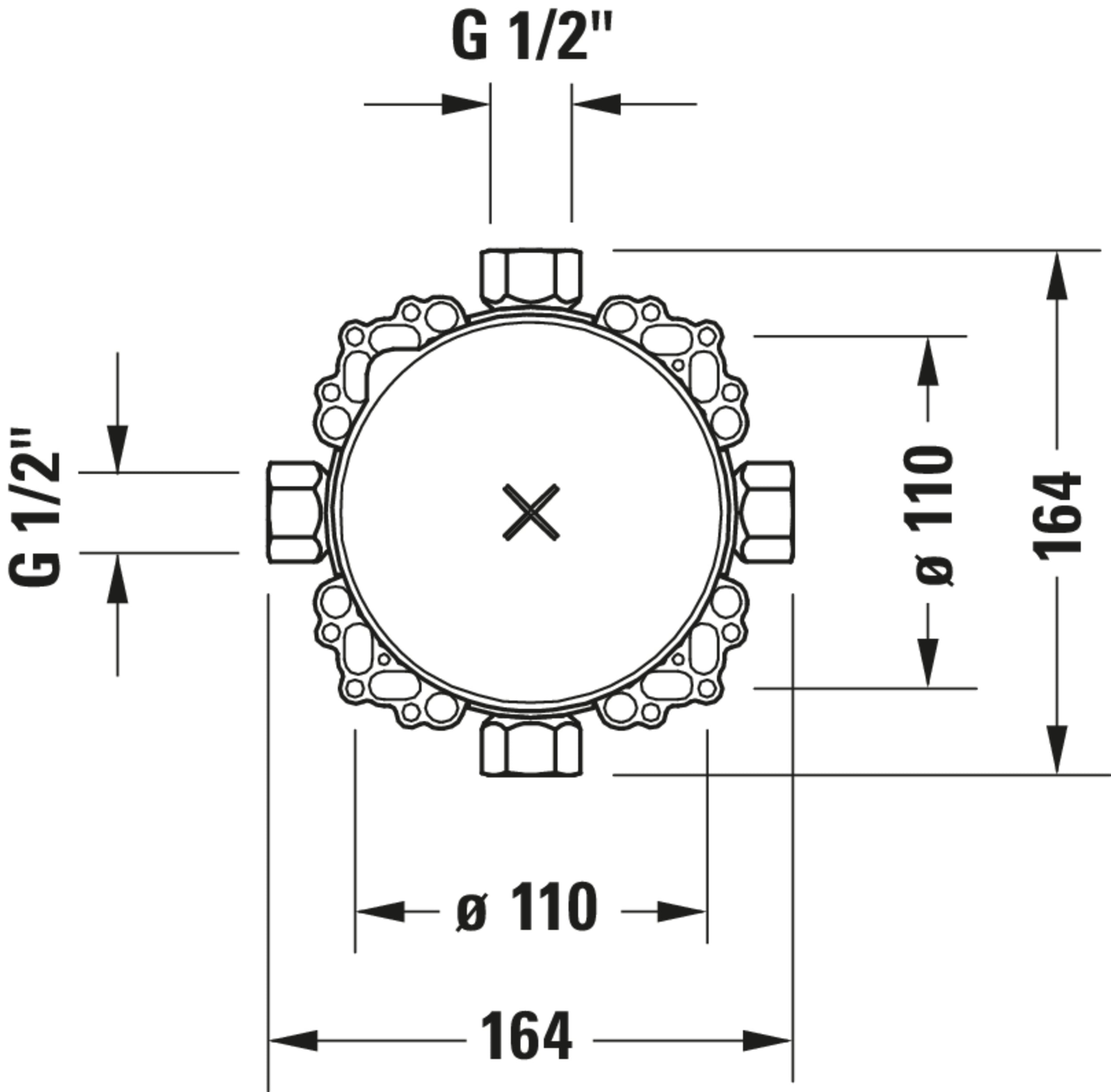

Base unit Bluebox
Material	Brass
Pre-stop selectable	with \| without
Connection size	Without pre-stop: DN15
	With pre-stop: DN20
