Duravit Wave bathtub fitting with thermostat
incl. shower holder, shower hose and rail or hand shower
Product number: 173578
Product number: 173587
Product number: 173588
Product number: 173589
Product number: 173590
Product number: 173591
Product number: 173592
Product number: 173593
Product number: 173594
Product number: 173595
Product information
Thermostatic bath mixer Duravit Wave with matching shower accessories for modern bathroom comfort

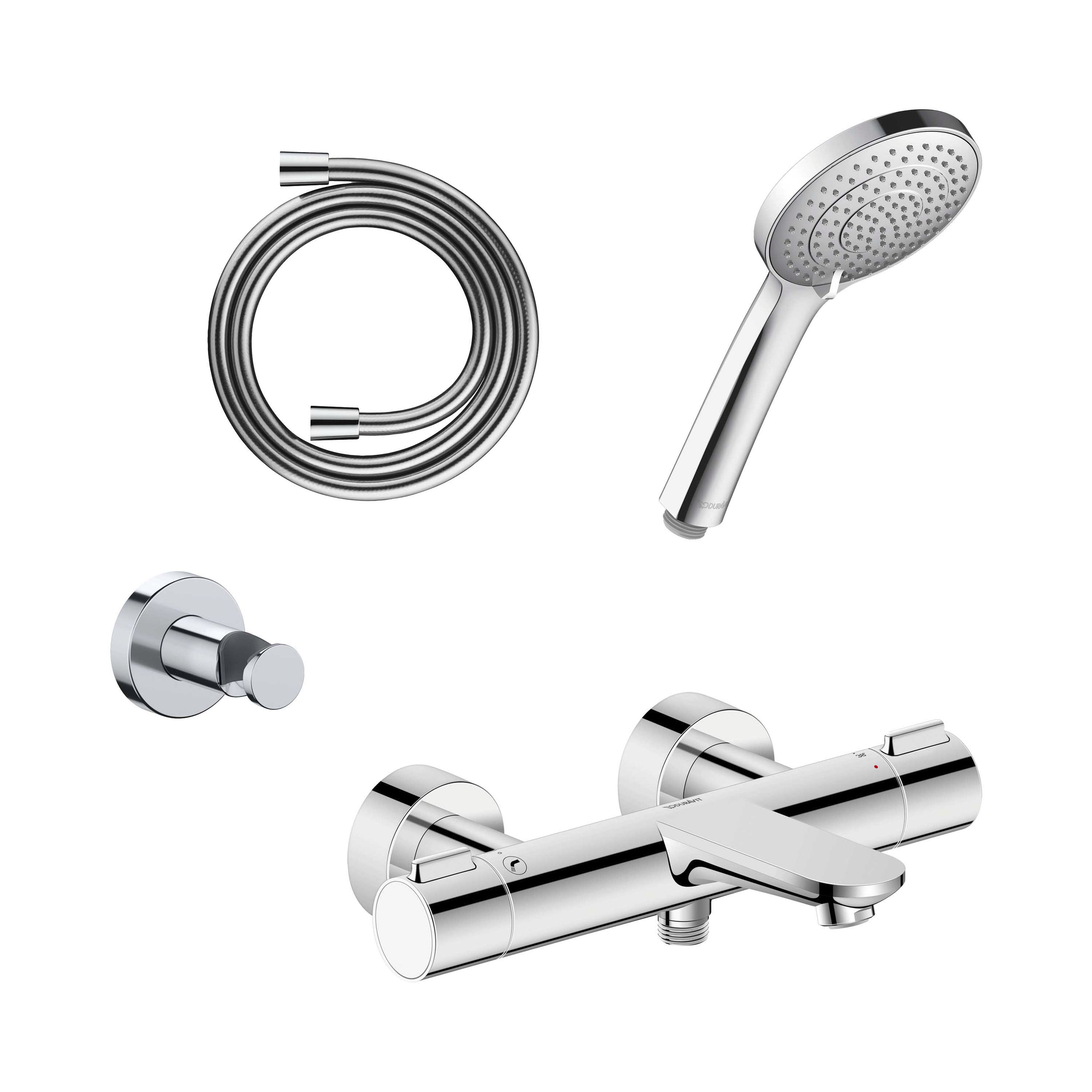

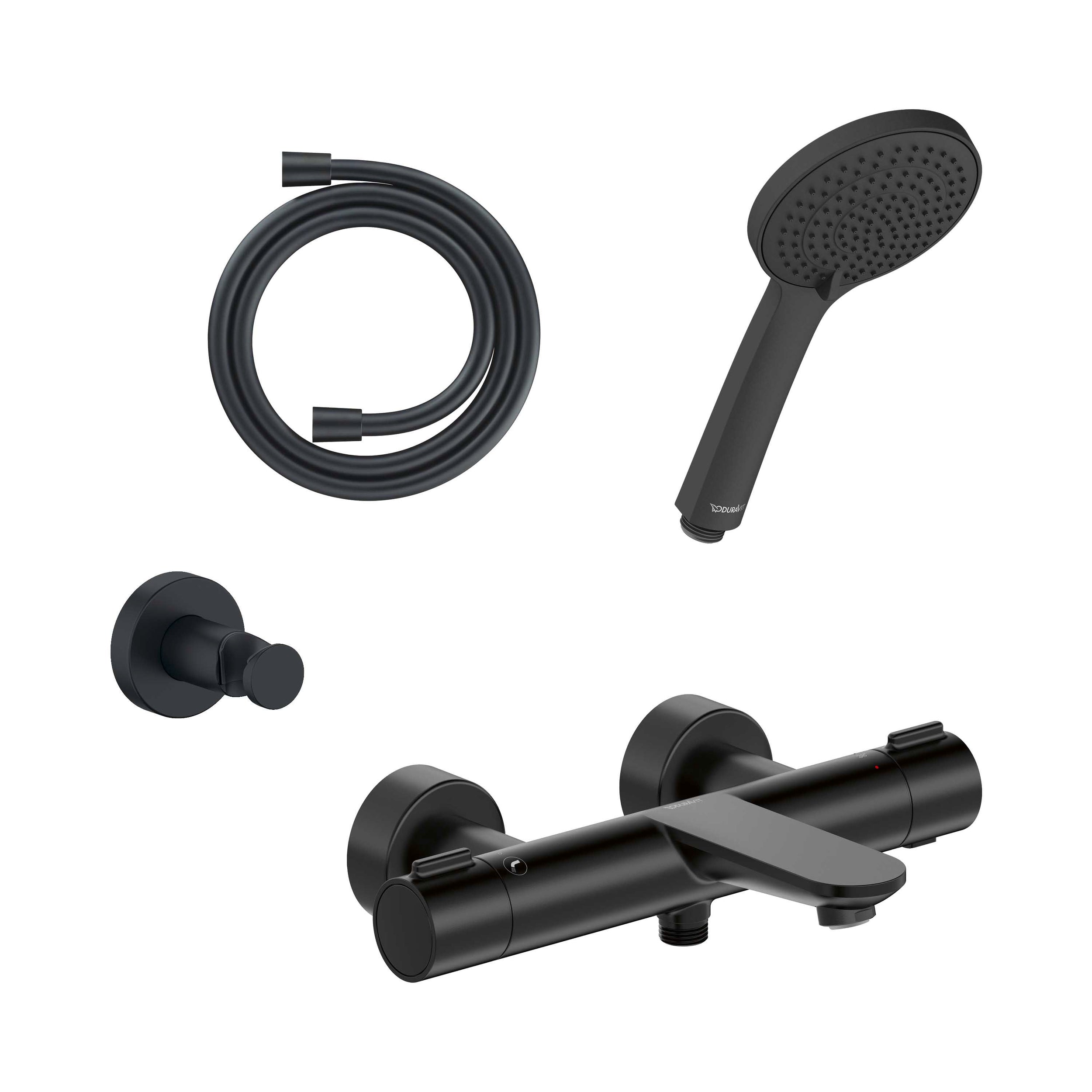

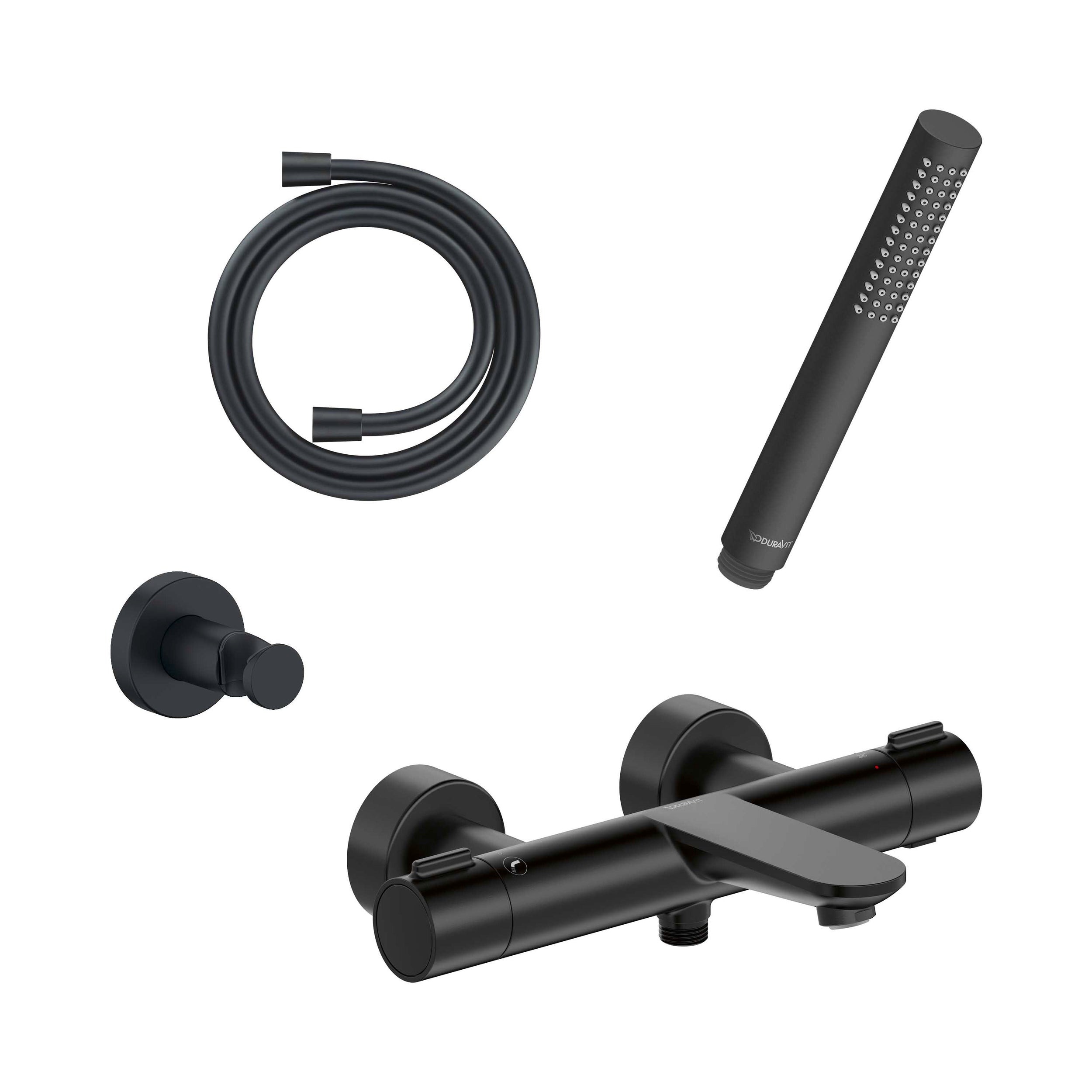

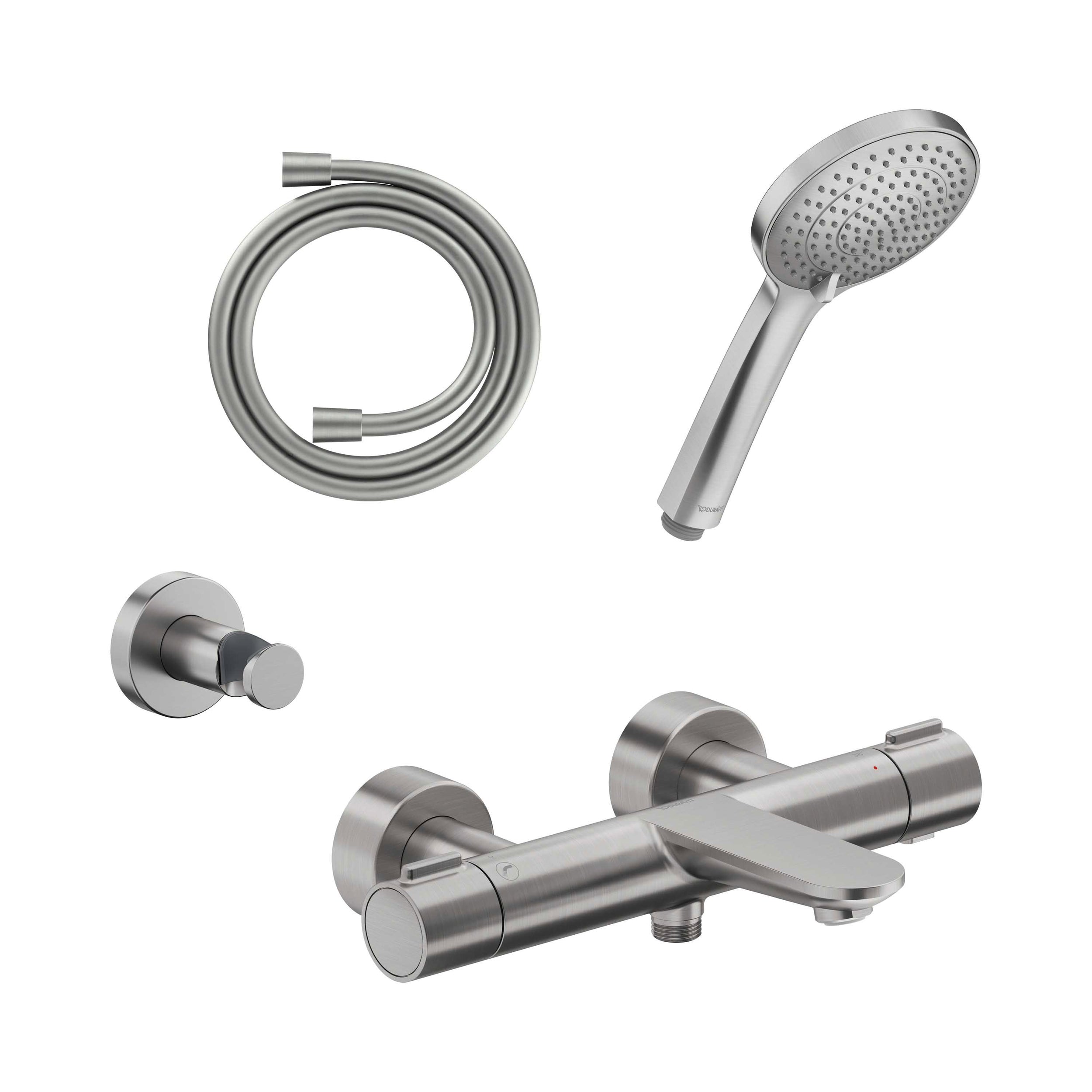

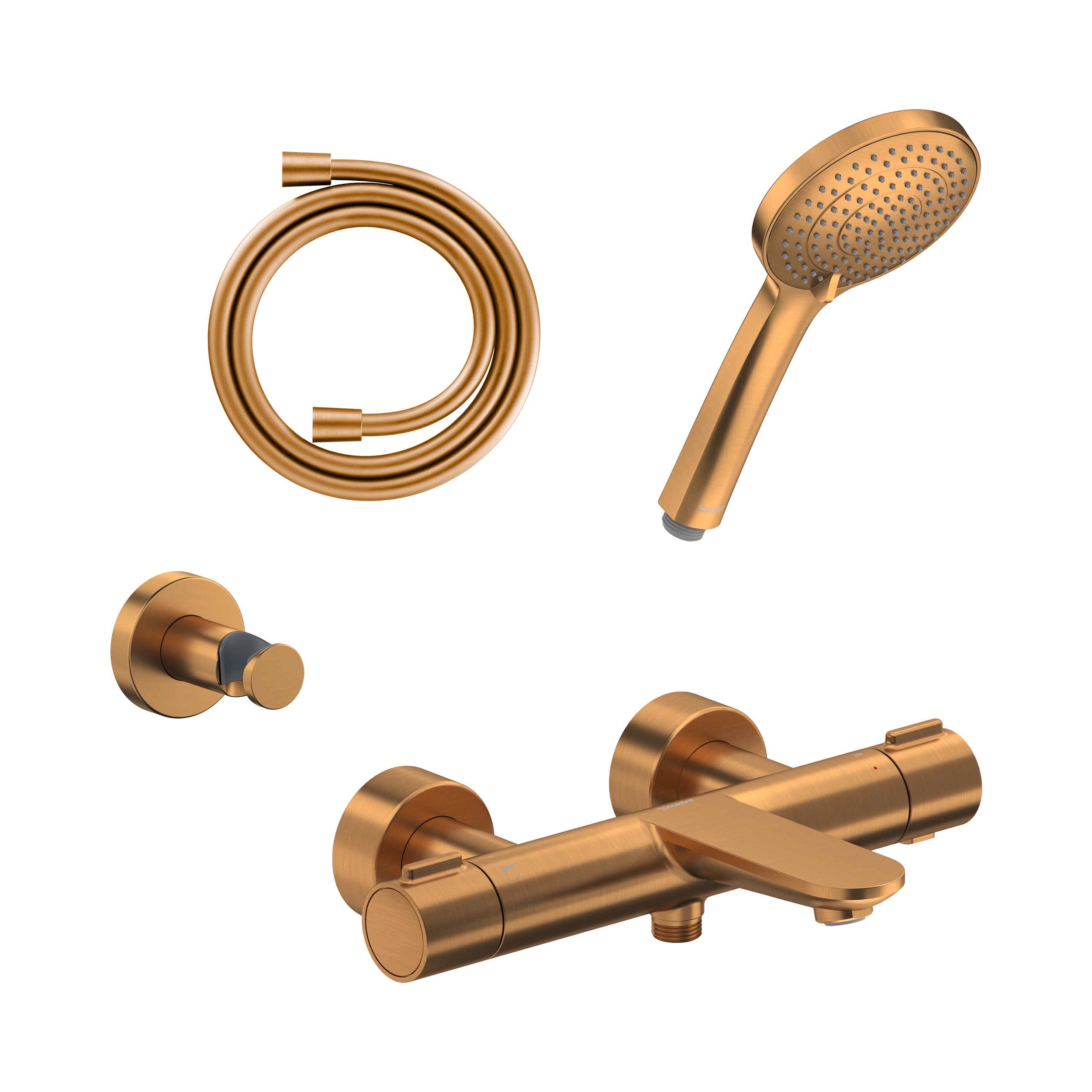

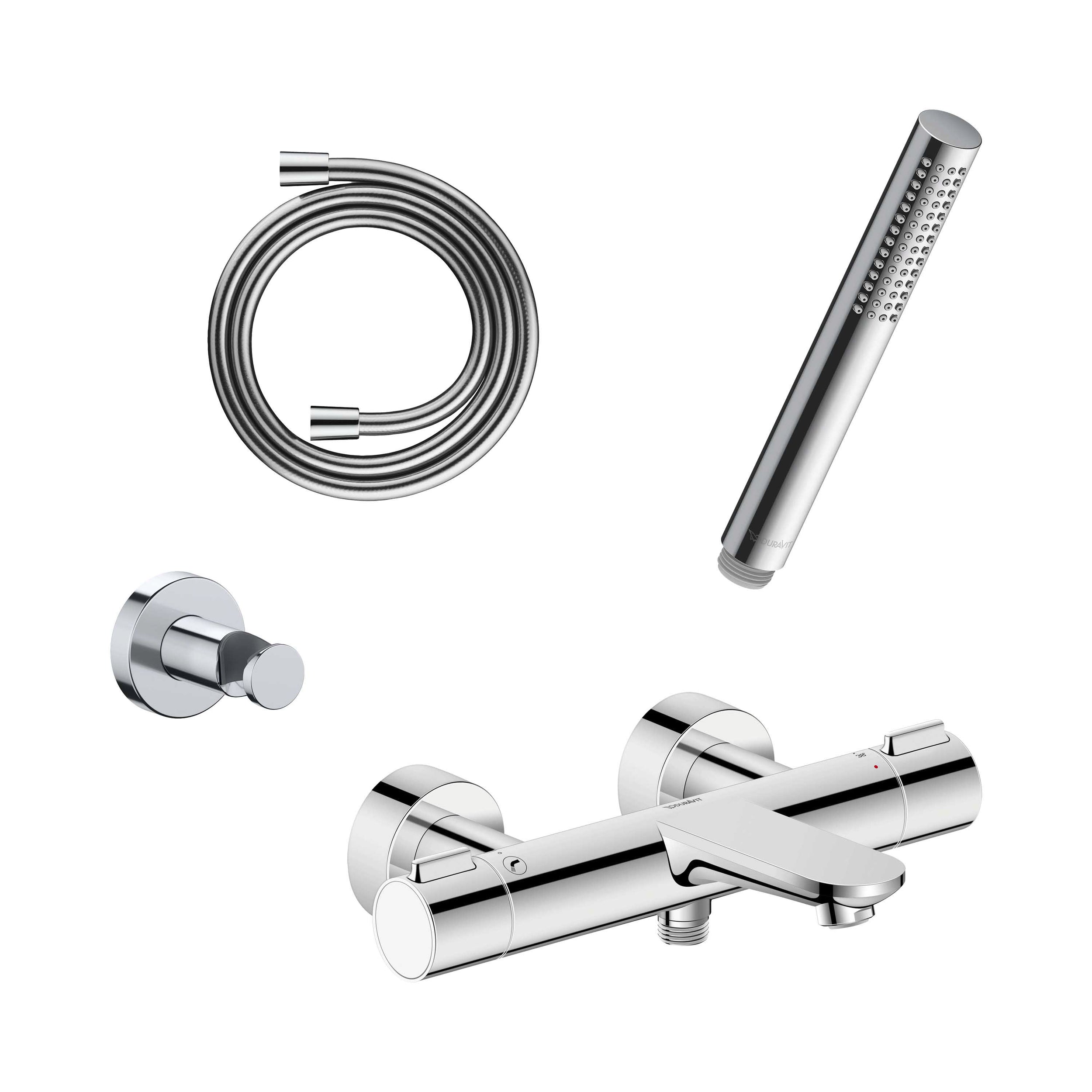

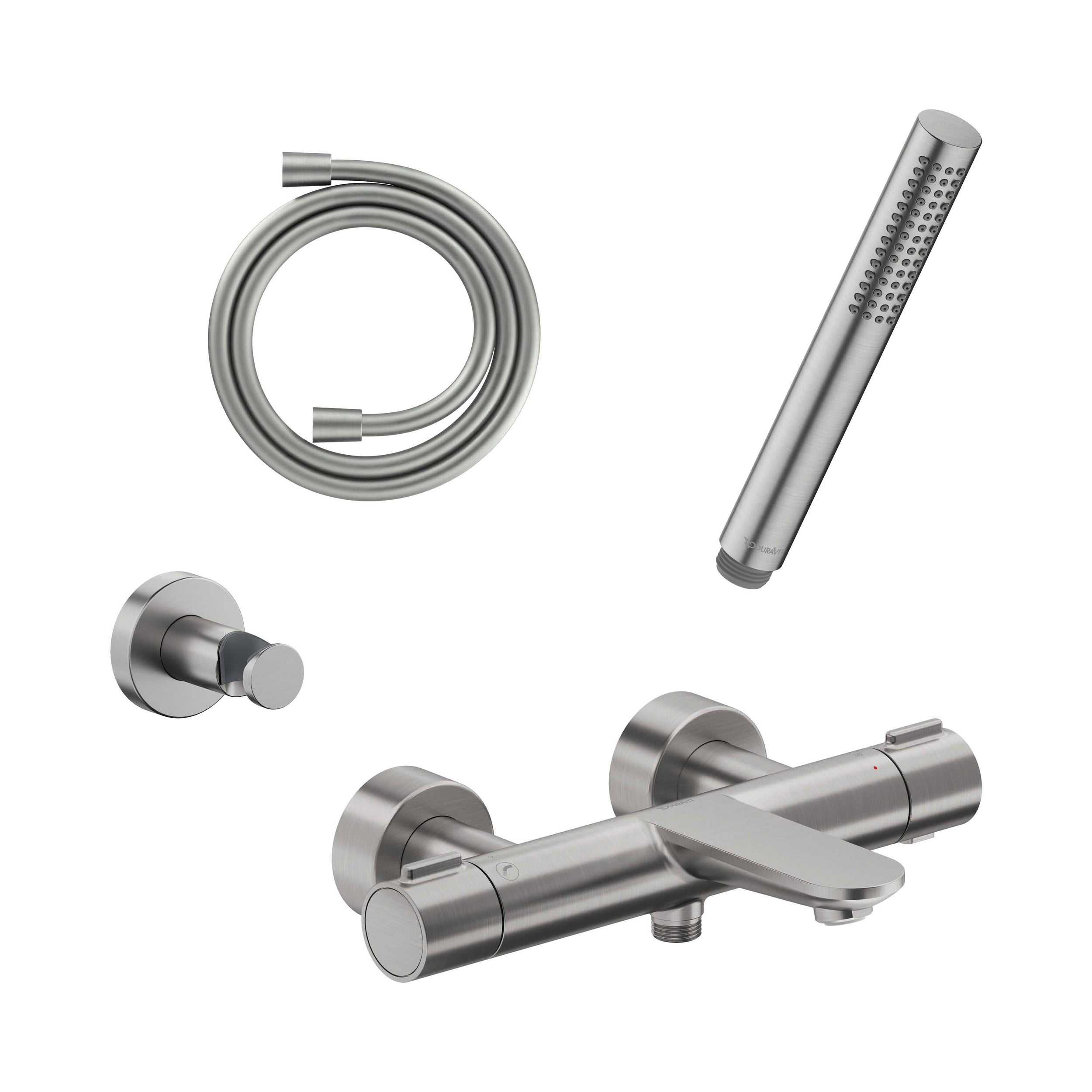

The bath-shower set is designed for use on bathtubs and offers a well-thought-out solution for comfortable bathing and showering. The set includes a bath mixer with thermostat, a shower hose, a sturdy shower holder and, optionally, a stick shower or a hand shower.

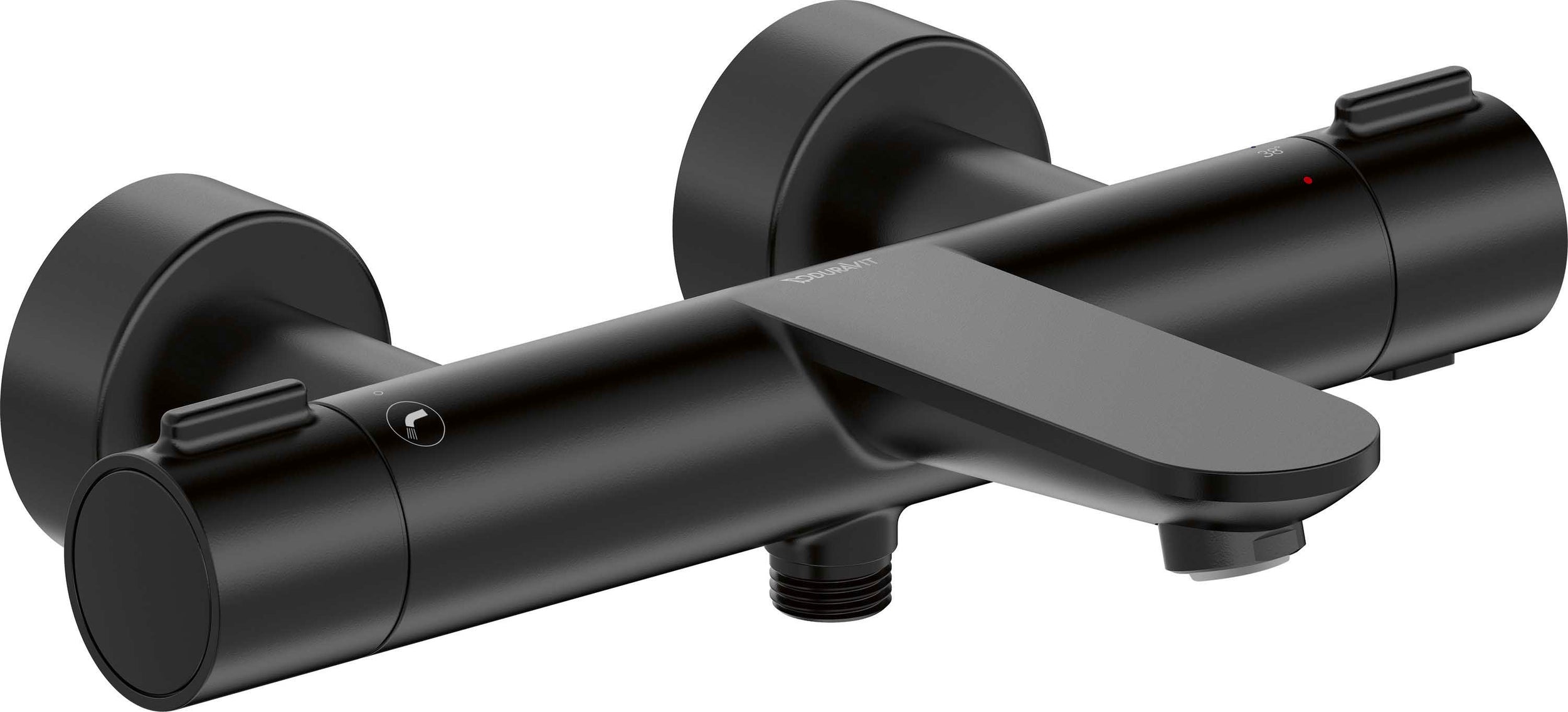

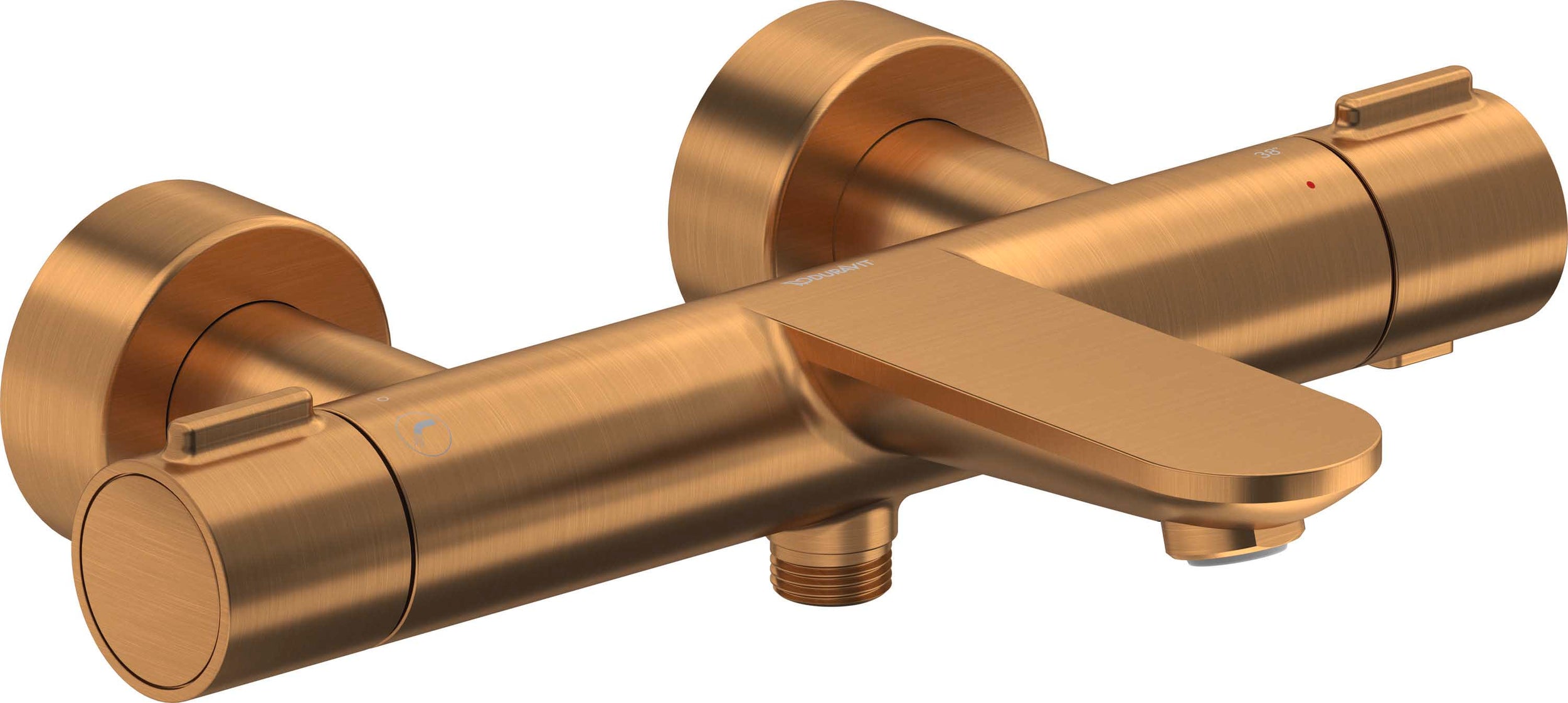

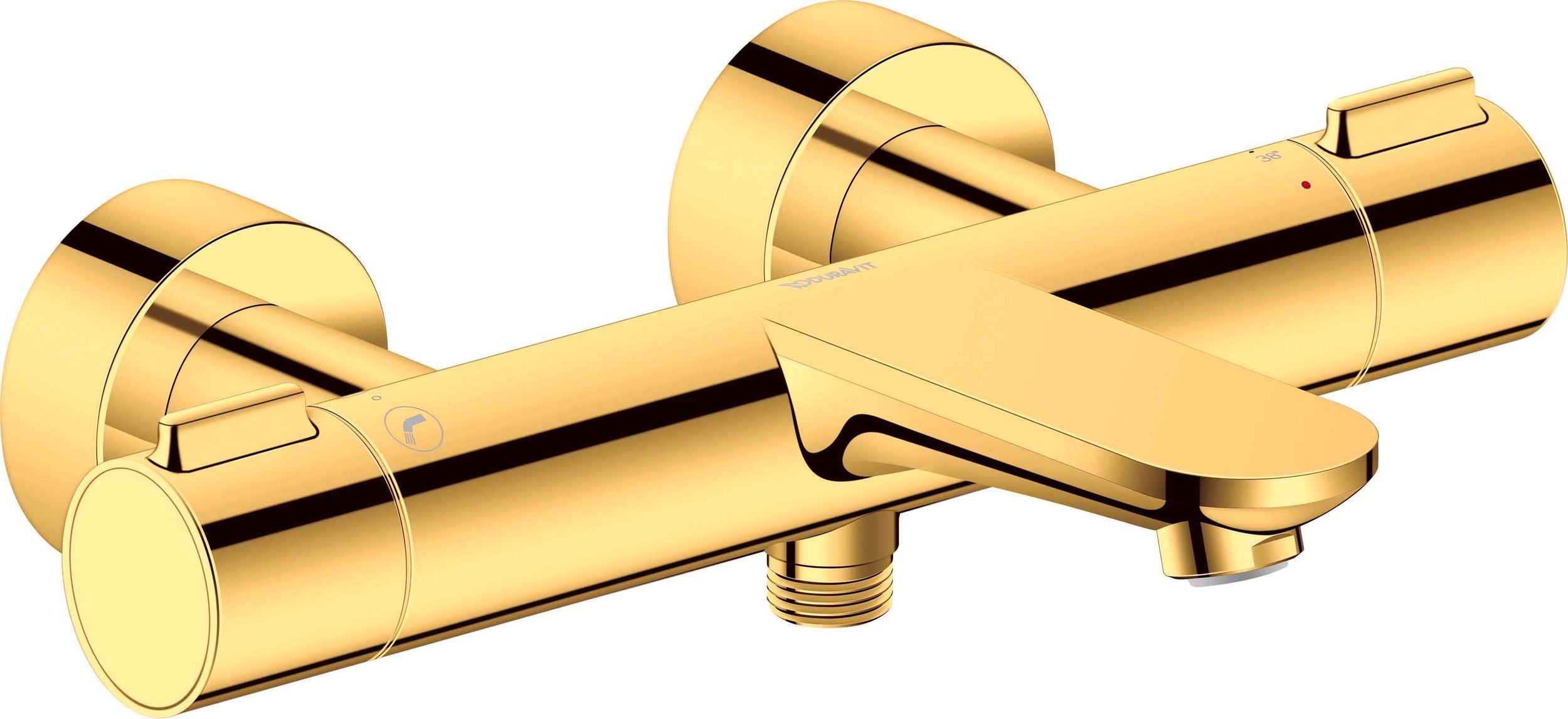

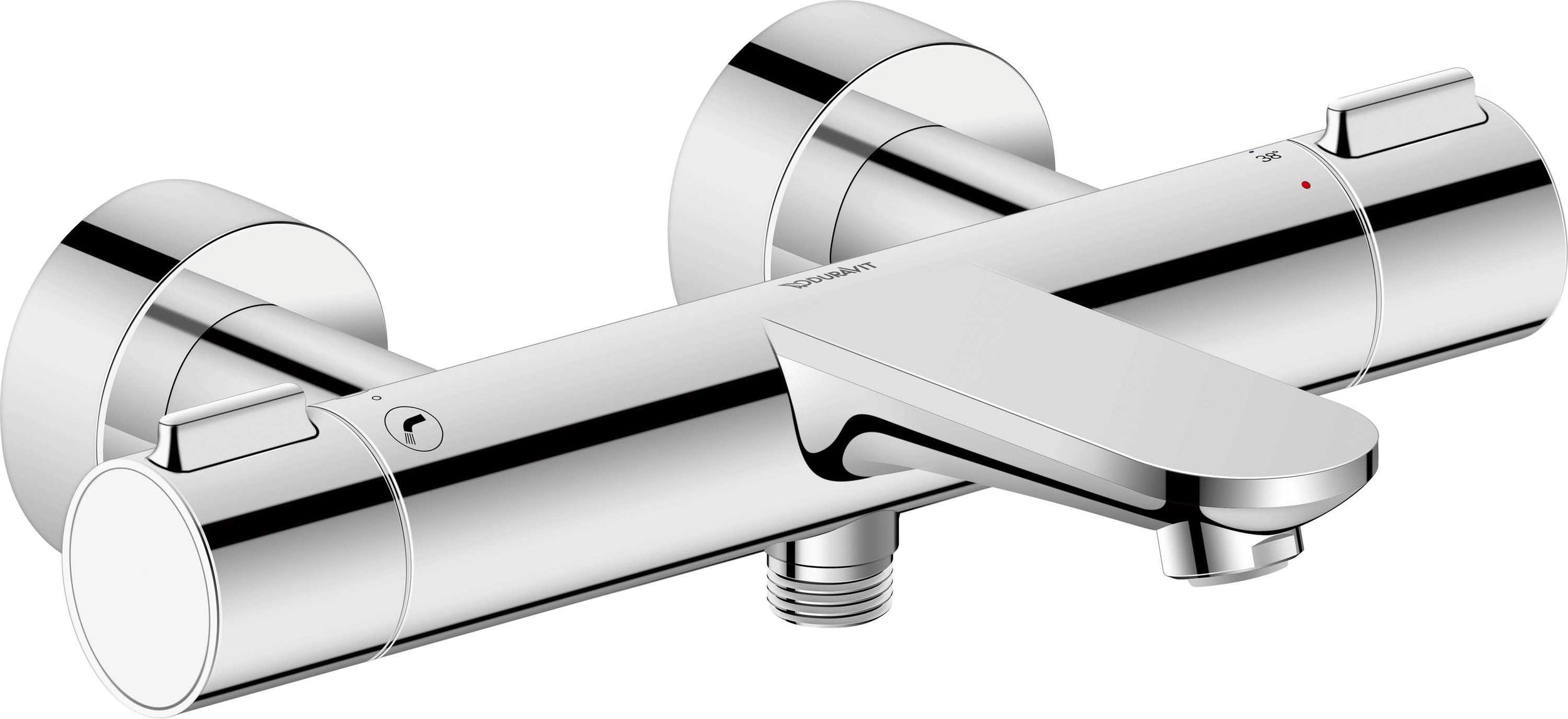

The Wave bath mixer with thermostat is characterized by clear lines and an elegantly flattened spout. The precisely operating thermostat cartridge keeps the water temperature constant, while the integrated HeatLock safety stop at 38 °C reliably protects against scalding. AirPlus ensures a pleasantly soft water jet, and the EasyClean aerator makes it easier to remove limescale deposits. The fitting is suitable for use with instantaneous water heaters and can be easily installed thanks to surface-mounted installation.

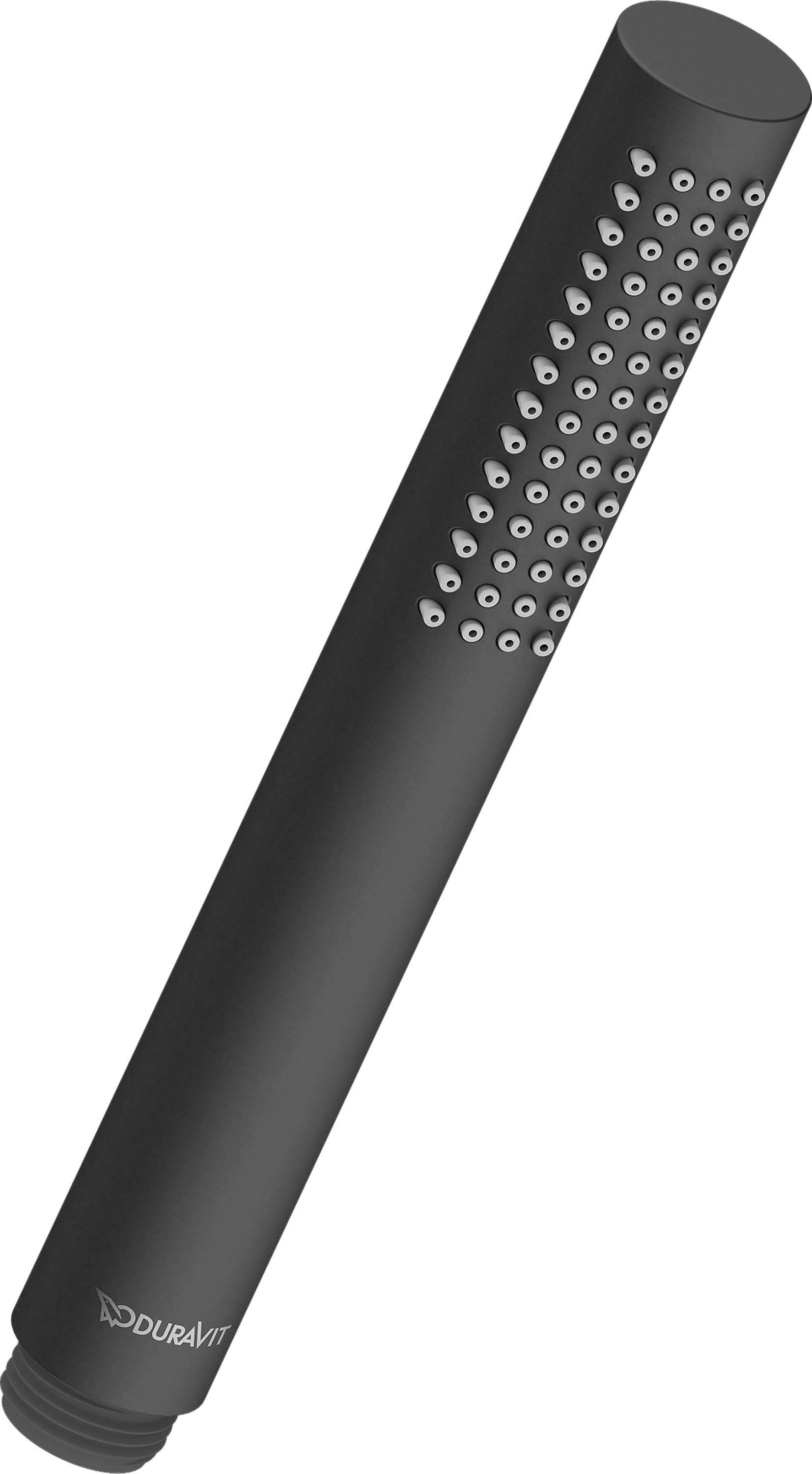

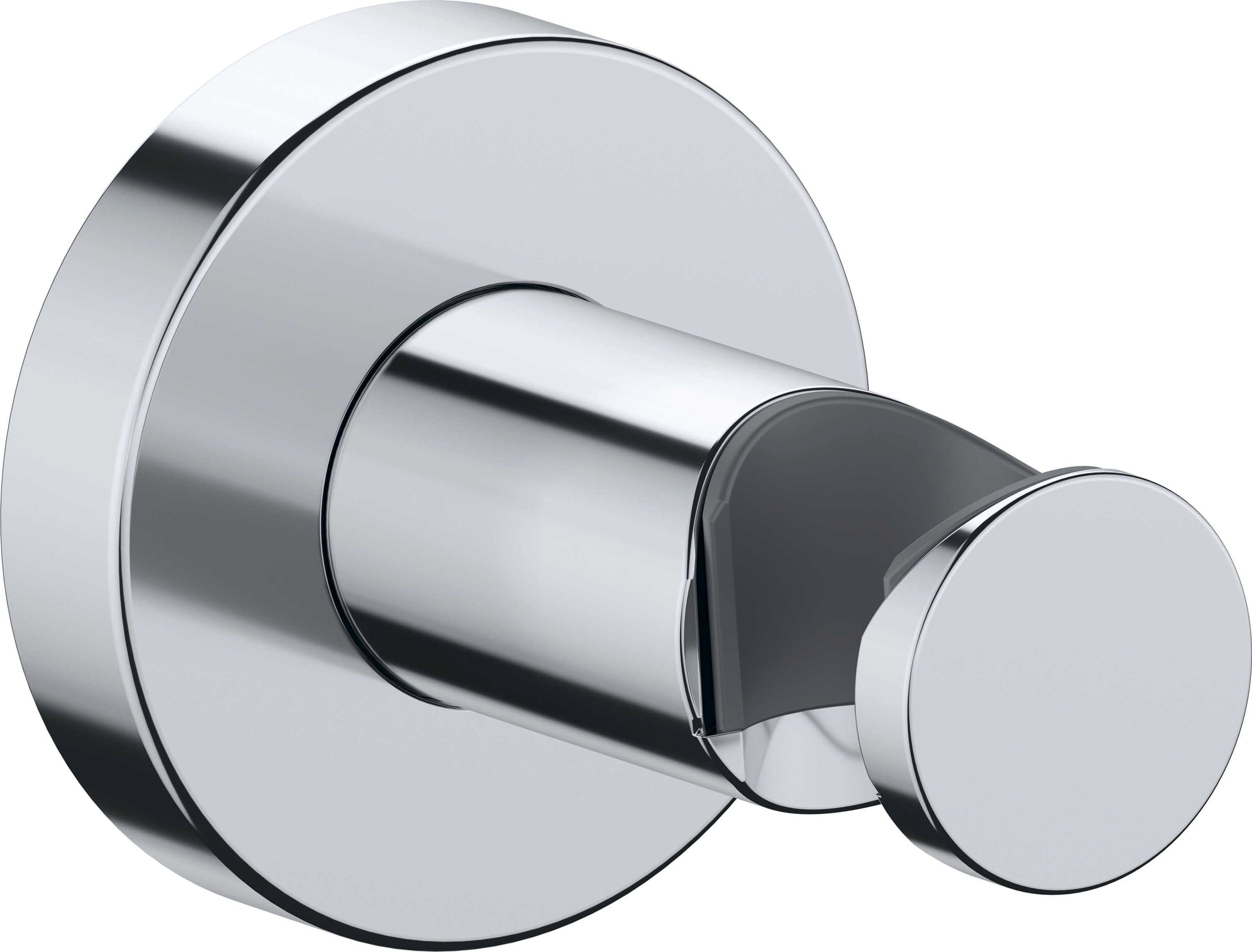

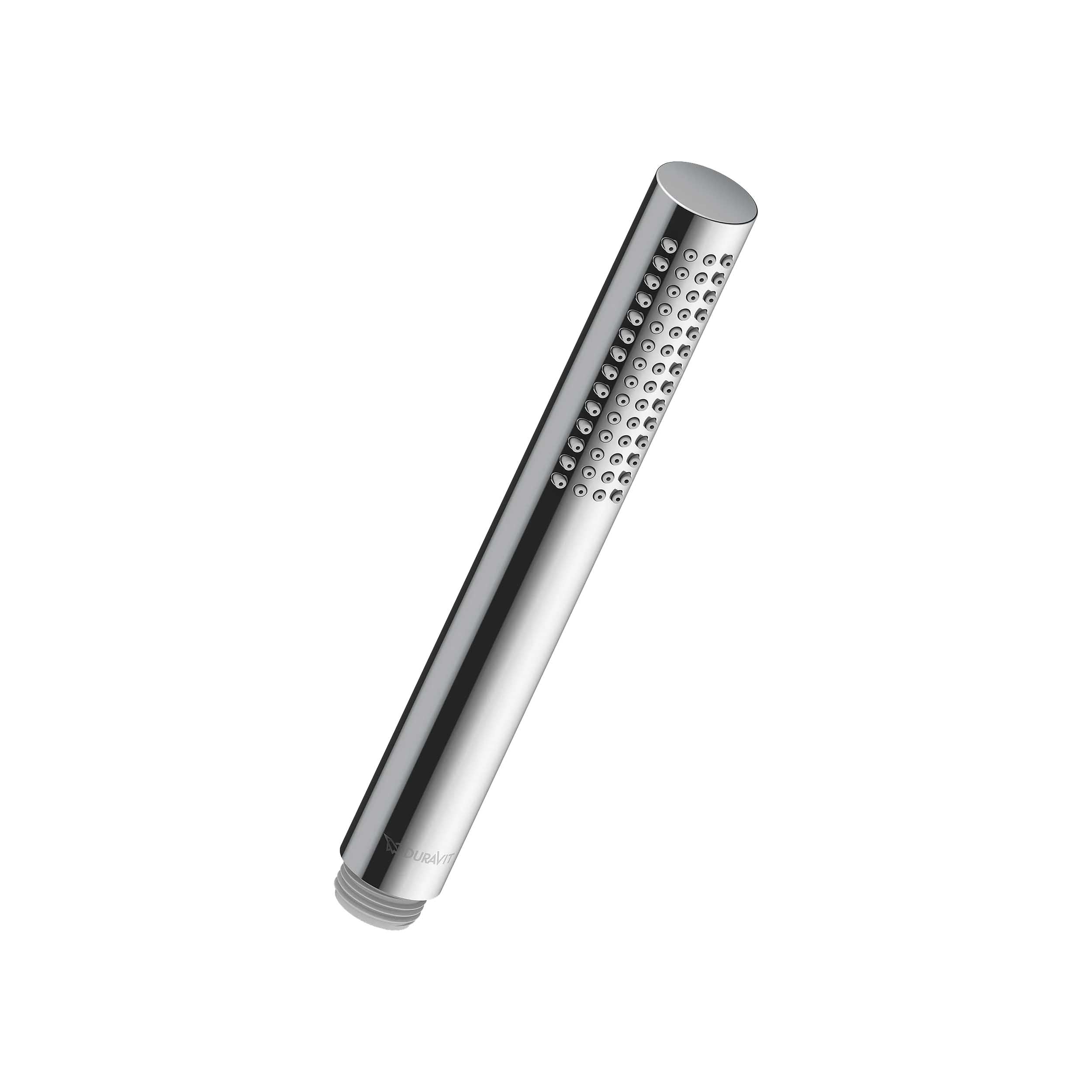

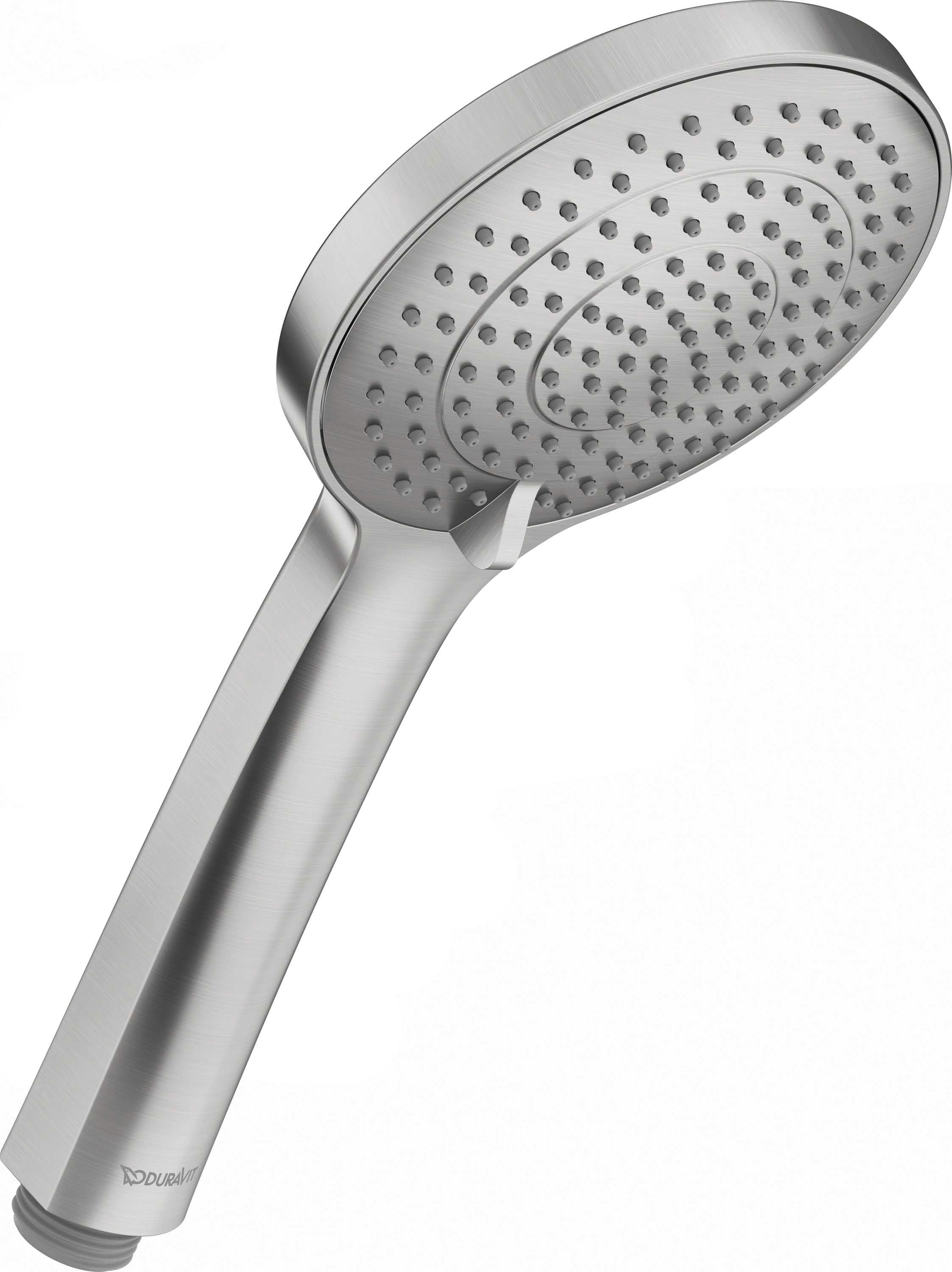

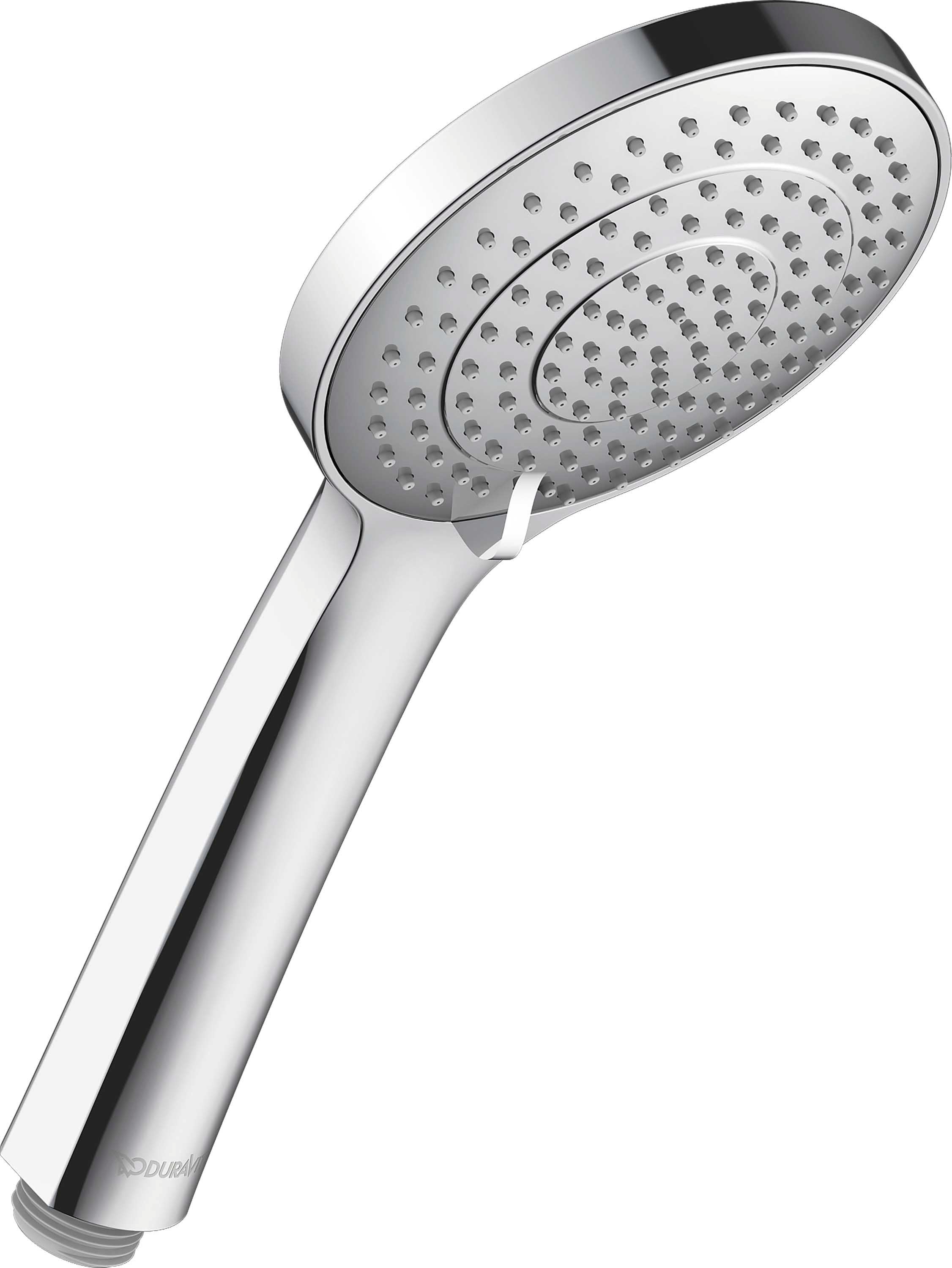

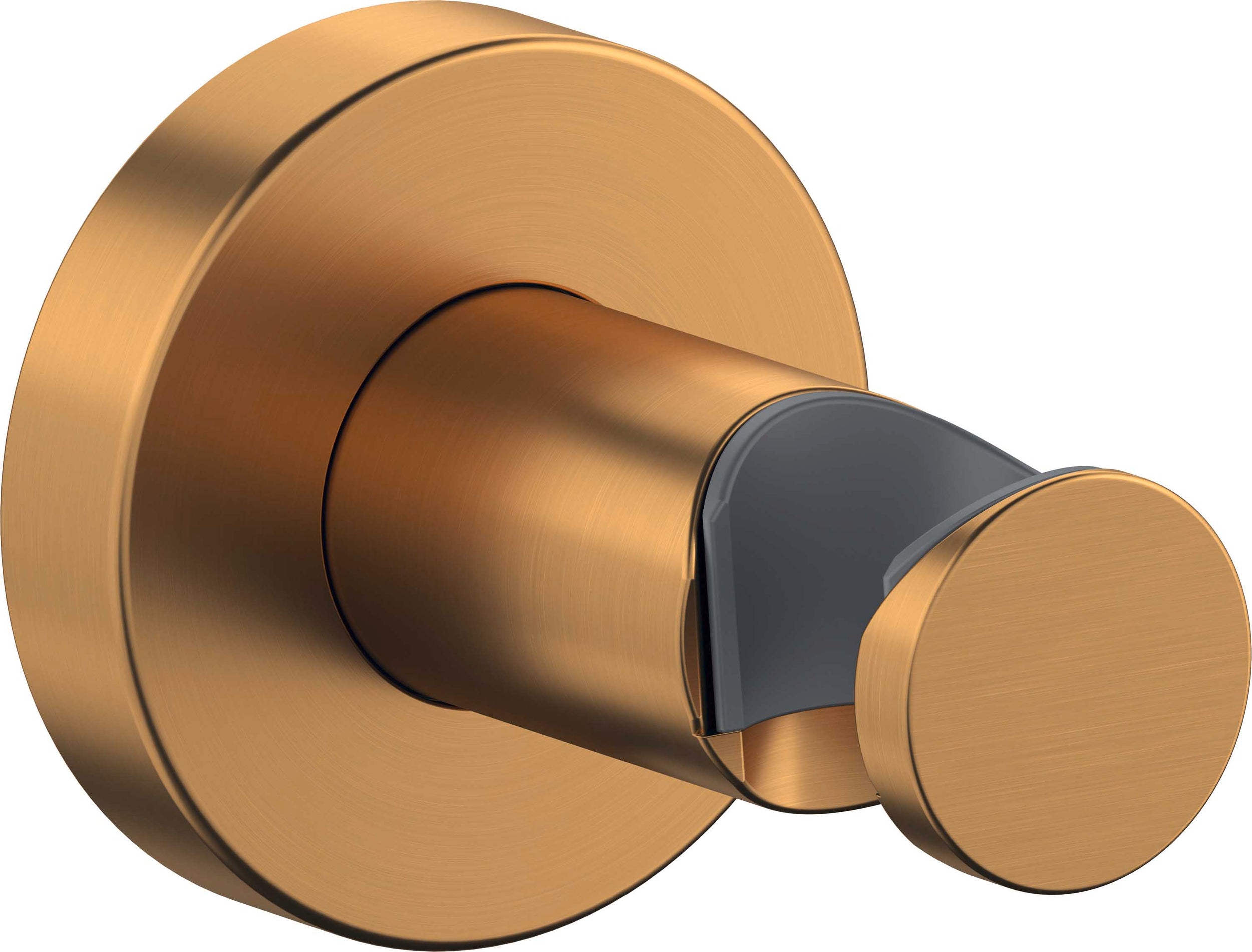

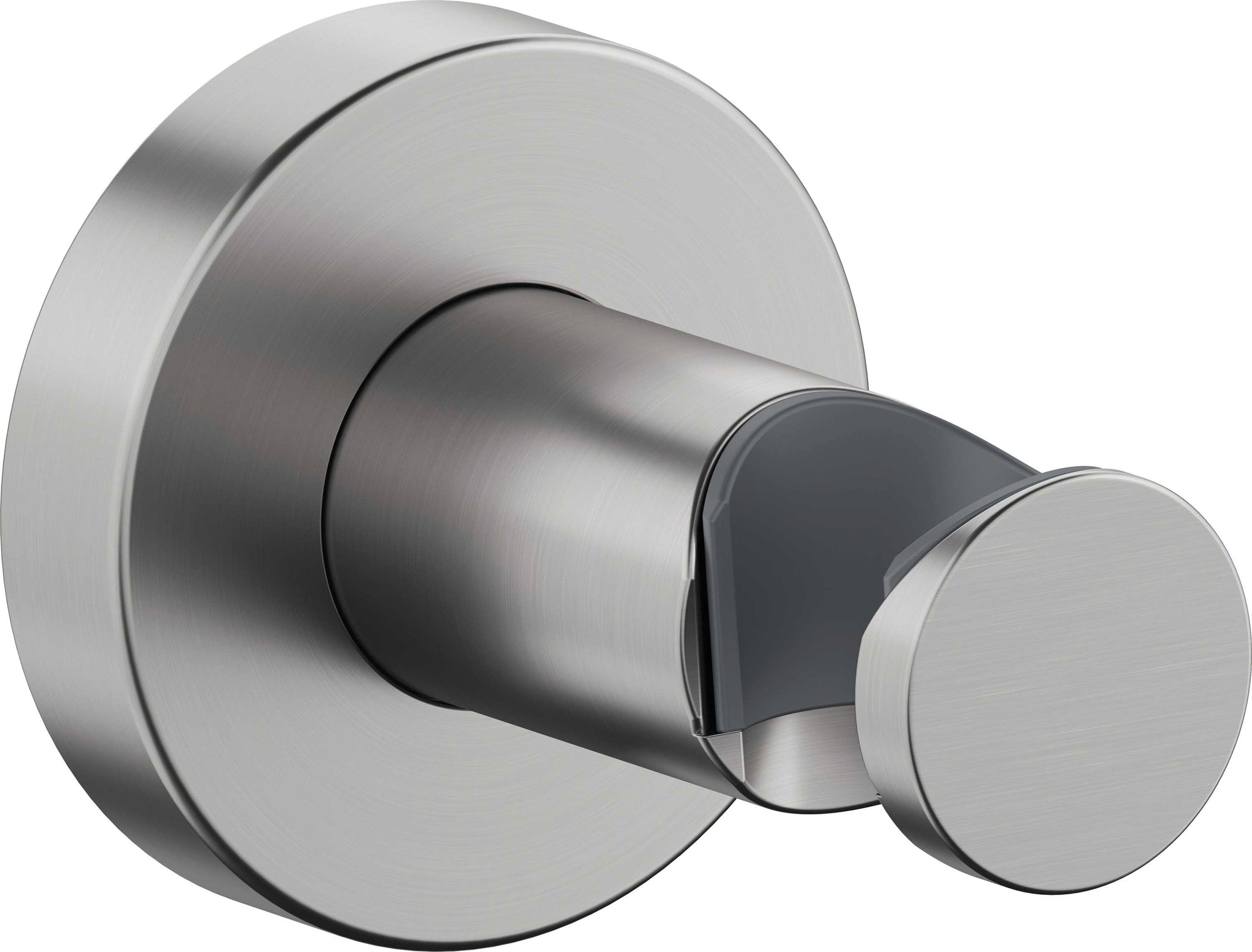

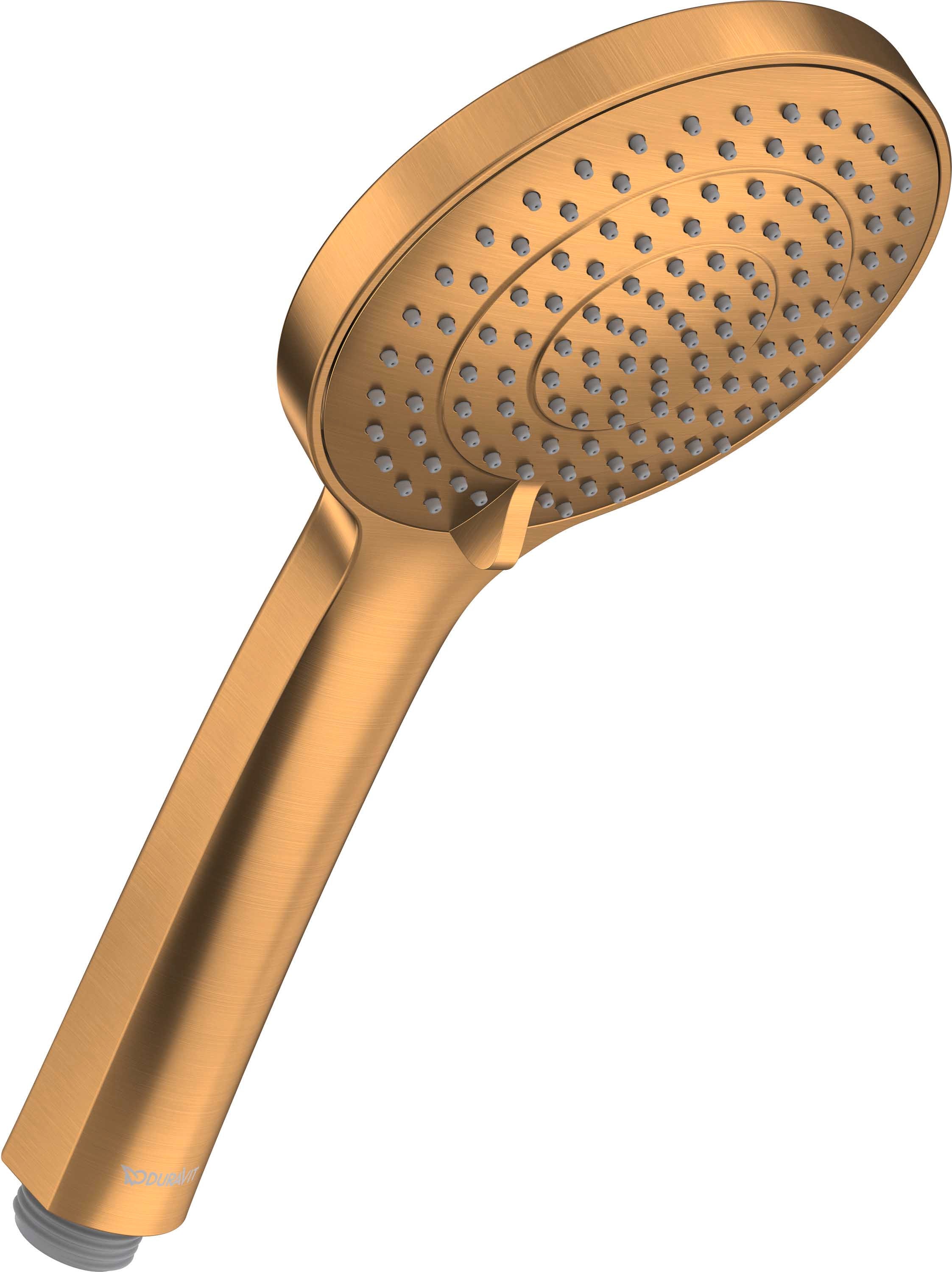

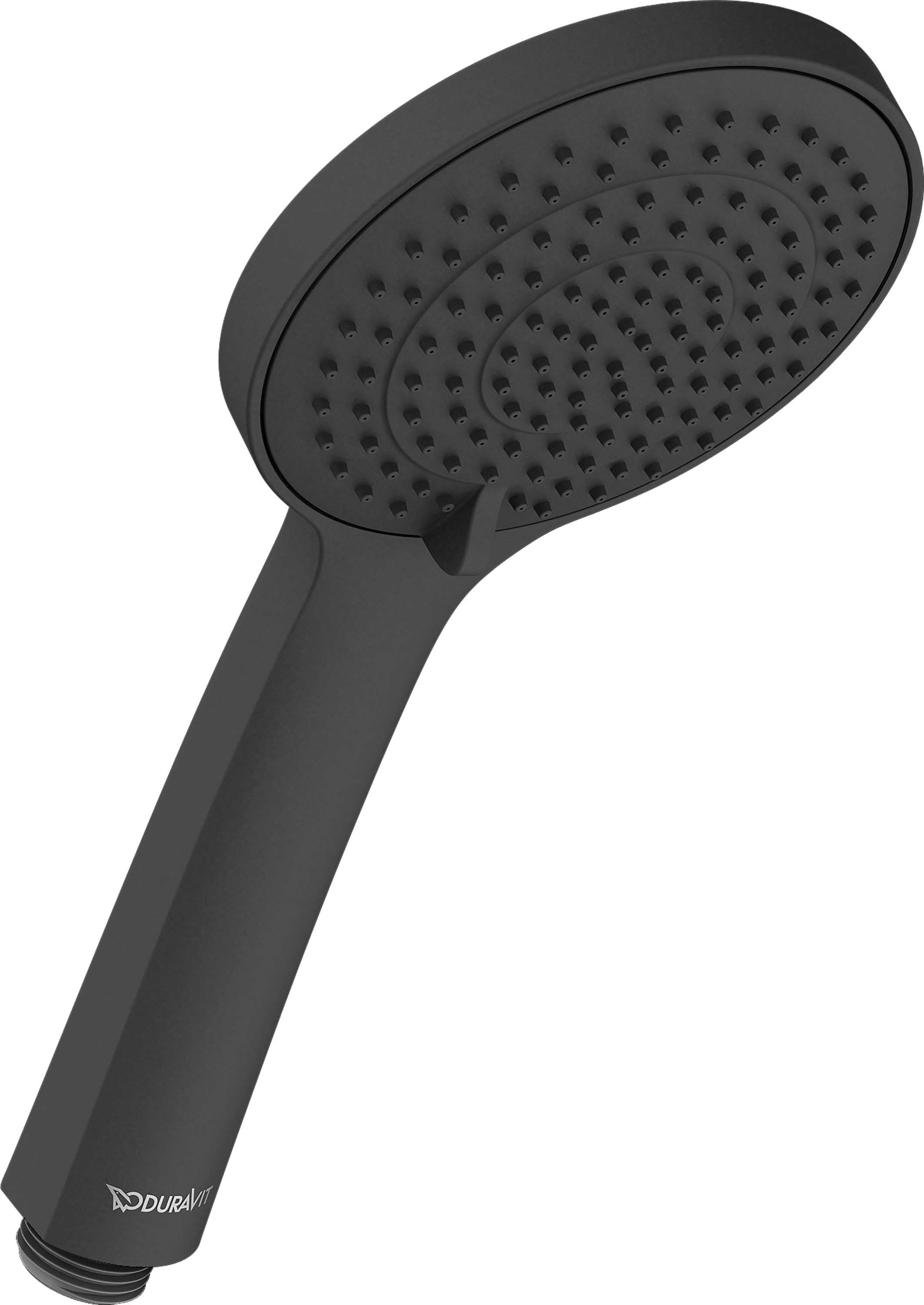

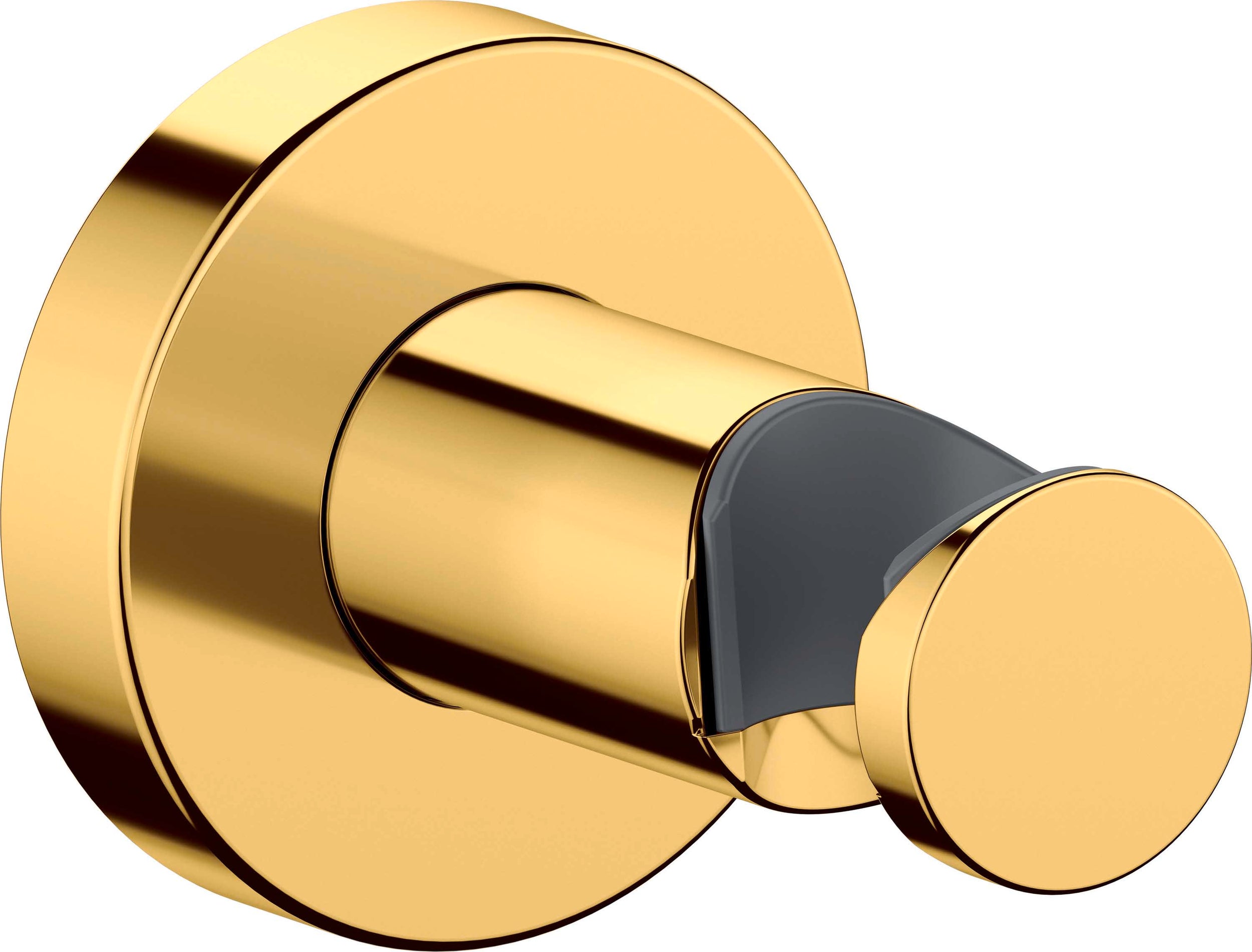

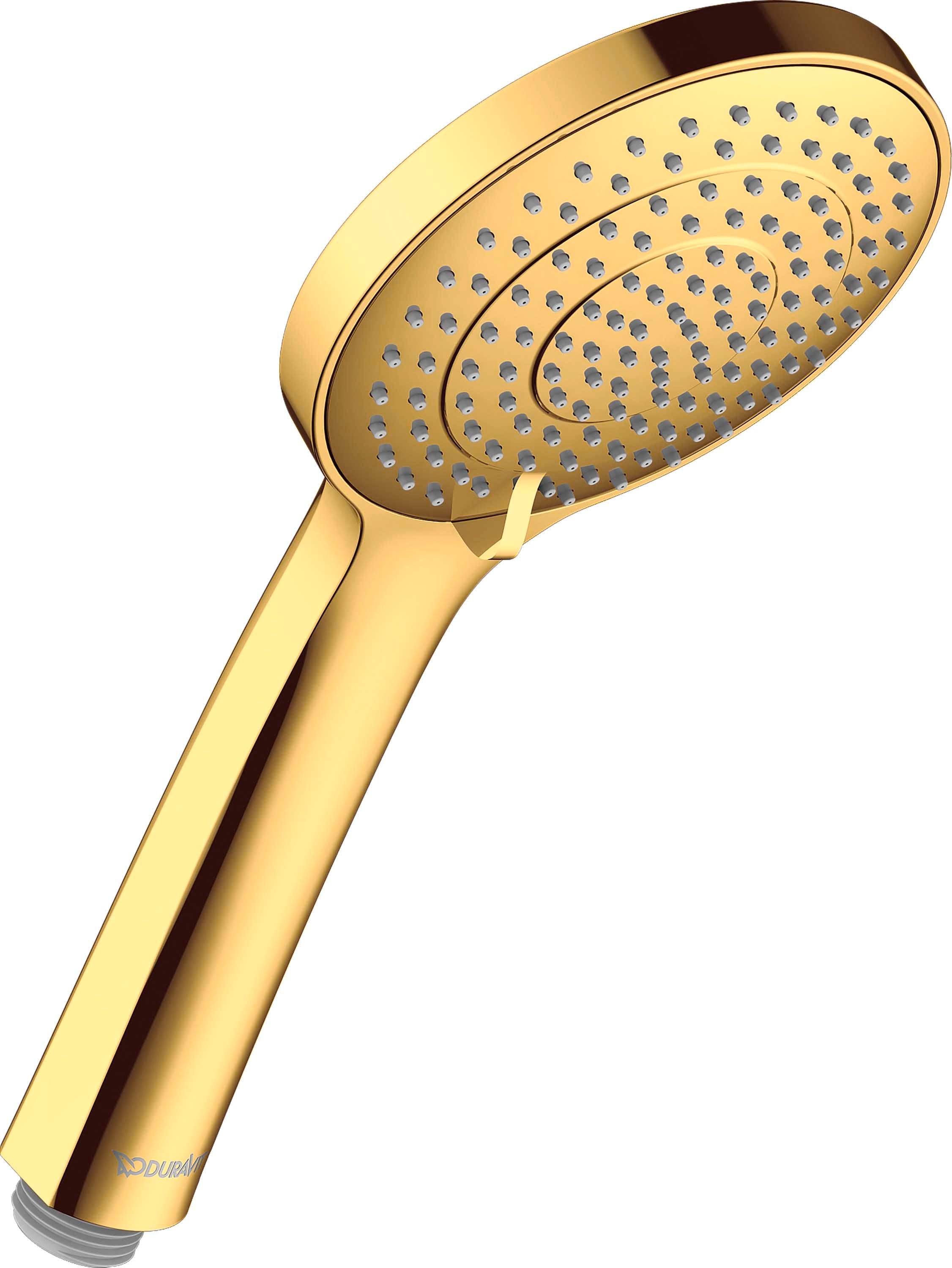

In combination with the flexible shower hose, the set enables comfortable use in everyday life. The solid shower holder made of brass ensures a secure hold and blends discreetly into the overall appearance thanks to concealed fixing. Depending on the selected variant, the set is complemented by a stick shower or a hand shower. The stick shower impresses with its slim shape, an even Rain spray type and water-saving MinusFlow technology. Alternatively, the hand shower offers three spray types for individually adjustable shower comfort and can be cleaned particularly easily thanks to the EasyClean function.
All components are easy to clean, durable and designed for permanently reliable use. The set comes with a 5-year guarantee.
Dimensions and specifications
| Bathtub set | ||
| Color selectable | Chrome | Matte black | Brushed stainless steel | Brushed bronze | Polished gold | |
| Bath fitting | ||
| Material | Brass | |

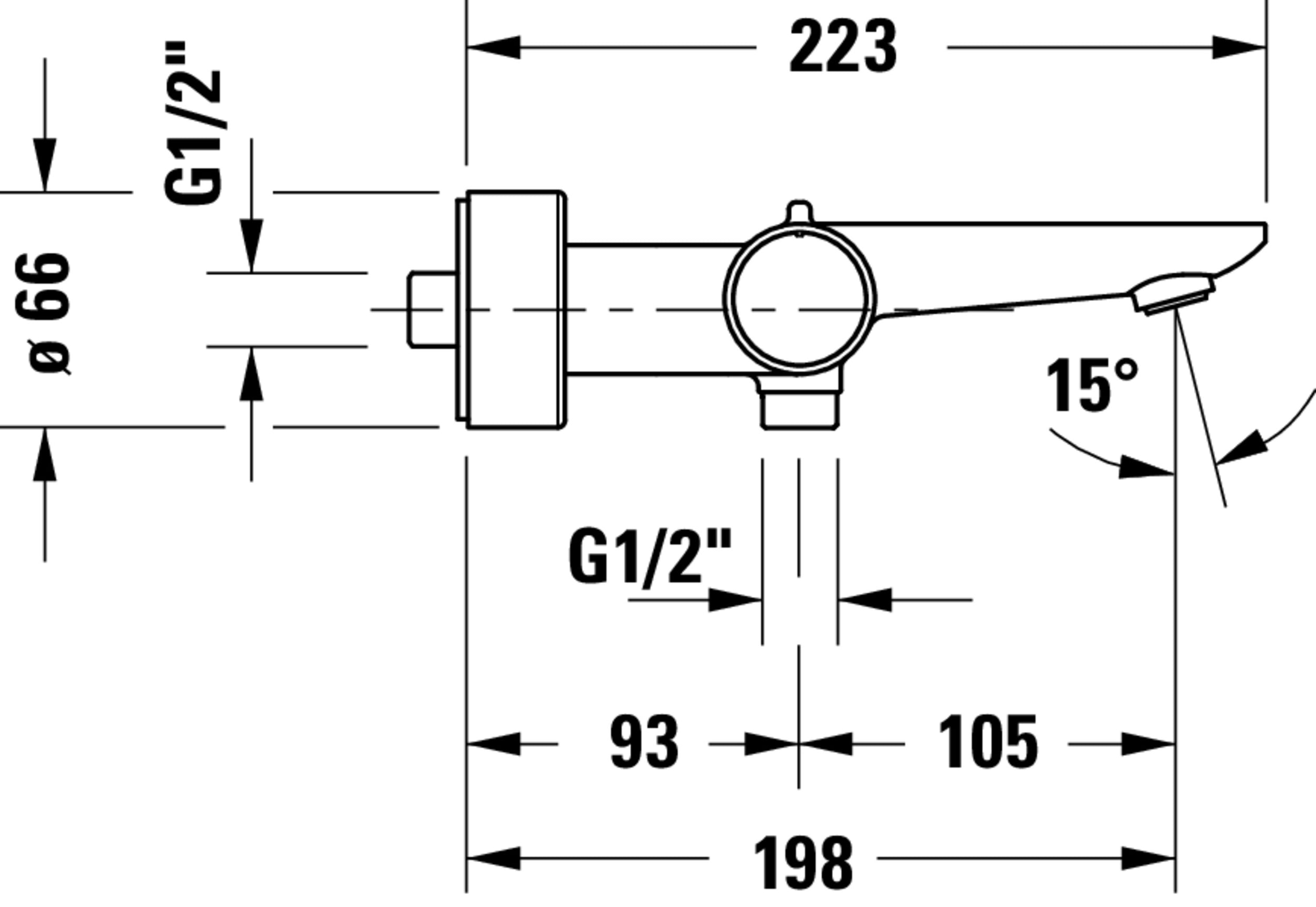

| Dimensions | 30.3 x 4.2 x 22.3 cm (W x H x D) | |
| Number of outlets | 2 outlets | |
| Temperature control | Thermostat cartridge | |
| Backflow preventer | In the hose connection | |
| Flow rate (3 bar) [l/min] | 18 | |
| Flow rate (shower connection) (3 bar) [l/min] | 25 | |
| Min. recommended operating pressure (bar) | 1 | |
| Max. recommended operating pressure (bar) | 5 | |
| Connection size hose connection | 1/2" | |
| Connection size water connection | DN 15 | |
| Connection type water connection | S-connections | |
| Mounting type | Surface-mounted | |
| Outlets/diverter | Shut-off and diverter valve | |
| Suitable for instantaneous water heaters | Yes | |
| Temperature lock at 38 °C | Yes | |

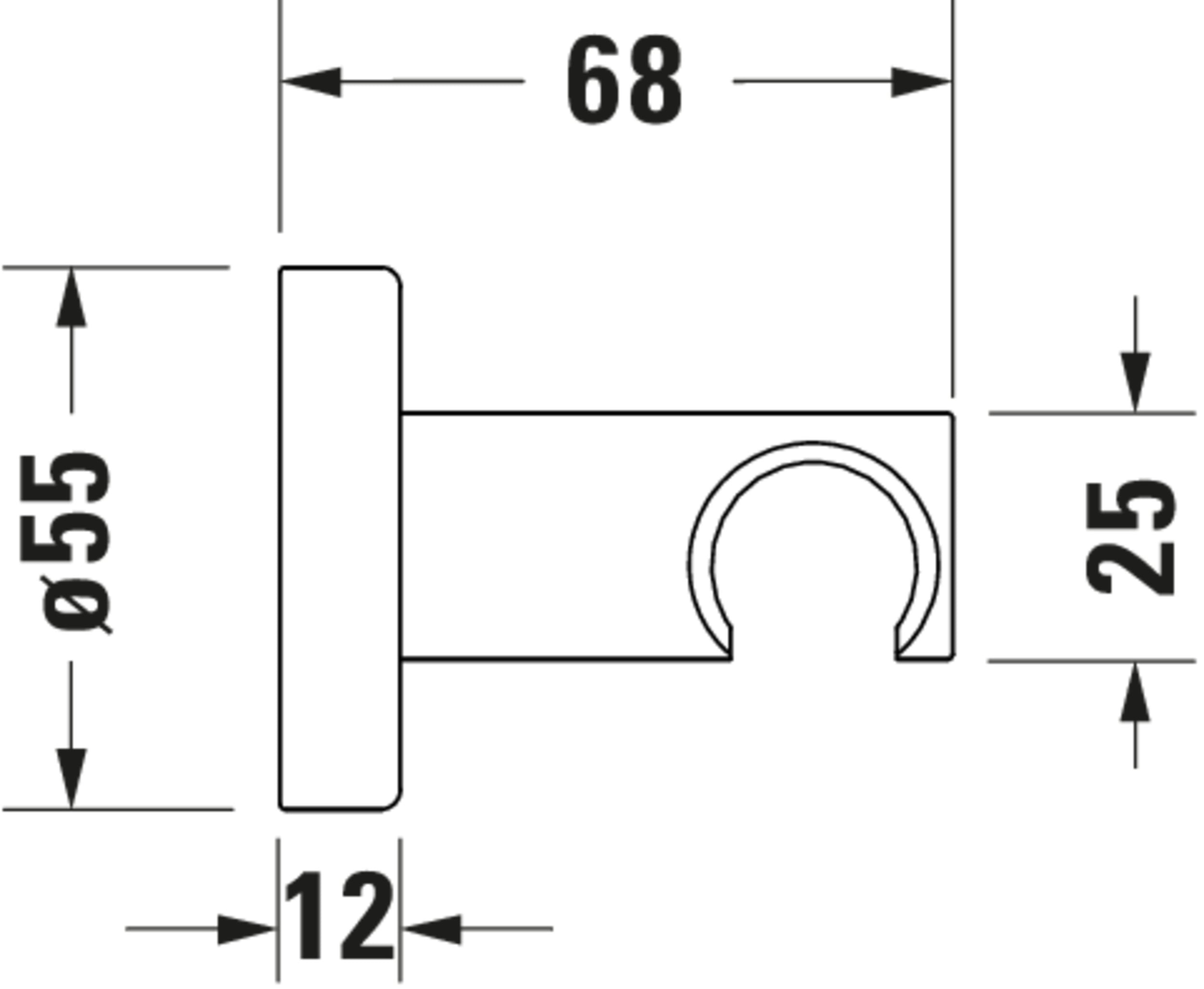

| Shower holder | ||
| Dimensions | 5.5 x 5.5 x 10.2 cm (W x H x D) | |
| Material | Brass | |
| Mounting | For drilling | |
| Hand shower | ||
| Material | Plastic | |
| Connection size water connection | 1/2" | |
| Spray type | Rain, Intense Rain, Soft Rain | |
| Further details | EasyClean | |

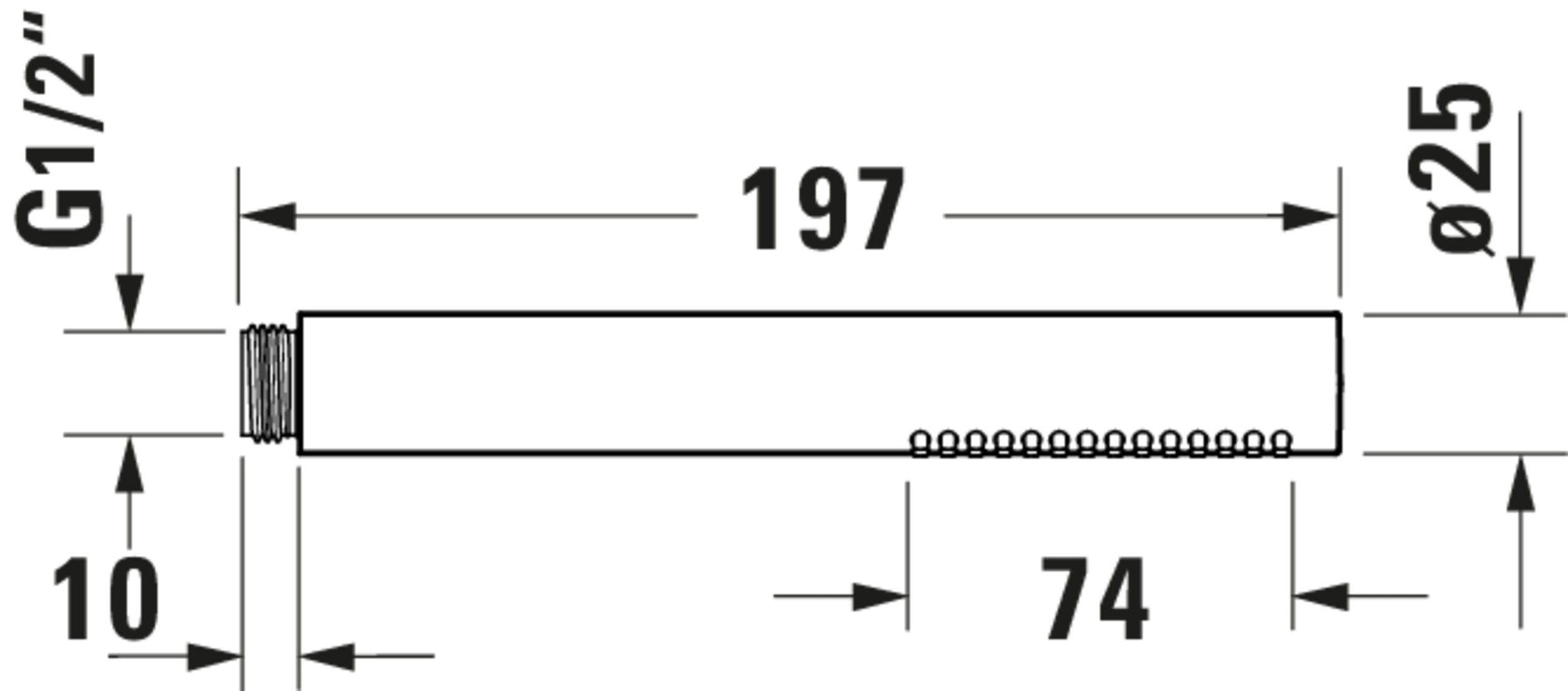

| Stick shower | ||
| Material | Brass | |
| Shape | Round | |
| Spray type | Rain | |
| Further details | EasyClean | |
| MinusFlow | ||

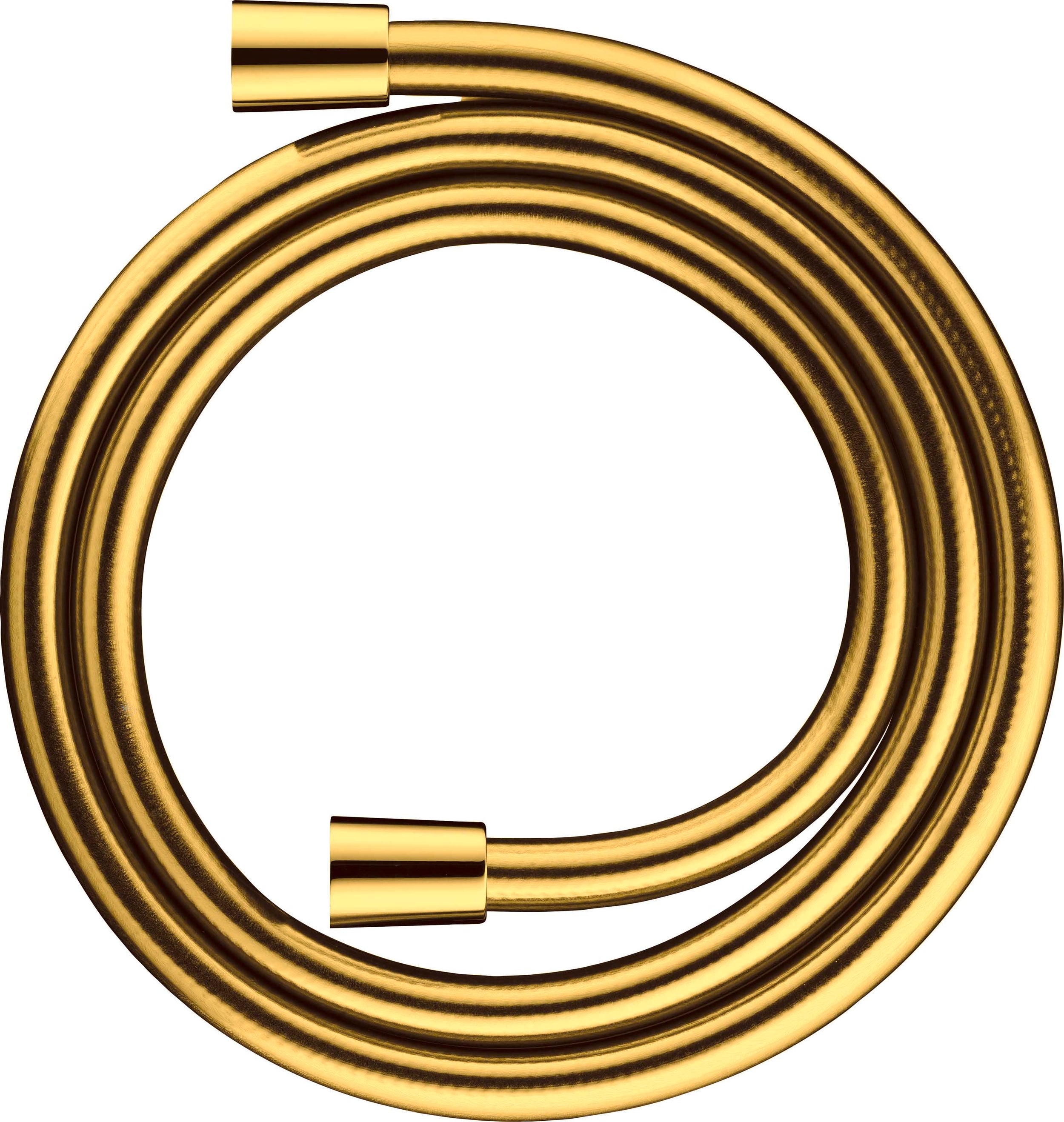

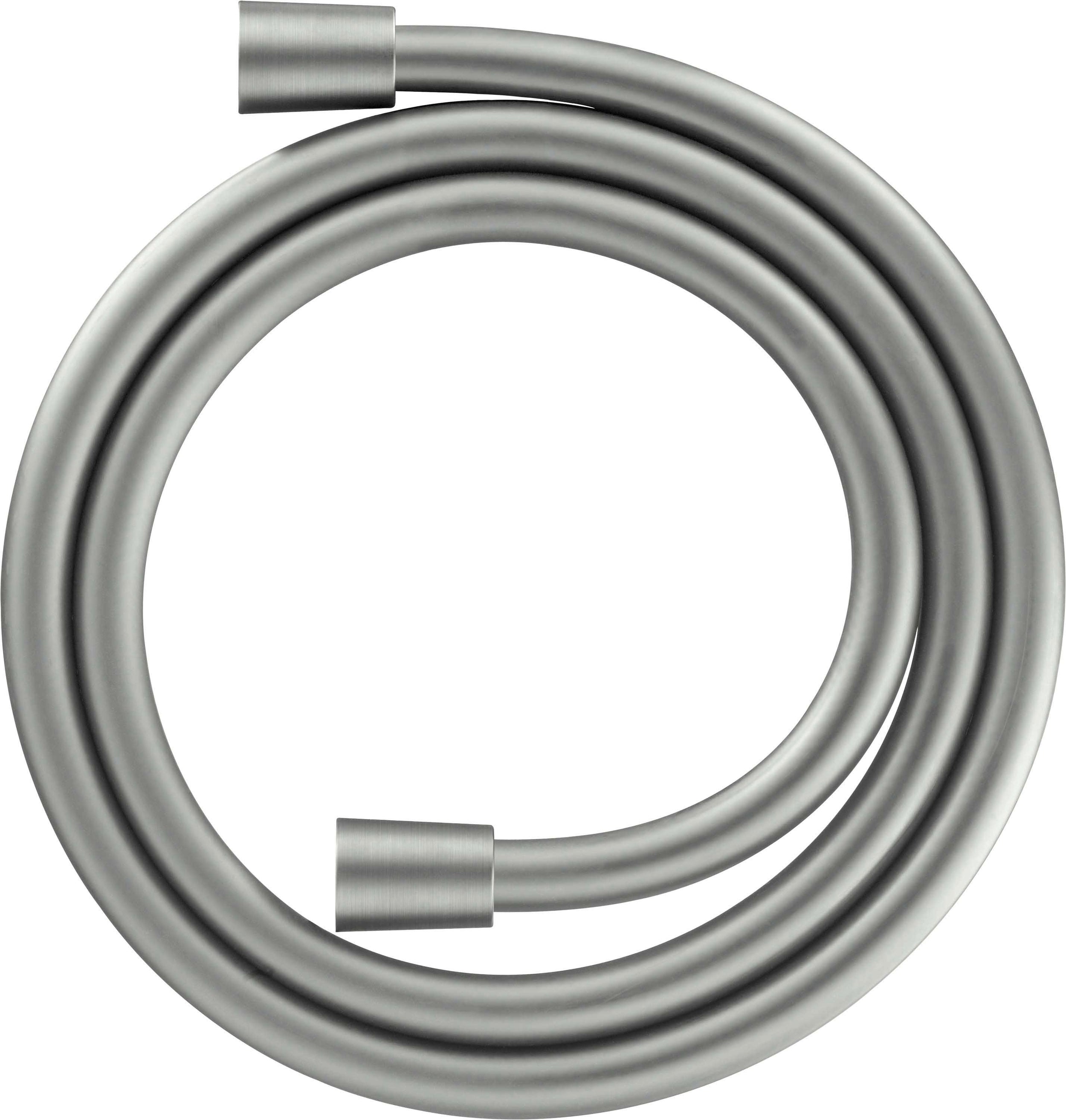

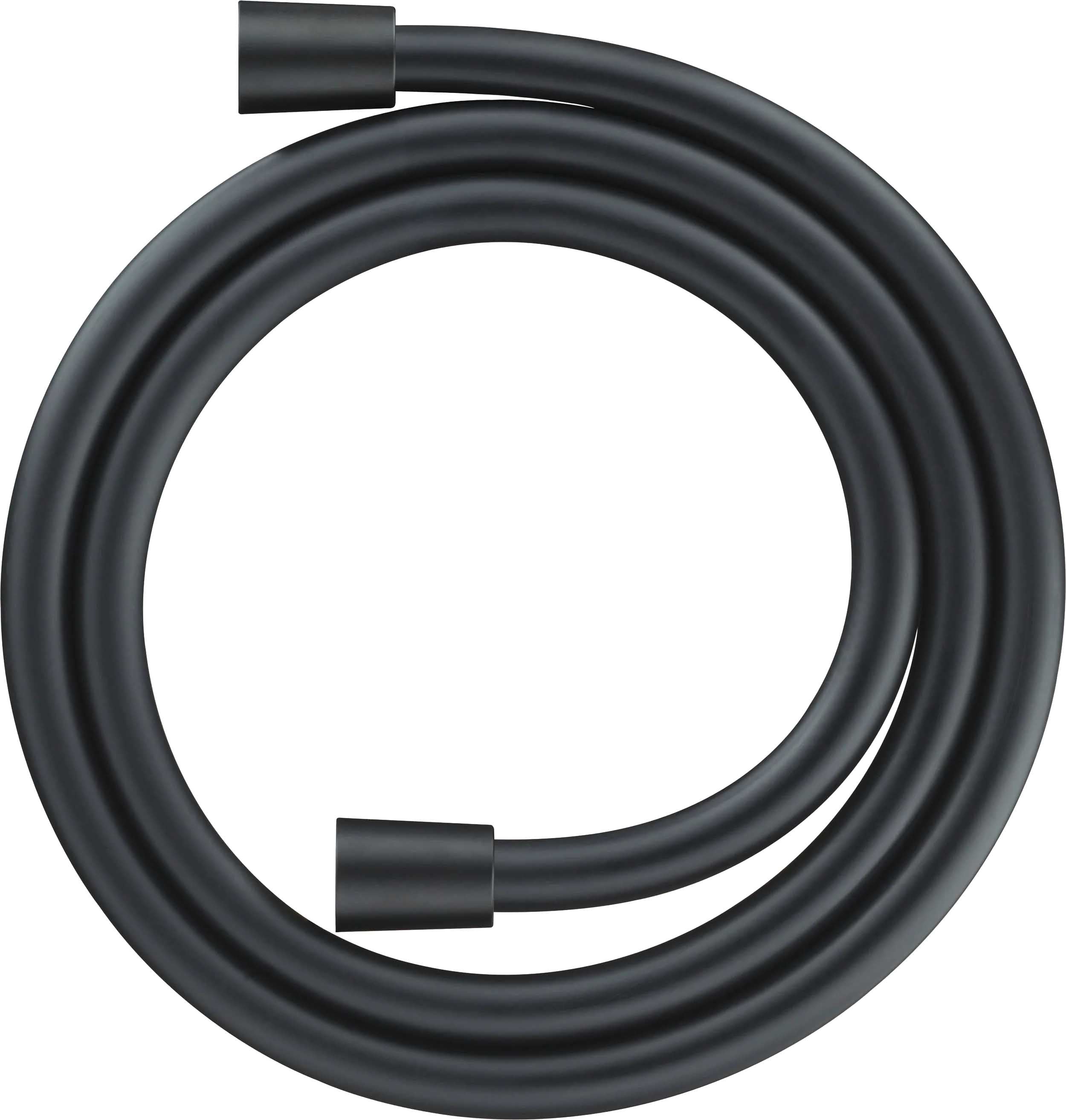

| Shower hose | ||
| Material | Plastic | |
| Length | 1.6 m | |
| Further details | Kink and twist protection |
Scope of delivery
- Wave bathtub faucet with thermostat
- Shower hose
- Shower holder
- Stick shower or hand shower (depending on selected variant)
