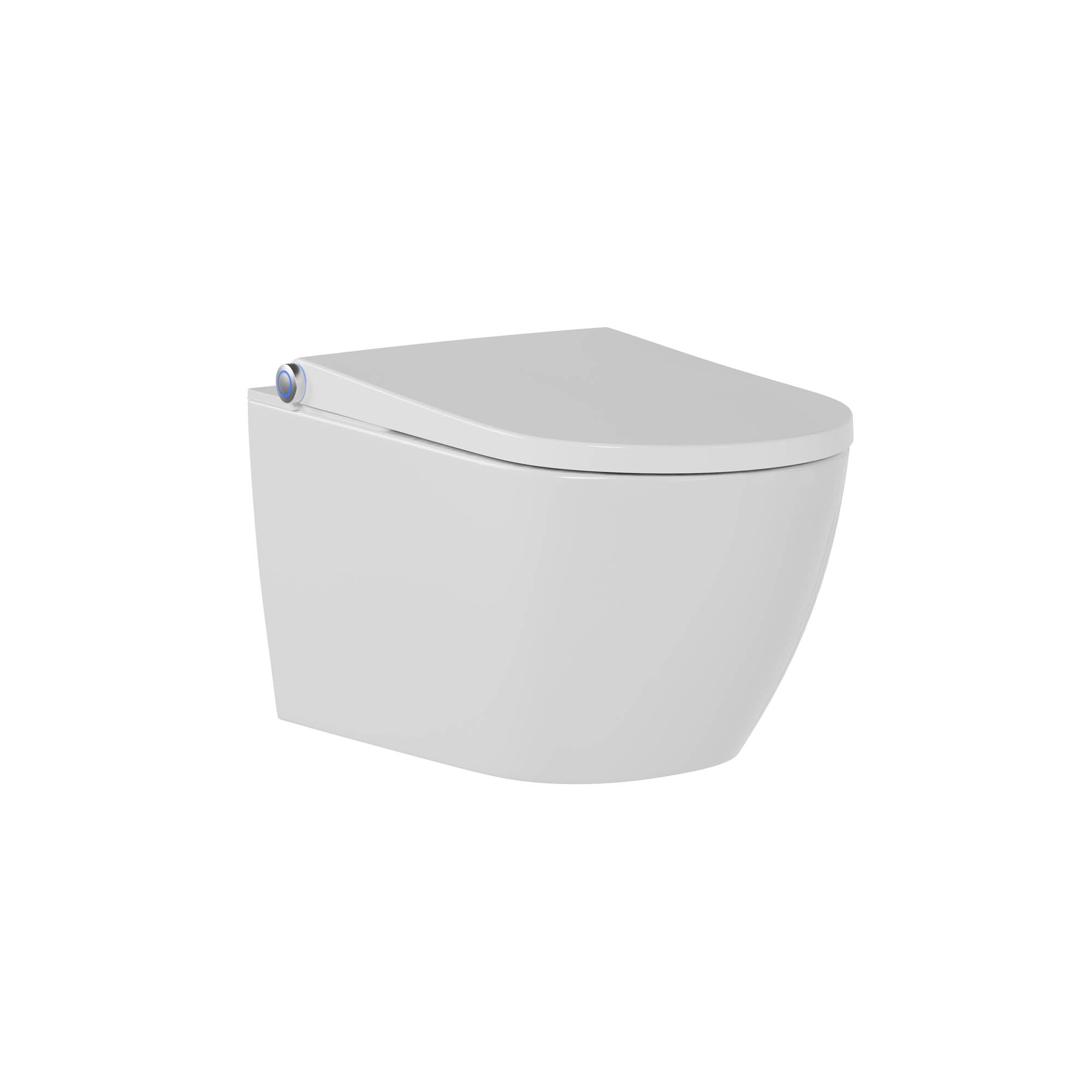

Shower toilet complete set Basic 1102 with Geberit Duofix pre-wall element
Buttocks and lady shower - Geberit actuator plate freely selectable

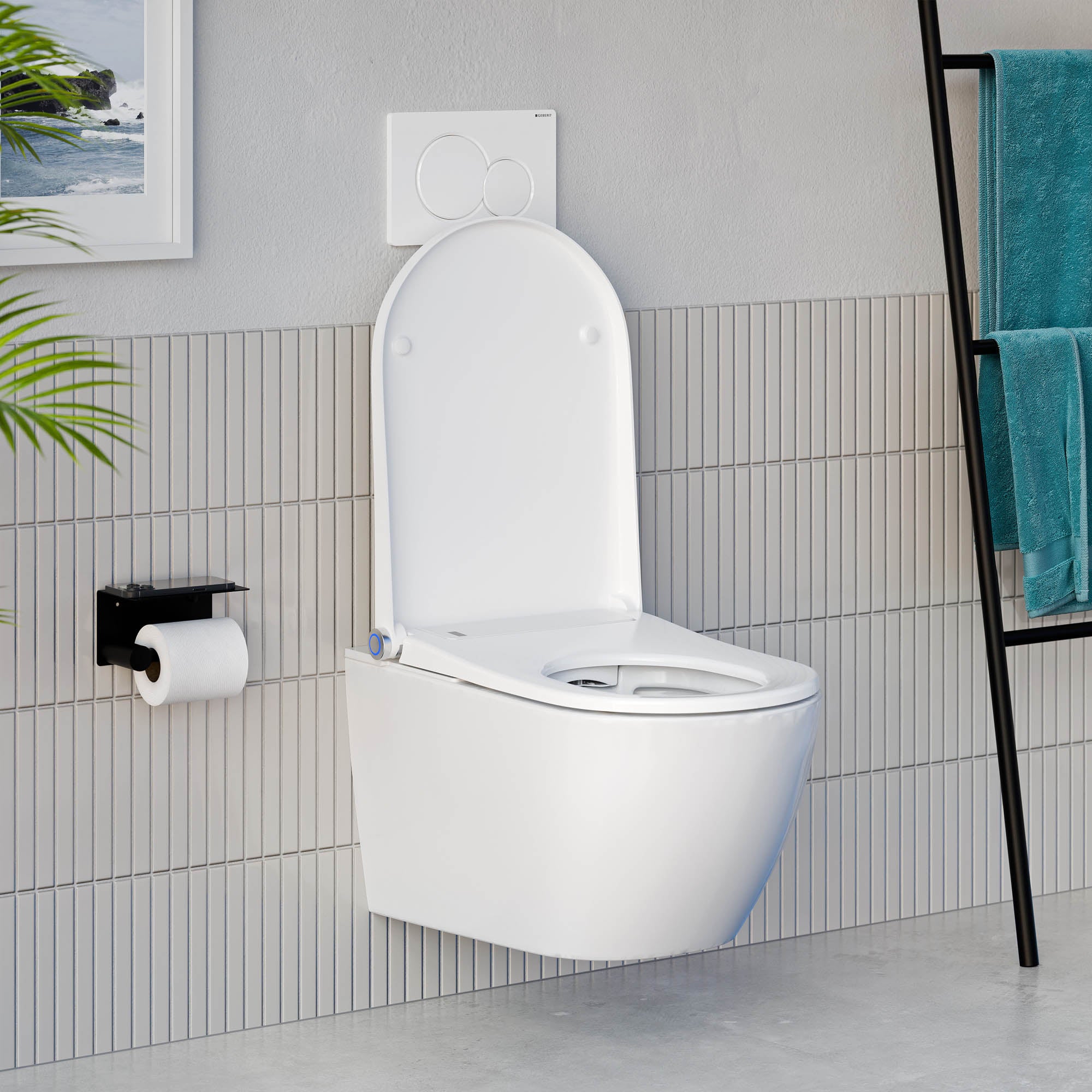

Product number: 173835
Product number: 173836
Product information

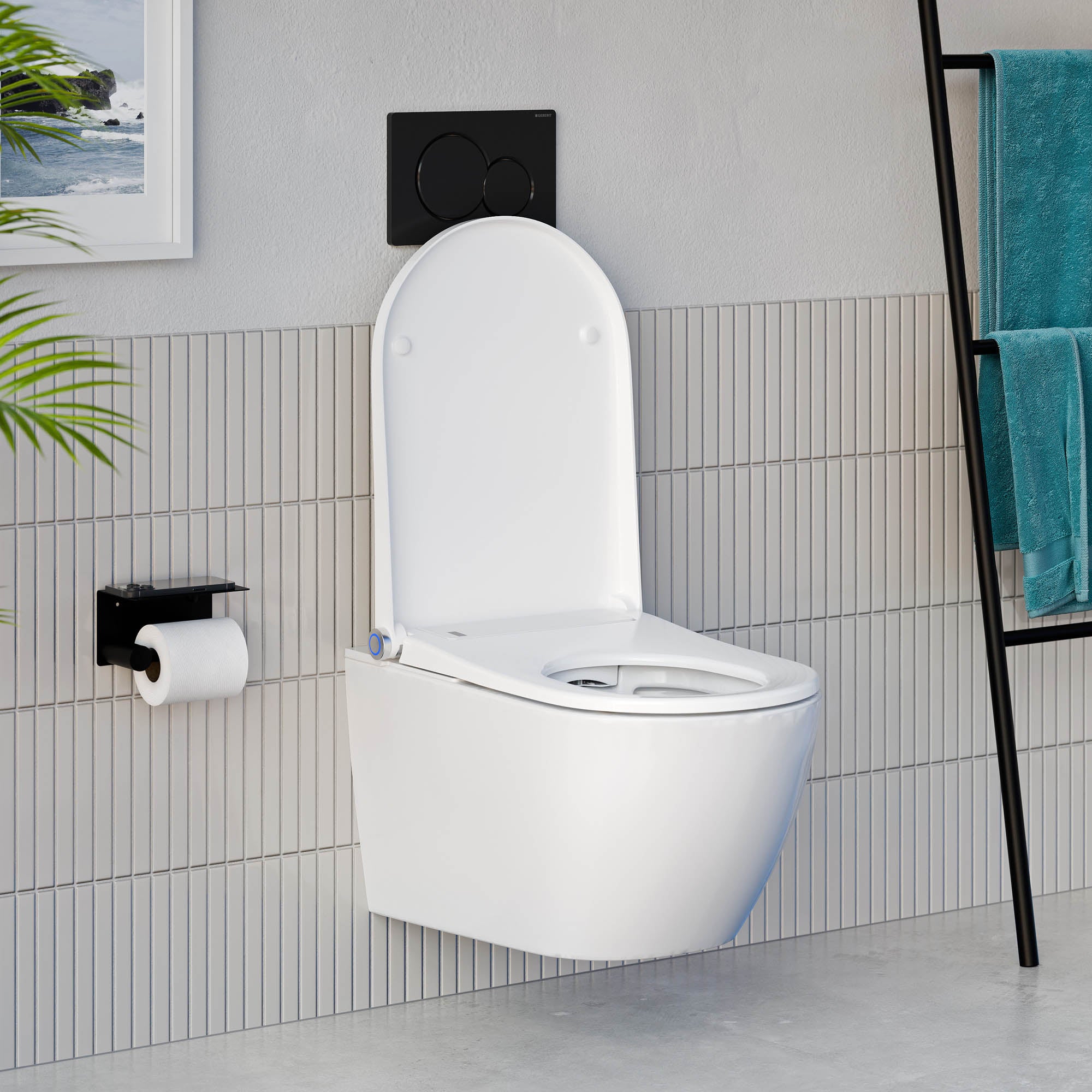

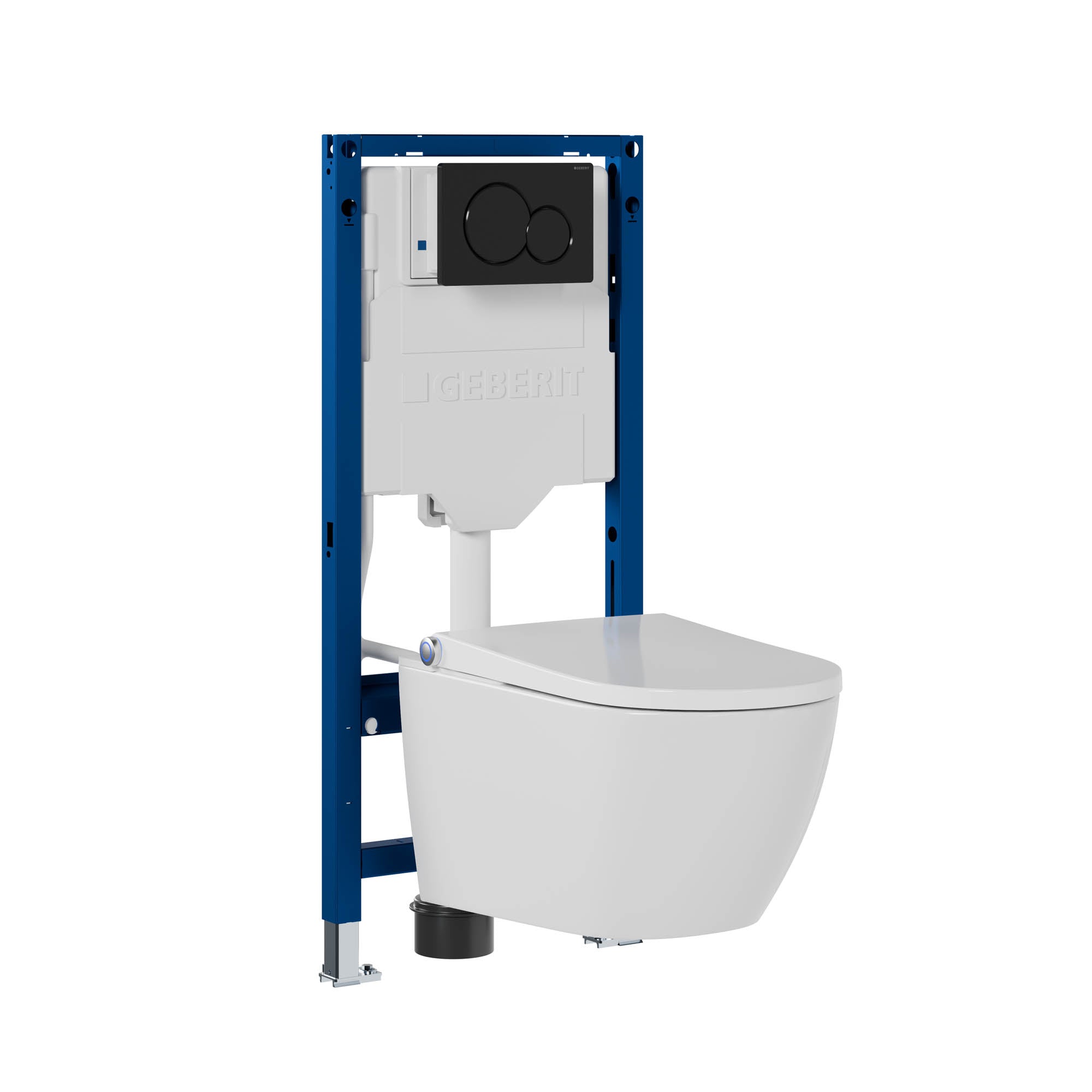

Shower toilet complete set Basic 1102 with Geberit Duofix & Sigma01 actuator plate
The BERNSTEIN shower toilet Basic 1102 stands for particularly simple and reliable shower toilet technology. The clear operation via the side rotary knob makes this model ideal for guest bathrooms, hotels or age-appropriate bathrooms. In addition to the shower toilet, the set includes the Geberit Duofix pre-wall element, a Geberit Sigma actuator plate as well as a matching water connection set. All components are technically matched to each other and enable the safe installation of a wall-mounted shower toilet in new buildings or during bathroom modernisation.
Easy operation and reliable hygiene

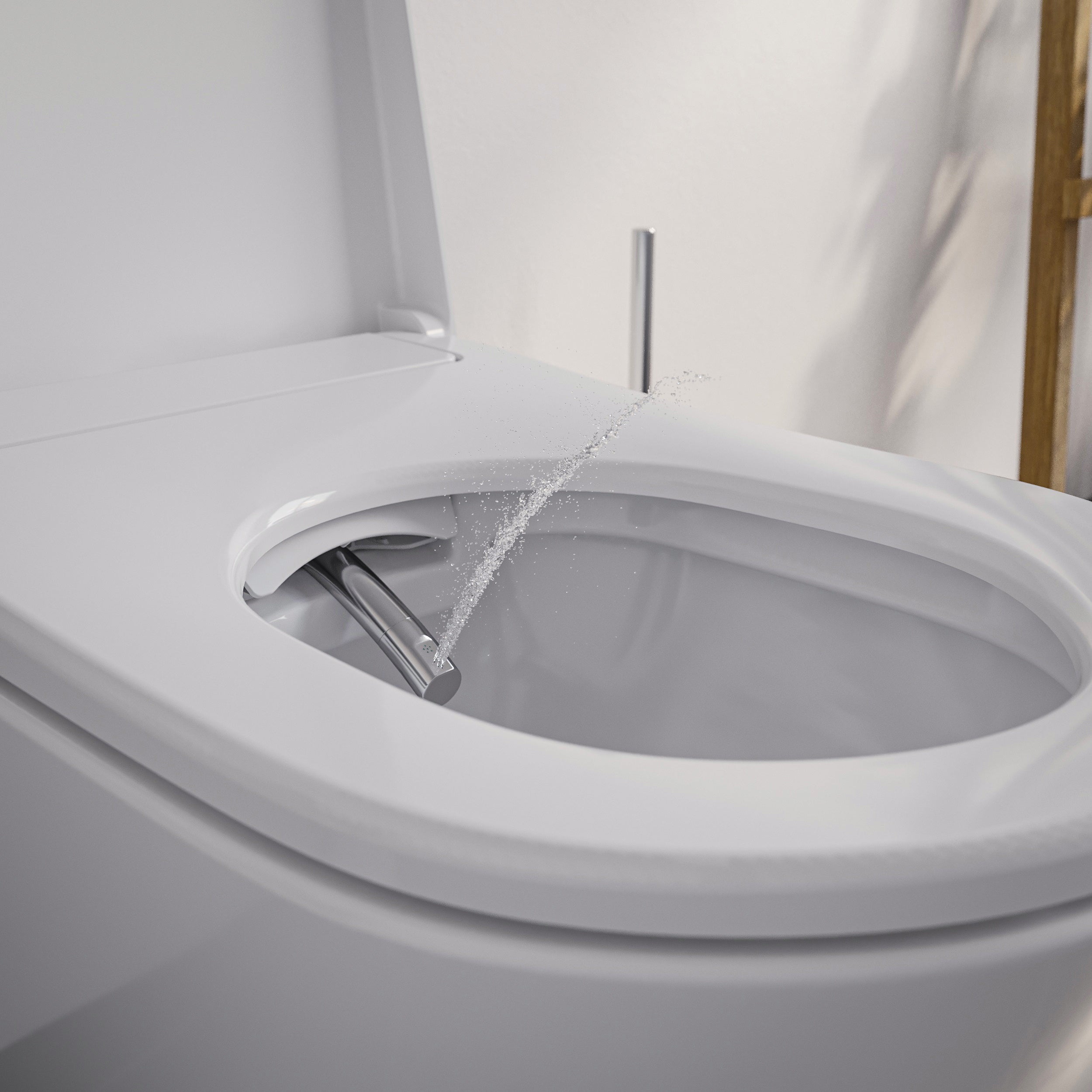

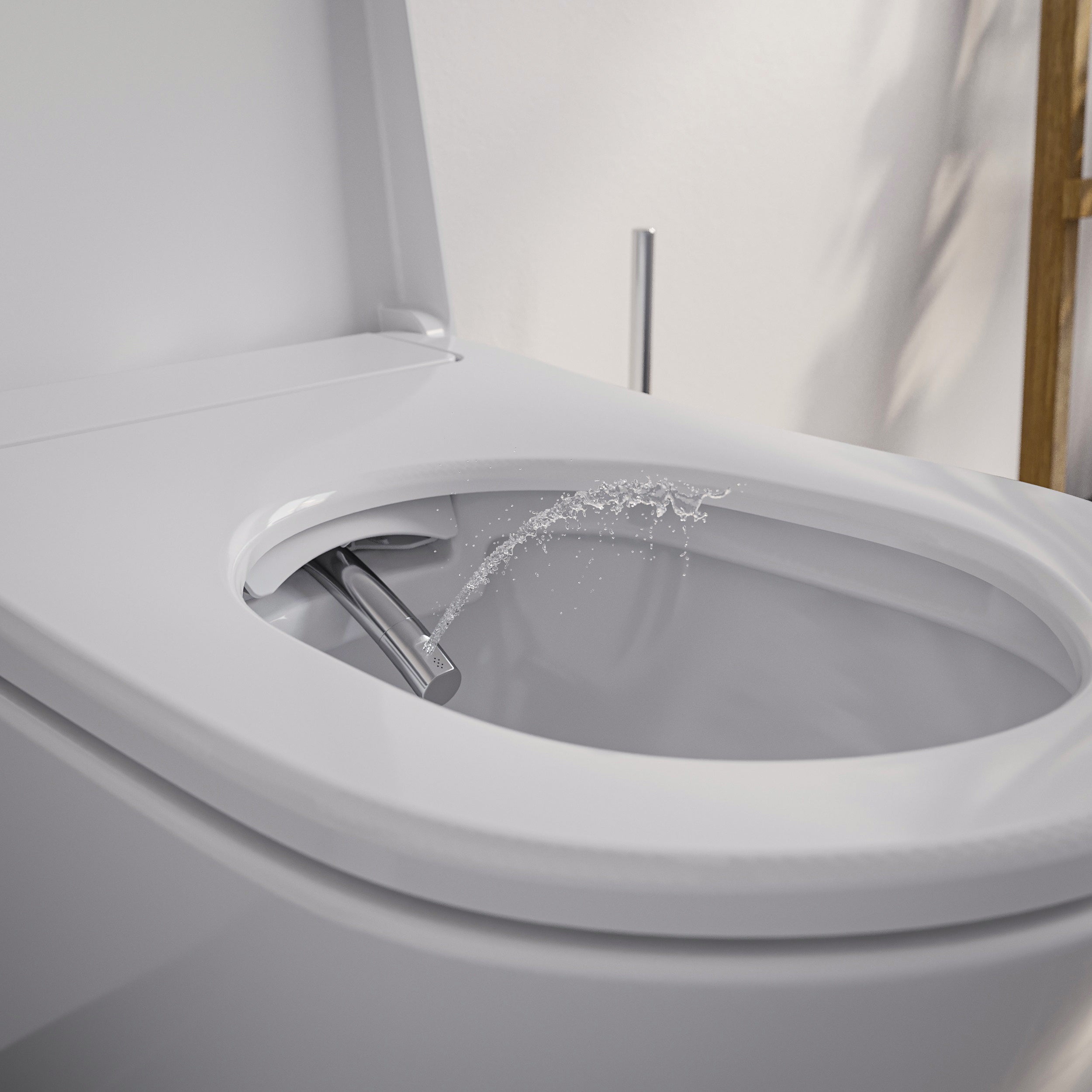

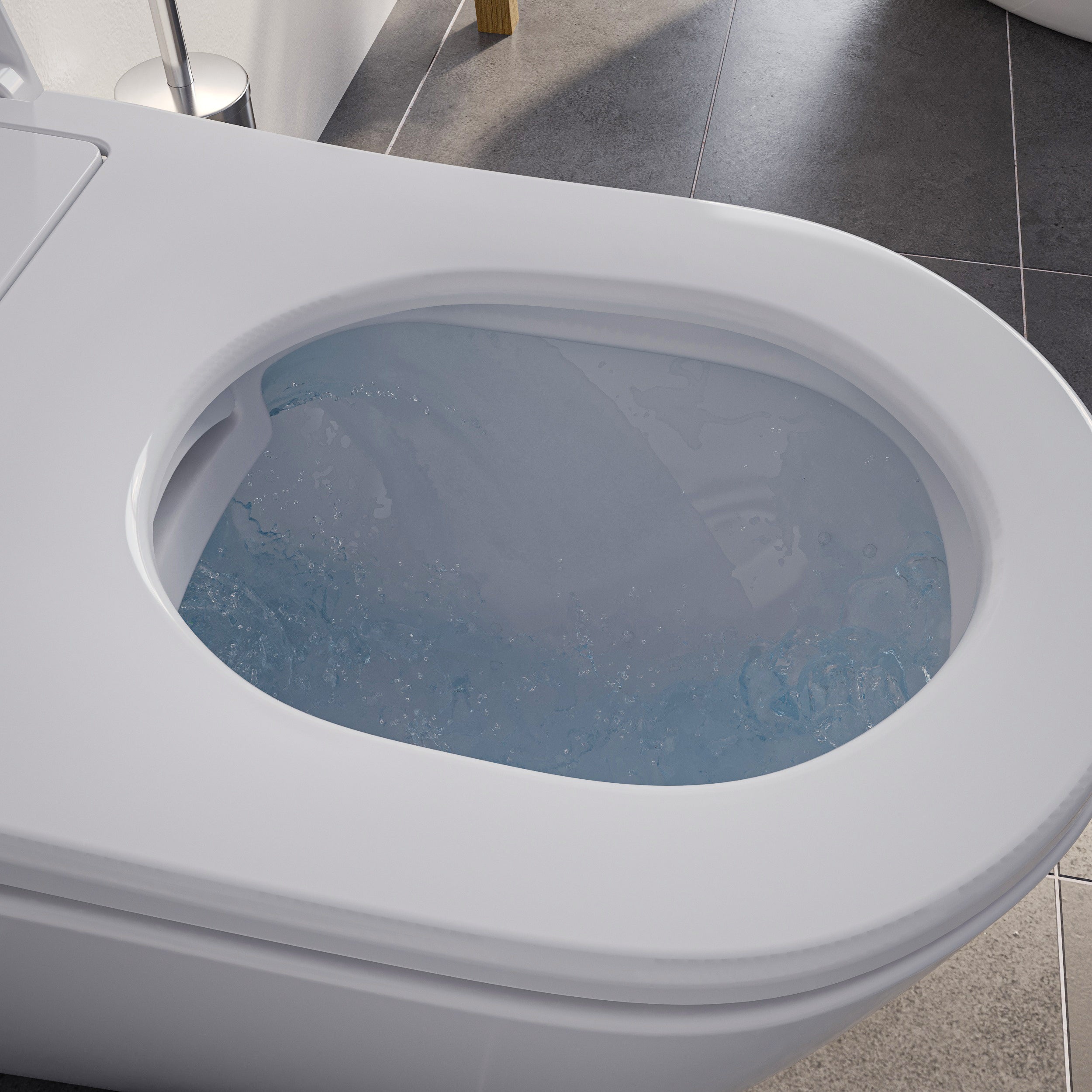

The integrated posterior and lady shower cleans particularly gently with warm water. Light forward and backward movements of the shower arm optimally reach the cleaning area. Water temperature and spray intensity can be conveniently set in five levels each via the side rotary knob. The rimless WC rim makes cleaning the ceramic easier. The antibacterial shower arm cleans itself automatically before and after each use. If required, the shower nozzle can be easily removed for manual cleaning. The 180° vortex flushing system ensures powerful flushing. In addition, the toilet has a soft-close seat with an antimicrobial surface as well as an integrated night light with three setting options.

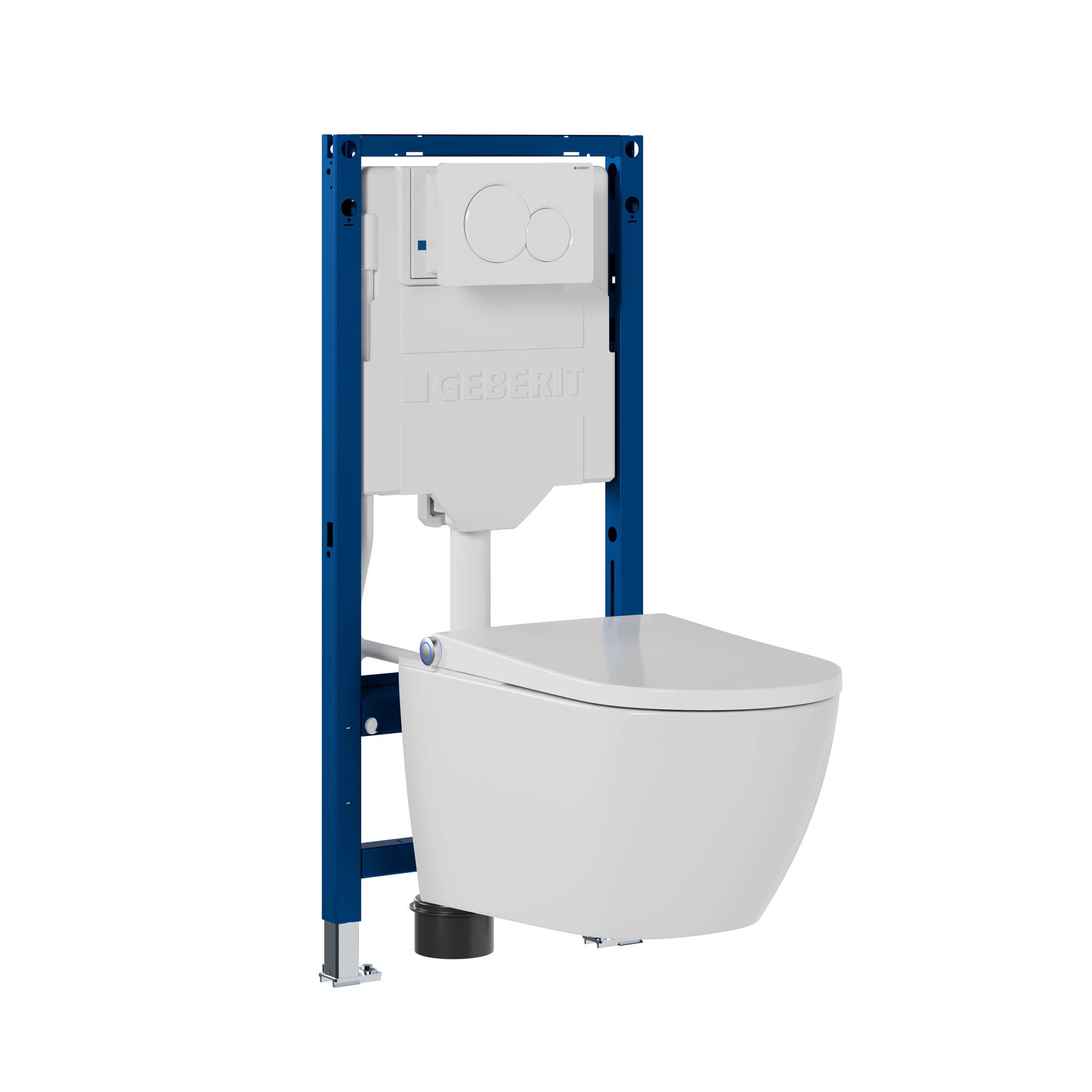

Geberit Duofix pre-wall element for a stable installation
The Geberit Duofix pre-wall element ensures a safe and durable concealed installation. The self-supporting steel frame is powder-coated and enables stable wall mounting. Height-adjustable, galvanised foot supports make precise alignment during installation easier. The condensation-insulated concealed cistern allows the flush volume to be adjusted and supports economical water consumption.
Actuator plate and water connection in a complete set
The set includes a Geberit Sigma actuator plate with dual-flush function. The colour can be chosen to match the bathroom design. The supplied connection set enables professional connection of the shower toilet to the water installation. This complete set offers a practical combination of simple shower toilet technology and proven installation quality from Geberit.

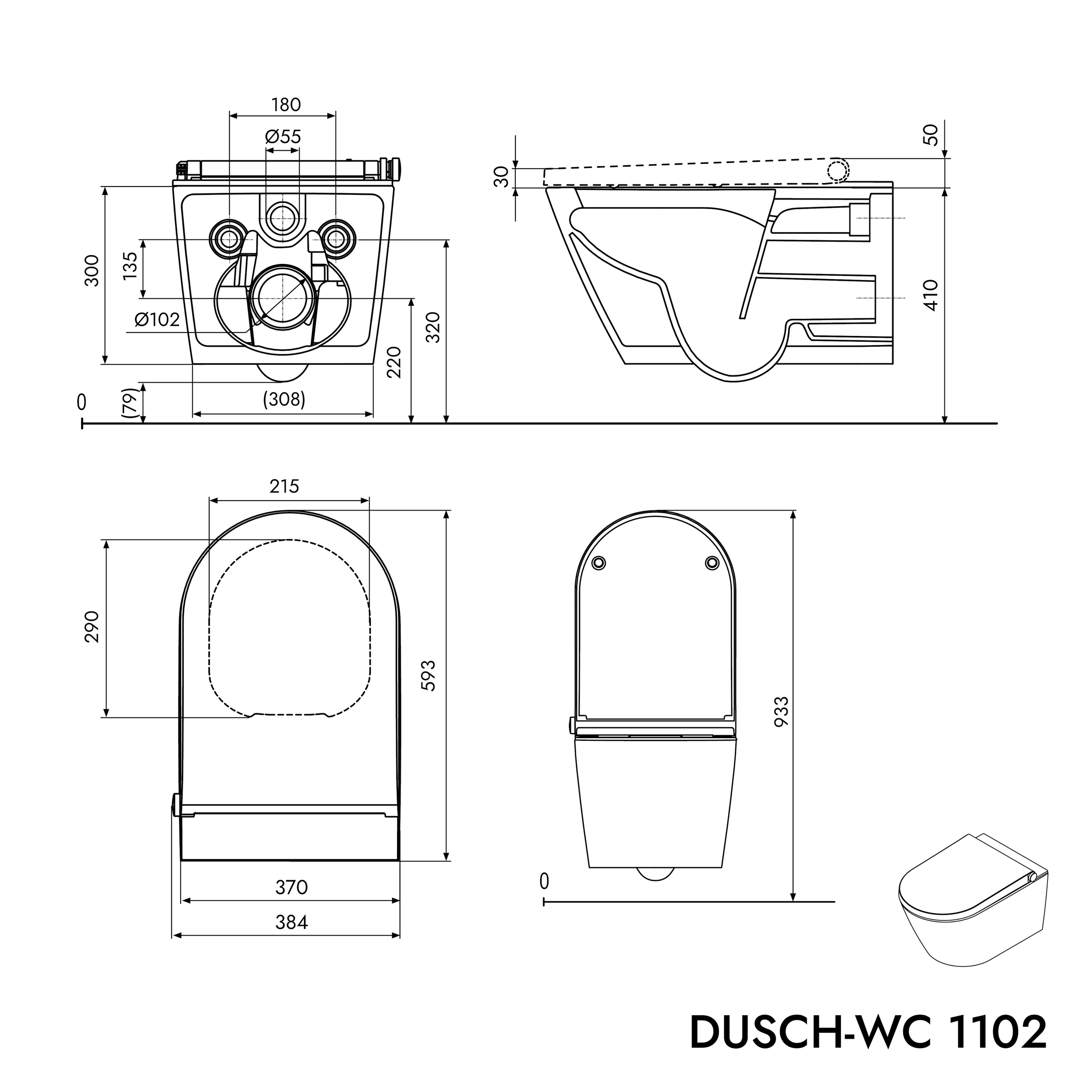

Dimensions and specifications
| SHOWER TOILET | |
| Model | Basic 1102 |
|---|---|
| Material | Sanitary ceramics |
| Color | White |
| Dimensions (D x W x H) | 59.3 x 38.4 x 38 cm |
| Weight | 32 kg (net) |
| Package dimensions | 66 x 48 x 46.5 cm |
| Connection | Power connection required |
| Voltage | 220–240 V, 50–60 Hz |
| Power | 950 W |
| Protection class | IPX4 |
| Closing function | Soft-close function |
| Cable length | 1.8 m |
| Certifications | EN 1717 |
| Toilet seat | UF plastic with antimicrobial coating LED night light |
| Scope of delivery | Shower toilet Basic 1102 Sound insulation mat Mounting material Installation instructions Operating instructions |

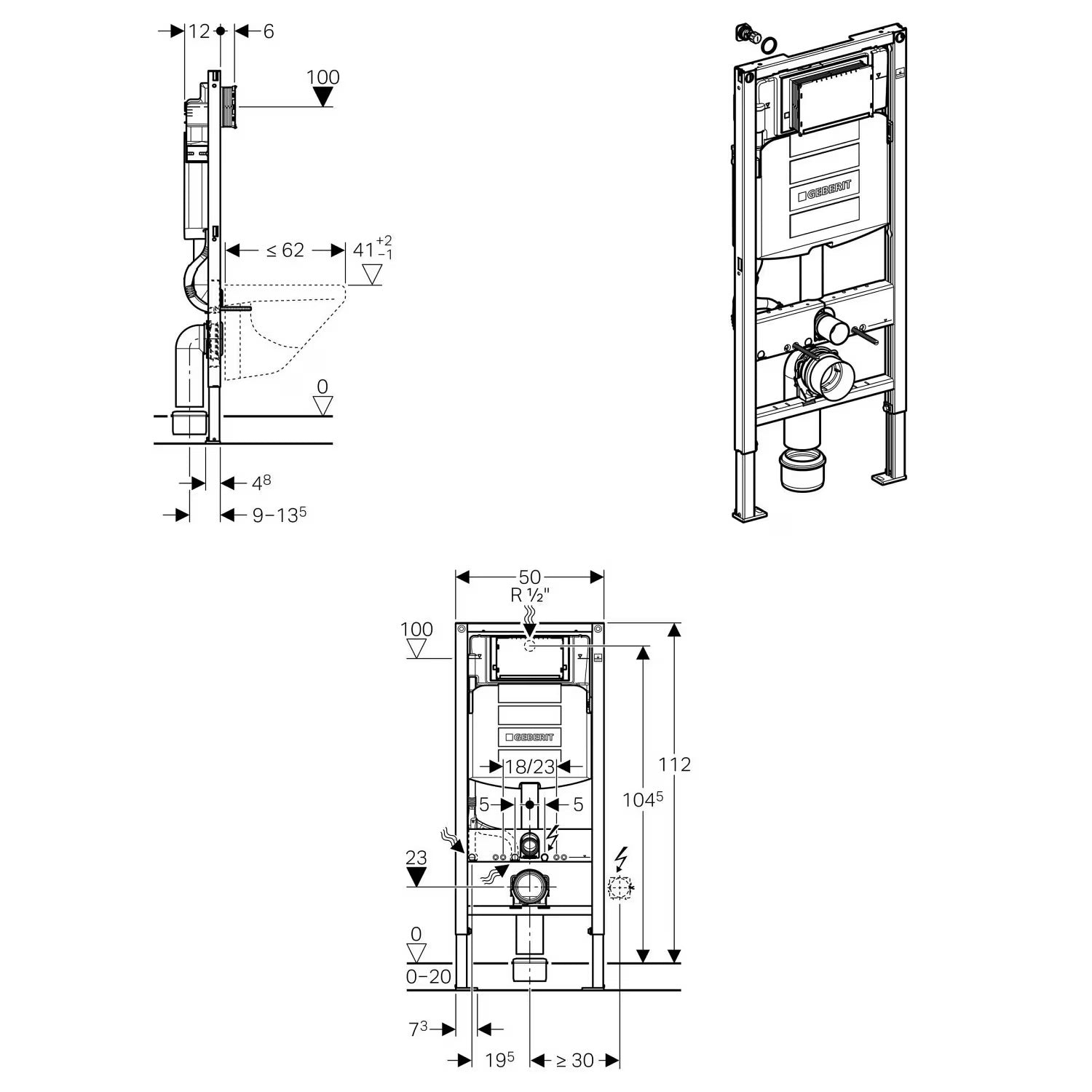

| PREWALL ELEMENT | |
| Model | Geberit Duofix |
|---|---|
| Cistern | Sigma UP |
| Material | Steel (frame) Plastic (cistern) |
| Color | Blue, powder-coated |
| Width | 50 cm |
| Height | 112–132 cm (adjustable) |
| Depth | 12 cm |
| Self-supporting construction | Yes |
| Foot supports | With anti-slip protection, galvanized, height-adjustable |
| Flush volume factory setting | 6 and 3 l |
| Large flush volume adjustment range | 4.5 / 6 / 7.5 l |
| Small flush volume adjustment range | 3–4 l |
| Flushing technology | Single-volume, dual-volume or start/stop flush |
| Actuation | Front |
| Condensation-insulated concealed cistern | Yes |
| Position of water connection | At the back, top center |
| Maximum water temperature | 25 °C |
| Actuation plate | Without |
| Shipping weight | approx. 18 kg |
| Scope of delivery | Water connection with integrated angle valve and handwheel Construction protection for service opening 2 protective plugs Connection set for toilet 90° connection bend made of PE-HD Transition sleeve made of PE-HD 2 threaded rods M12 Fastening material |

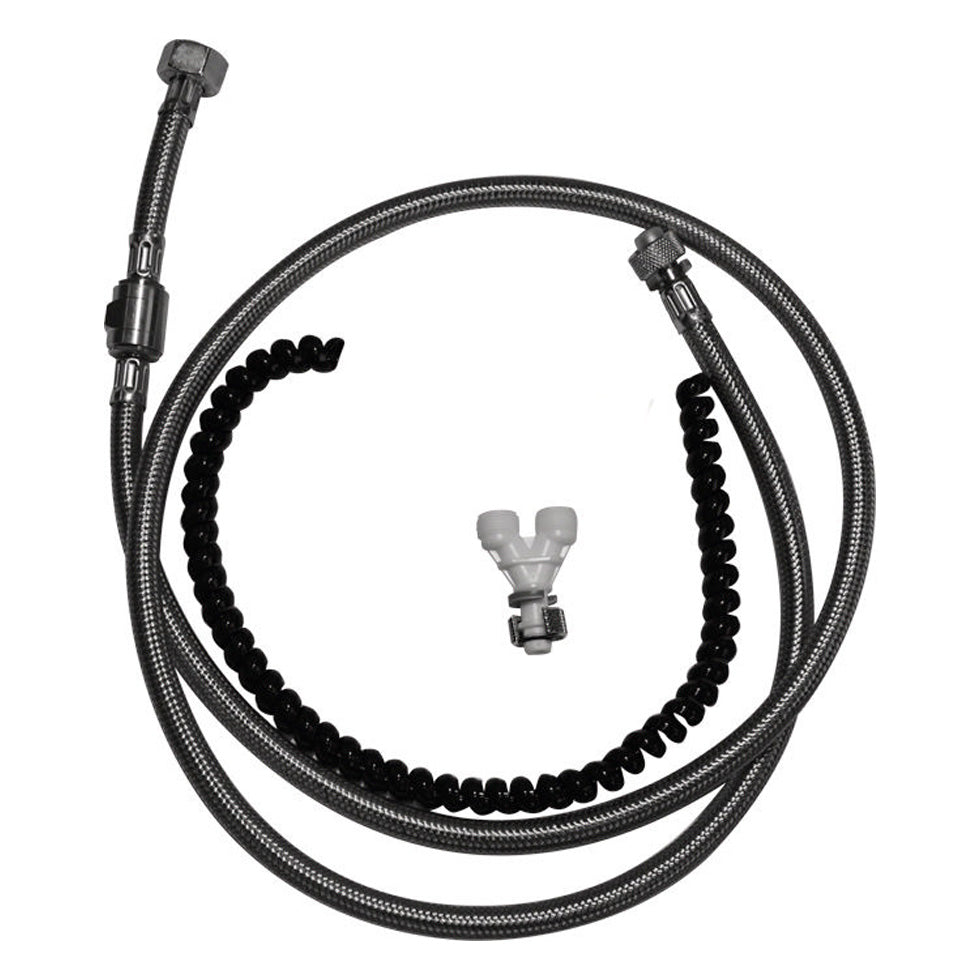

| WATER CONNECTION SET | |
| Model | Duravit SensoWash |
|---|---|
| Material | Stainless steel, plastic, brass |
| Connection size water connection shower toilet | 1/2" |
| Inner diameter water connection shower toilet | DN8 |

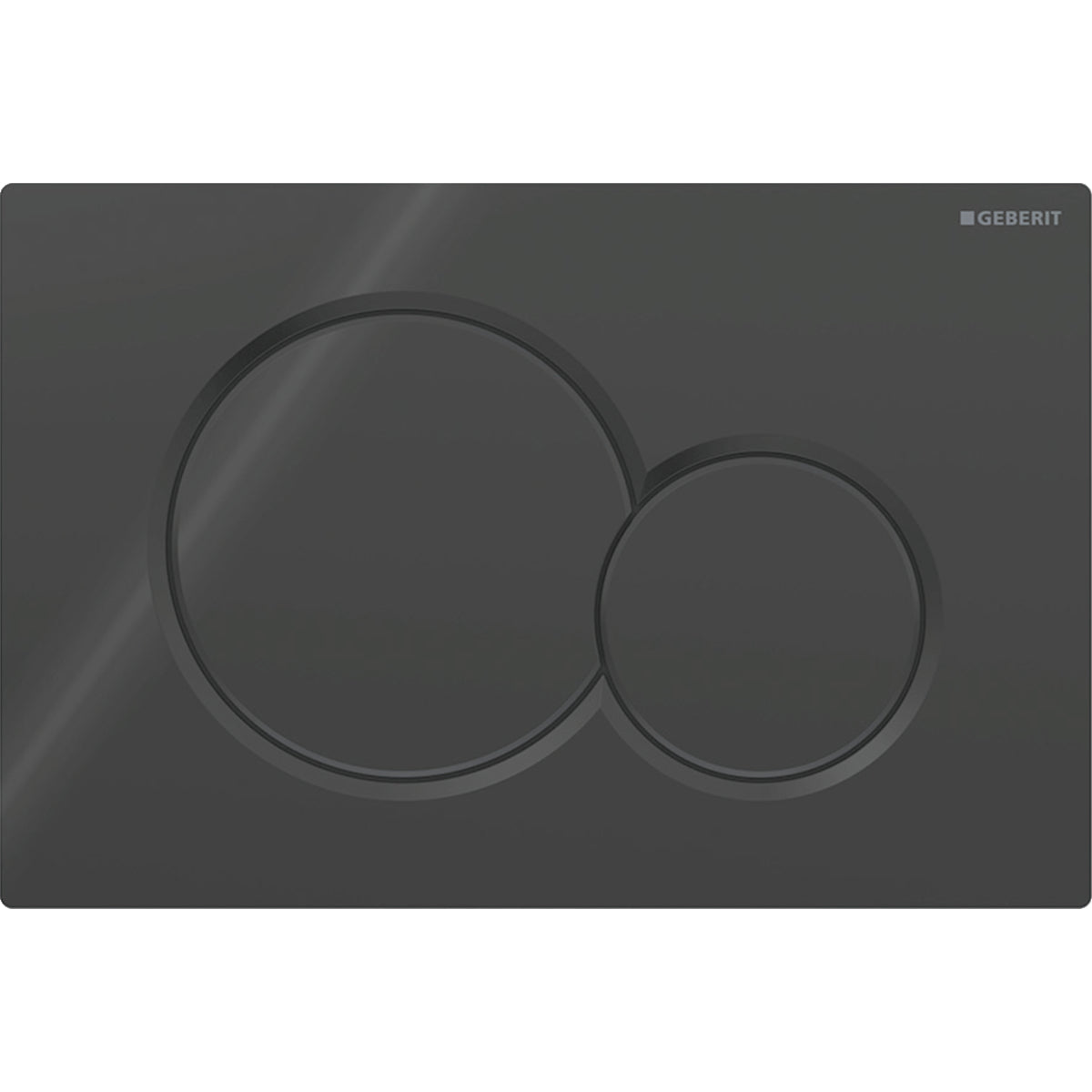

| ACTUATION PLATE | |
| Model | Geberit Sigma01 |
|---|---|
| Dimensions | 24.6 x 16 x 1.3 cm (W x H x D) |
| Material | Plastic |
| Color selectable | White | Black |
| Finish | Glossy |
| Number of flush buttons | 2 |
| Flush operation | Mechanical |
| Type of installation | Surface-mounted |
Scope of delivery
- Bernstein SHOWER-TOILET Basic 1102
- Geberit Duofix prewall element with Sigma concealed cistern
- Duravit water connection set SensoWash
- Geberit actuator plate Sigma01 in selected color
- Installation materials
Downloads
Assembly instructions
Montageanleitung_1102_BASIC-_030925.pdfElectrical note
Batteriegesetz-Elektro-Elektronikgeraete.pdfOperating instructions
Dusch_WC_basic_1102_Anleitung_I_2019_DE_BS.pdfCare instructions
Cleaning_and_care_instructions.pdf
Shipping costs
Product safety
Hygiene and easy operation with the Bernstein Shower Toilet Basic 1102
- Rear and lady shower for gentle cleaning with warm water
- Shower spray strength and water temperature each adjustable in 5 levels
- Easy operation via side rotary knob on the toilet
- Rimless ceramic for hygienic and easy-to-clean maintenance
- Powerful 180° vortex flushing system for effective flushing

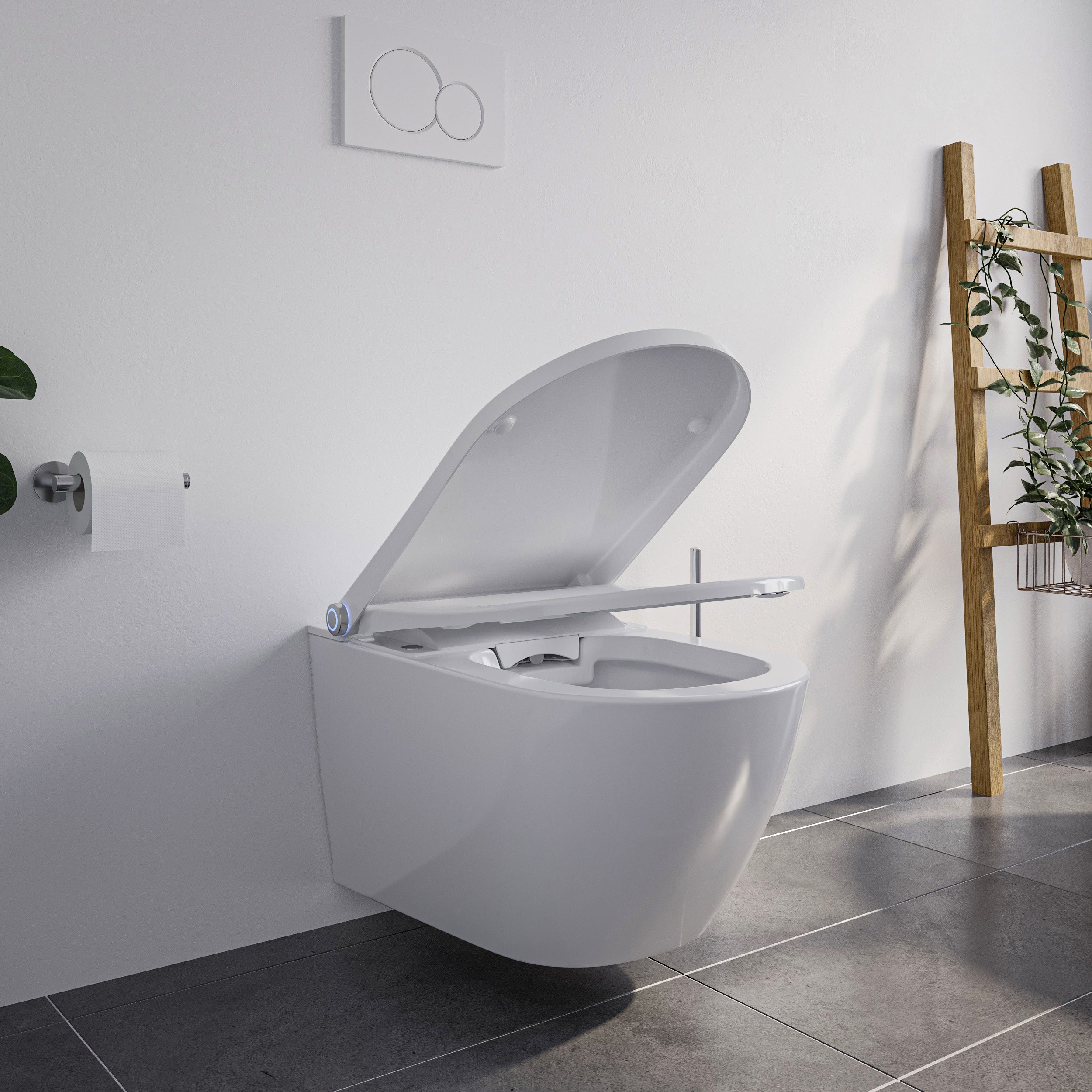

- Antimicrobial toilet seat with soft-close function

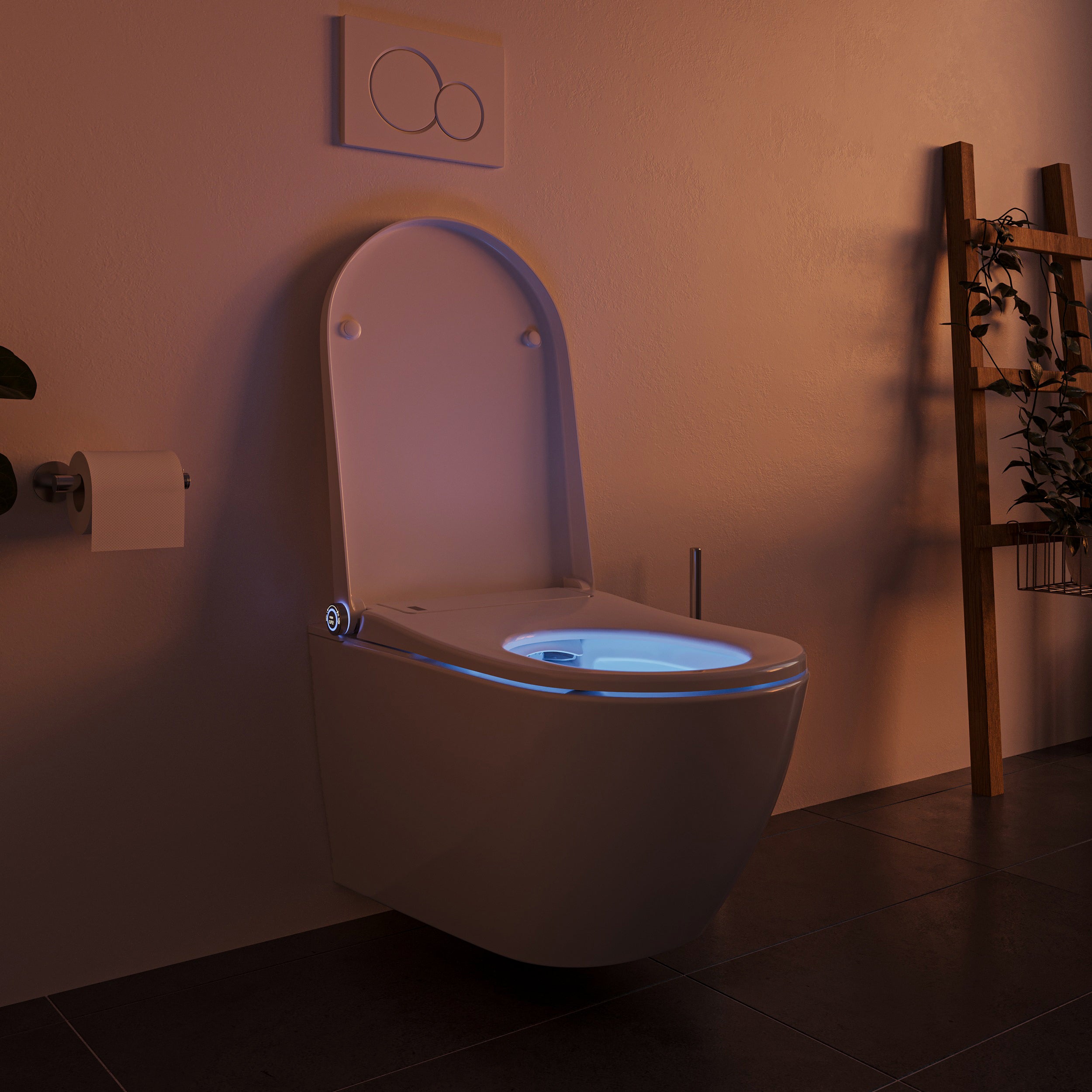

- Night light function with three settings: permanently on, off or smart mode
- Self-cleaning shower arm made of stainless steel SUS304
- Removable shower nozzle for manual cleaning
- Load capacity of the toilet seat up to 150 kg
- Wall-hung shower toilet with modern, space-saving design
- 10 years guaranteed spare parts availability
Geberit Duofix for a secure concealed installation
- Geberit Duofix prewall element for the installation of a wall-mounted shower toilet
- Set already matched to the BERNSTEIN shower toilet
- Self-supporting, powder-coated steel frame for high stability
- Height-adjustable, galvanized foot supports for precise installation
- Condensation-insulated concealed cistern
- Adjustable flush volume for economical water consumption
- Dual-flush technology with the option of immediate re-flushing
- Tool-free maintenance for easy servicing
- Construction protection of the service opening protects the technology during installation
- Geberit Sigma actuator plate included in the set, color selectable
- Water connection set for the professional connection of the shower toilet
