Shower toilet complete set PRO+1102 with Geberit Duofix pre-wall element
Warm air dryer - Odor absorption - Geberit actuator plate freely selectable

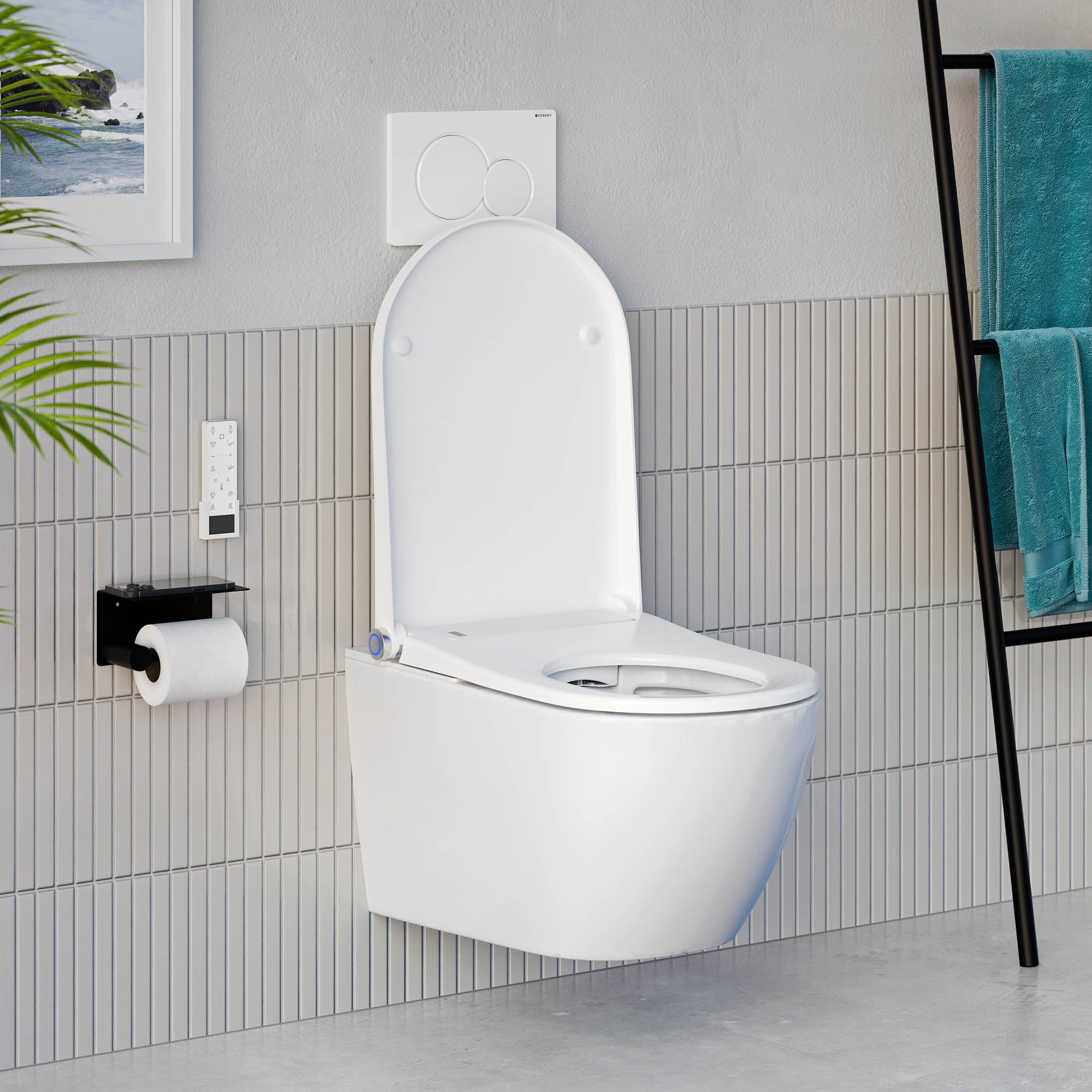

Product number: 173815

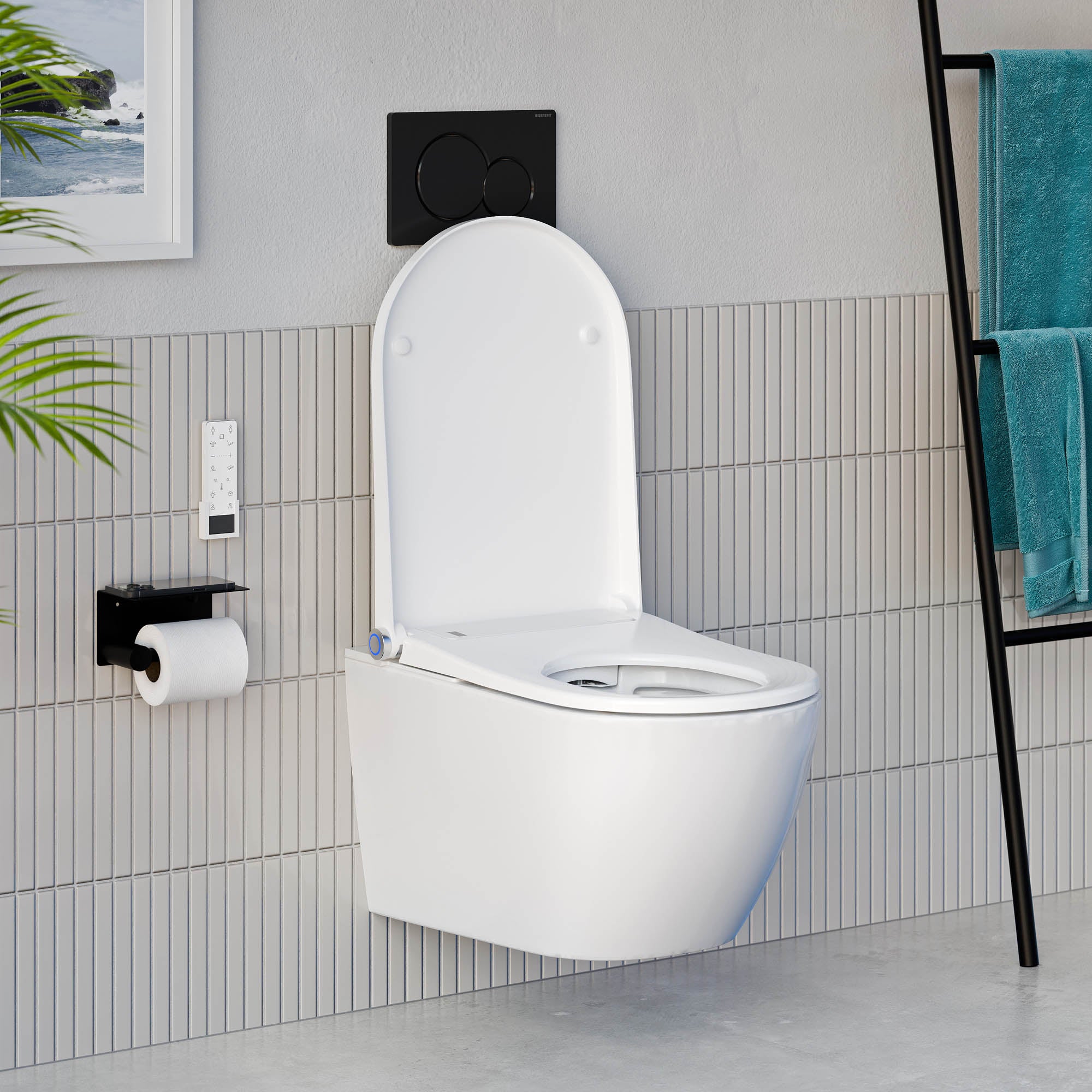

Product number: 173816
Product information

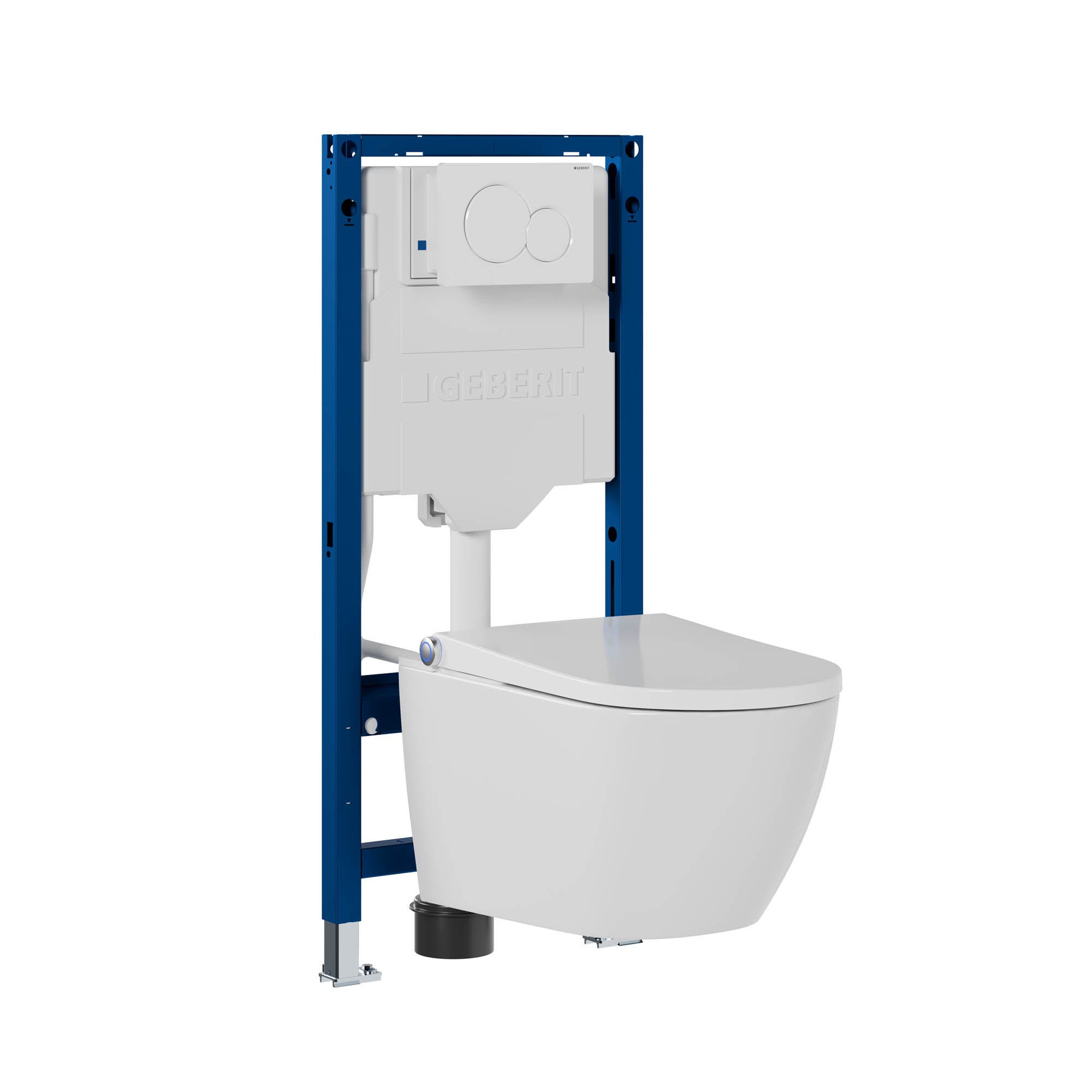

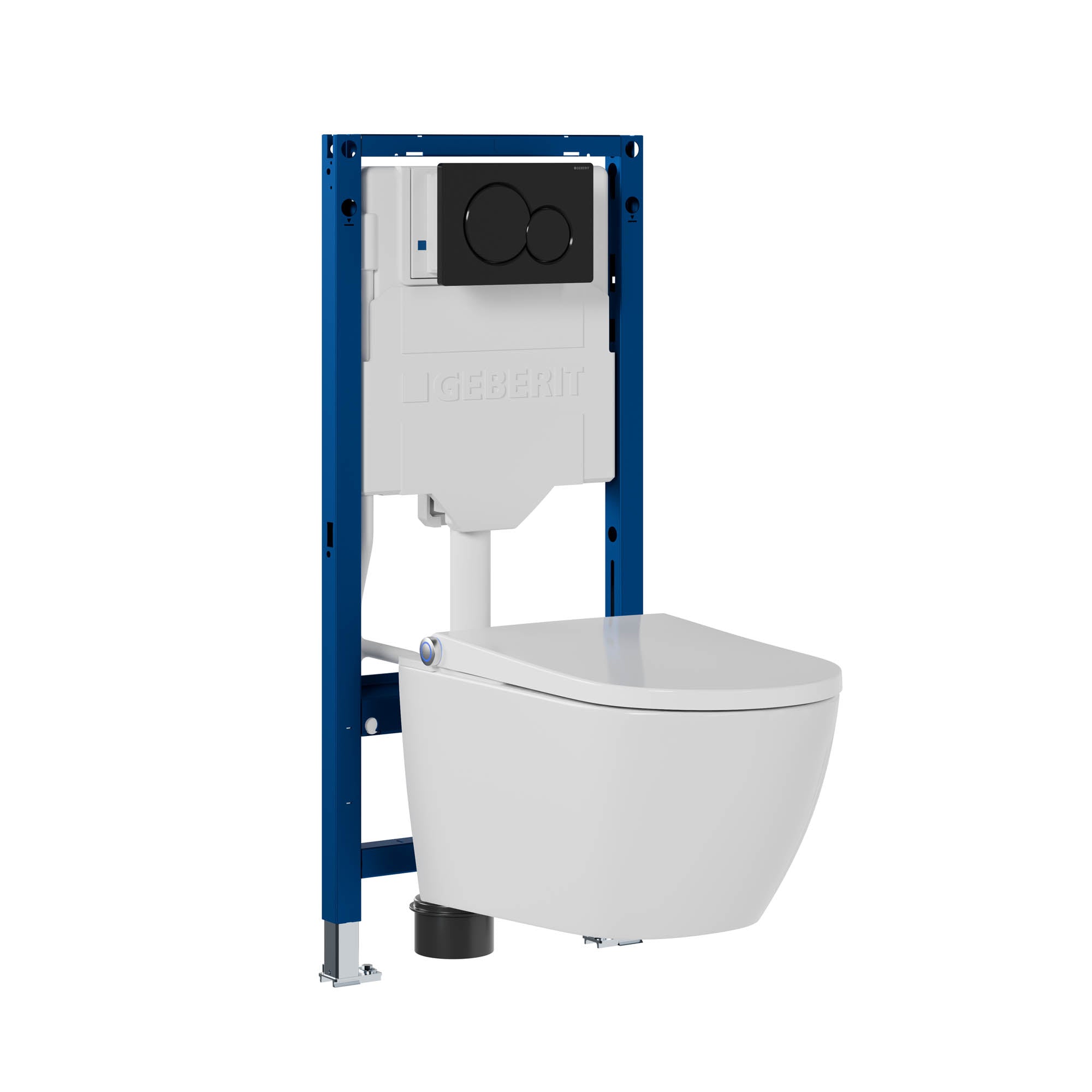

Shower toilet PRO+1102 with Geberit Duofix pre-wall element: complete toilet set for modern shower toilet installation
This shower toilet complete set includes the Bernstein shower toilet PRO+ 1102, the proven Geberit Duofix pre-wall element, a matching Geberit actuator plate as well as a water connection set. All components are technically matched to each other and enable reliable installation of a wall-mounted shower toilet in new builds or during bathroom renovations. This creates a high-quality complete toilet set as a practical solution for modern bathrooms with high demands on comfort and hygiene.
Pleasant cleaning and modern comfort in everyday life

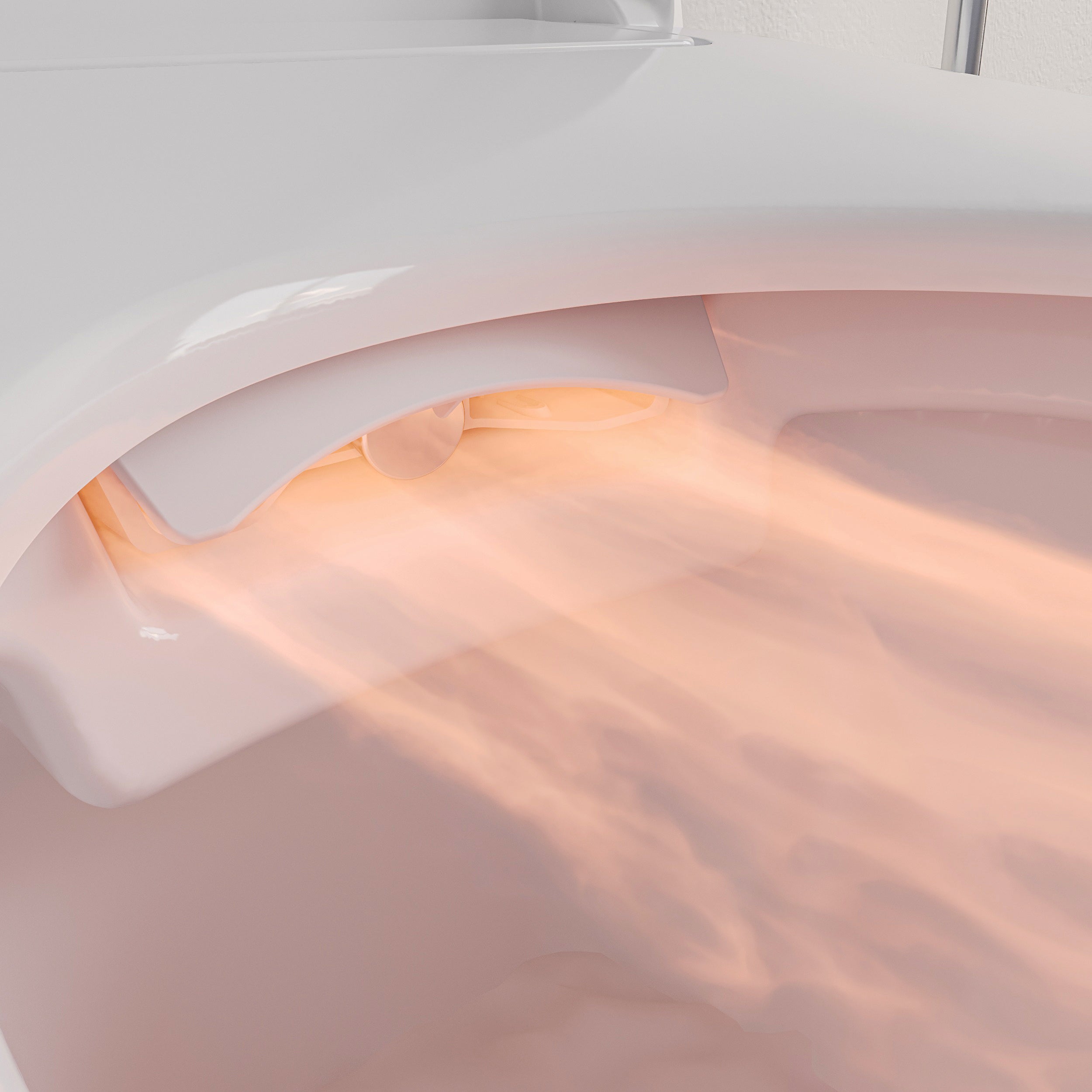

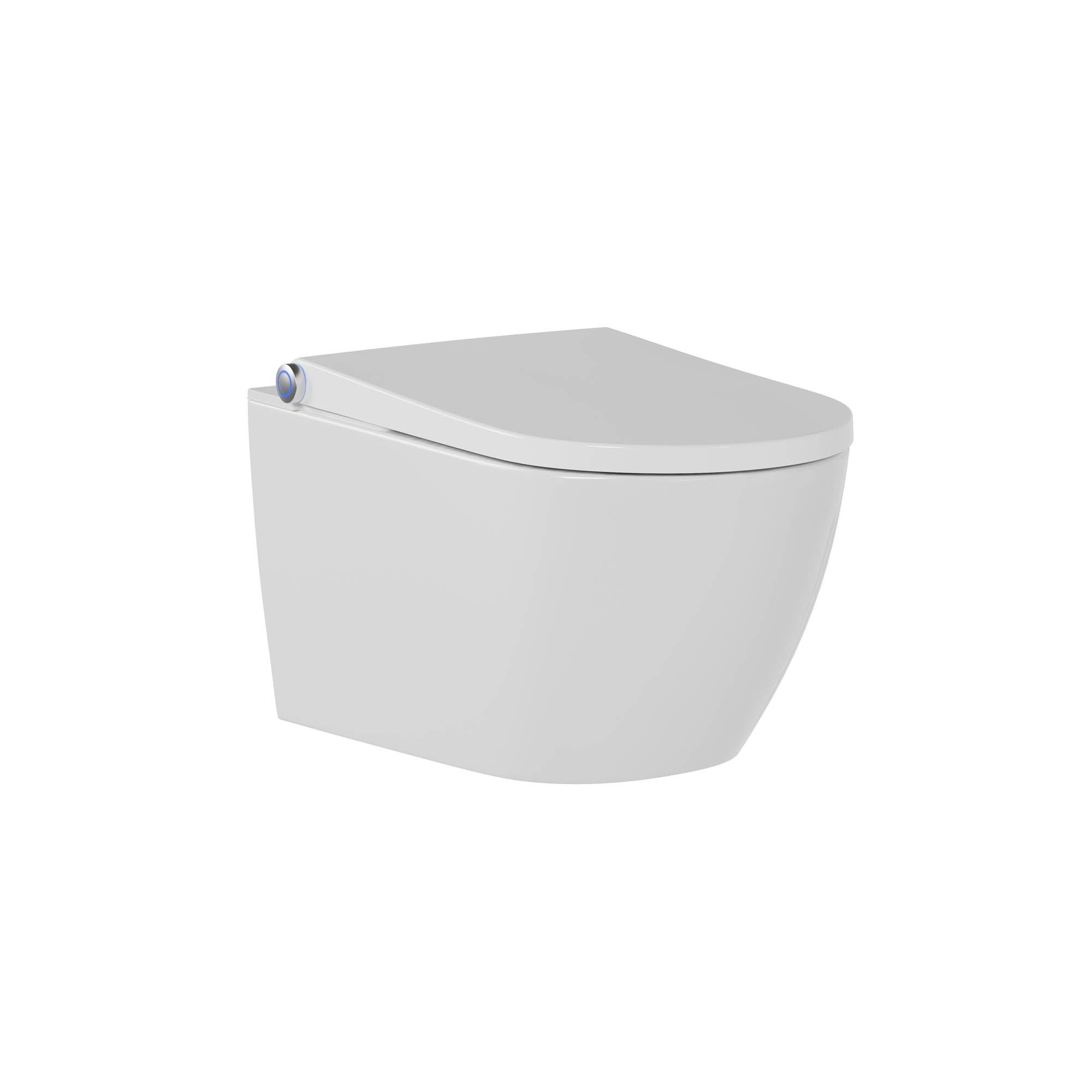

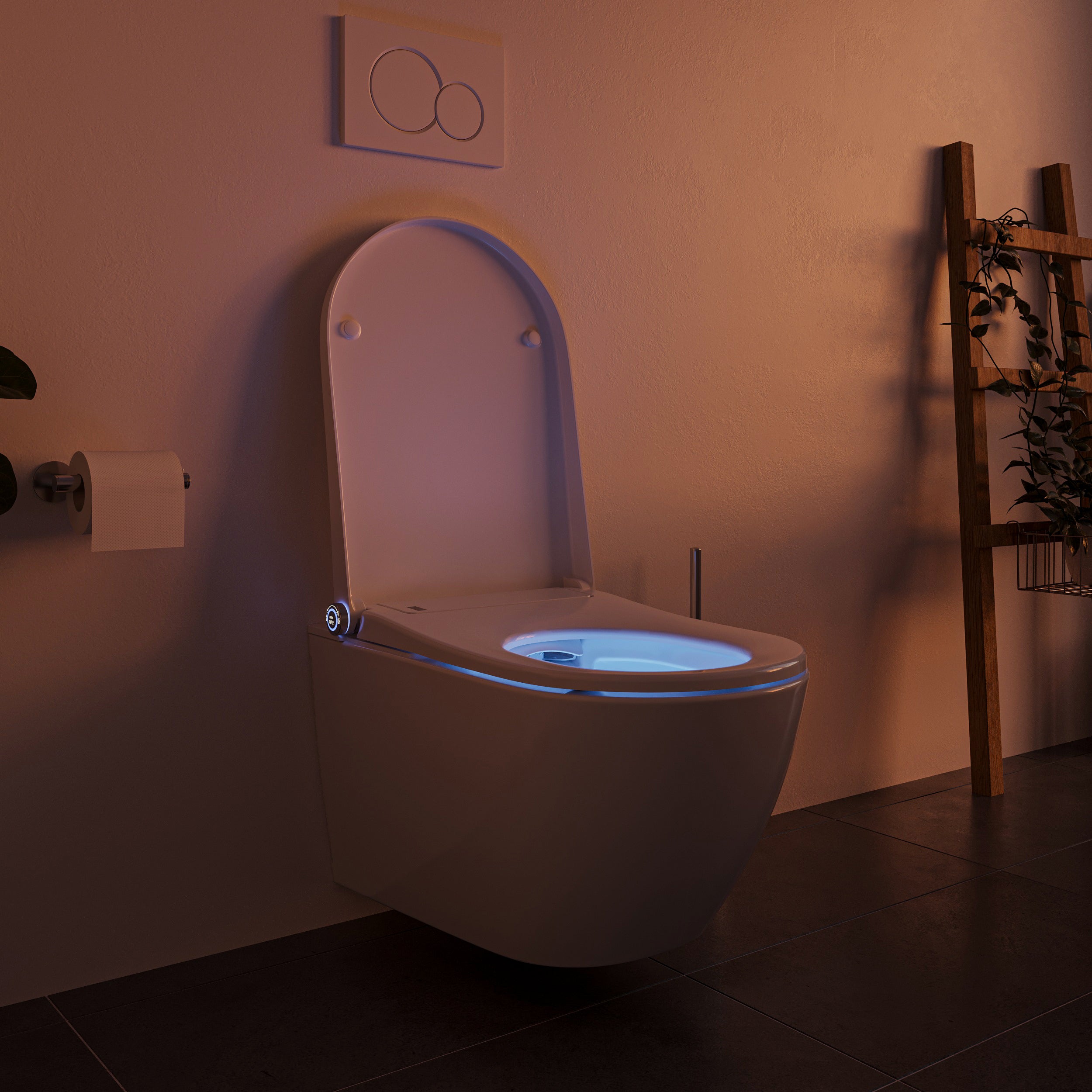

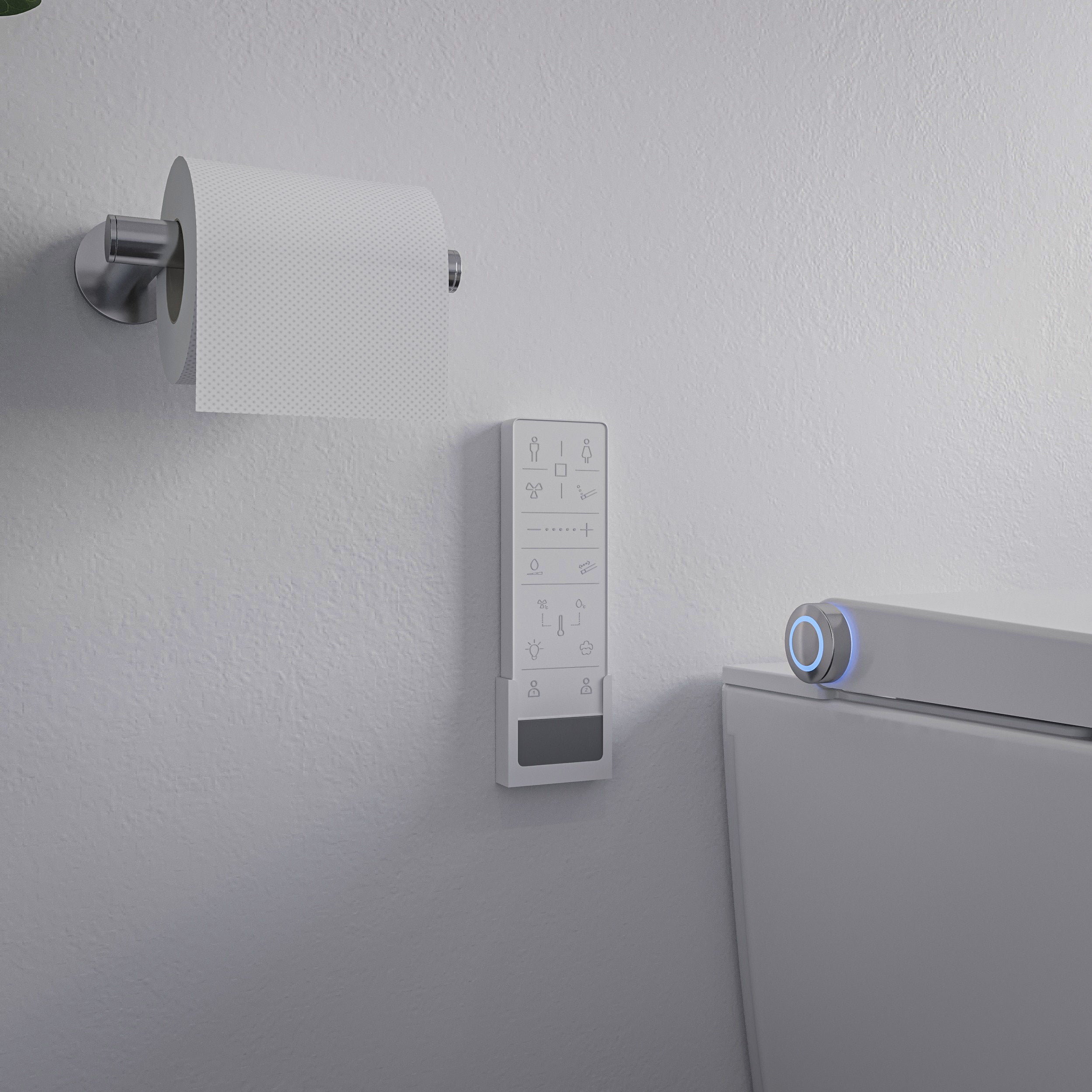

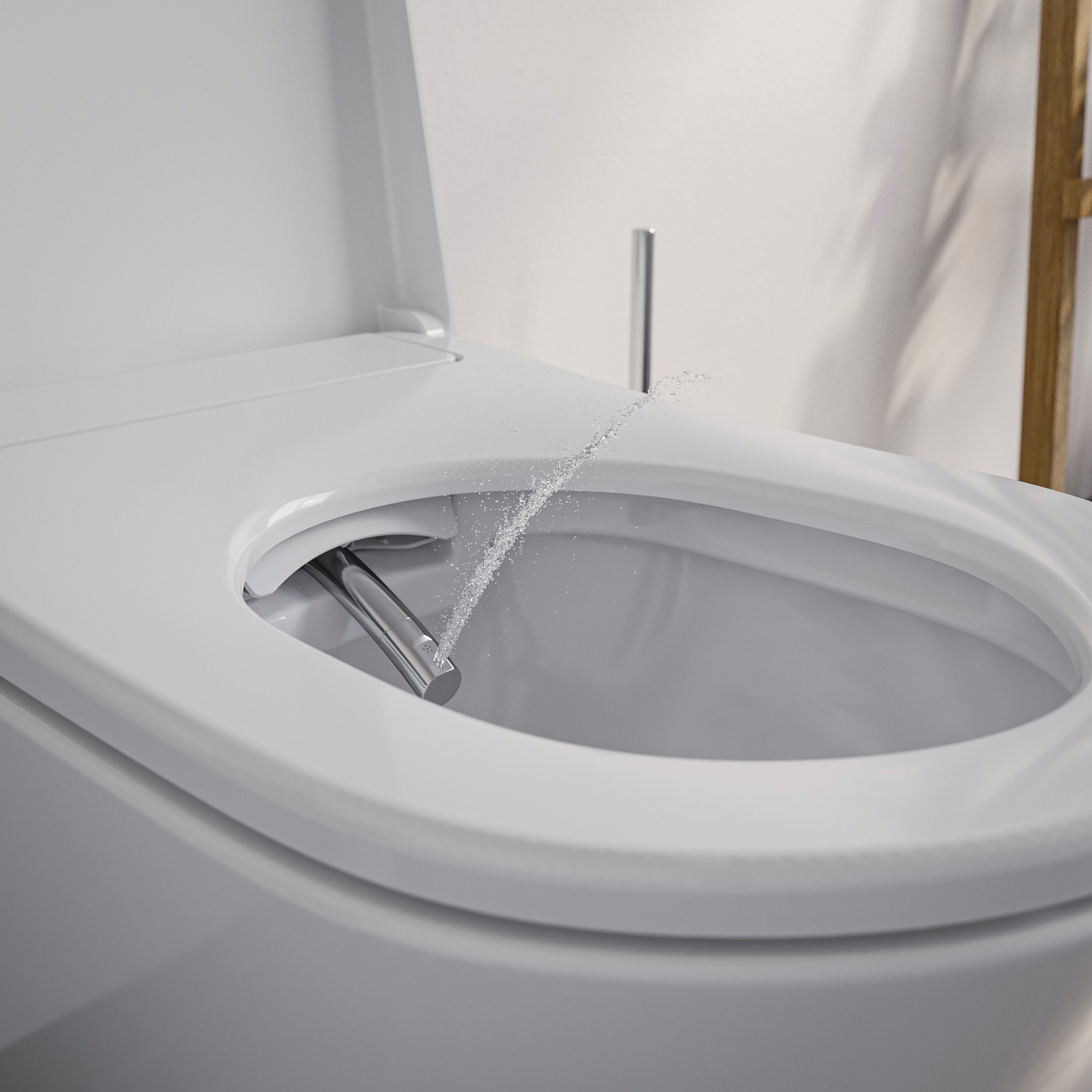

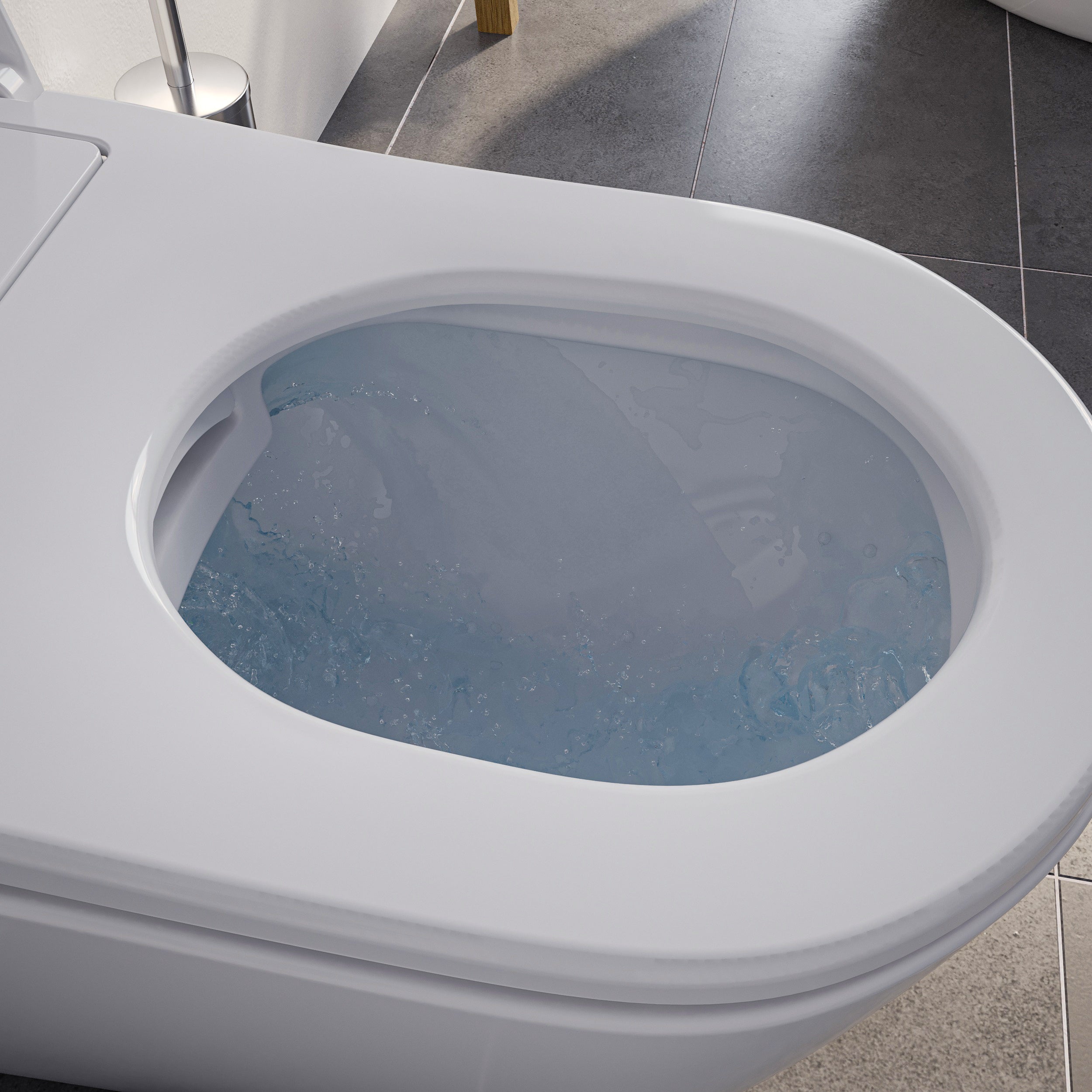

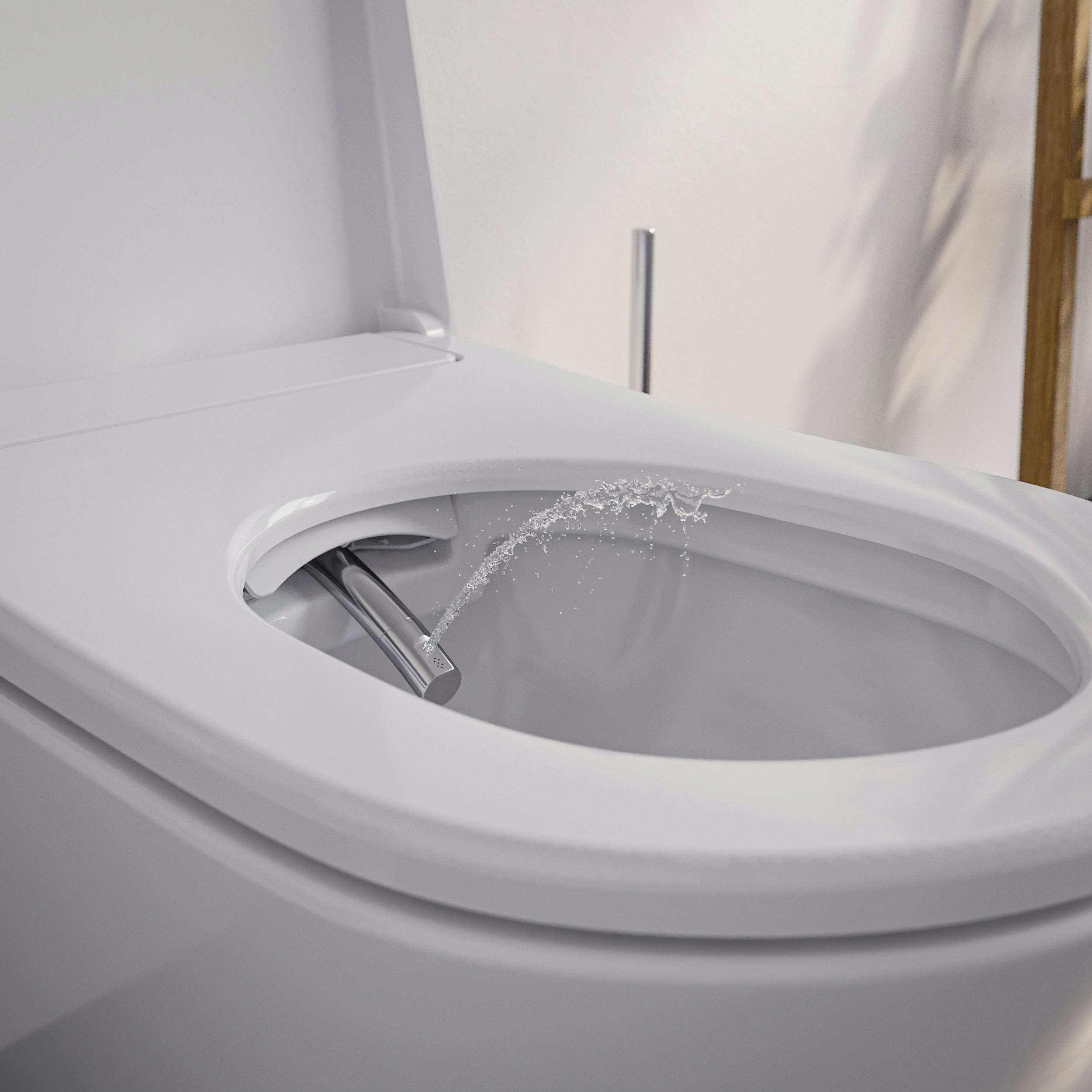

The Bernstein shower toilet PRO+ 1102 offers intelligent functions for particularly comfortable personal hygiene. The rear and lady shower ensures thorough cleaning and a pleasant massage effect with a pulsating and oscillating water jet. Gentle forward and backward movements of the shower arm ensure the cleaning area is optimally reached. Water temperature and spray intensity can each be set in five levels and individually adjusted. Two user profiles of the toilet set allow personal settings to be saved. After cleaning, the integrated warm air dryer ensures pleasant drying. At the same time, an activated carbon filter reliably reduces unpleasant odours. For additional hygiene, the shower nozzle cleans itself automatically before and after each use. The powerful 180° vortex flush, in combination with the rimless ceramic, ensures particularly effective cleaning of the toilet bowl. Antimicrobial materials in the toilet seat additionally support hygienic use. An integrated night light makes orientation in the dark easier. Operation is convenient via the supplied remote control.
Geberit Duofix for safe and durable installation
The Geberit Duofix pre-wall element ensures stable installation. The self-supporting steel construction of the wall-hung toilet complete set is powder-coated and designed for long-term use. Height-adjustable and galvanized foot supports enable precise adjustment during installation. The integrated concealed cistern is condensation insulated and supports economical water consumption. The flush volume can be individually adjusted and allows immediate re-flushing if required. Tool-free maintenance makes later service work easier.
Actuator plate and connection set as part of the complete toilet set

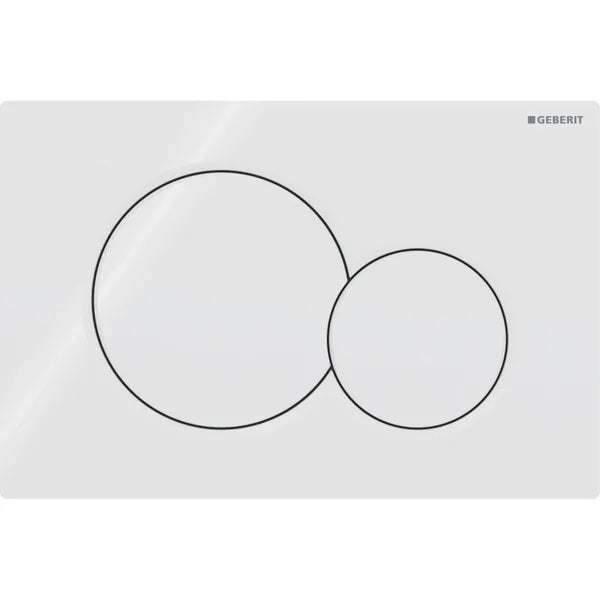

The toilet set includes a Geberit Sigma actuator plate with dual flush. The colour can be freely selected in different variants and can thus be optimally adapted to the bathroom design. The supplied water connection set enables professional integration of the shower toilet into the existing installation. This wall-hung toilet set combines modern shower toilet technology with Geberit’s proven installation quality and offers a well-thought-out solution for comfortable bathrooms.
Dimensions and specifications
| SHOWER TOILET | |
| Model | PRO+ 1102 |
|---|---|
| Material | Sanitary ceramic |
| Color | White |

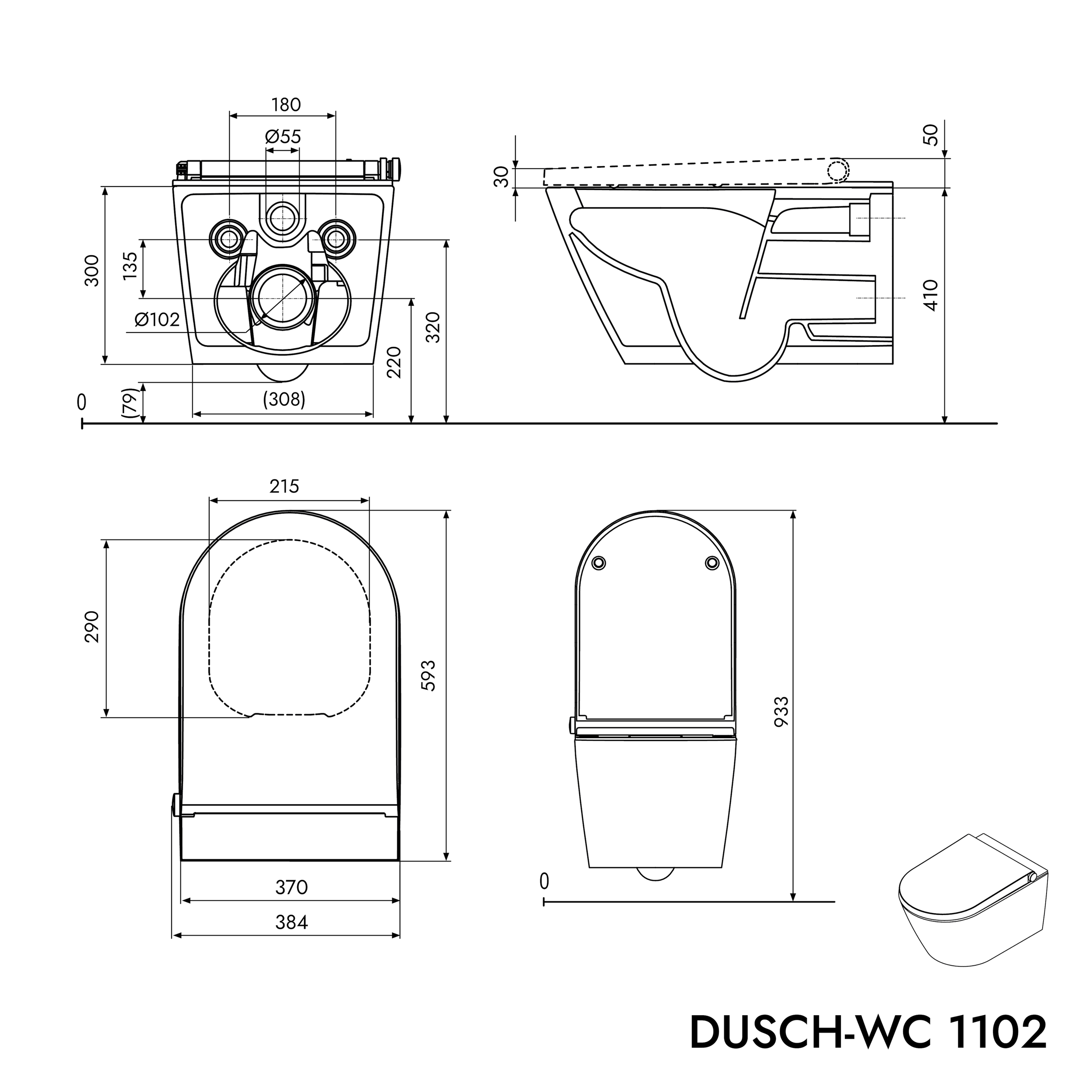

| Dimensions (D x W x H) | 59.3 x 38.4 x 38 cm |
| Weight | 32 kg (net) |
| Packaging dimensions | 66 x 48 x 46.5 cm |
| Connection | Power connection required |
| Voltage | 220–240 V, 50–60 Hz |
| Power | 950 W |
| Protection class | IPX4 |
| Cable length | 1.8 m |
| Certifications | EN 1717 |
| Toilet seat | UF plastic with antimicrobial coating LED night light Soft-close function |
| Scope of delivery | Shower toilet PRO+ 1102 Remote control incl. holder (without batteries) Activated carbon filter Mounting material Installation instructions Operating instructions |

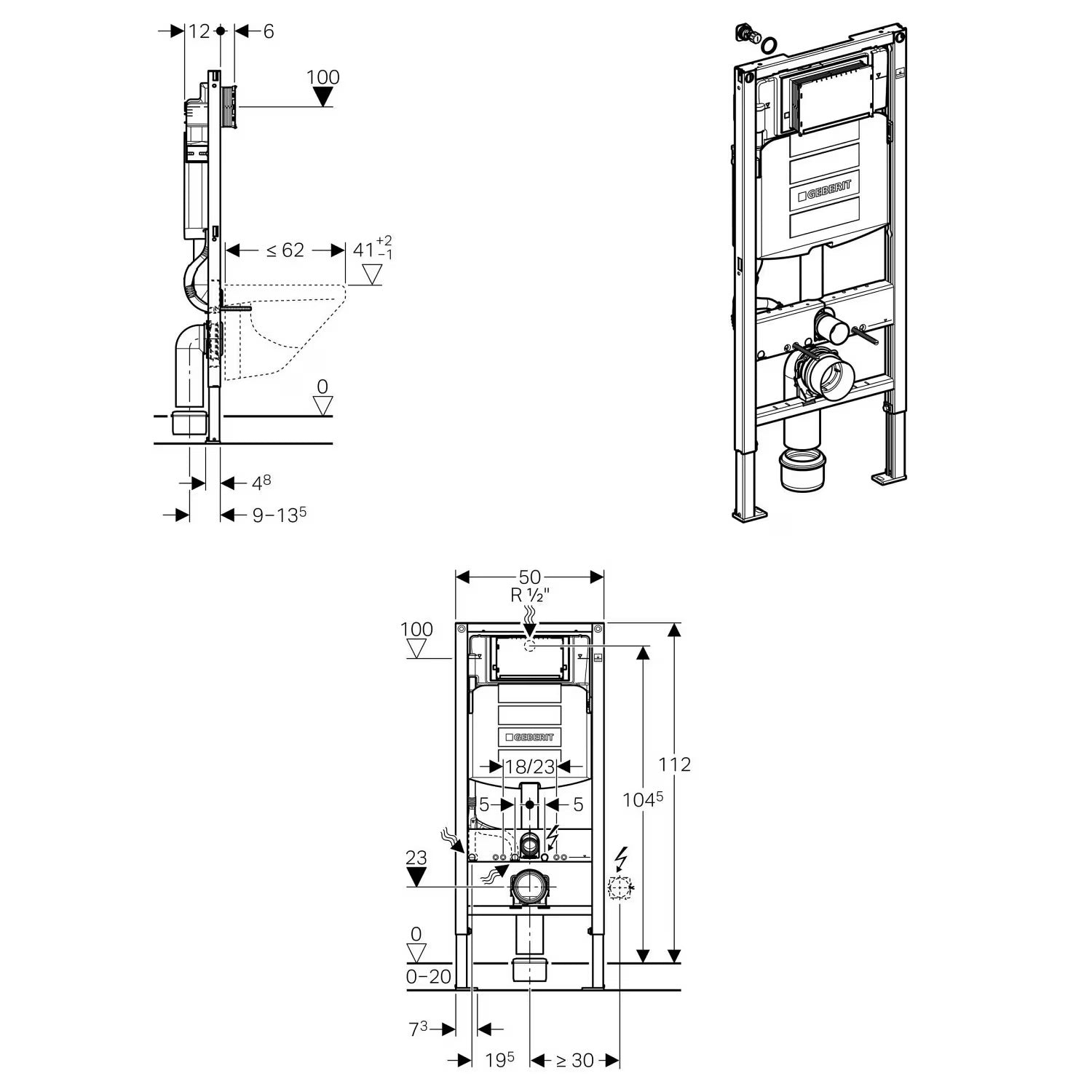

| PREWALL ELEMENT | |
| Model | Geberit Duofix |
|---|---|
| Cistern | Sigma UP |
| Material | Steel (frame) Plastic (cistern) |
| Color | Blue, powder-coated |
| Width | 50 cm |
| Height | 112–132 cm (adjustable) |
| Depth | 12 cm |
| Self-supporting construction | Yes |
| Foot supports | With anti-slip, galvanized, height-adjustable |
| Flush volume factory setting | 6 and 3 l |
| Large flush volume adjustment range | 4.5 / 6 / 7.5 l |
| Small flush volume adjustment range | 3–4 l |
| Flushing technology | Single-volume, dual-volume or flush-stop flushing |
| Activation | Front |
| Condensation-insulated concealed cistern | Yes |
| Position of the water connection | Rear top center |
| Maximum water temperature | 25 °C |
| Actuation plate | Without |
| Shipping weight | approx. 18 kg |
| Scope of delivery | Water connection with integrated angle valve and handwheel Construction protection for service opening 2 protective plugs Connection set for toilet Connection bend 90° made of PE-HD Transition sleeve made of PE-HD 2 threaded rods M12 Fastening material |
| WATER CONNECTION SET | |
| Model | Duravit SensoWash |
|---|---|
| Material | Stainless steel, plastic, brass |
| Connection size water connection shower toilet | 1/2" |
| Inner diameter water connection shower toilet | DN8 |
| ACTUATION PLATE | |

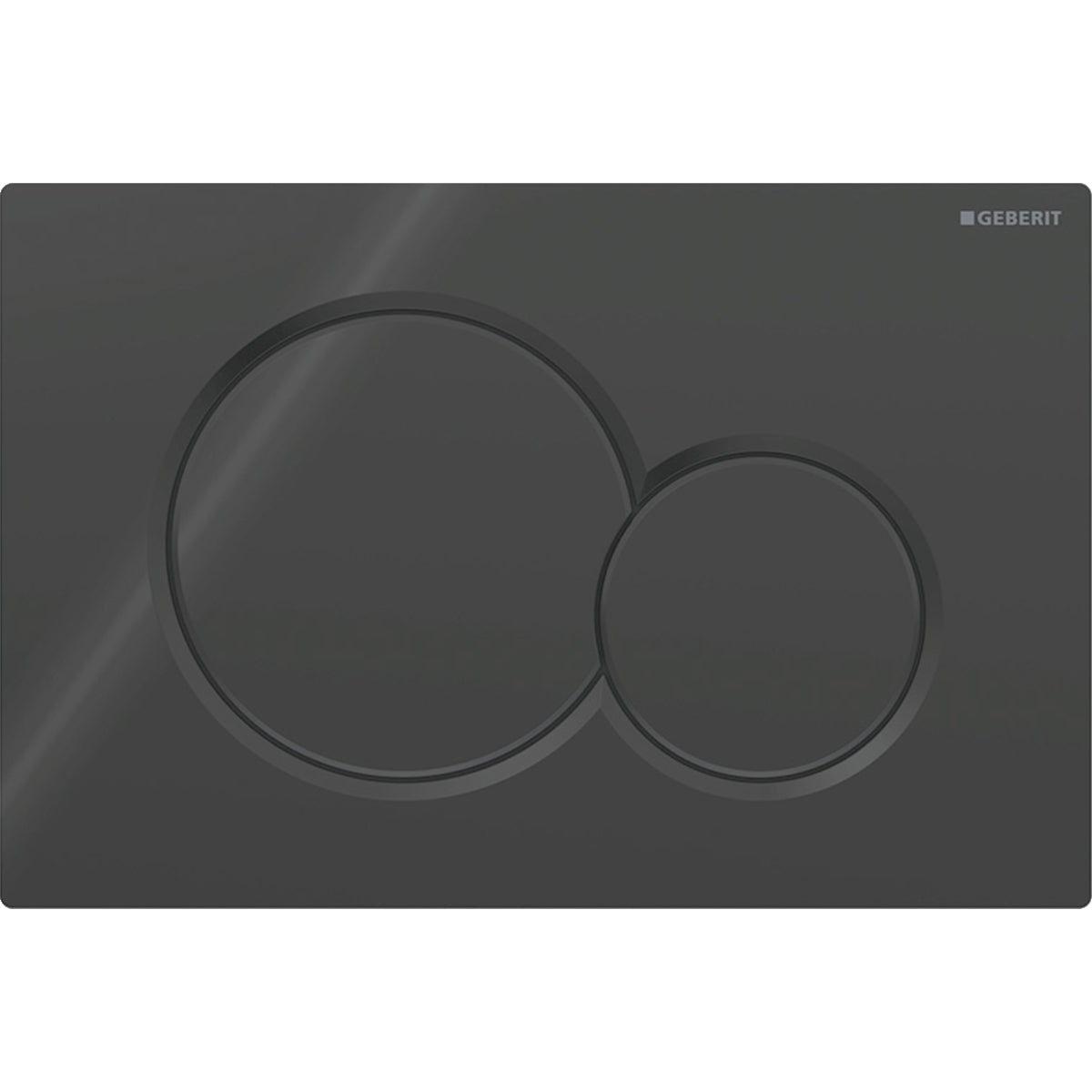

| Model | Geberit Sigma01 |
|---|---|
| Dimensions | 24.6 x 16 x 1.3 cm (W x H x D) |
| Material | Plastic |
| Color selectable | White | Black |
| Finish | Glossy |
| Number of flush buttons | 2 |
| Flush operation | Mechanical |
| Installation type | Surface-mounted |
Scope of delivery
- Bernstein shower toilet PRO+ 1102
- Geberit Duofix pre-wall element with Sigma concealed cistern
- Duravit water connection set SensoWash
- Geberit actuator plate Sigma01 in chosen color
- Mounting materials
Downloads
Assembly instructions
Montageanleitung_1102_PROplus_print_030925.pdfElectrical note
Batteriegesetz-Elektro-Elektronikgeraete.pdfOperating instructions
Dusch_WC_Pro_1102_Manual_DE_FR.pdfCare instructions
Cleaning_and_care_instructions.pdf
