Shower toilet complete set PRO+1104 with Geberit Duofix pre-wall element
Warm air dryer - remote control - Geberit actuator plate freely selectable
Product number: 173818
Product number: 173819
Product information
Bernstein PRO+ 1104 shower toilet complete set with Geberit Duofix pre-wall element incl. actuator plate and water connection set
By combining the shower toilet, pre-wall element and matching connection set, a practical complete solution is created for modern bathrooms with high demands on comfort and hygiene. The toilet set includes the Bernstein shower toilet PRO+ 1104 with modern hygiene functions, the proven Geberit Duofix pre-wall element, a matching Geberit actuator plate as well as a water connection set.
Toilet complete set with modern design and convenient cleaning

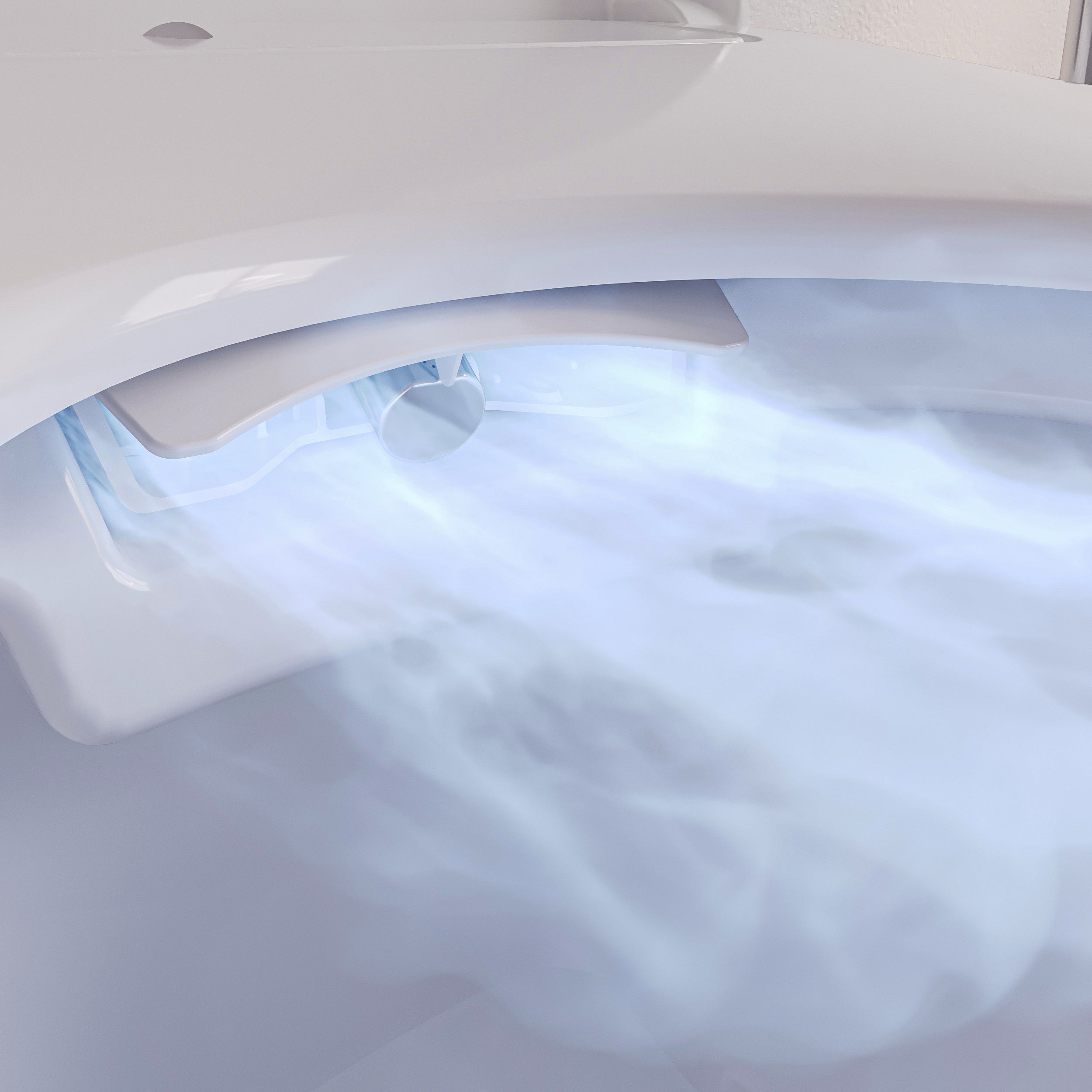

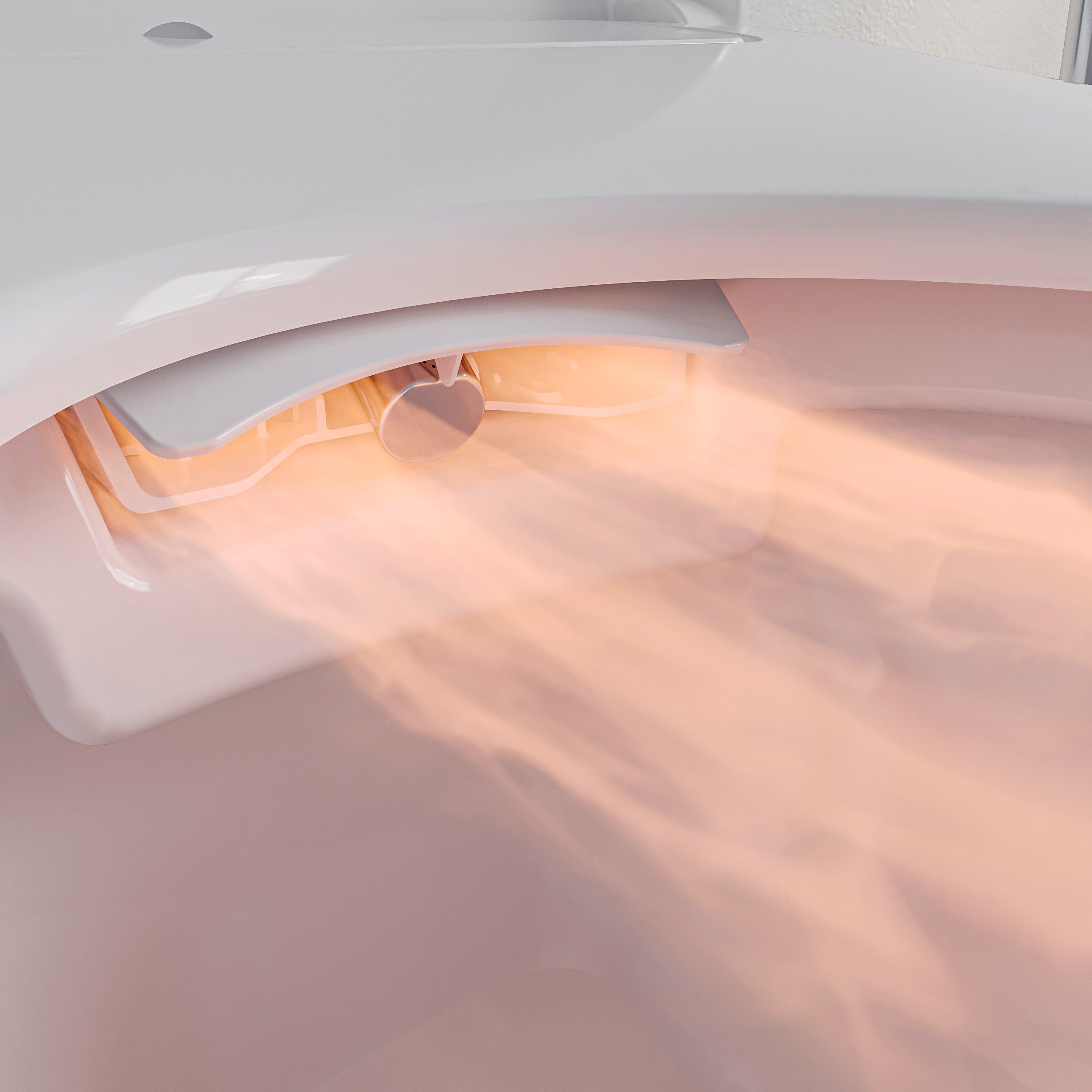

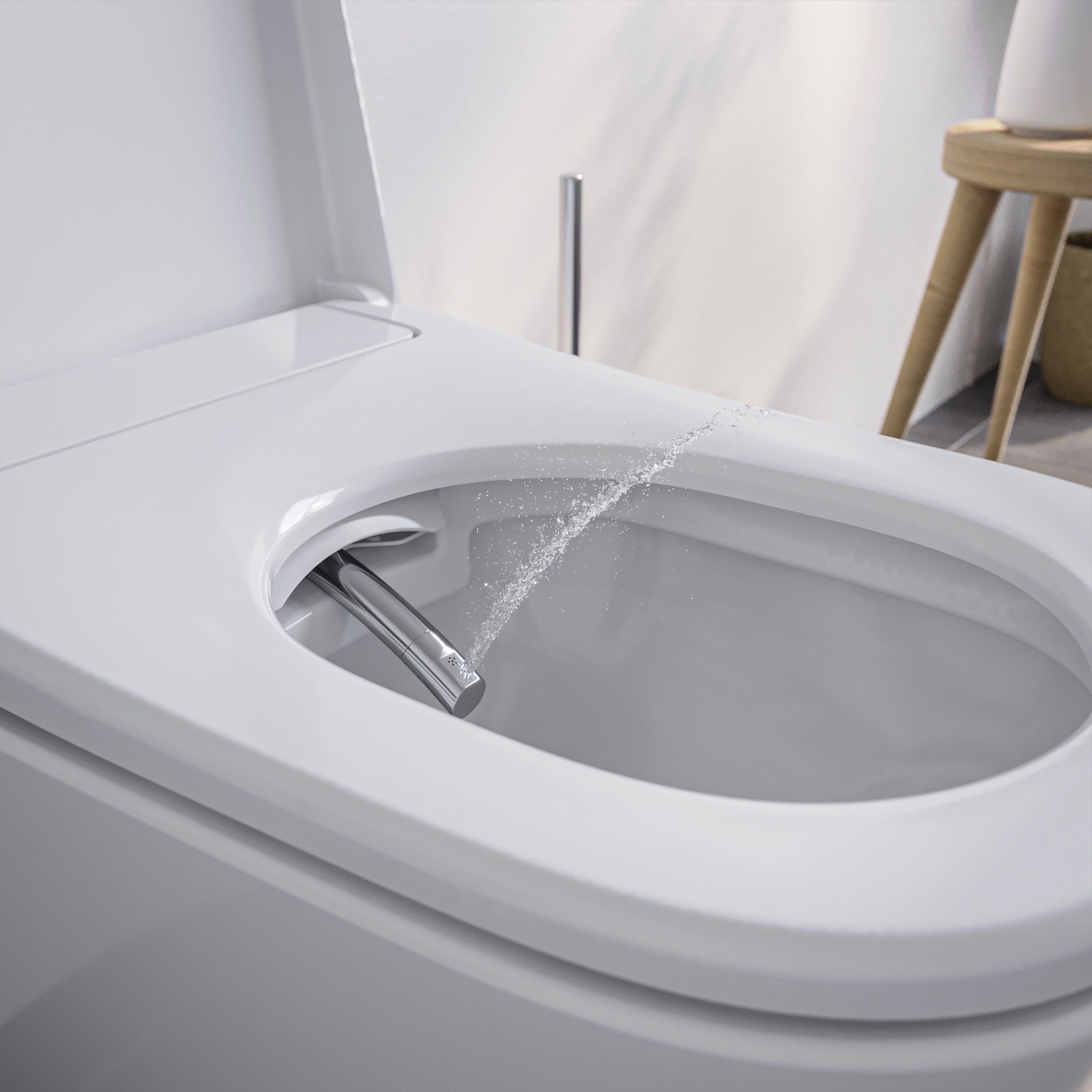

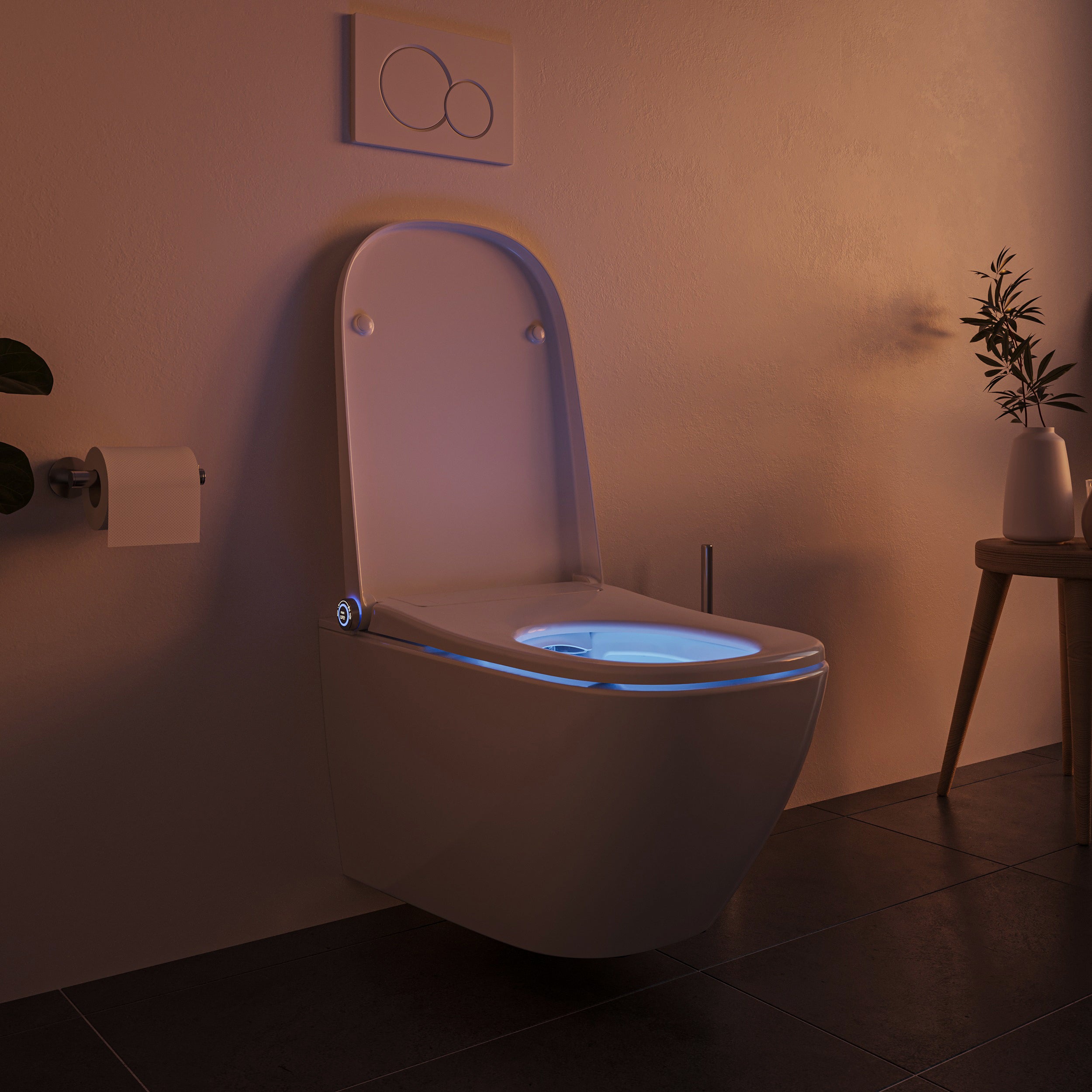

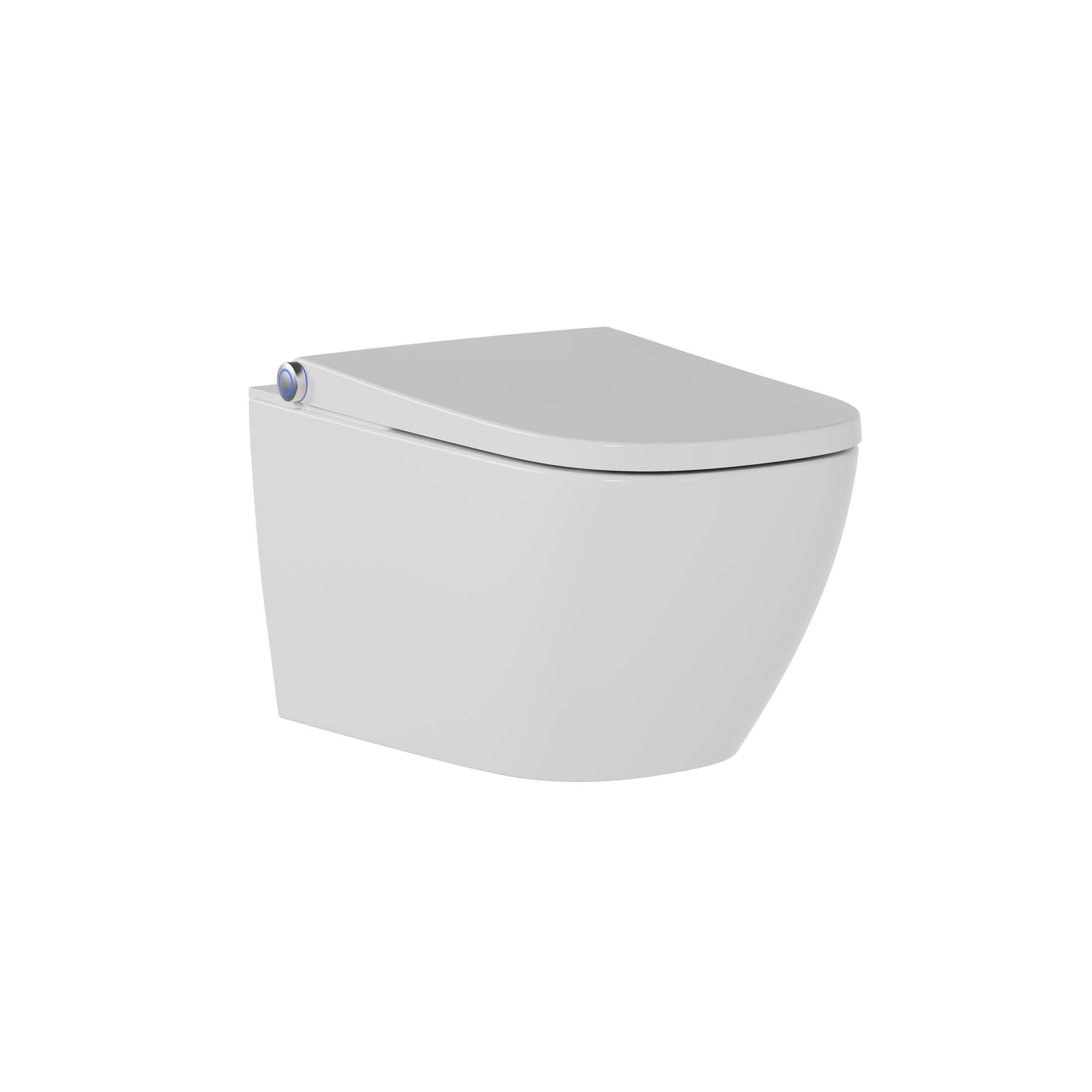

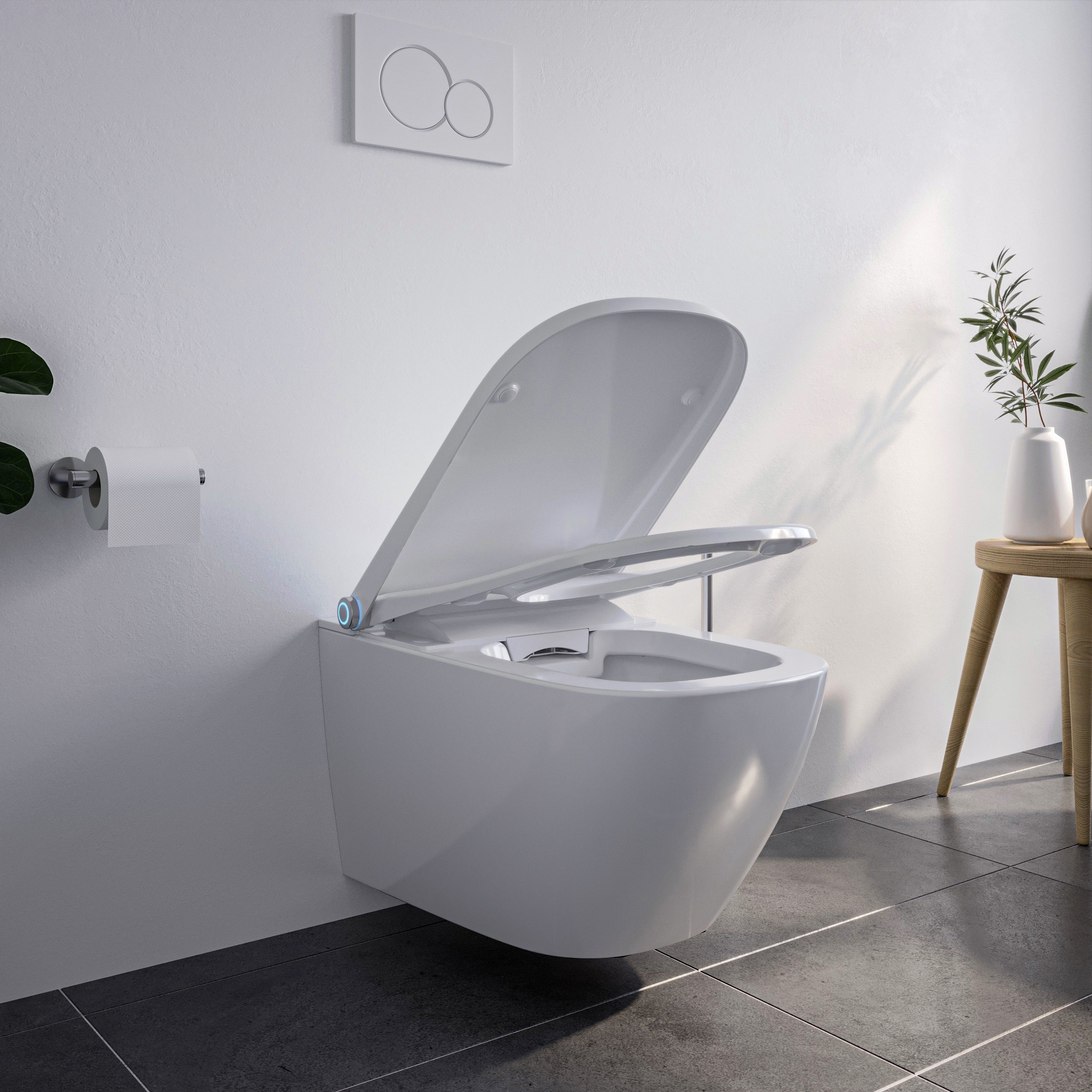

As a wall-hung toilet set, the Bernstein shower toilet PRO+ 1104 impresses with its modern shape and combines contemporary design with intelligent hygiene technology. The rear and lady shower cleans particularly thoroughly with pulsating and oscillating water jets while also providing a pleasant massage effect. Gentle forward and backward movements of the shower arm ensure that the cleaning area is optimally reached. Water temperature and spray intensity can each be set in five stages and individually adjusted. Two user profiles allow you to save personal settings for daily comfort. The integrated warm air dryer then supports pleasant and gentle drying, while an activated carbon filter reliably reduces odors. The stainless steel shower nozzle cleans itself automatically before and after each use. If necessary, the nozzle can also be easily removed and cleaned manually, ensuring that your toilet in the complete set remains permanently hygienic and easy to maintain. The powerful 180° vortex flush in combination with the rimless ceramic supports particularly hygienic cleaning of the toilet bowl. Antimicrobial materials in the toilet seat further increase cleanliness. An integrated night light makes orientation in the dark easier. The shower toilet is conveniently controlled via the supplied remote control.

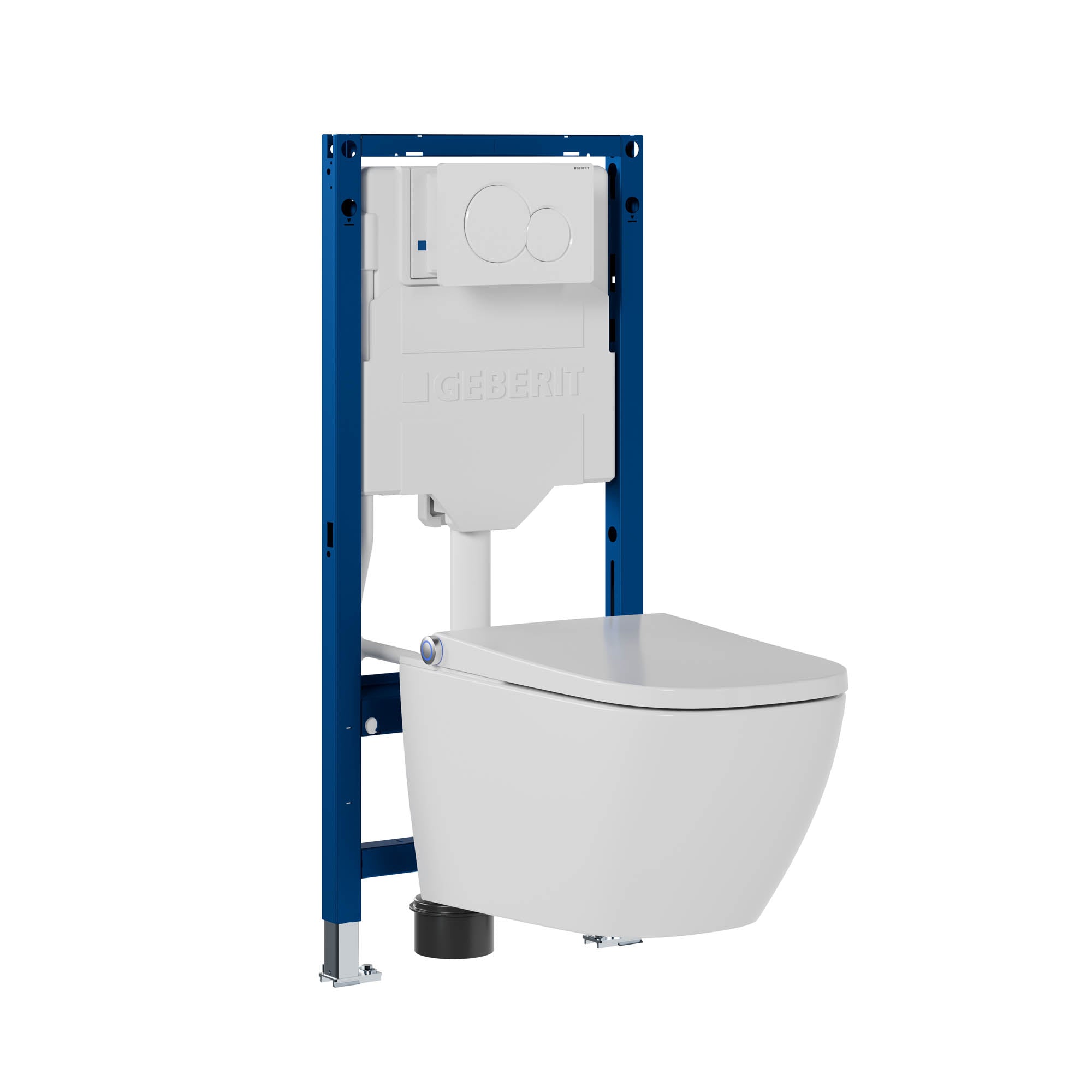

Geberit Duofix with concealed installation for a fully equipped toilet set

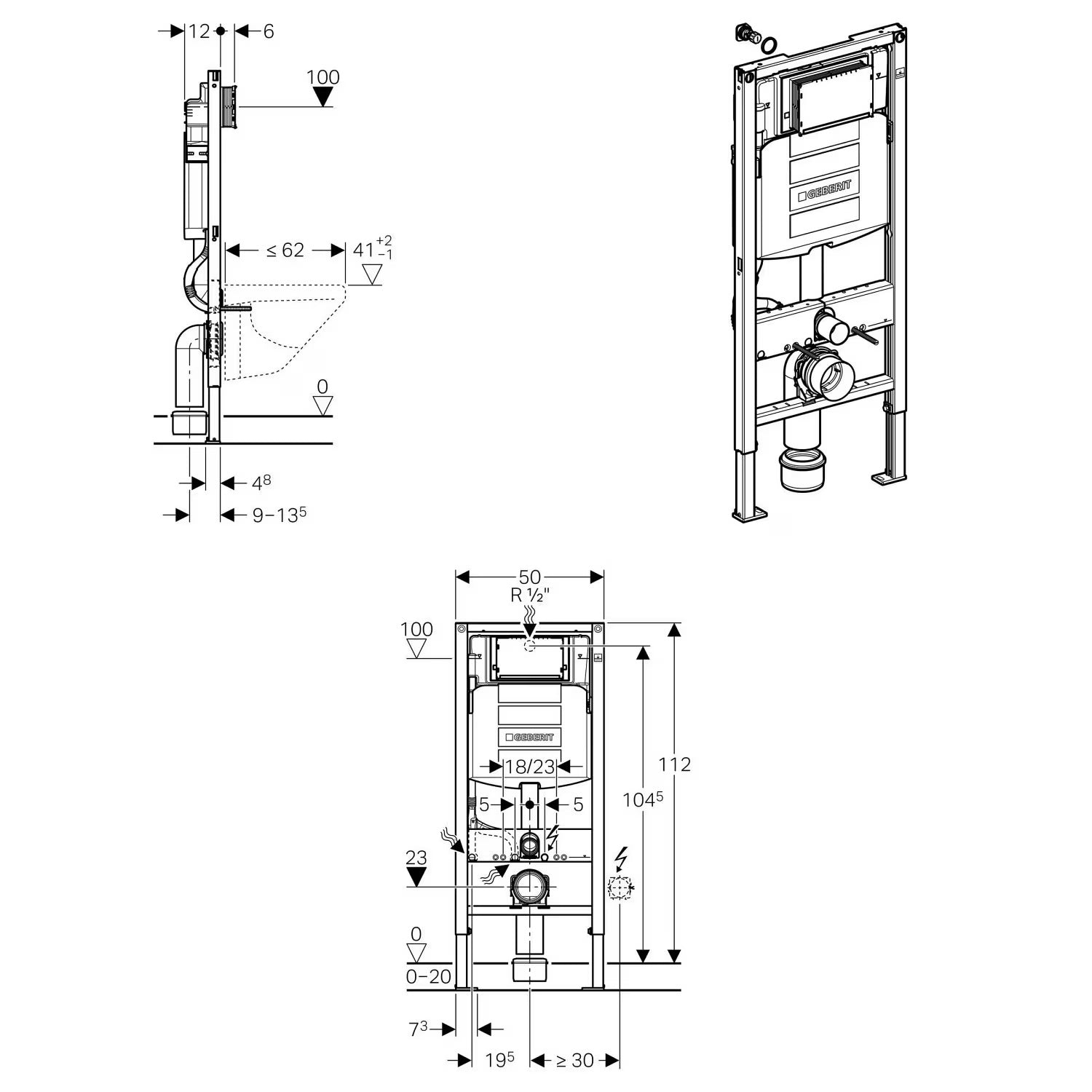

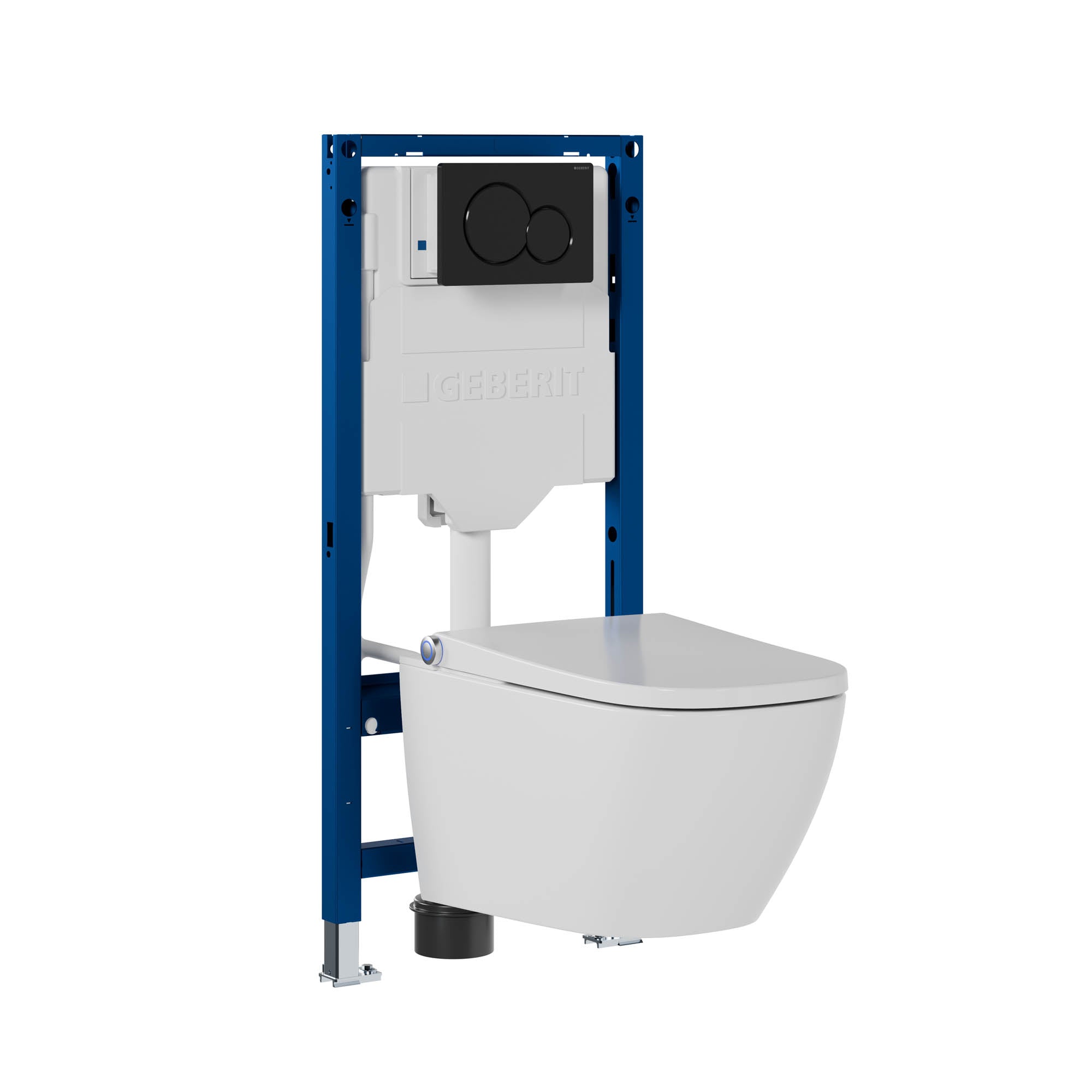

The Geberit Duofix pre-wall element ensures safe installation. The self-supporting steel construction is powder-coated and designed for long-term use. Height-adjustable, galvanized foot supports ensure precise and stable alignment during wall-hung toilet installation in the set. The integrated concealed cistern is condensation-insulated and supports economical water consumption. The flush volume can be individually adjusted and enables immediate re-flushing if required. Tool-free maintenance makes later service work easier.
Actuator plate and connection set included in the complete set

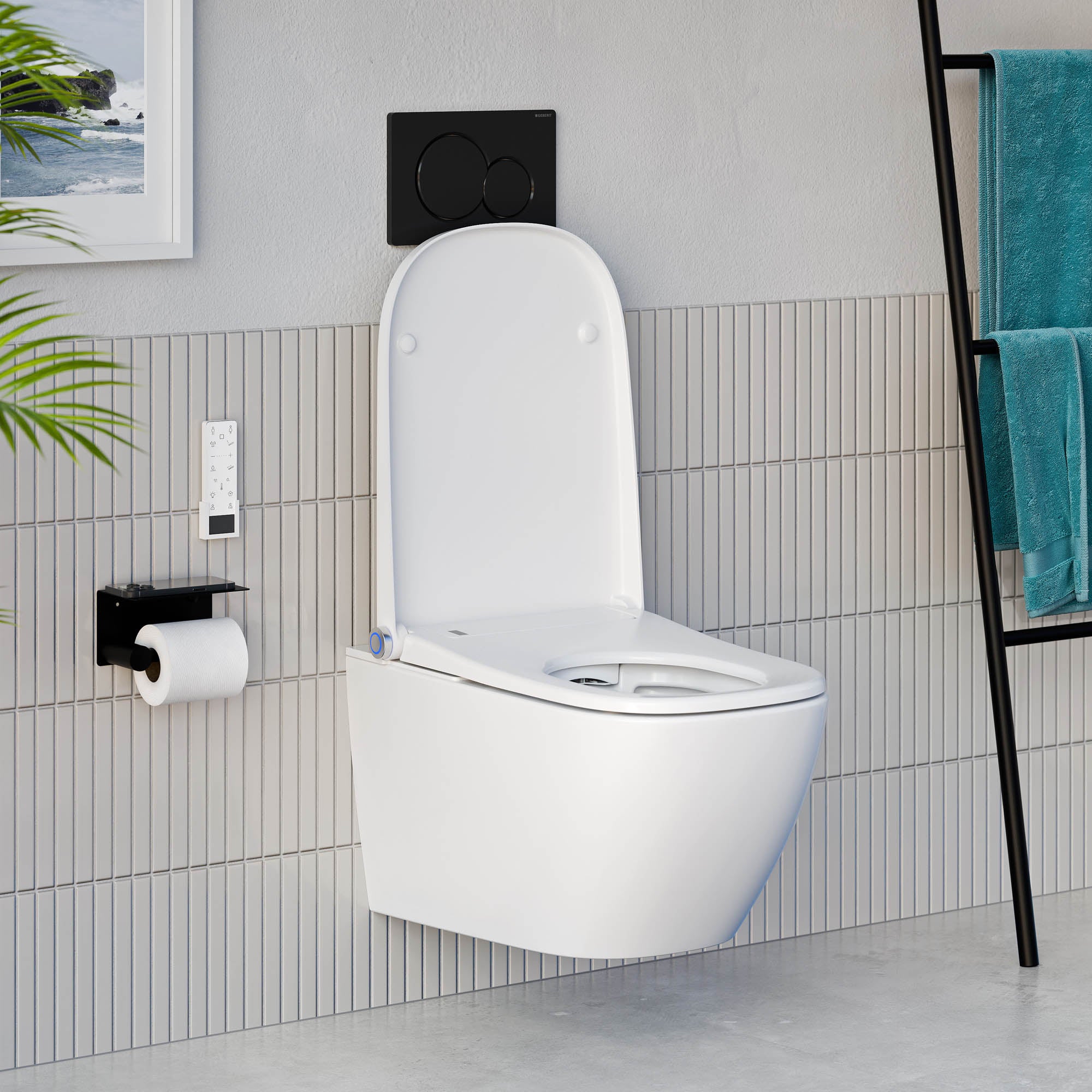

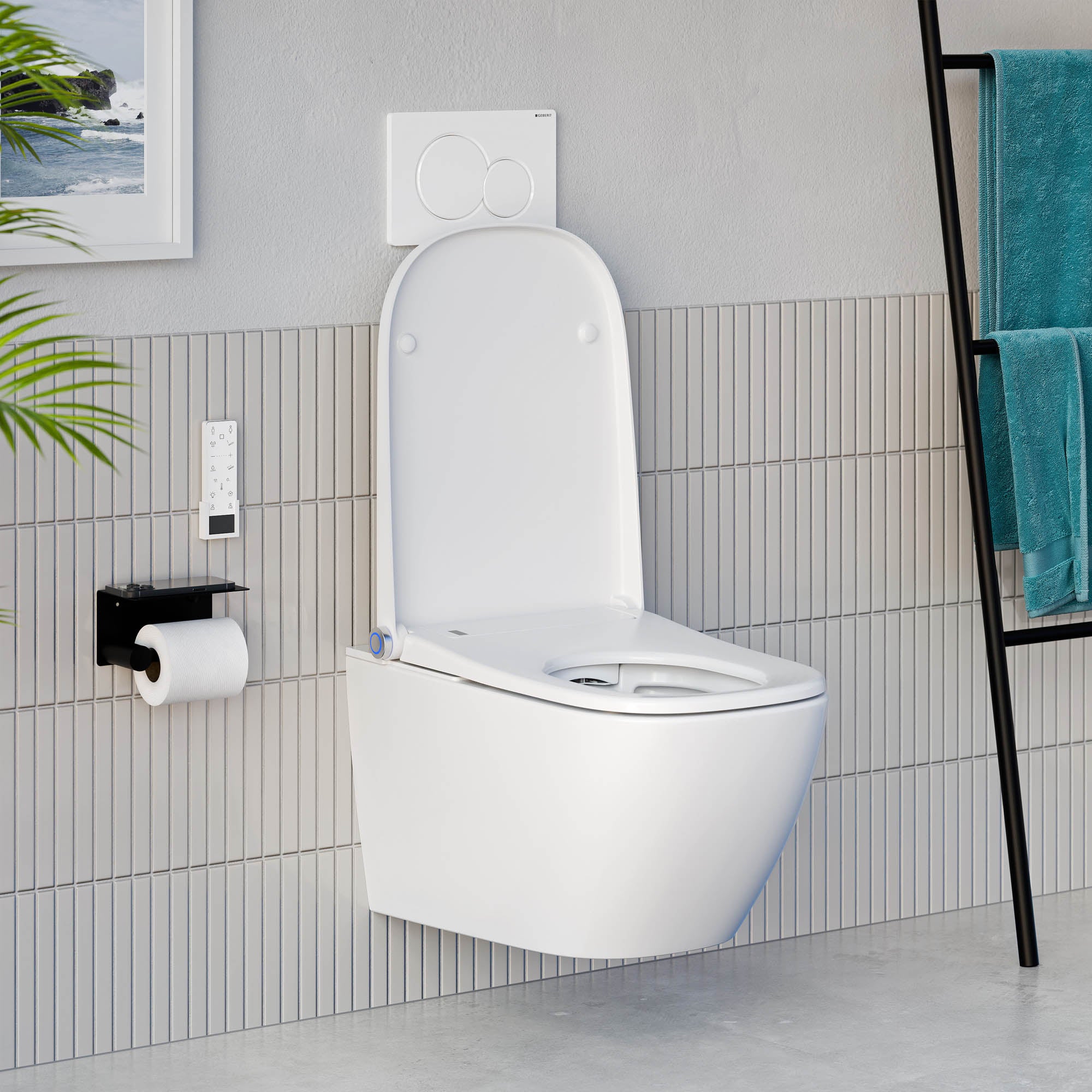

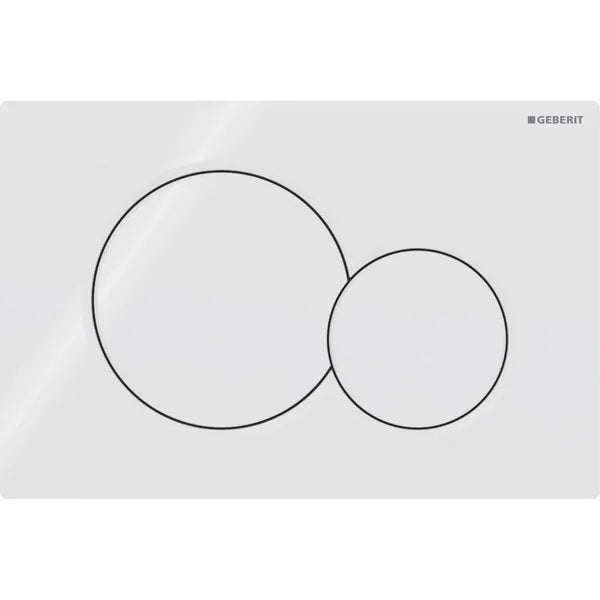

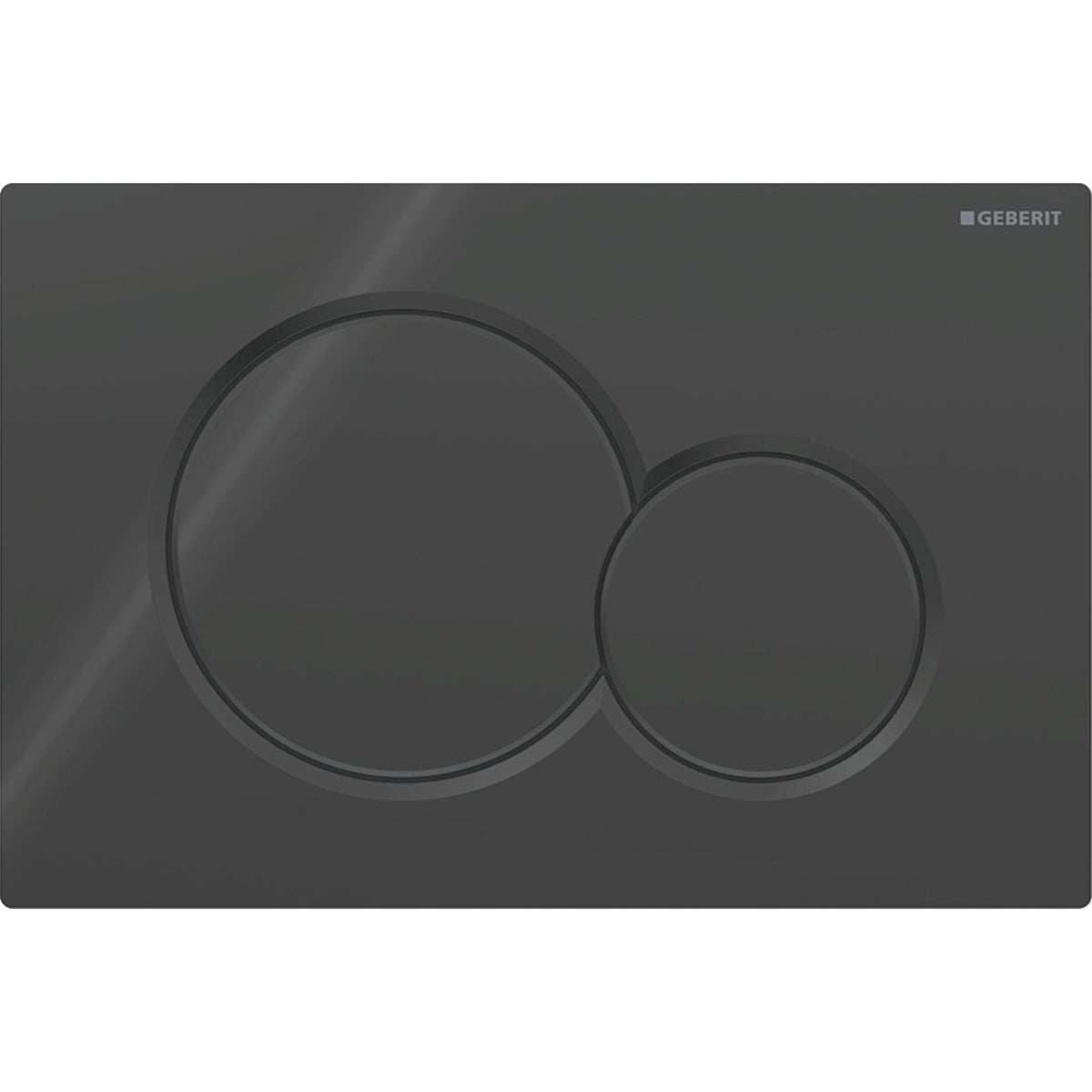

The toilet set includes a Geberit Sigma actuator plate with dual-flush function. For a harmonious match with the bathroom design, two color variants are available: glossy white or glossy black. The supplied water connection set enables professional integration of the shower toilet into the existing installation. This complete toilet set combines modern shower toilet technology with Geberit's proven installation quality and offers a well-thought-out solution for comfortable bathrooms.

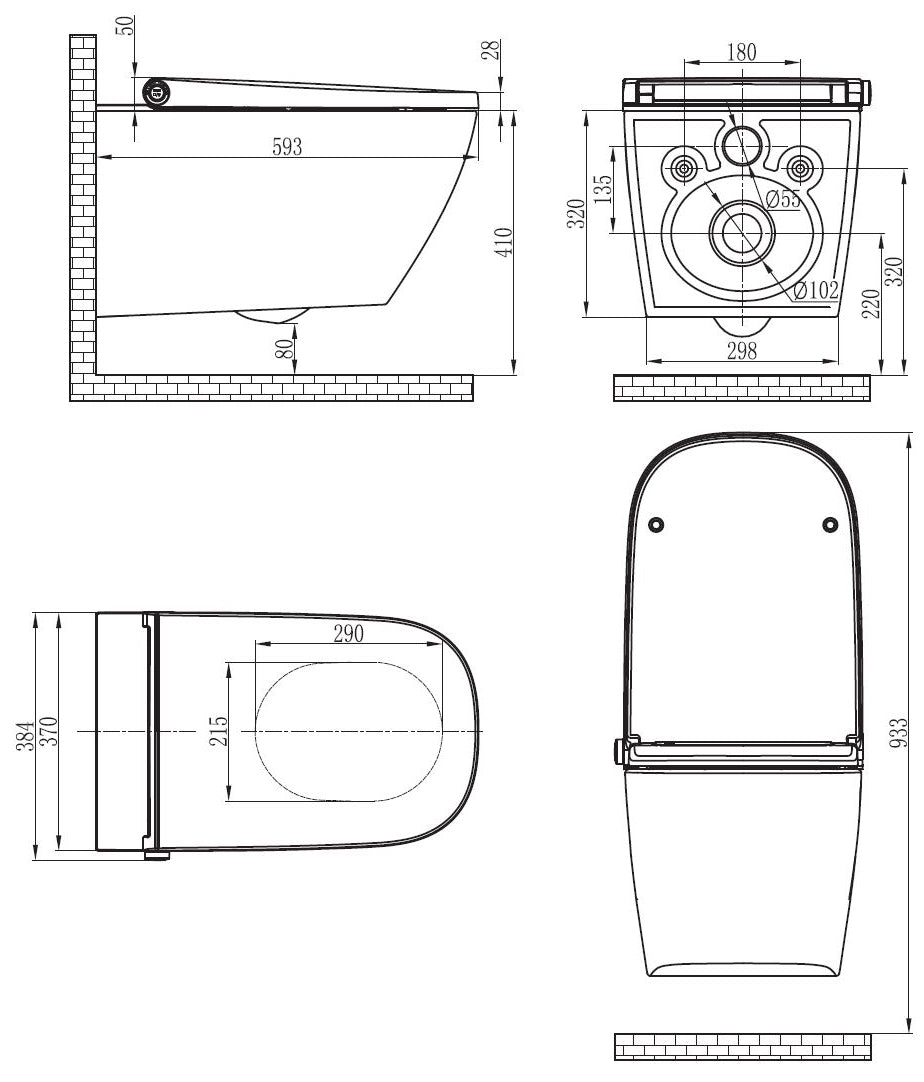

Dimensions and specifications
| SHOWER TOILET | |
| Model | PRO+ 1104 |
|---|---|
| Material | Sanitary ceramics |
| Color | White |
| Dimensions (D x W x H) | 59.3 x 38.4 x 38 cm |
| Weight | 32 kg (net) |
| Packaging dimensions | 66 x 48 x 46.5 cm |
| Connection | Power connection required |
| Voltage | 220–240 V, 50–60 Hz |
| Power | 950 W |
| Protection class | IPX4 |
| Cable length | 1.8 m |
| Certifications | EN 1717 |
| Toilet seat | UF plastic with antimicrobial coating LED night light Soft-close function |
| Scope of delivery | Shower toilet PRO+ 1104 Remote control incl. holder (without batteries) Activated carbon filter Mounting material Installation instructions Operating instructions |
| PREWALL ELEMENT | |
| Model | Geberit Duofix |
|---|---|
| Cistern | Sigma UP |
| Material | Steel (frame) Plastic (cistern) |
| Color | Blue, powder-coated |
| Width | 50 cm |
| Height | 112–132 cm (adjustable) |
| Depth | 12 cm |
| Self-supporting construction | Yes |
| Foot supports | With anti-slip protection, galvanized, height-adjustable |
| Flush volume factory setting | 6 and 3 l |
| Large flush volume adjustment range | 4.5 / 6 / 7.5 l |
| Small flush volume adjustment range | 3–4 l |
| Flushing technology | Single-volume, dual-volume or flush-stop flush |
| Actuation | Front |
| Condensation-insulated concealed cistern | Yes |
| Position of the water connection | Top rear in the center |
| Maximum water temperature | 25 °C |
| Actuation plate | Without |
| Shipping weight | approx. 18 kg |
| Scope of delivery | Water connection with integrated angle valve and handwheel Construction protection for service opening 2 protective plugs Connection set for toilet 90° connection bend made of PE-HD Transition sleeve made of PE-HD 2 threaded rods M12 Fastening material |

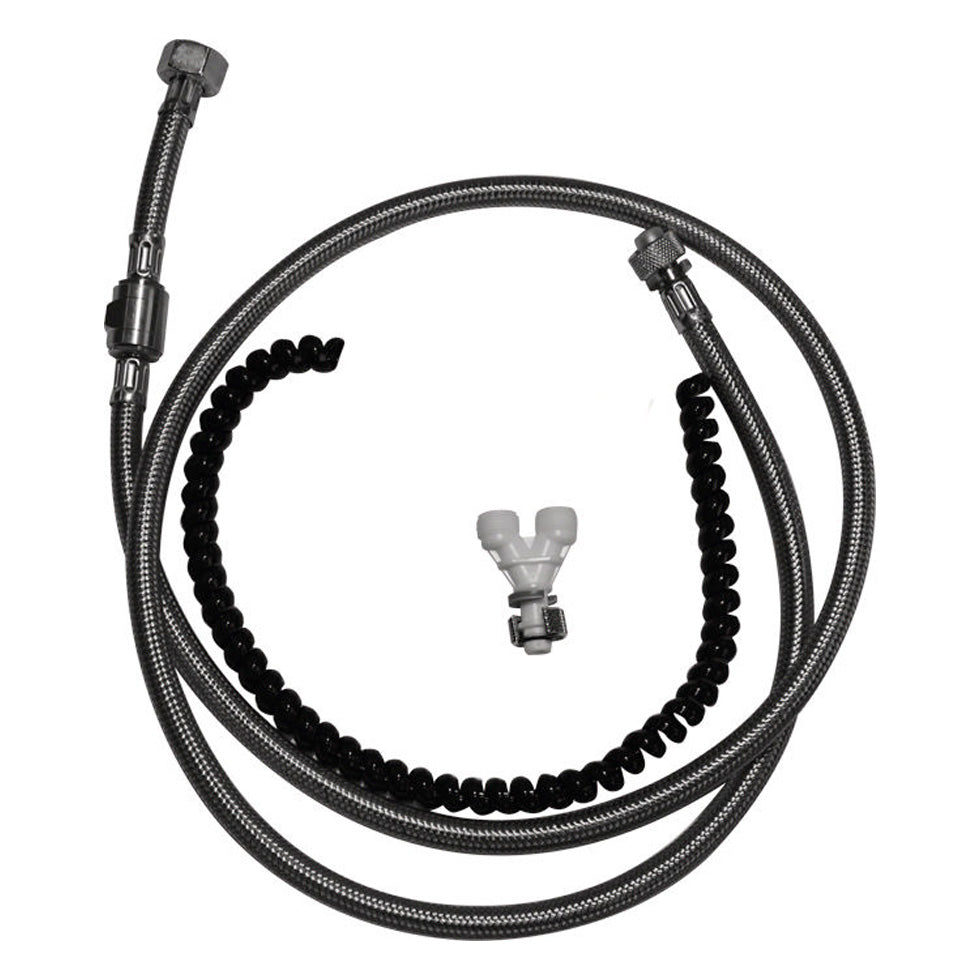

| WATER CONNECTION SET | |
| Model | Duravit SensoWash |
|---|---|
| Material | Stainless steel, plastic, brass |
| Connection size water connection shower toilet | 1/2" |
| Inner diameter water connection shower toilet | DN8 |
| ACTUATION PLATE | |
| Model | Geberit Sigma01 |
|---|---|
| Dimensions | 24.6 x 16 x 1.3 cm (W x H x D) |
| Material | Plastic |
| Selectable color | White | Black |
| Finish | Glossy |
| Number of flush buttons | 2 |
| Flush operation | Mechanical |
| Type of installation | Surface-mounted |
Scope of delivery
- BERNSTEIN Shower Toilet PRO+ 1104
- Geberit Duofix pre-wall element with Sigma concealed cistern
- Duravit water connection set SensoWash
- Geberit actuator plate Sigma01 in selected color
- Mounting materials
Downloads
Assembly instructions
Dusch_WC_Pro_plus_1104_Montage_DE_EN_FR_IT_I_2023.pdfElectrical note
Batteriegesetz-Elektro-Elektronikgeraete.pdfOperating instructions
Dusch_WC_Pro_1104_Manual_DE_FR.pdfCare instructions
Cleaning_and_care_instructions.pdf
