Shower toilet complete set PRO+1104 with Geberit Duofix pre-wall element
Warm air dryer - Remote control - Geberit actuator plate freely selectable
Product number: 173838
Product number: 173839
Product information

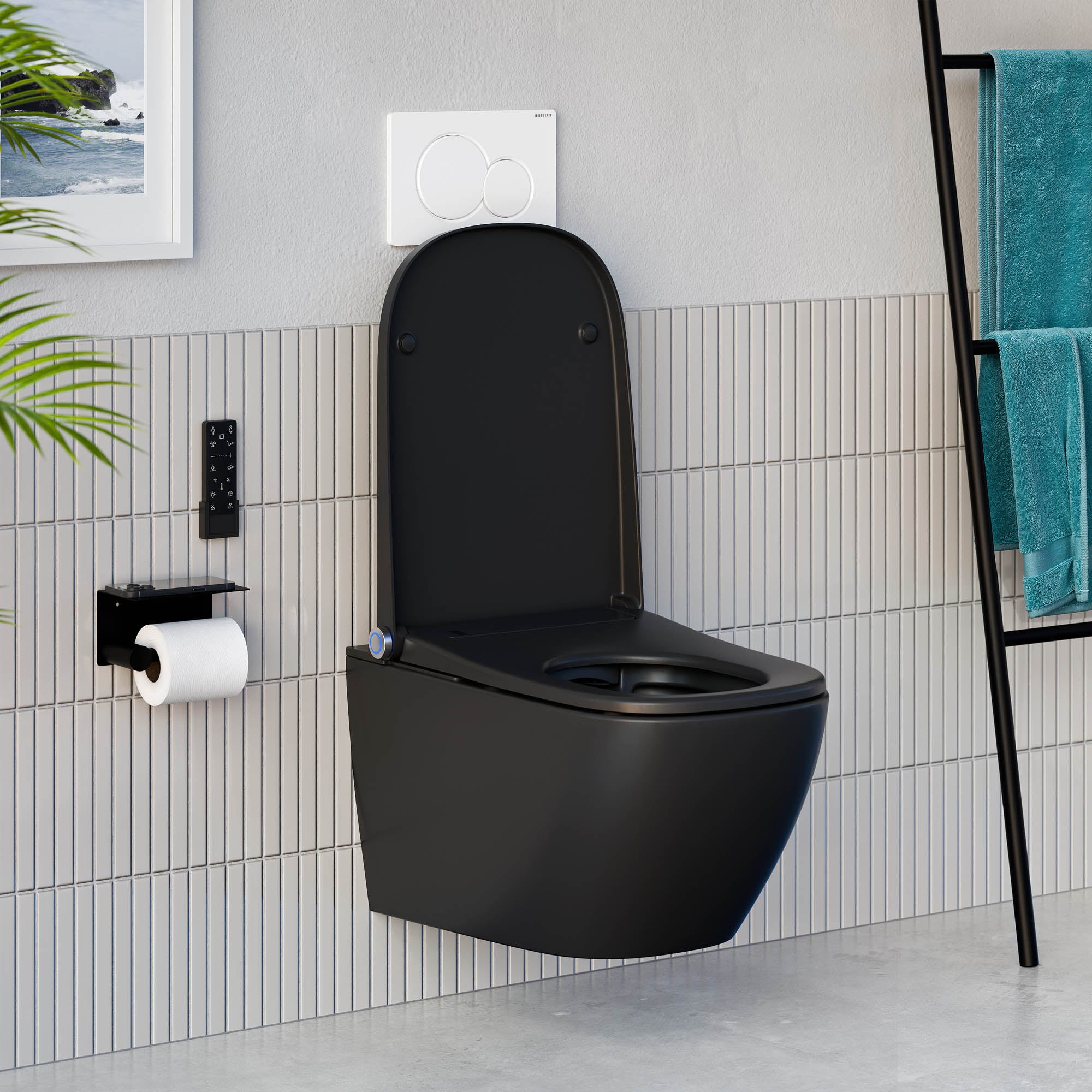

Shower toilet complete set PRO+ 1104 in black with Geberit Duofix and Sigma01 actuator plate

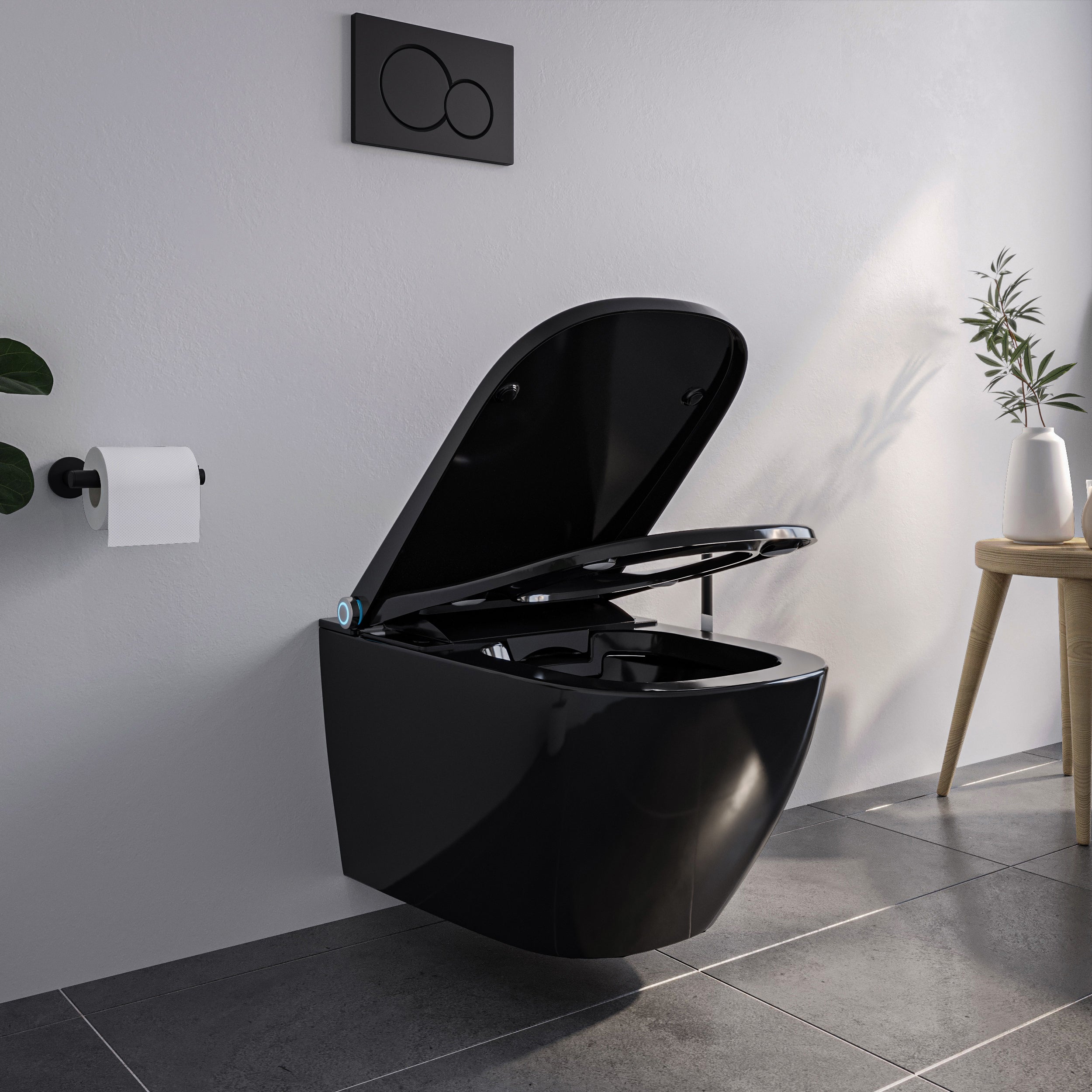

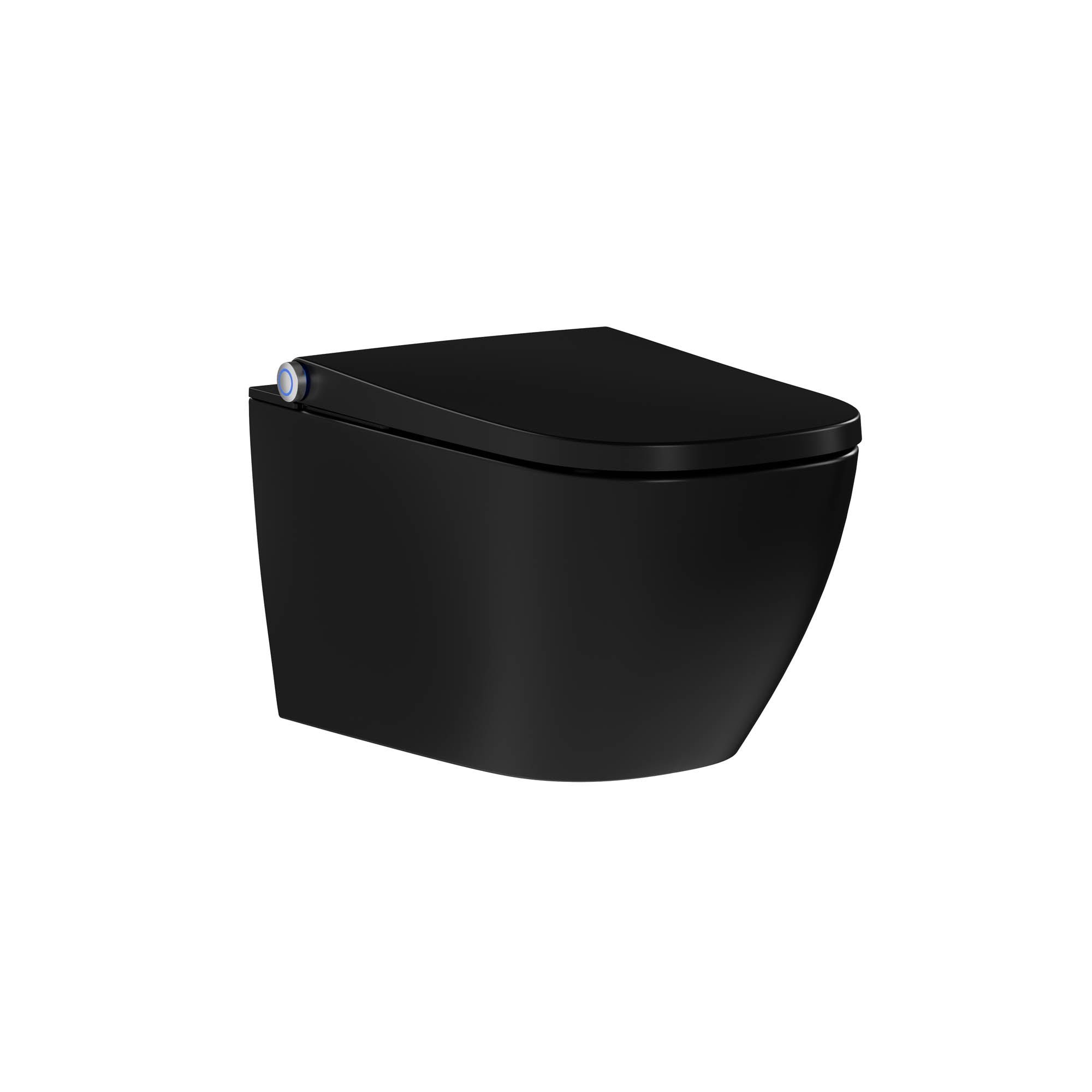

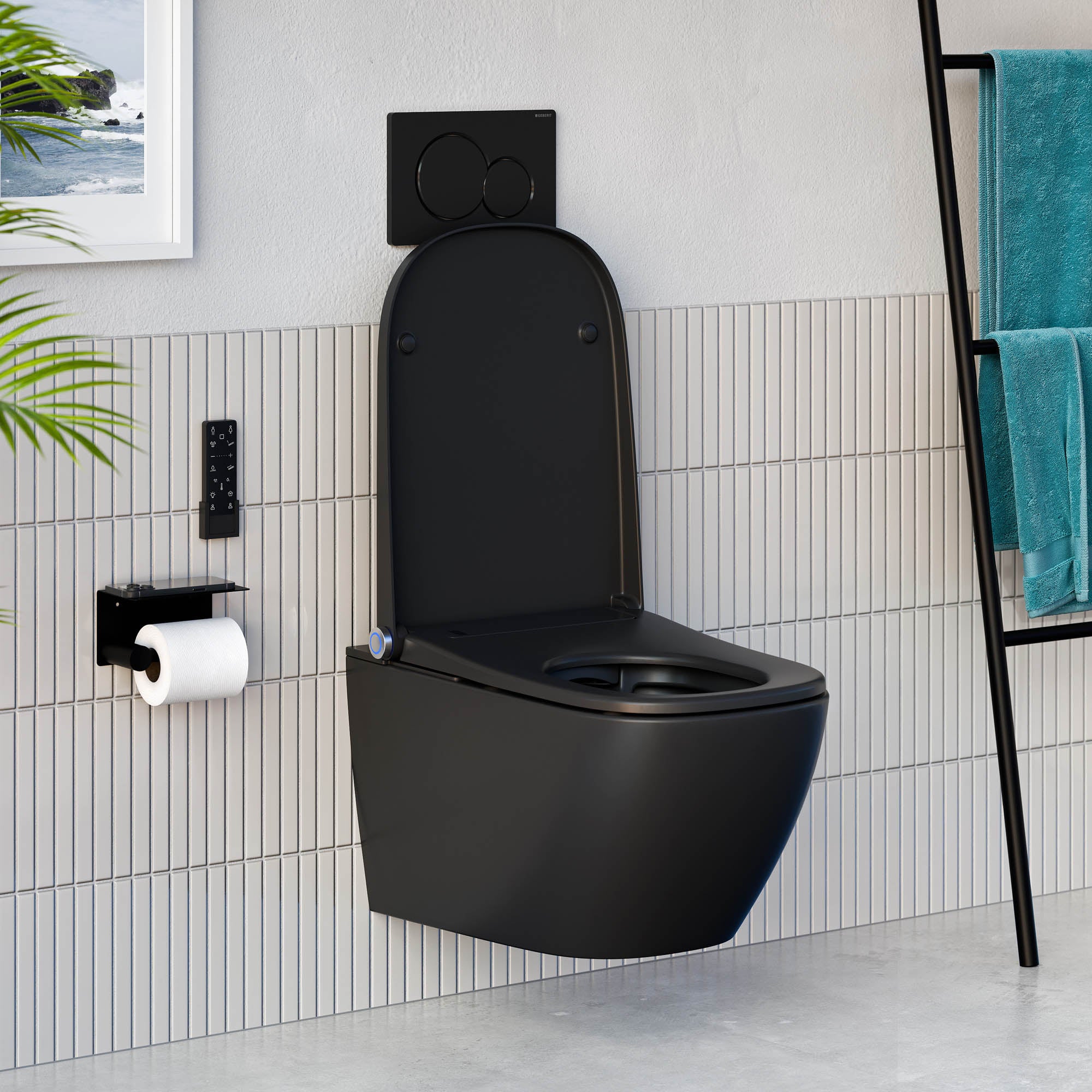

With the BERNSTEIN shower toilet PRO+ 1104 in black, the bathroom gains a modern and striking character. The black ceramic looks particularly high-quality and goes perfectly with contemporary bathroom concepts featuring dark fittings or clean lines.

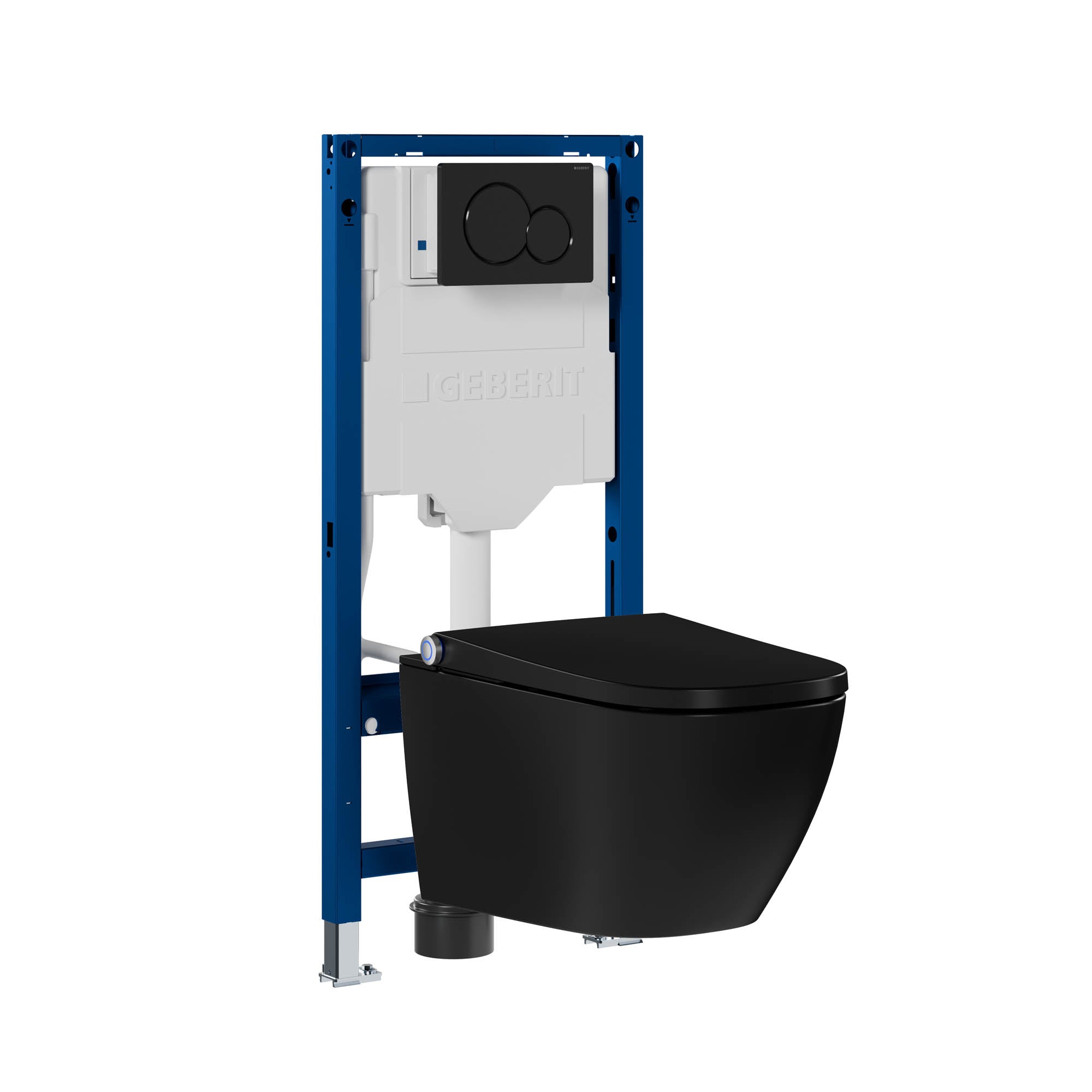

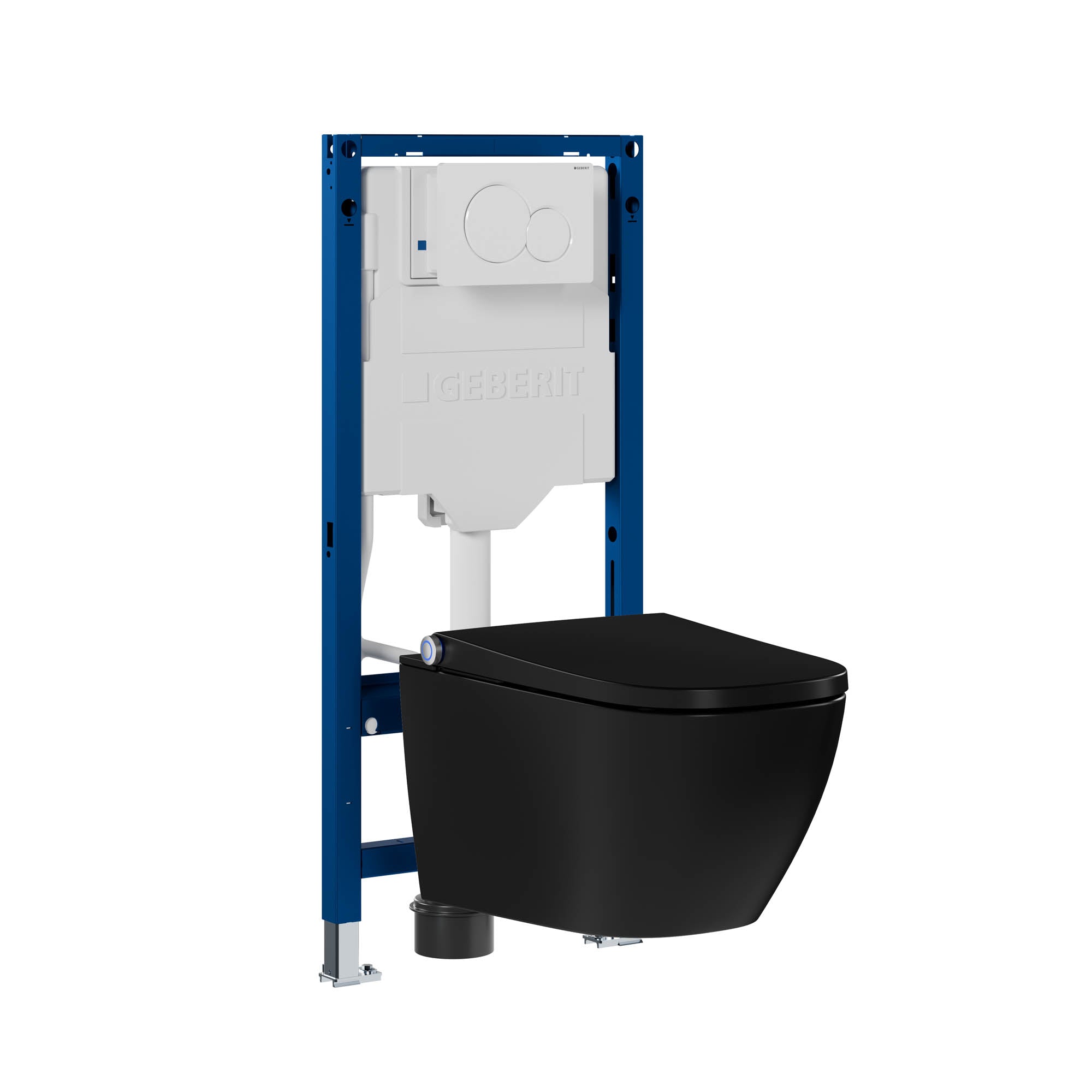

This set combines the shower toilet with the Geberit Duofix prewall element, a Geberit Sigma actuator plate as well as a matching water connection set. As a result, all important components are already coordinated with each other and enable reliable installation of a wall-mounted shower toilet in new builds or bathroom renovations.
Gentle cleaning and convenient operation

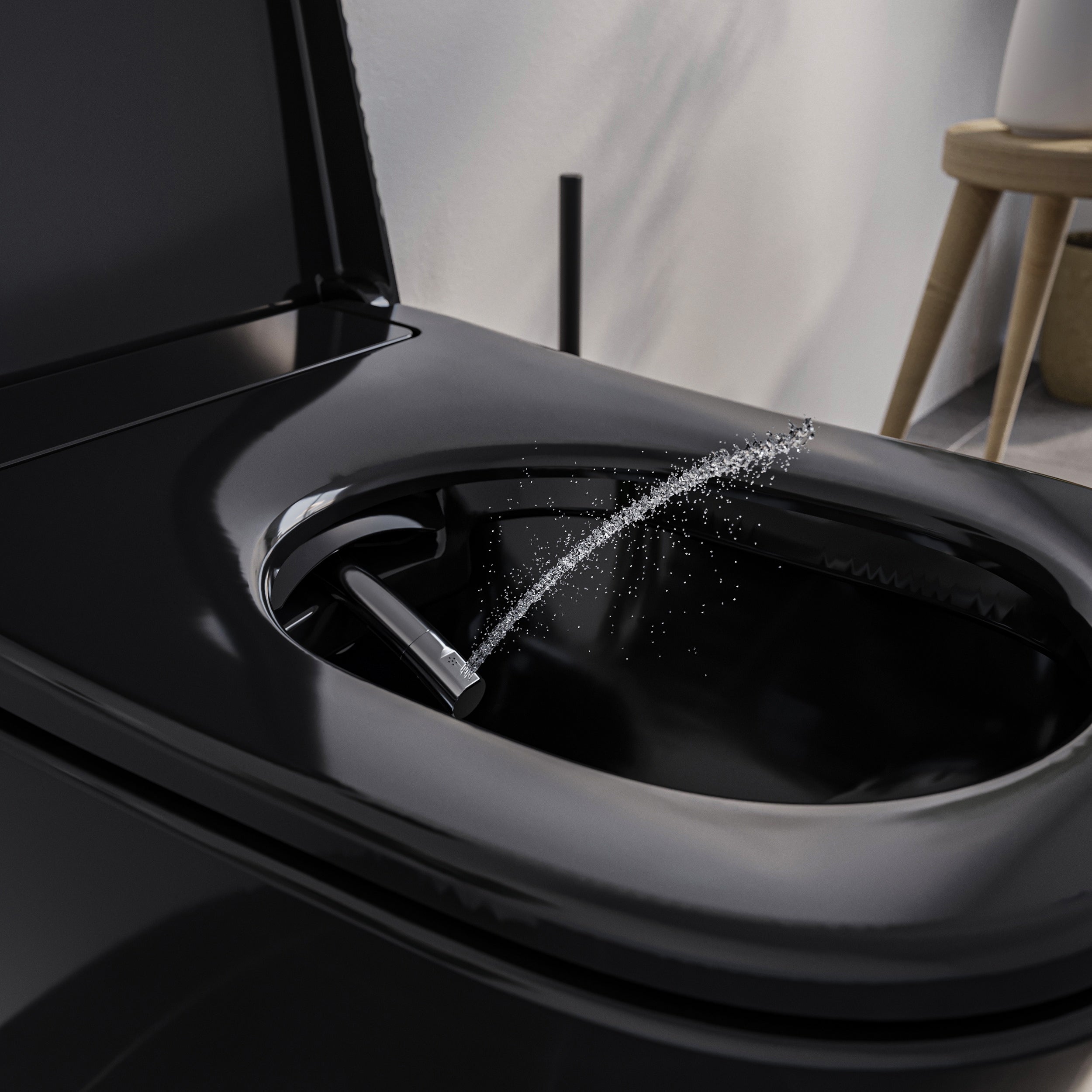

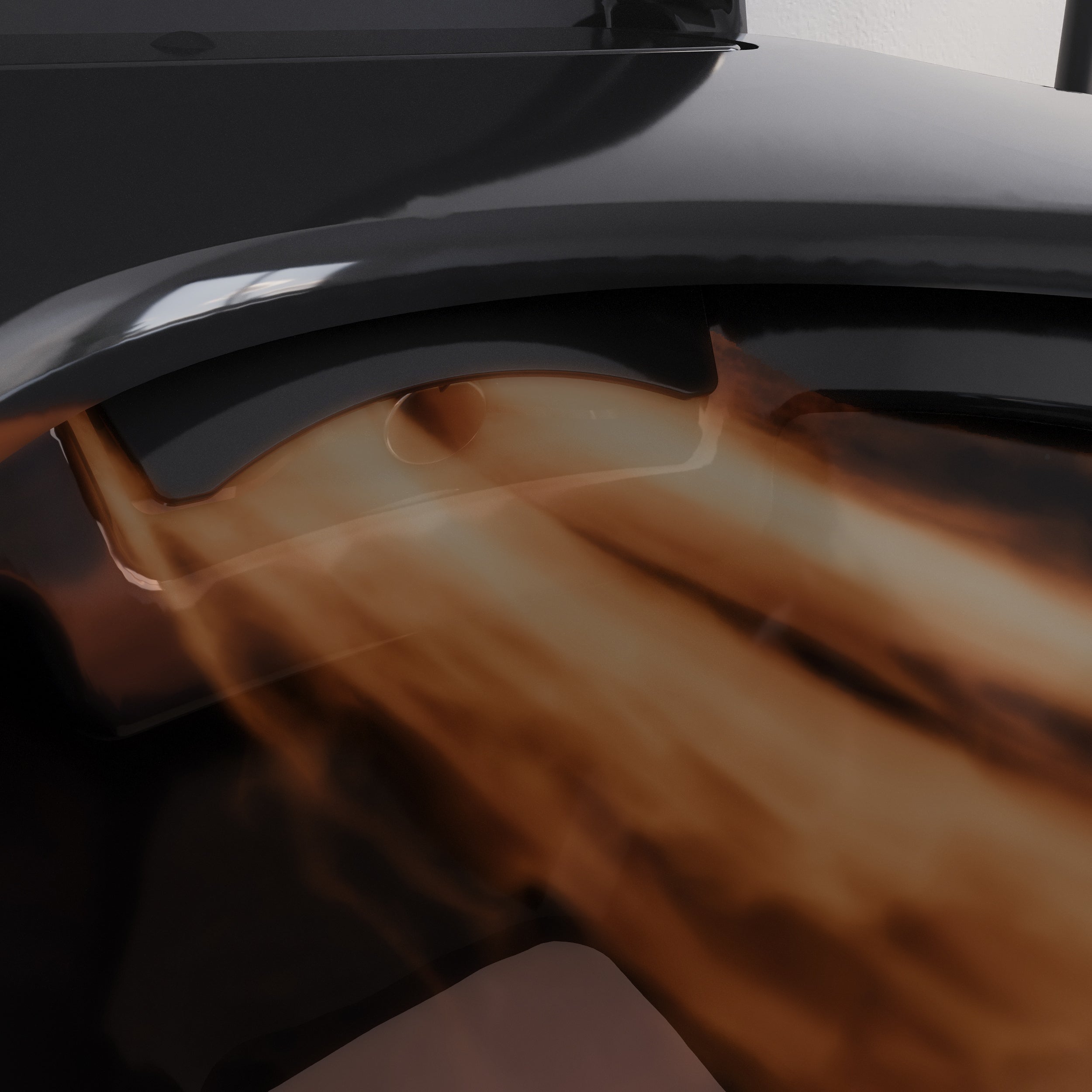

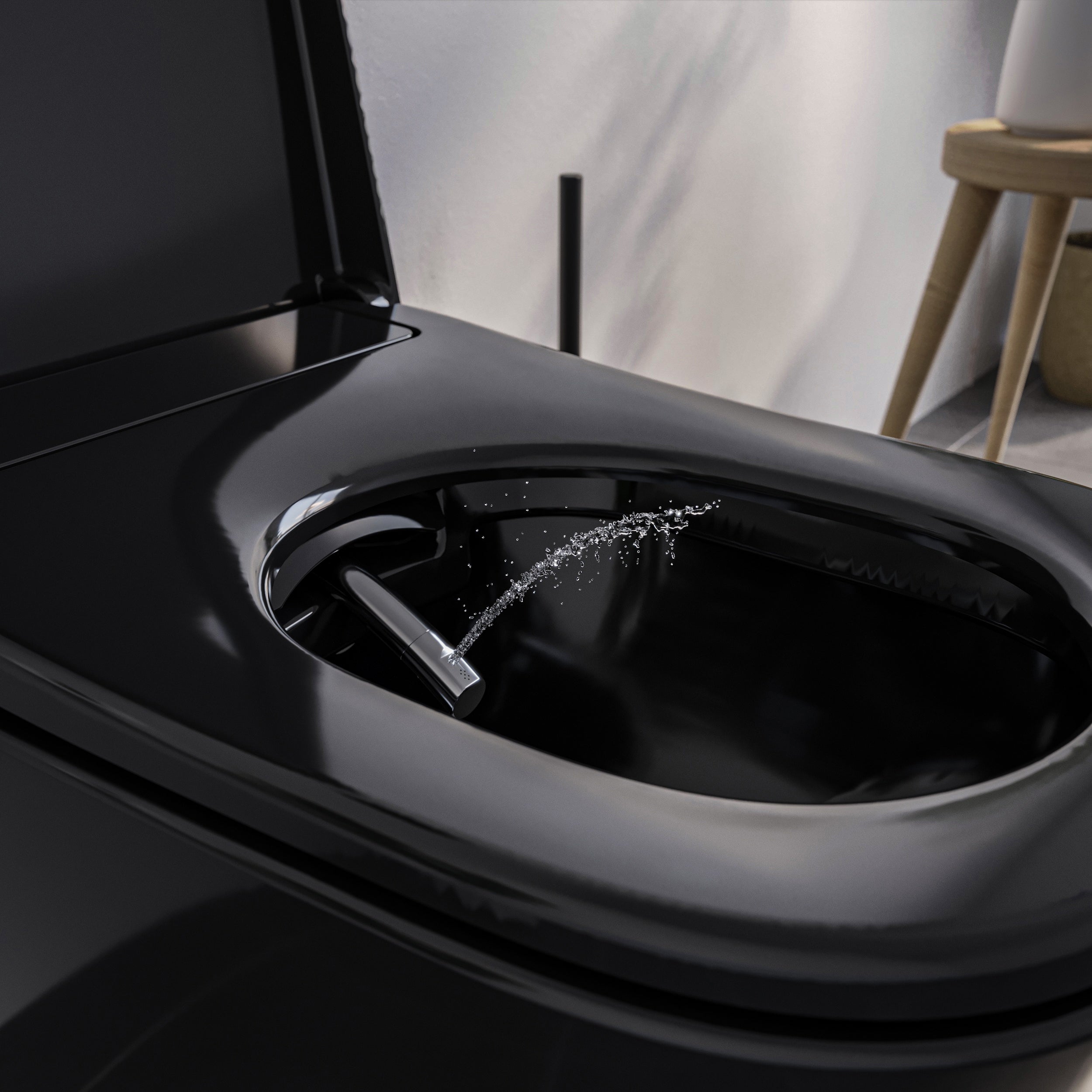

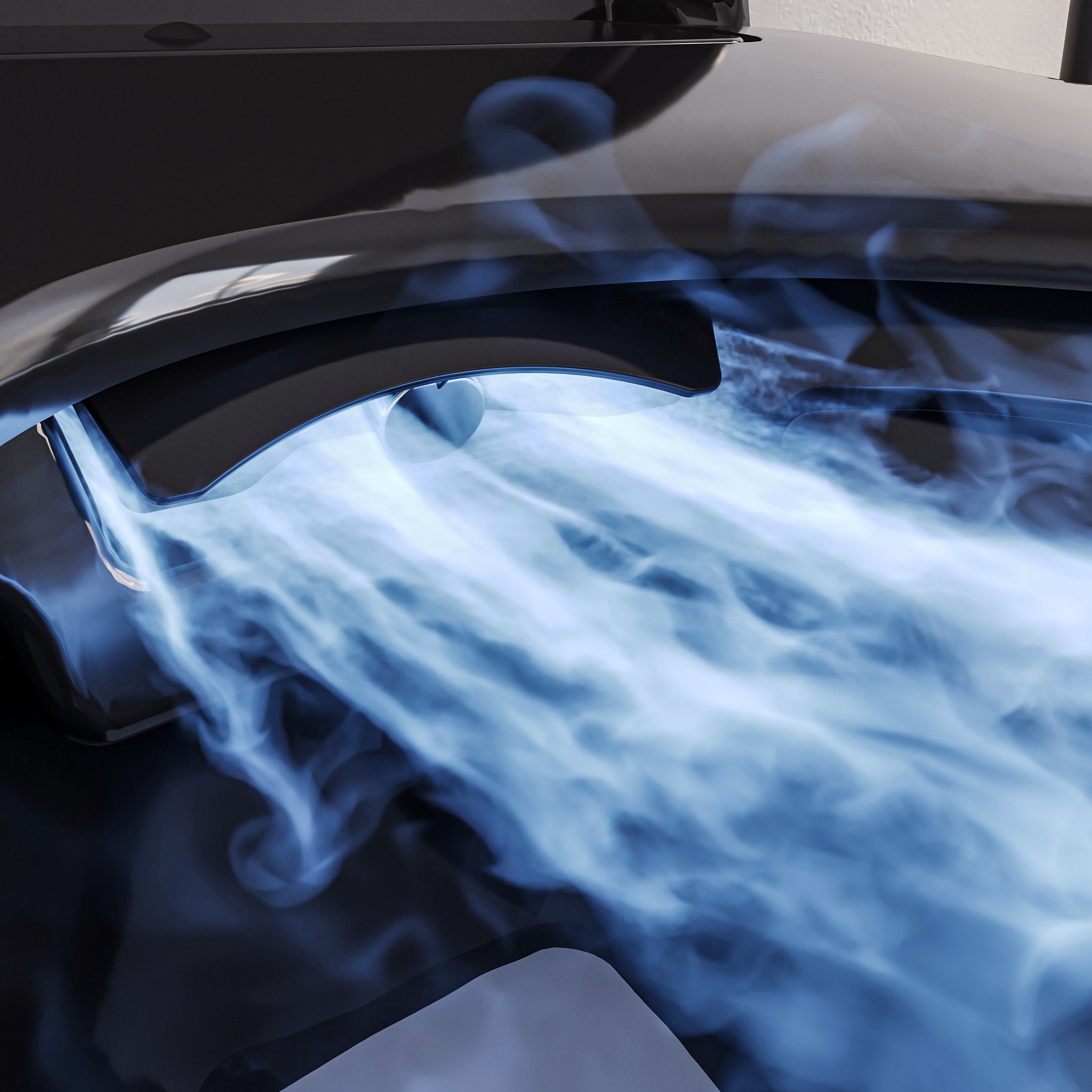

The integrated rear and lady shower ensures thorough cleaning with warm water. The pulsating and oscillating water jet cleans particularly gently and, through slight forward and backward movements of the shower arm, supports a pleasant massage effect. Water temperature and shower jet strength can each be set in five levels. Personal settings can be saved in two user profiles. After cleaning, the integrated warm air dryer ensures pleasant drying. At the same time, the odor absorption with activated carbon filter reliably reduces unpleasant smells.
Hygienic ceramic and durable technology

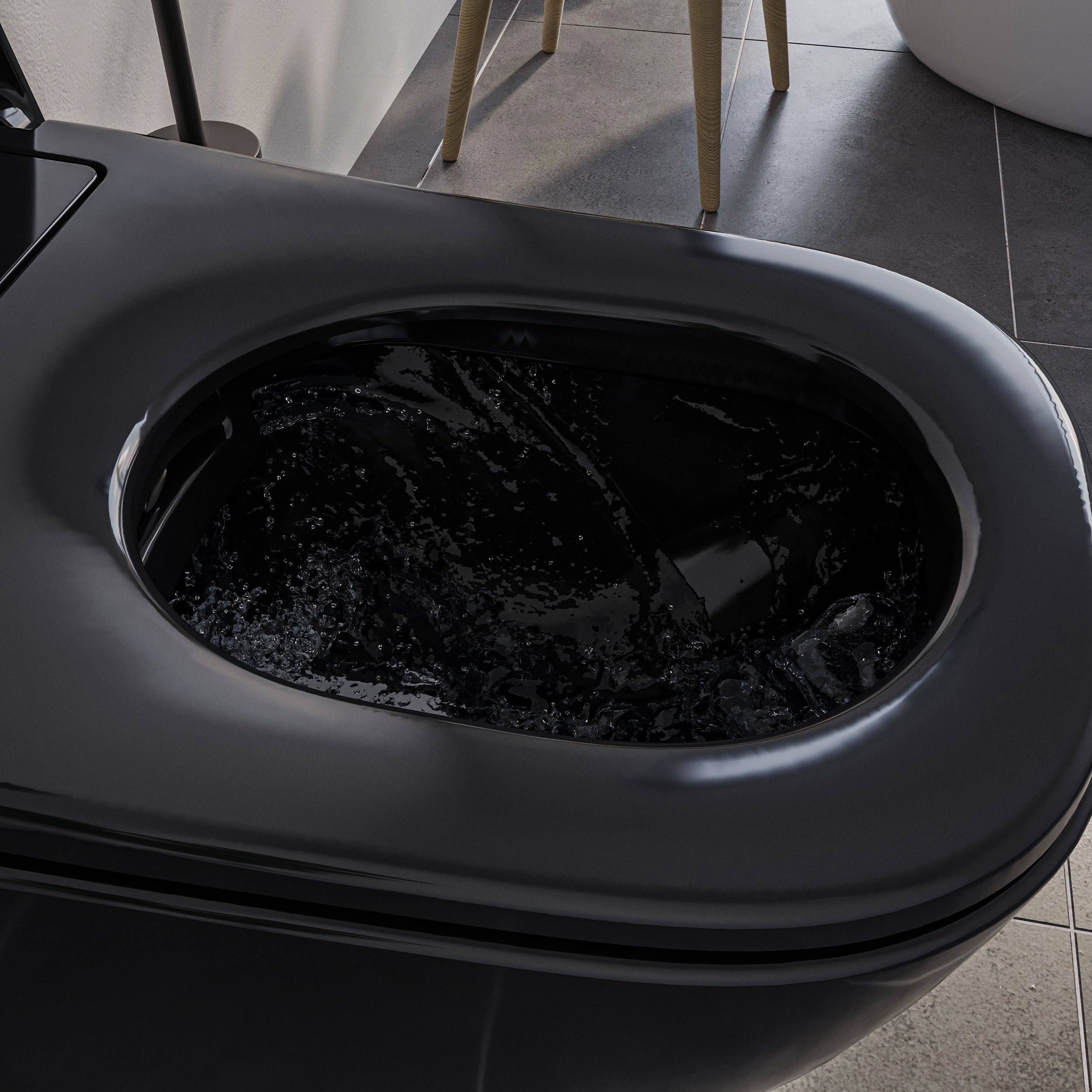

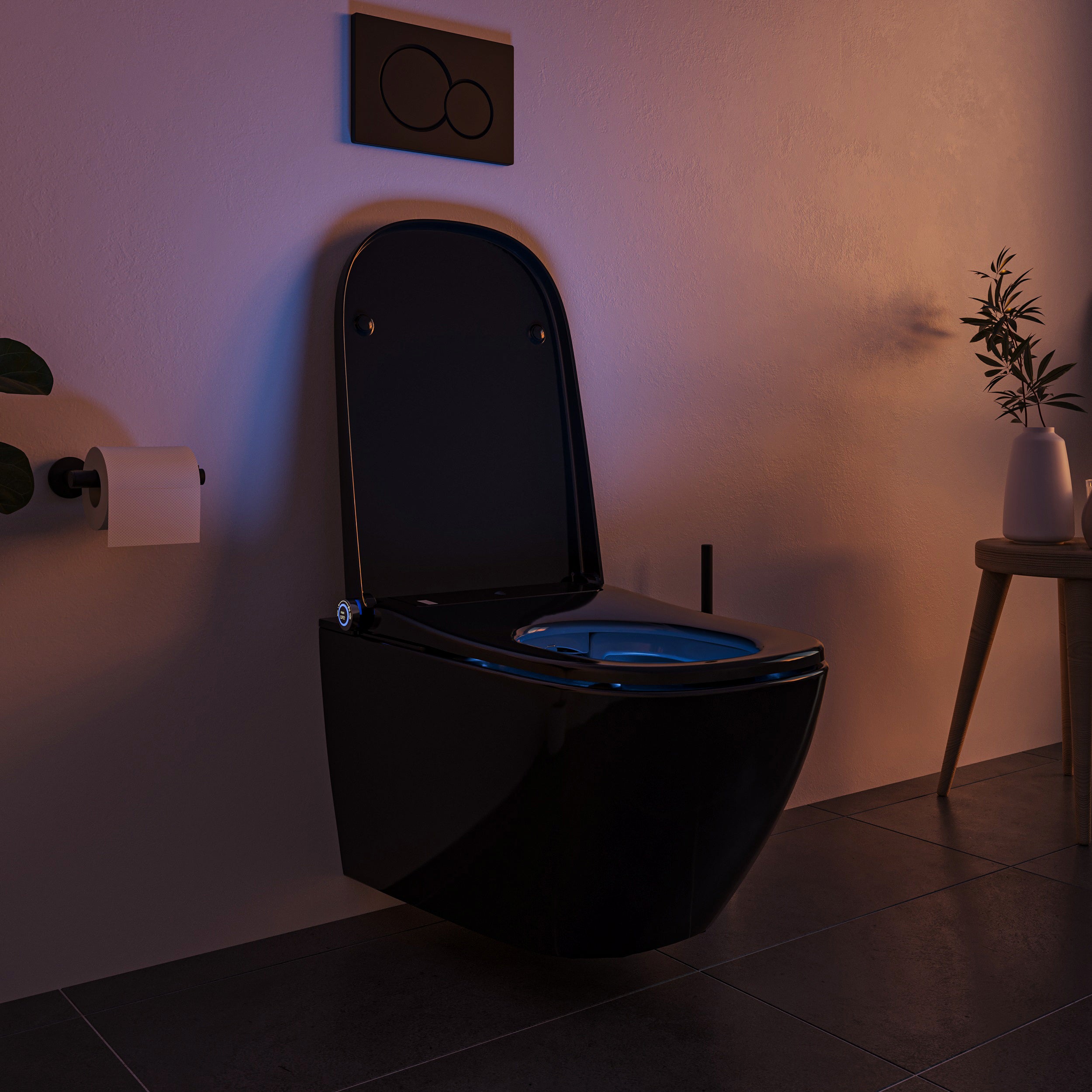

The rimless ceramic makes cleaning easier and prevents deposits on the WC rim. The powerful 180° vortex flush cleans the WC bowl particularly effectively. Antimicrobial materials in the WC seat further increase hygiene. The stainless steel shower arm cleans itself automatically before and after each use. The shower nozzle can be easily removed for manual cleaning if required. An integrated night light makes orientation in the dark easier.

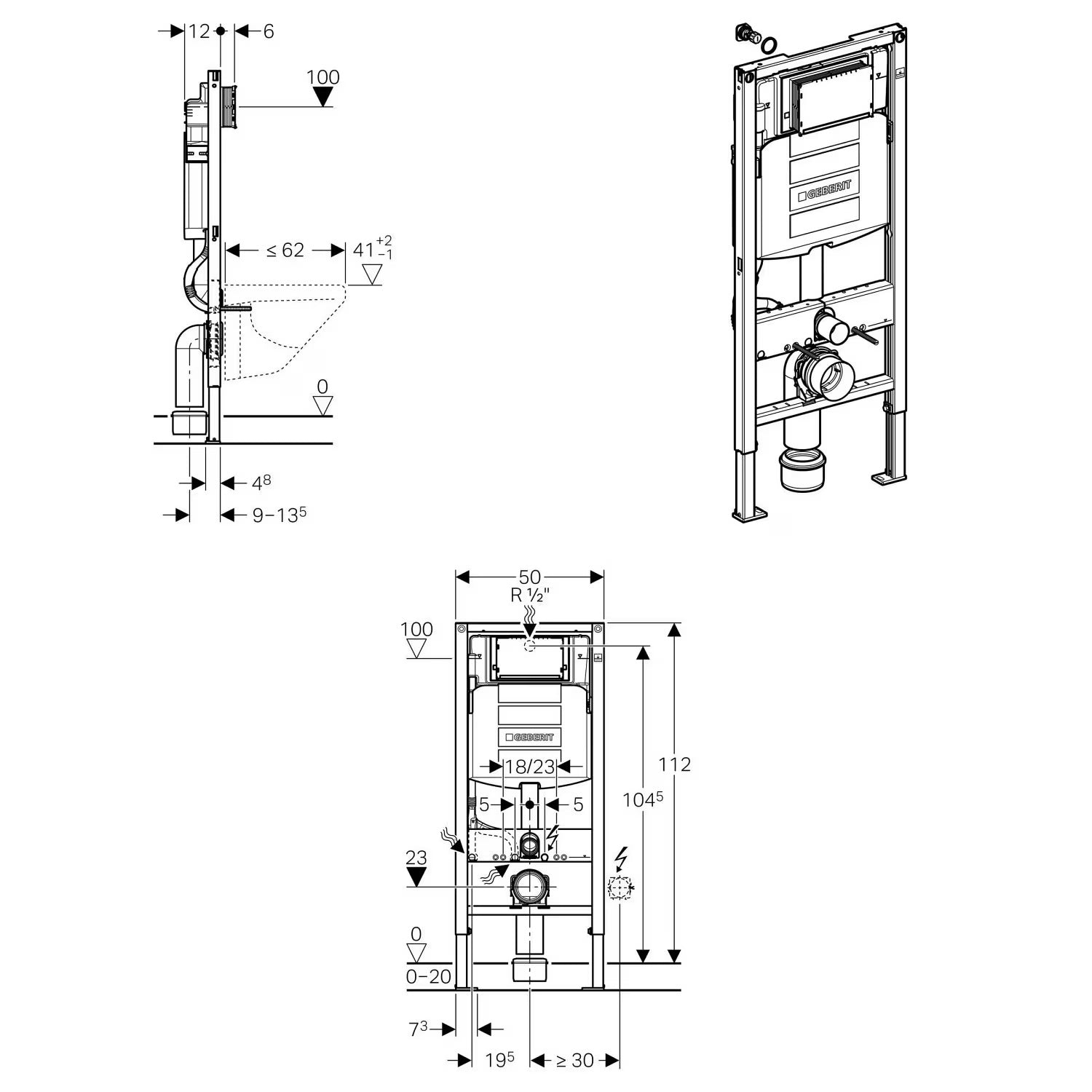

Geberit Duofix prewall element for a stable installation
The Geberit Duofix prewall element ensures proper installation. The self-supporting steel frame is powder-coated and provides a stable basis for wall-mounting the WC. Height-adjustable, galvanized support feet allow precise adjustment during installation. The condensation-insulated concealed cistern supports economical water consumption. The flush volume can be adjusted, and maintenance work can be carried out without tools.
Actuator plate and water connection included in the set
The complete set includes a Geberit Sigma actuator plate with dual flush. The color can be selected to match the bathroom design. The supplied connection set enables professional connection of the shower toilet to the water installation.
This shower toilet complete set combines modern hygiene technology with Geberit’s proven installation quality and offers a well-thought-out solution for modern bathrooms.

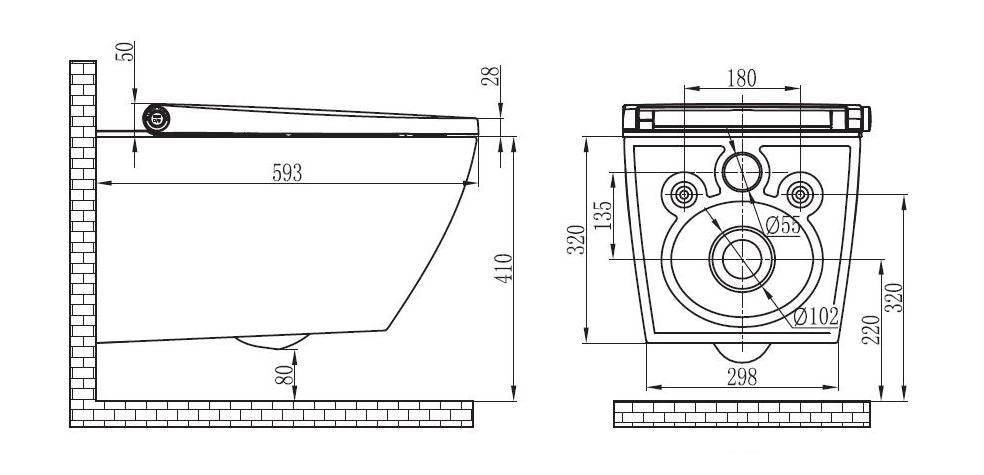

Dimensions and specifications
| SHOWER TOILET | |
| Model | PRO+ 1104 |
|---|---|
| Material | Sanitary ceramics |
| Color | Black matt |

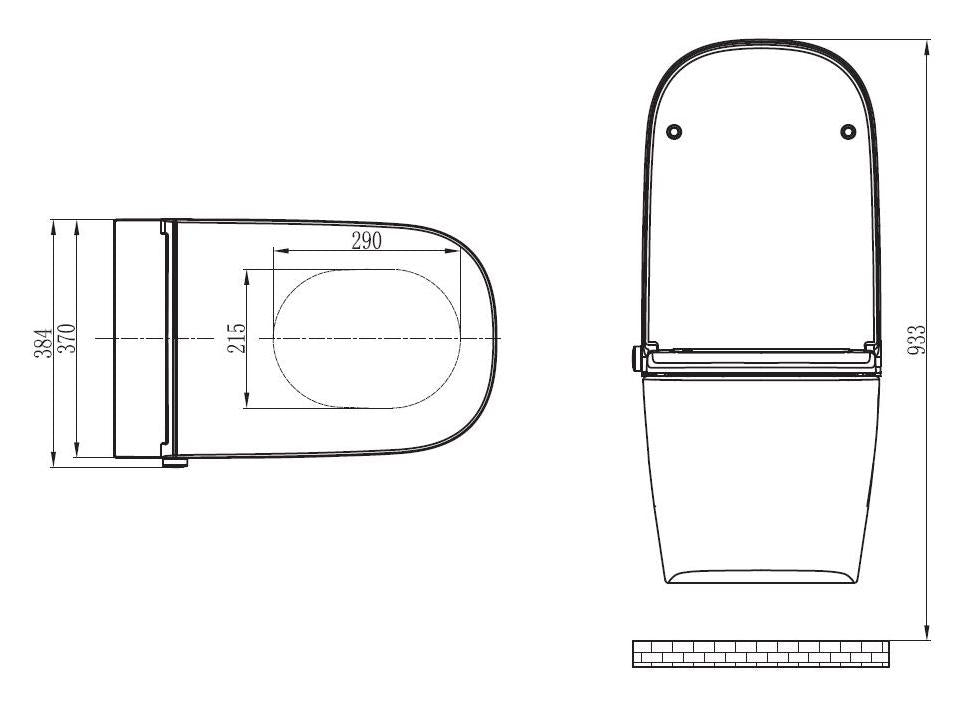

| Dimensions (D x W x H) | 59.3 x 38.4 x 38 cm |
| Weight | 32 kg (net) |
| Packaging dimensions | 66 x 48 x 46.5 cm |
| Connection | Power connection required |
| Voltage | 220–240 V, 50–60 Hz |
| Power | 950 W |
| Protection class | IPX4 |
| Cable length | 1.8 m |
| Certifications | EN 1717 |
| Toilet seat | UF plastic with antimicrobial coating LED night light Soft-close function |

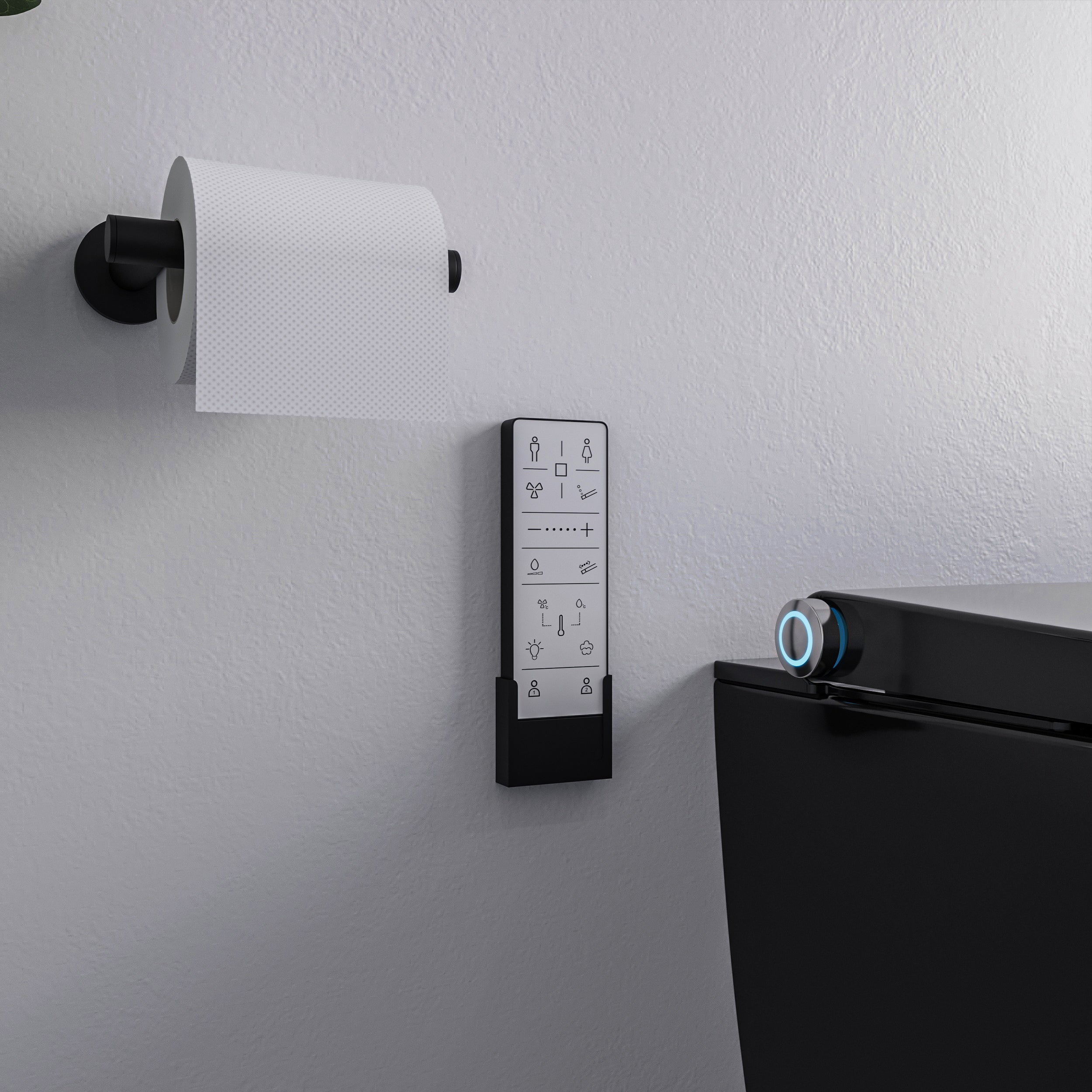

| Scope of delivery | Shower toilet PRO+ 1104 Remote control incl. holder (without batteries) Activated carbon filter Mounting material Installation instructions Operating instructions |
| CONCEALED CISTERN FRAME | |
| Model | Geberit Duofix |
|---|---|
| Cistern | Sigma UP |
| Material | Steel (frame) Plastic (cistern) |
| Color | Blue, powder-coated |
| Width | 50 cm |
| Height | 112–132 cm (adjustable) |
| Depth | 12 cm |
| Self-supporting construction | Yes |
| Foot supports | With slip resistance, galvanized, height-adjustable |
| Factory setting flush volume | 6 and 3 l |
| Adjustment range large flush volume | 4.5 / 6 / 7.5 l |
| Adjustment range small flush volume | 3–4 l |
| Flushing technology | 1-volume, 2-volume or start/stop flush |
| Actuation | Front |
| Condensation-insulated concealed cistern | Yes |
| Position of water connection | Rear top center |
| Maximum water temperature | 25 °C |
| Actuation plate | Without |
| Shipping weight | approx. 18 kg |
| Scope of delivery | Water connection with integrated angle valve and handwheel Construction protection for service opening 2 protective plugs Connection set for toilet 90° connection bend made of PE-HD Transition sleeve made of PE-HD 2 threaded rods M12 Fastening material |

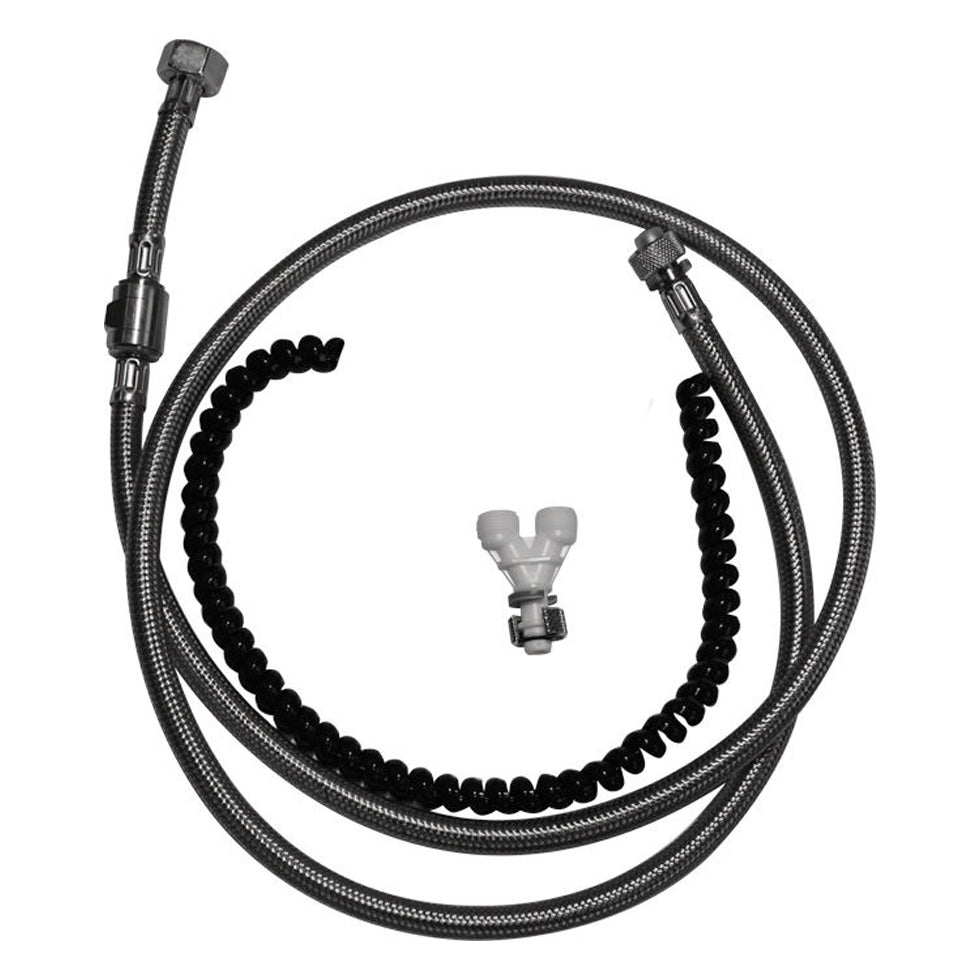

| WATER CONNECTION SET | |
| Model | Duravit SensoWash |
|---|---|
| Material | Stainless steel, plastic, brass |
| Connection size water connection shower toilet | 1/2" |
| Inner diameter water connection shower toilet | DN8 |

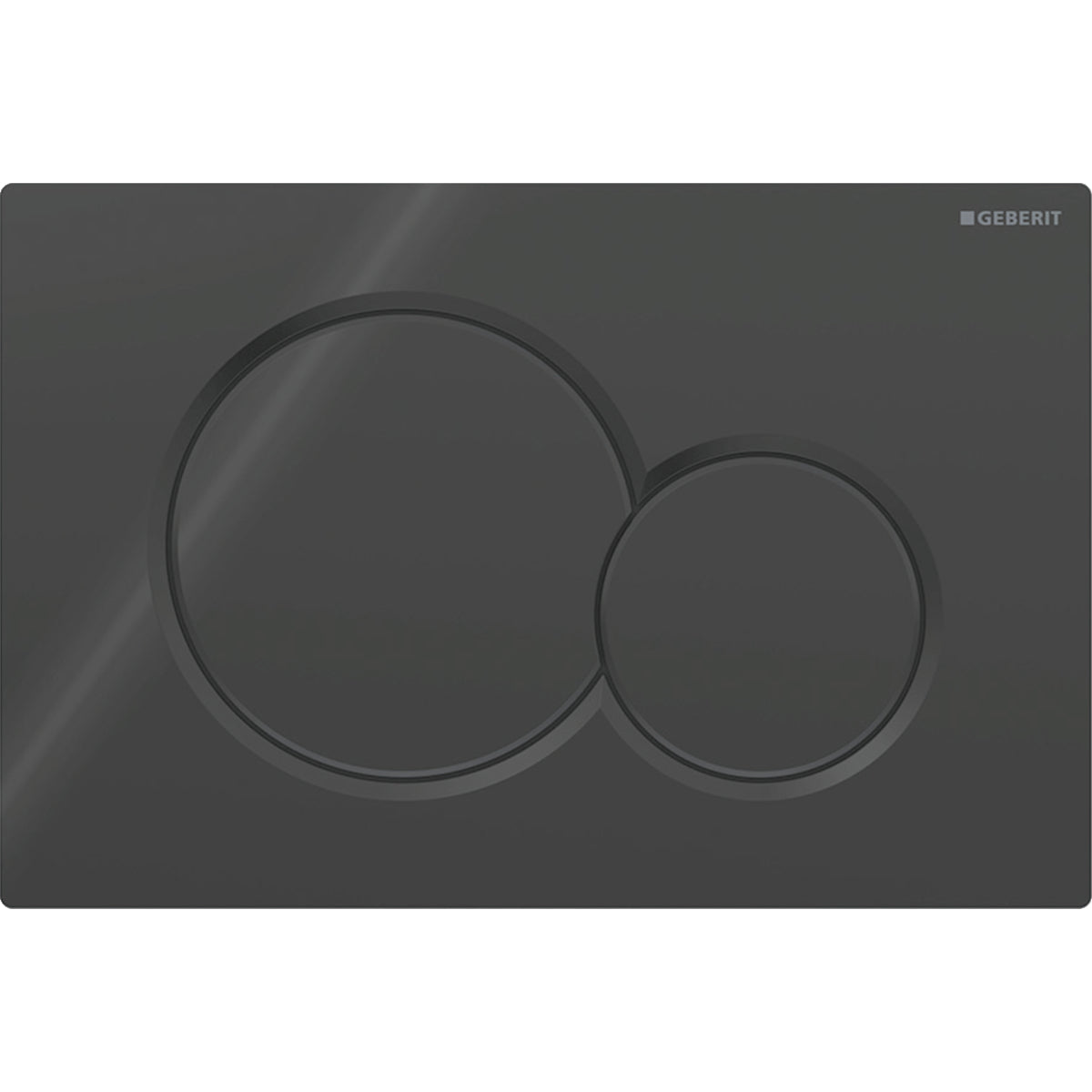

| ACTUATION PLATE | |
| Model | Geberit Sigma01 |
|---|---|
| Dimensions | 24.6 x 16 x 1.3 cm (W x H x D) |
| Material | Plastic |
| Selectable color | White | Black |
| Finish | Glossy |
| Number of flush buttons | 2 |
| Flush operation | Mechanical |
| Type of installation | Surface-mounted |
Scope of delivery
- BERNSTEIN shower toilet PRO+ 1104
- Geberit Duofix pre-wall element with Sigma concealed cistern
- Duravit water connection set SensoWash
- Geberit actuator plate Sigma01 in selected color
- Mounting materials
Downloads
Assembly instructions
Dusch_WC_Proplus_1104_Montage_DE_EN_FR_IT_I_2023.pdfElectrical note
Batteriegesetz-Elektro-Elektronikgeraete.pdfOperating instructions
XXXXX_Dusch_Wc_ProPlus_1104_DE_BS_I_2019_Bedienungsanleitung.pdfCare instructions
Cleaning_and_care_instructions.pdf
