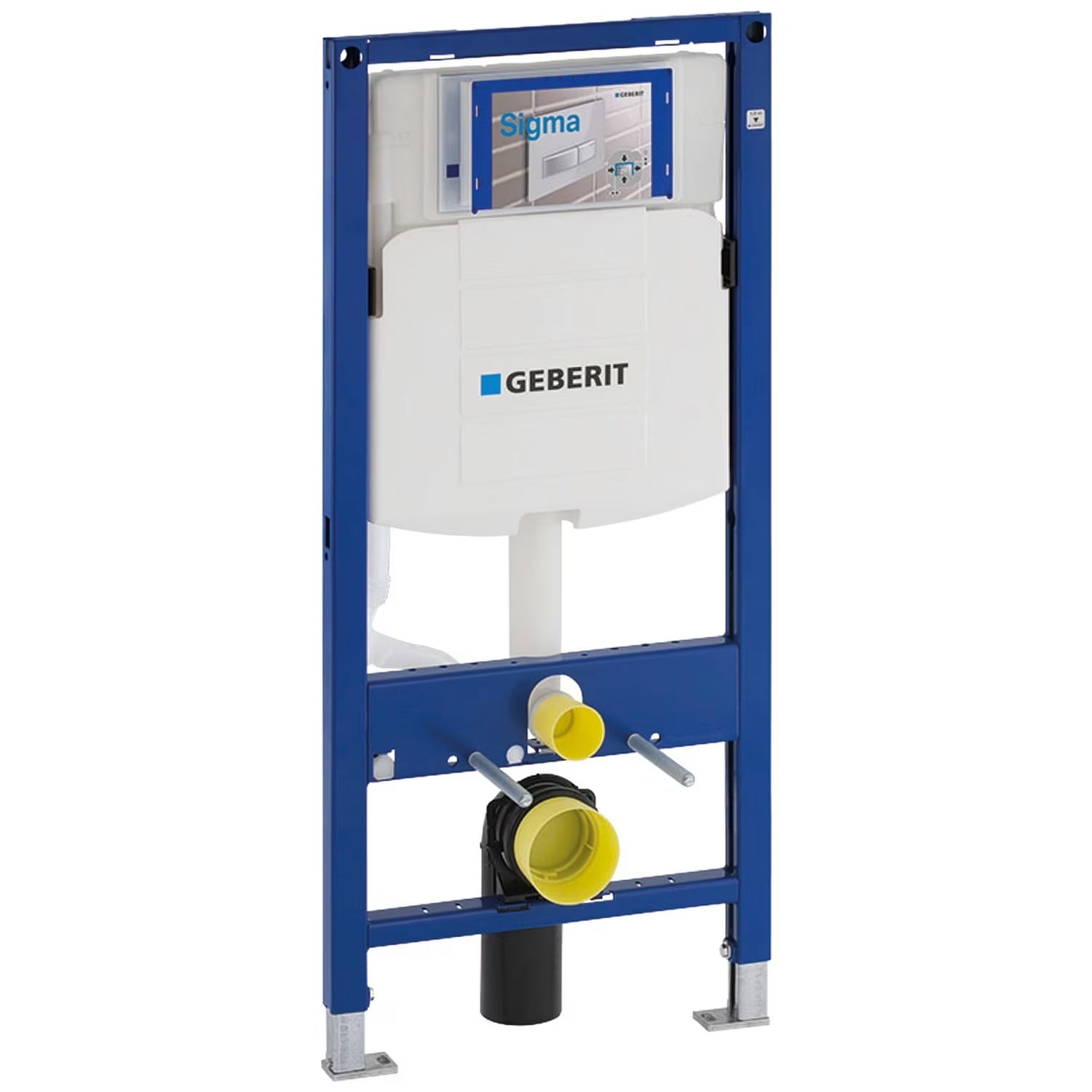

Geberit Duofix prewall element for wall-hung WC

Geberit Duofix prewall element for wall-hung WC - Modern and space-saving system for your bathroom

The Geberit Duofix prewall element is an excellent solution for modern bathrooms and toilets. It allows for an aesthetic and space-saving installation of the wall-hung WC. All technical elements, such as the flush mechanism and the cistern, are concealed within the wall. This makes the room appear significantly larger and cleaning becomes much easier.

Top quality and reliability

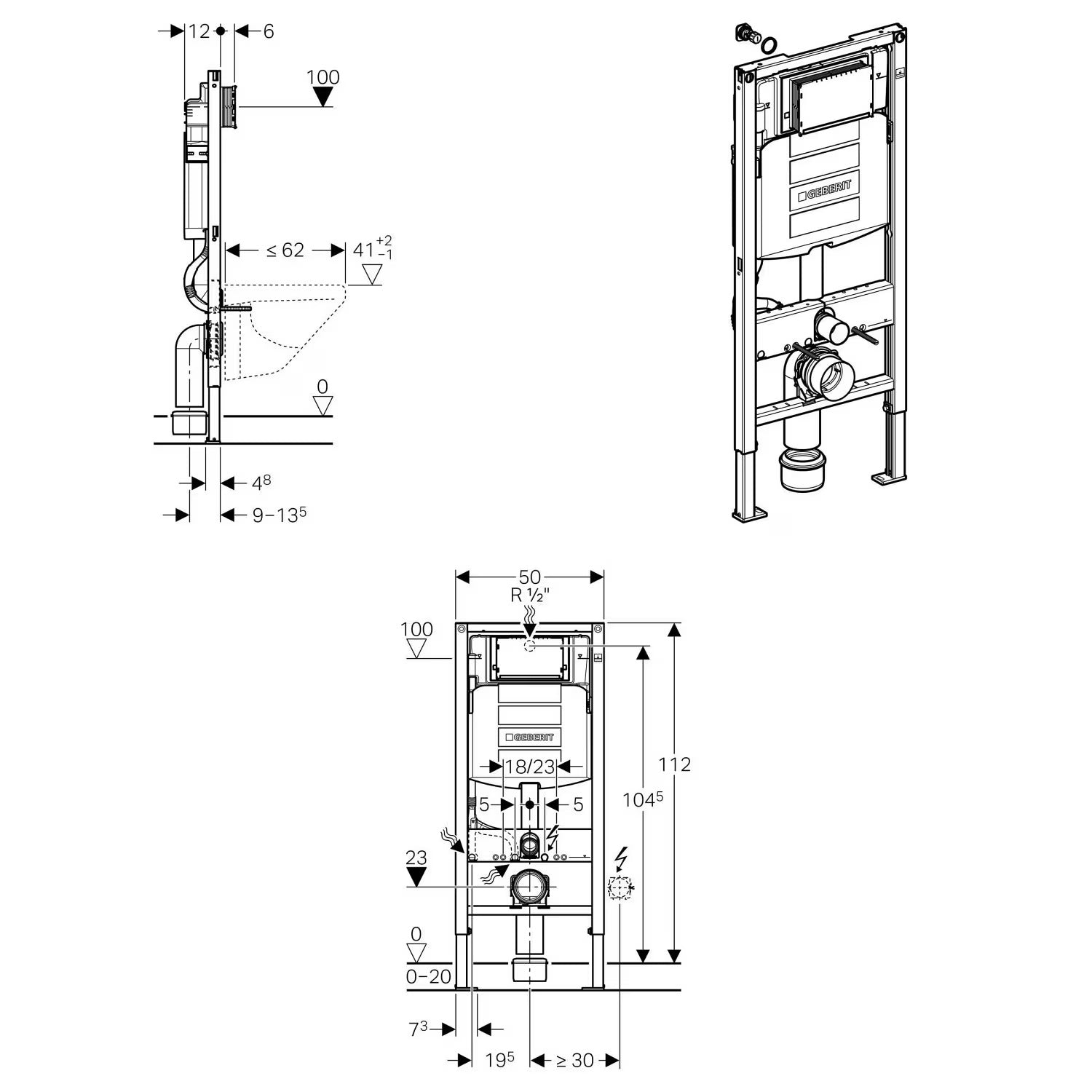

Geberit impresses with reliability and high manufacturing quality. The stable, self-supporting frame is powder-coated. The galvanized, non-slip foot supports are height-adjustable in a range from 0 to 20 cm, allowing flexible adaptation. The Geberit concealed cistern is protected from condensation and allows individual adjustment of the flush water volume as well as immediate flushing. In combination with a suitable Geberit Sigma actuator plate and a wall-hung WC, a harmonious and stylish bathroom concept can be created.

The installation of the frame is extremely easy, and maintenance work can be carried out without tools. The material required for mounting is included in the scope of delivery. However, depending on the chosen installation method, a different type of fixing may be required, which is available in the Recommended Accessories section. Before installation, the installation instructions should be read carefully.

• Water connection with integrated angle valve and handwheel
• Construction protection for service opening
• 2 protective caps
• Connection set for WC
• 90° connection bend made of PE-HD
• Transition sleeve made of PE-HD
• 2 threaded rods M12
• Mounting material

Safety instructions
