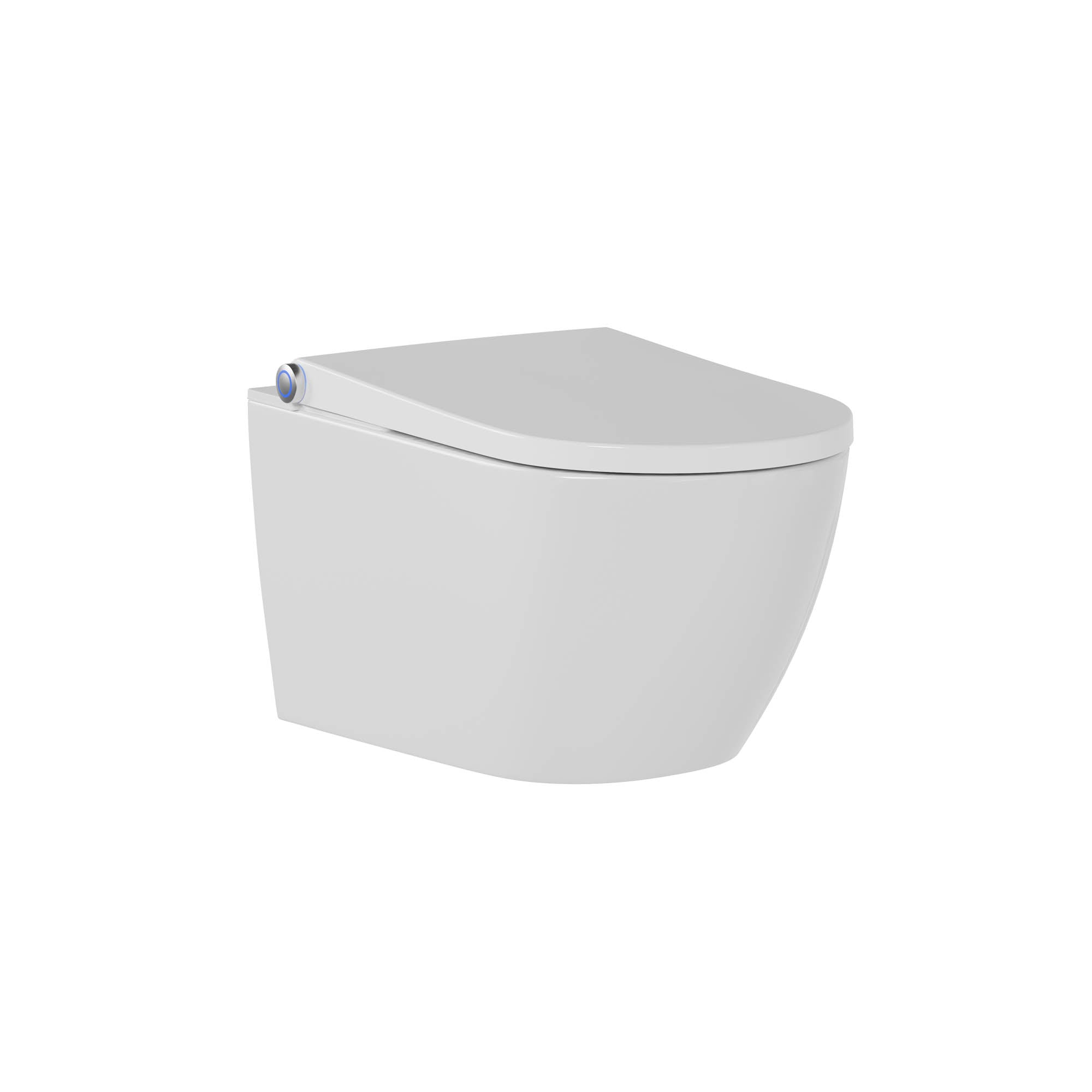

Shower toilet complete set PREMIUM 1102 with Geberit Duofix pre-wall element
With seat heating and descaling function - Geberit actuator plate freely selectable
Product number: 173813
Product number: 173812
Product information

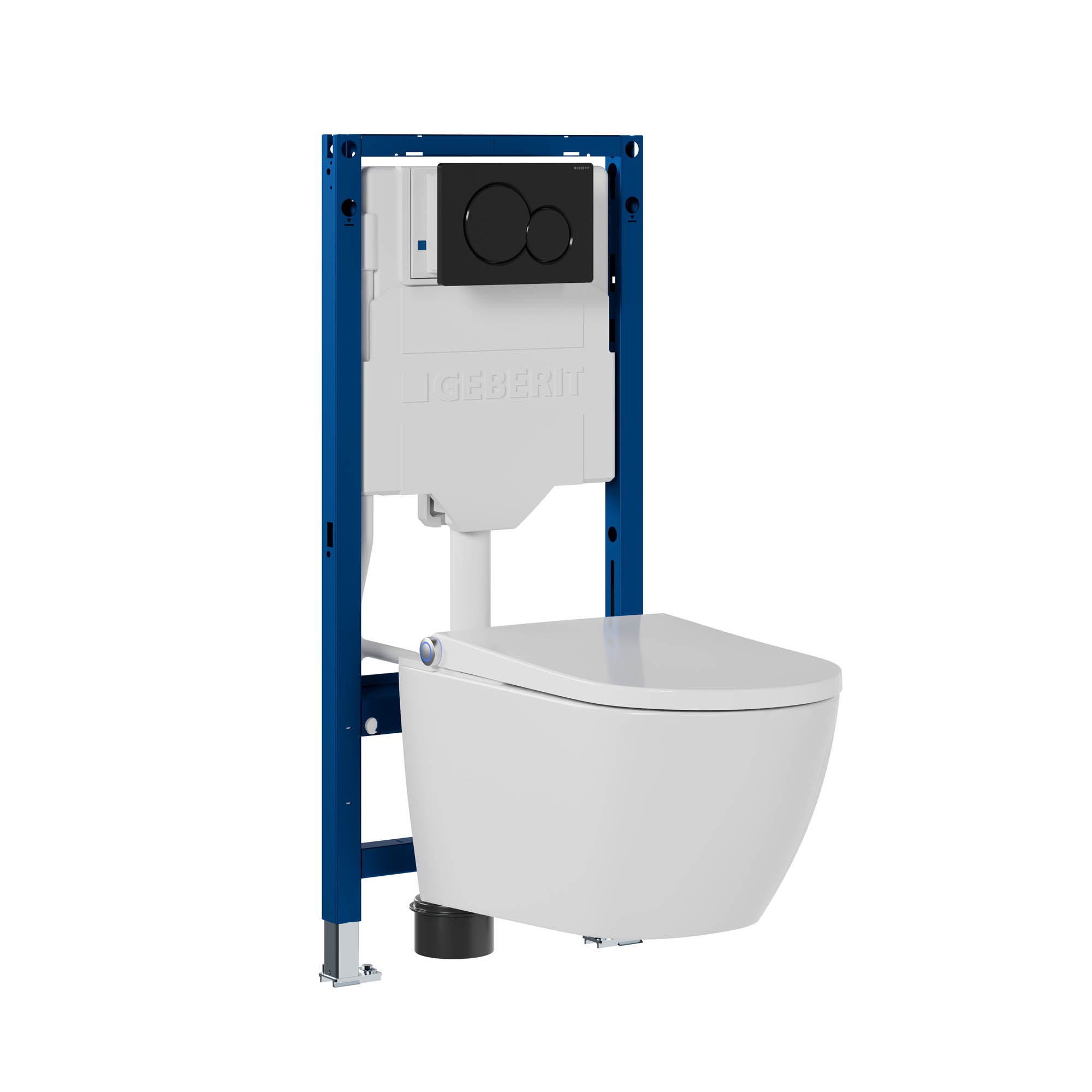

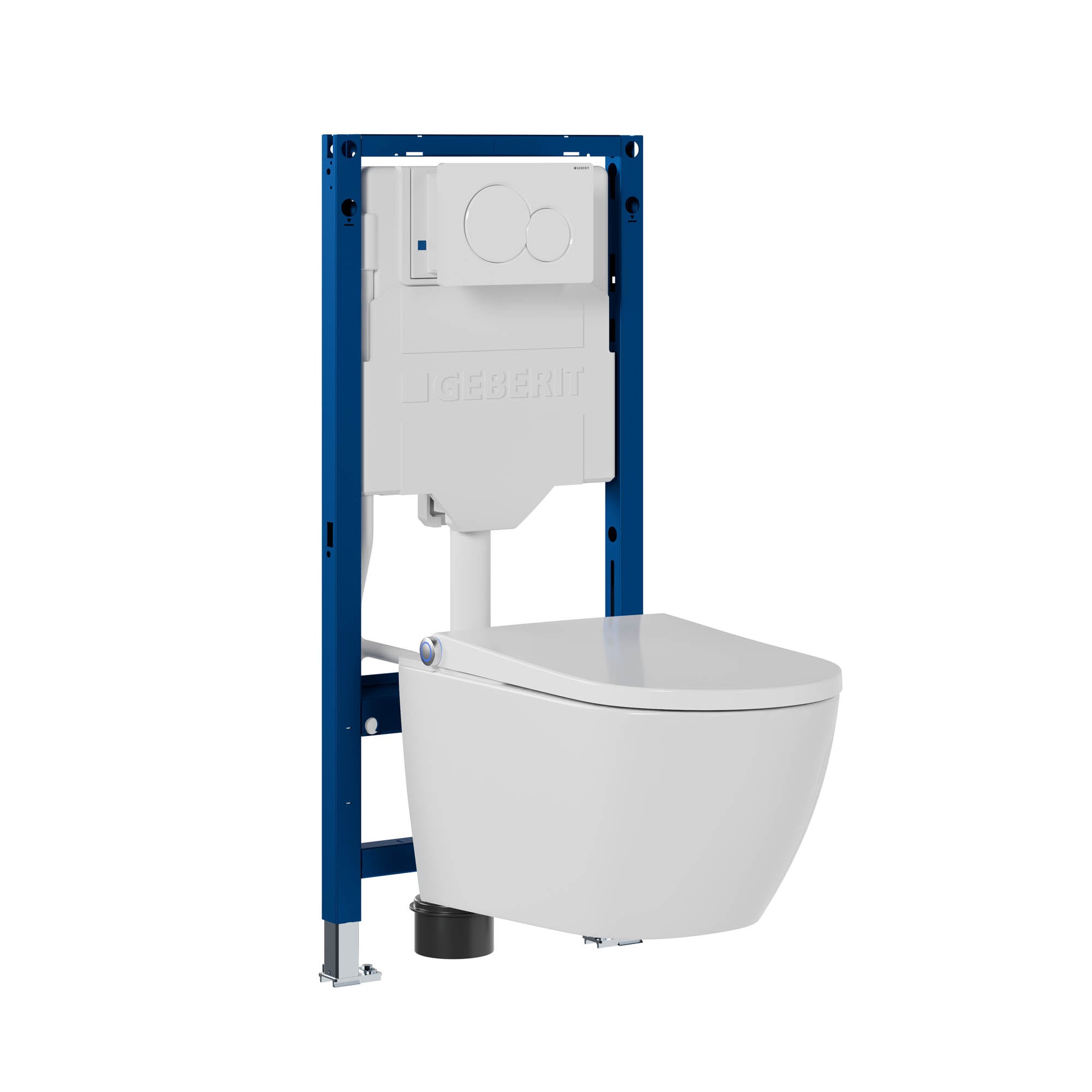

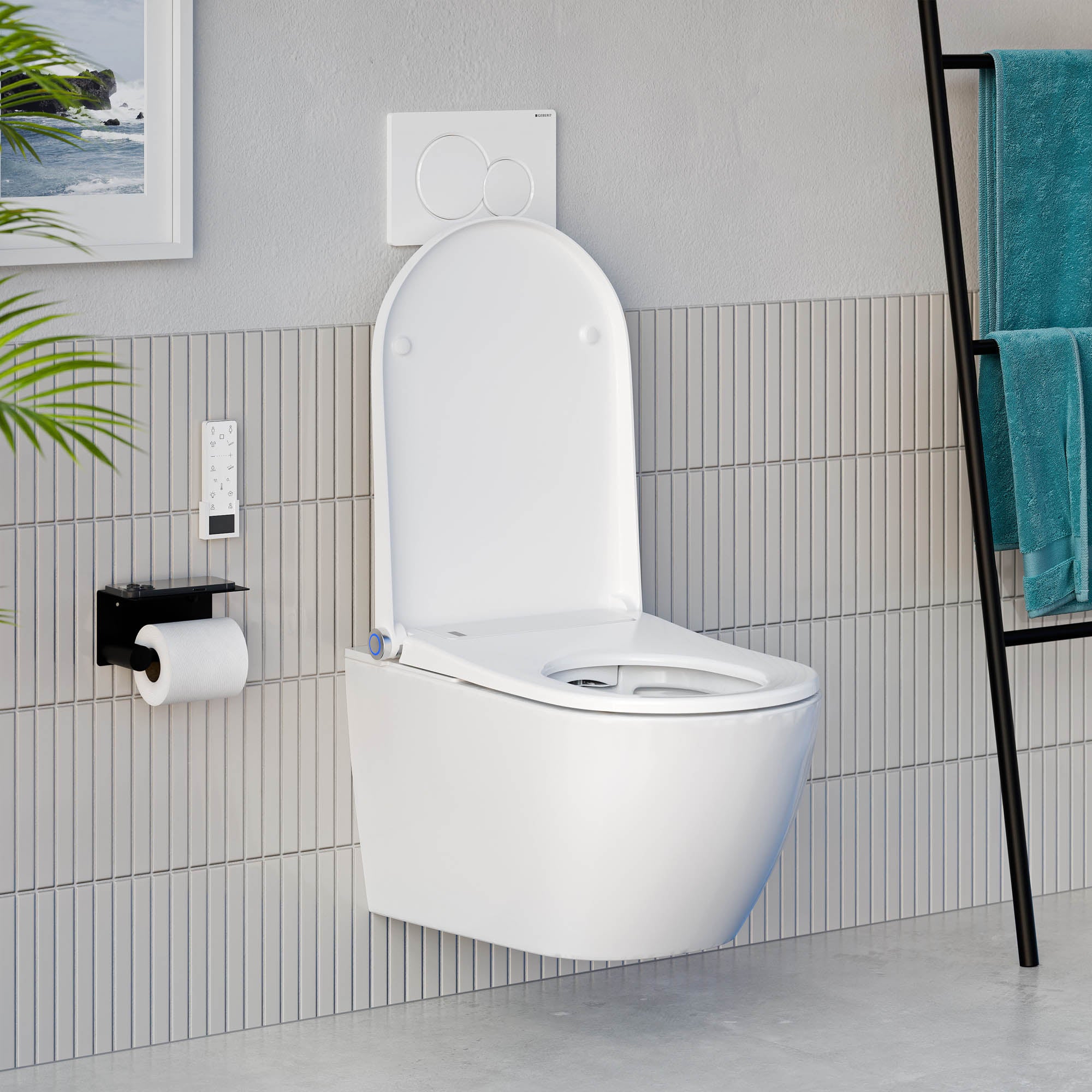

Shower toilet complete set Bernstein PREMIUM 1102 with Geberit Duofix & Sigma01 actuator plate
This shower toilet complete set consists of the Bernstein SHOWER TOILET PREMIUM 1102, the high-quality Geberit Duofix prewall element, a Geberit Sigma actuator plate as well as a matching water connection set. All components are technically coordinated and enable safe, long-lasting installation in new builds or during modernization.
Shower toilet complete set with seat heating and warm air drying

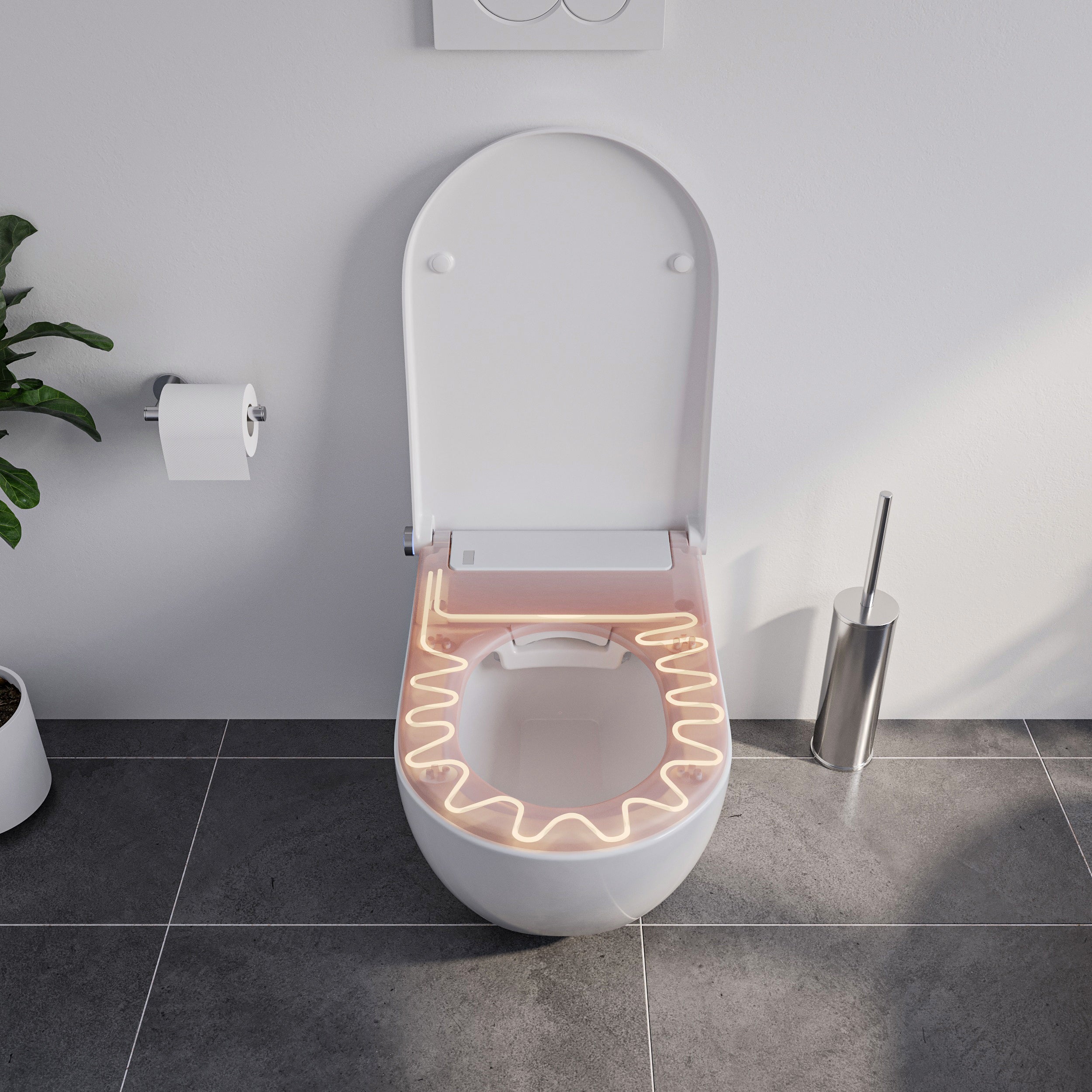

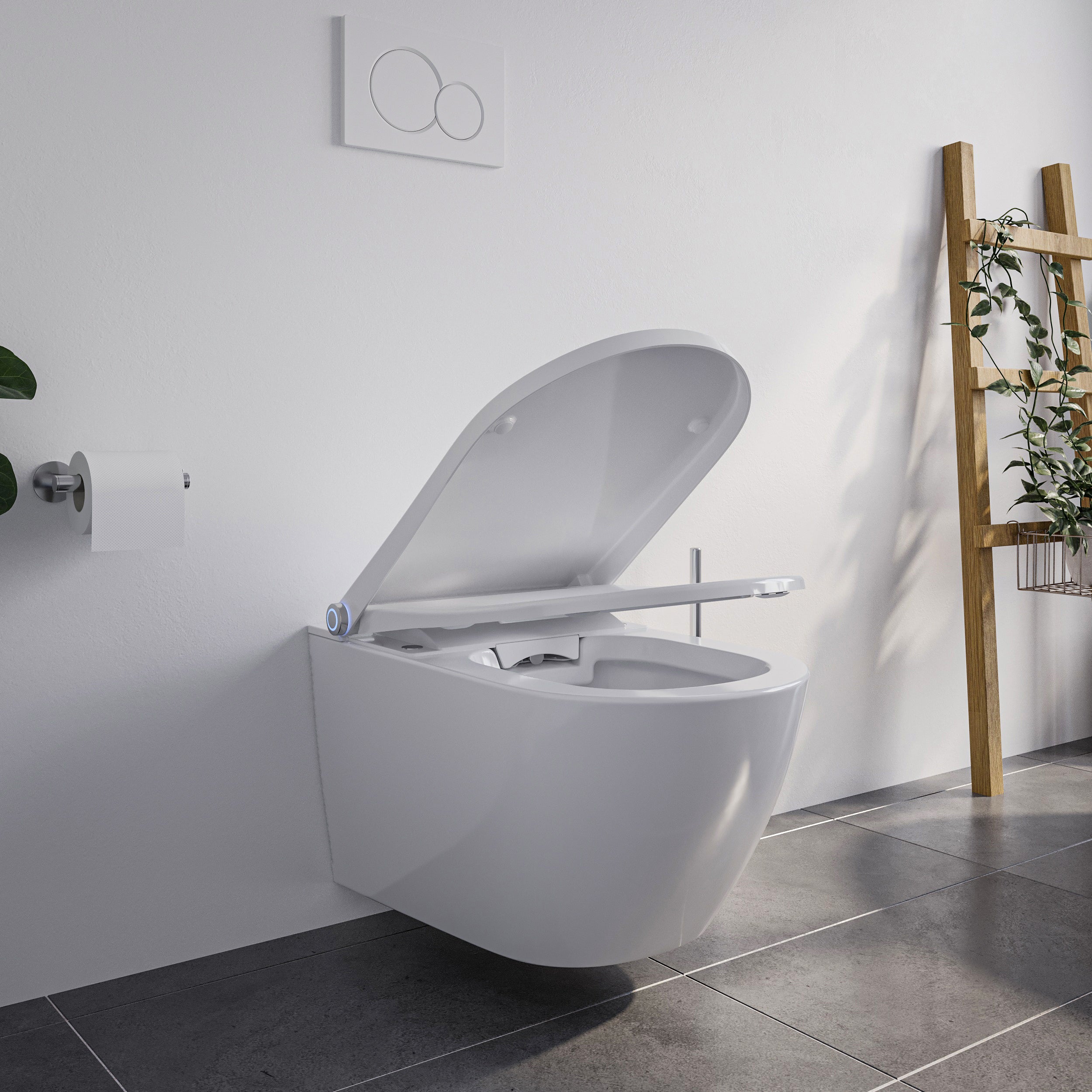

Because the toilet set is rimless, cleaning is significantly easier and deposits are reduced. The posterior and lady shower with gentle massage function ensures thorough cleaning. Nozzle position, water temperature, water quantity and spray intensity can each be set in five stages. Two user profiles allow individual settings to be saved. The soft-close seat can be heated up to 37 °C and increases everyday comfort. After the cleaning process, the warm air dryer takes over with adjustable intensity. An integrated activated carbon filter reliably neutralizes odors and adds an extra plus of hygiene to the wall-hung toilet set. The stainless steel nozzle cleans itself automatically before and after each use. The integrated descaling function supports permanently reliable operation. The 180° vortex flush technology cleans the toilet ceramic powerfully and efficiently and underscores the quality of the complete toilet set. Antibacterial materials in the seat area further increase hygiene. Operation is intuitive via remote control or side rotary knob on the device. A guaranteed spare parts availability of 10 years offers long-term security.
Geberit Duofix prewall element - the stable basis for a long-lasting toilet set
The Geberit Duofix prewall element stands for proven concealed technology and ensures maximum stability and safety during installation in the complete toilet set. The self-supporting, powder-coated steel frame ensures stability and durability. Height-adjustable, galvanized foot supports enable precise adaptation to the installation situation. The concealed cistern is condensation-insulated and designed for economical water consumption. The flush volume is adjustable, and immediate re-flushing is possible. Maintenance is carried out without tools, while the construction protection of the service opening protects the technology during installation.
Toilet complete set with Geberit Sigma actuator plate and connection set
The Geberit Sigma actuator plate with dual-flush system complements the system both functionally and visually. The color can be freely selected to match the bathroom design. With the supplied connection set, the shower toilet complete set can be professionally integrated into the existing water installation.
This shower toilet complete set combines high comfort with long-lasting concealed technology and the proven quality of Geberit - a coordinated solution for modern bathrooms.

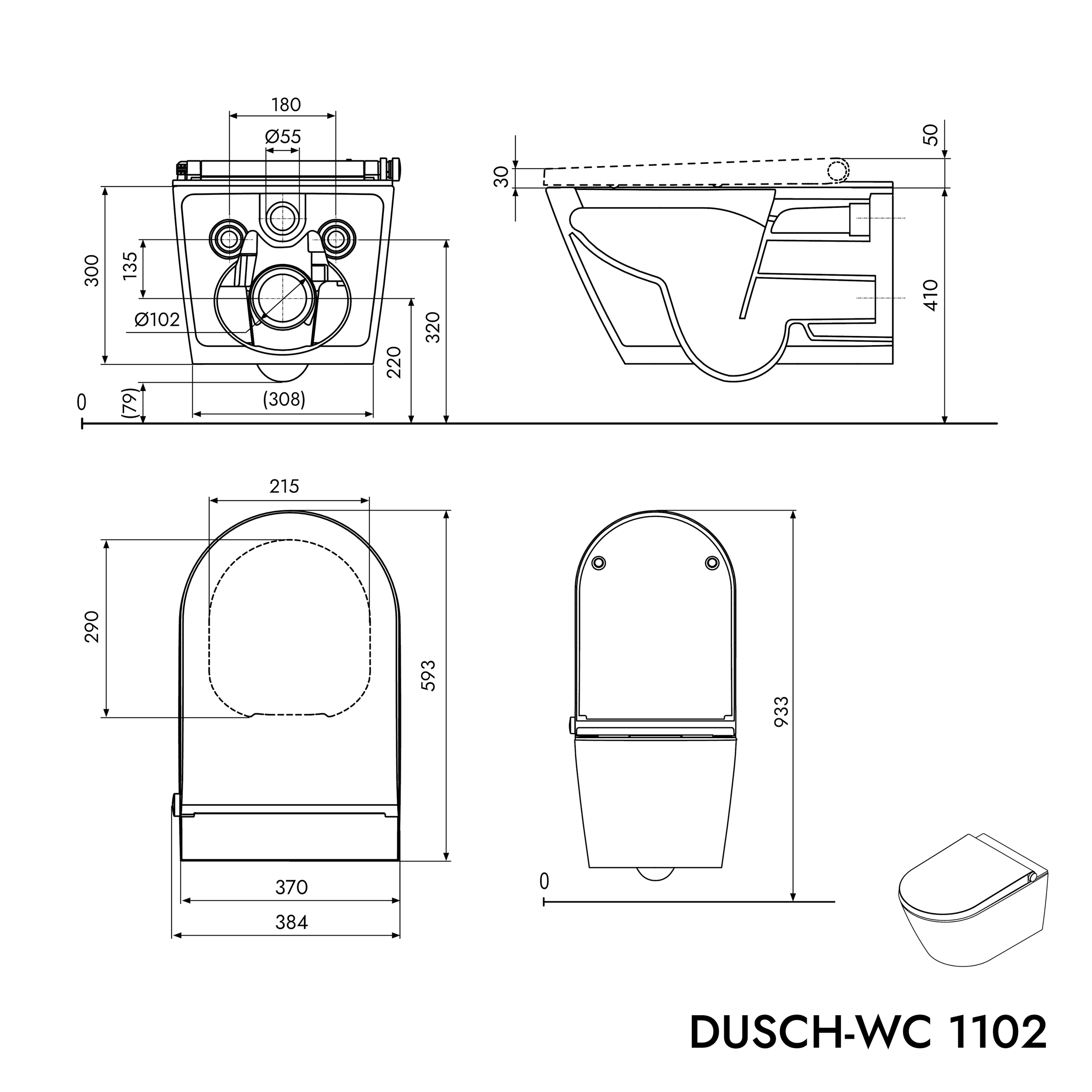

Dimensions and specifications
| SHOWER TOILET | |
| Model | PREMIUM 1102 |
|---|---|
| Material | Sanitary ceramic |
| Color | White |
| Dimensions (D x W x H) | 59.3 x 38.4 x 38.8 cm |
| Weight | 35 kg (net) / 38 kg (gross) |
| Packaging dimensions | 65.5 x 44.5 x 46.5 cm |
| Connection | Power connection required |
| Voltage | 220–240 V, 50–60 Hz |
| Power | 950 W |
| Protection class | IPX4 |
| Closing function | Soft-close function |
| Cable length | 1.8 m |
| Certifications | EN 1717 |
| Toilet seat | UF plastic with antimicrobial coating Seat heating up to 37 °C LED night light |
| Scope of delivery | Shower toilet PREMIUM 1102 Remote control incl. holder (without batteries) Activated carbon filter Sound insulation mat Mounting material Installation instructions Operating instructions |
| PREWALL ELEMENT | |
| Model | Geberit Duofix |
|---|---|
| Cistern | Sigma UP |
| Material | Steel (frame) Plastic (cistern) |
| Color | Blue, powder-coated |
| Width | 50 cm |
| Height | 112–132 cm (adjustable) |
| Depth | 12 cm |
| Self-supporting construction | Yes |
| Foot supports | With anti-slip, galvanized, height-adjustable |
| Factory setting flush volume | 6 and 3 l |
| Adjustment range large flush volume | 4.5 / 6 / 7.5 l |
| Adjustment range small flush volume | 3–4 l |
| Flushing technology | Single-volume, dual-volume or start/stop flush |
| Actuation | Front |
| Condensation-insulated concealed cistern | Yes |
| Position of water connection | Rear top center |
| Maximum water temperature | 25 °C |
| Actuation plate | Without |
| Shipping weight | approx. 18 kg |
| Scope of delivery | Water connection with integrated angle valve and handwheel Construction protection for service opening 2 protective caps Connection set for toilet 90° connection bend made of PE-HD Transition sleeve made of PE-HD 2 threaded rods M12 Fastening material |

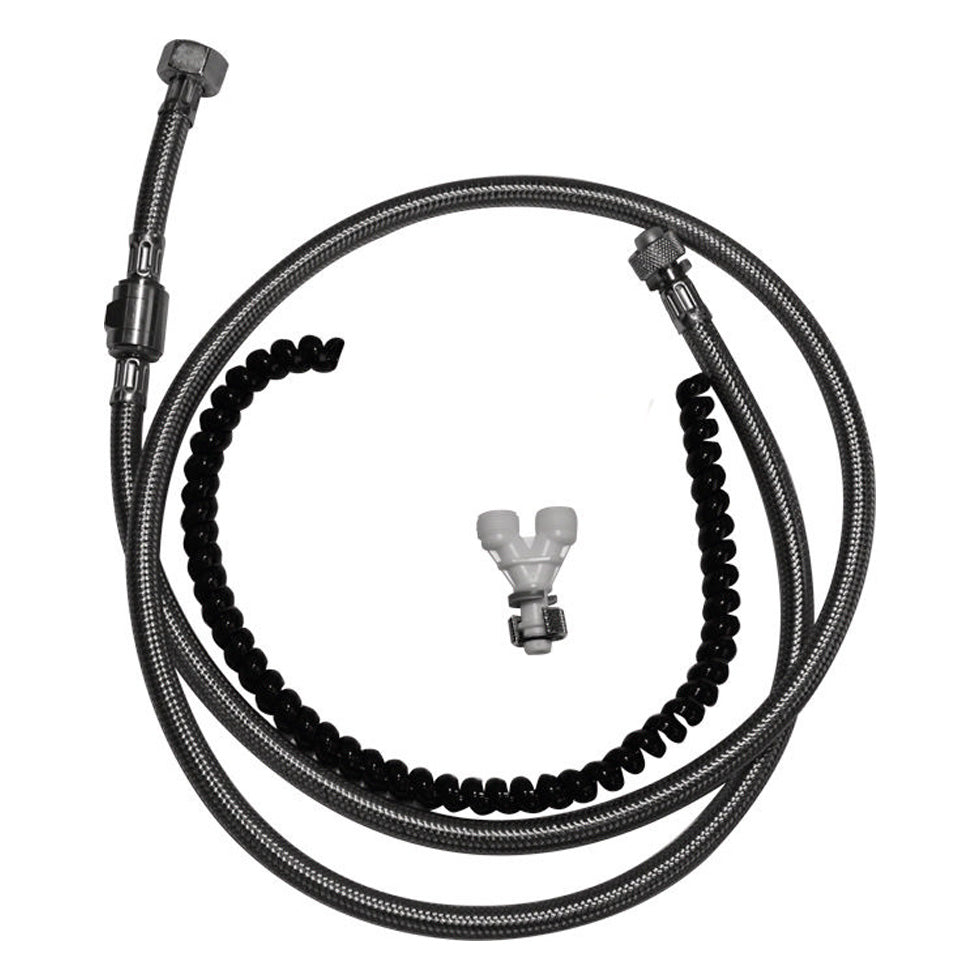

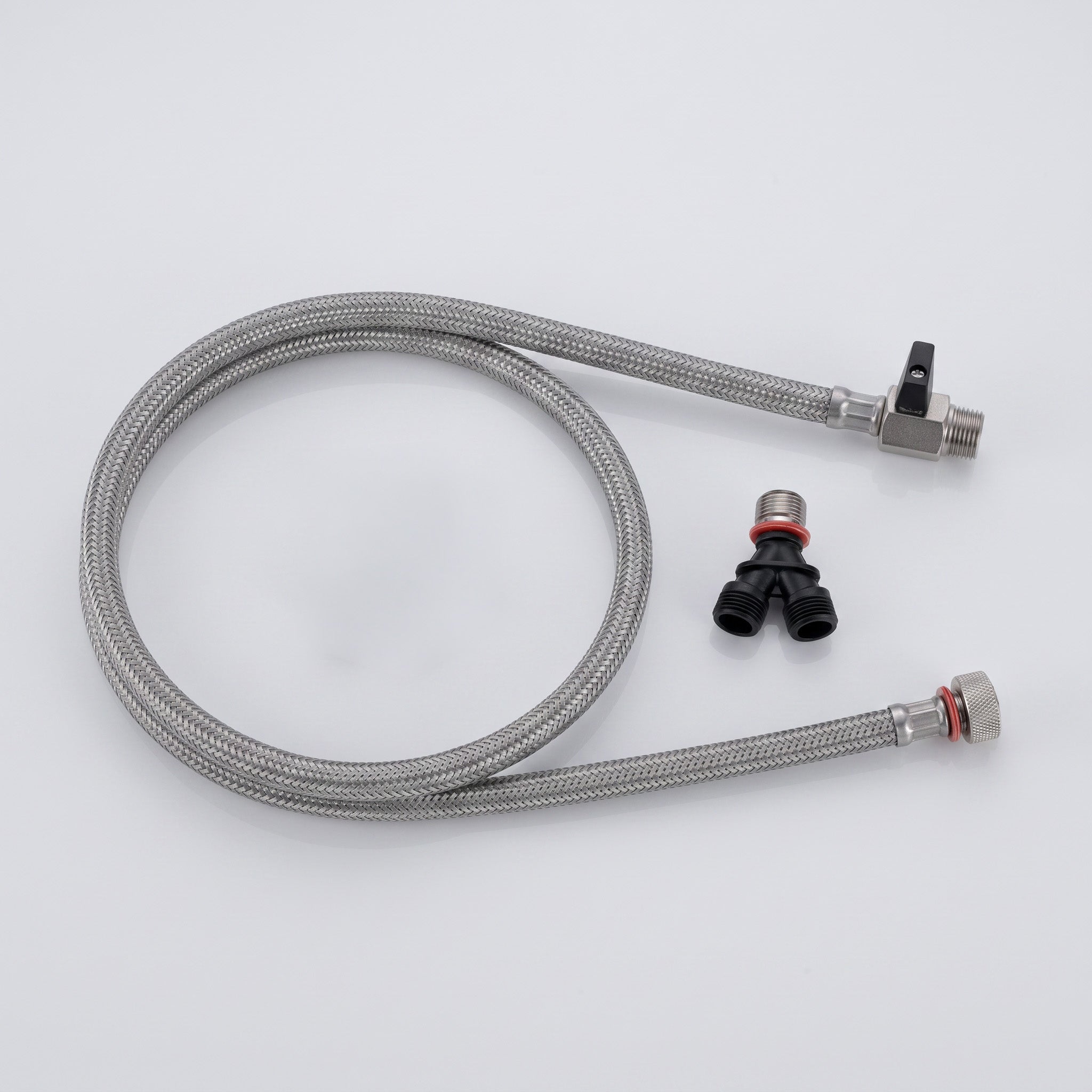

| WATER CONNECTION SET | |
| Material | Stainless steel, plastic, brass |
|---|---|
| Connection size water connection shower toilet | 1/2" |
| Inner diameter water connection shower toilet | DN8 |
| ACTUATION PLATE | |

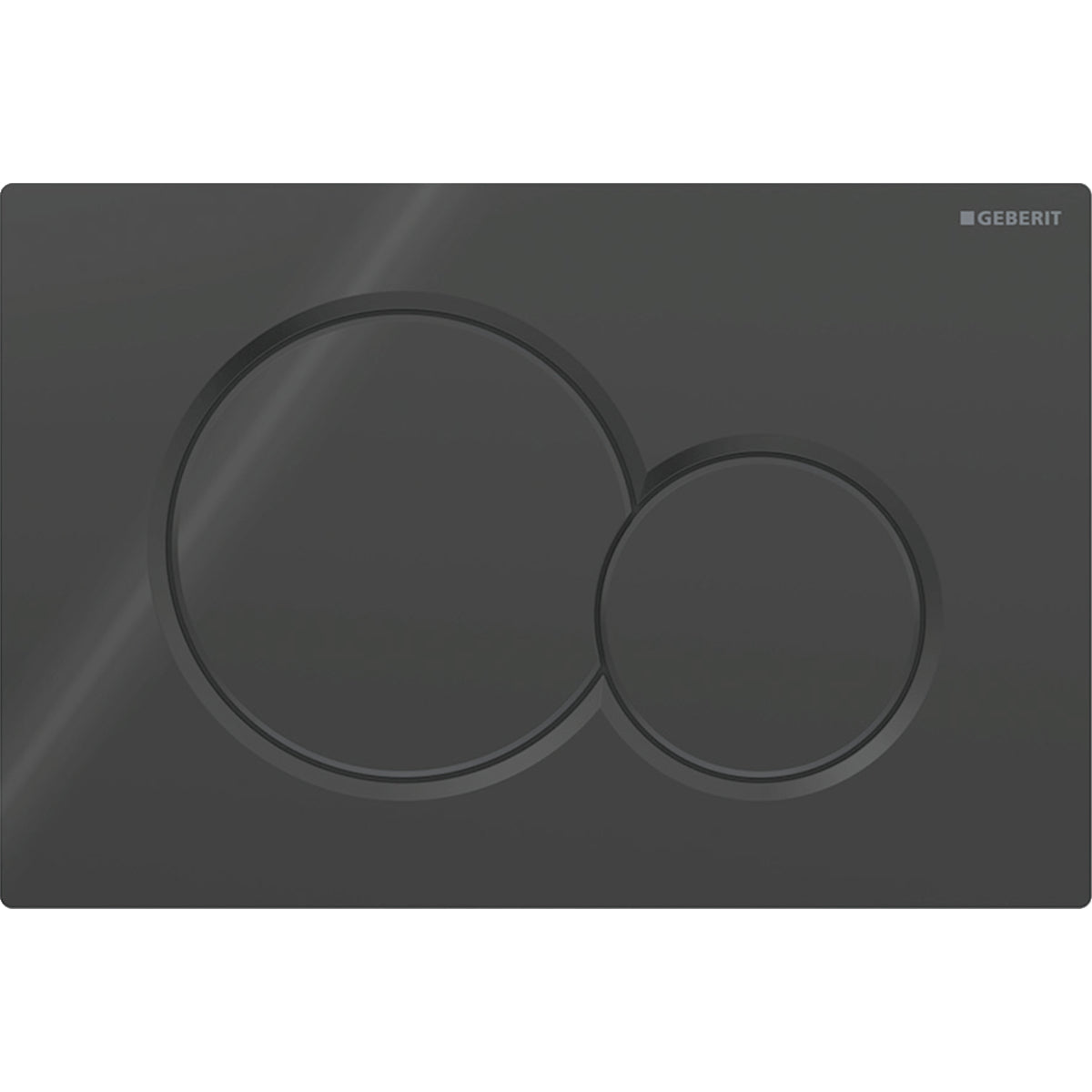

| Model | Geberit Sigma01 |
|---|---|
| Dimensions | 24.6 x 16 x 1.3 cm (W x H x D) |
| Material | Plastic |
| Selectable color | White | Black |
| Finish | Glossy |
| Number of flush buttons | 2 |
| Flush operation | Mechanical |
| Installation type | Surface-mounted |
Scope of delivery
- Bernstein SHOWER TOILET PREMIUM 1102
- Geberit Duofix pre-wall element with Sigma UP concealed cistern
- Water connection set
- Geberit actuator plate Sigma01 in chosen color
- Installation materials
Downloads
Assembly instructions
Montageanleitung_1102_PREMIUM_030925.pdfElectrical note
Batteriegesetz-Elektro-Elektronikgeraete.pdfOperating instructions
Dusch_WC_Premium_1102_Anleitung_DE_I_2023.pdfCare instructions
Cleaning_and_care_instructions.pdf
Shipping costs
Product safety
.jpg)
Comfort & Hygiene - Bernstein PREMIUM 1102

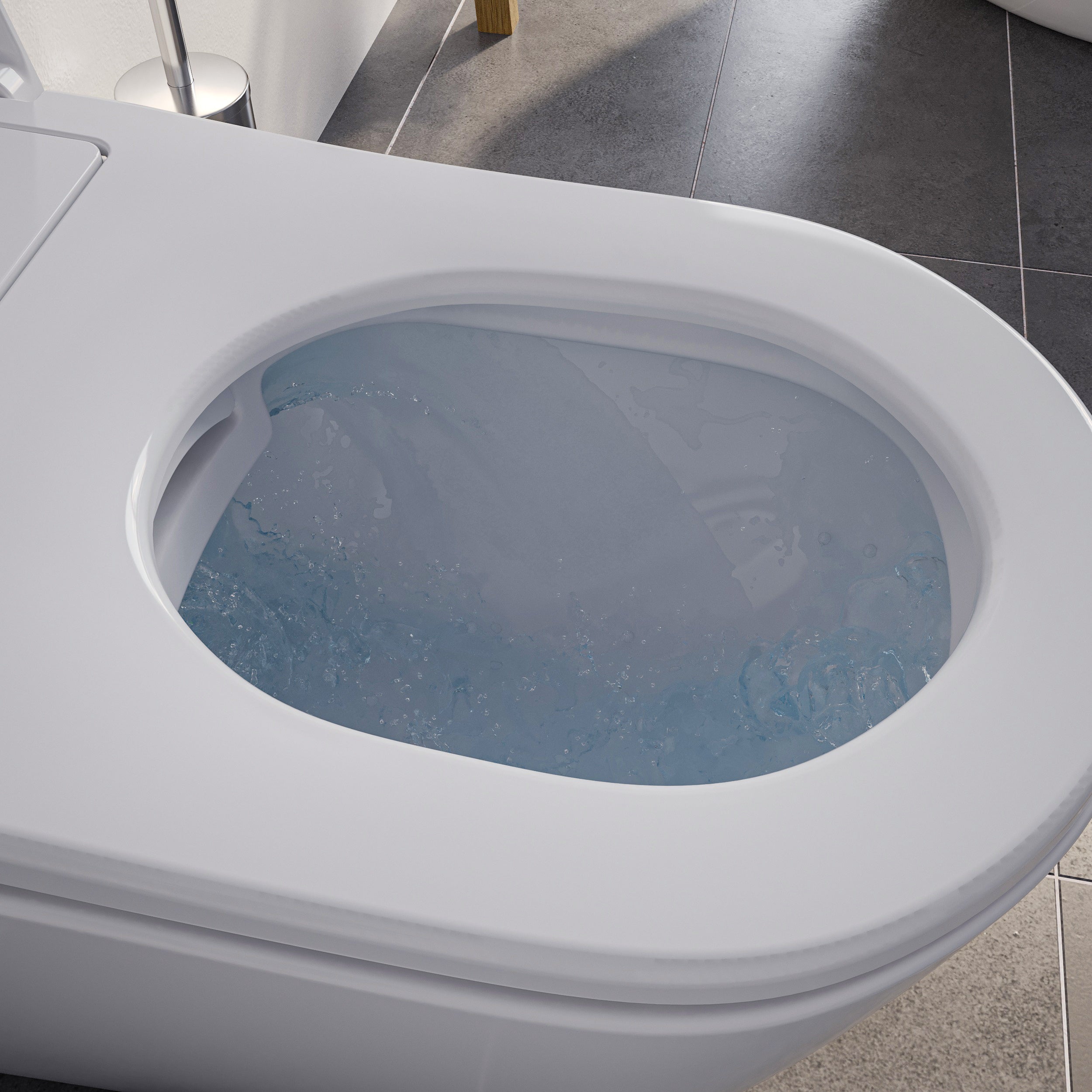

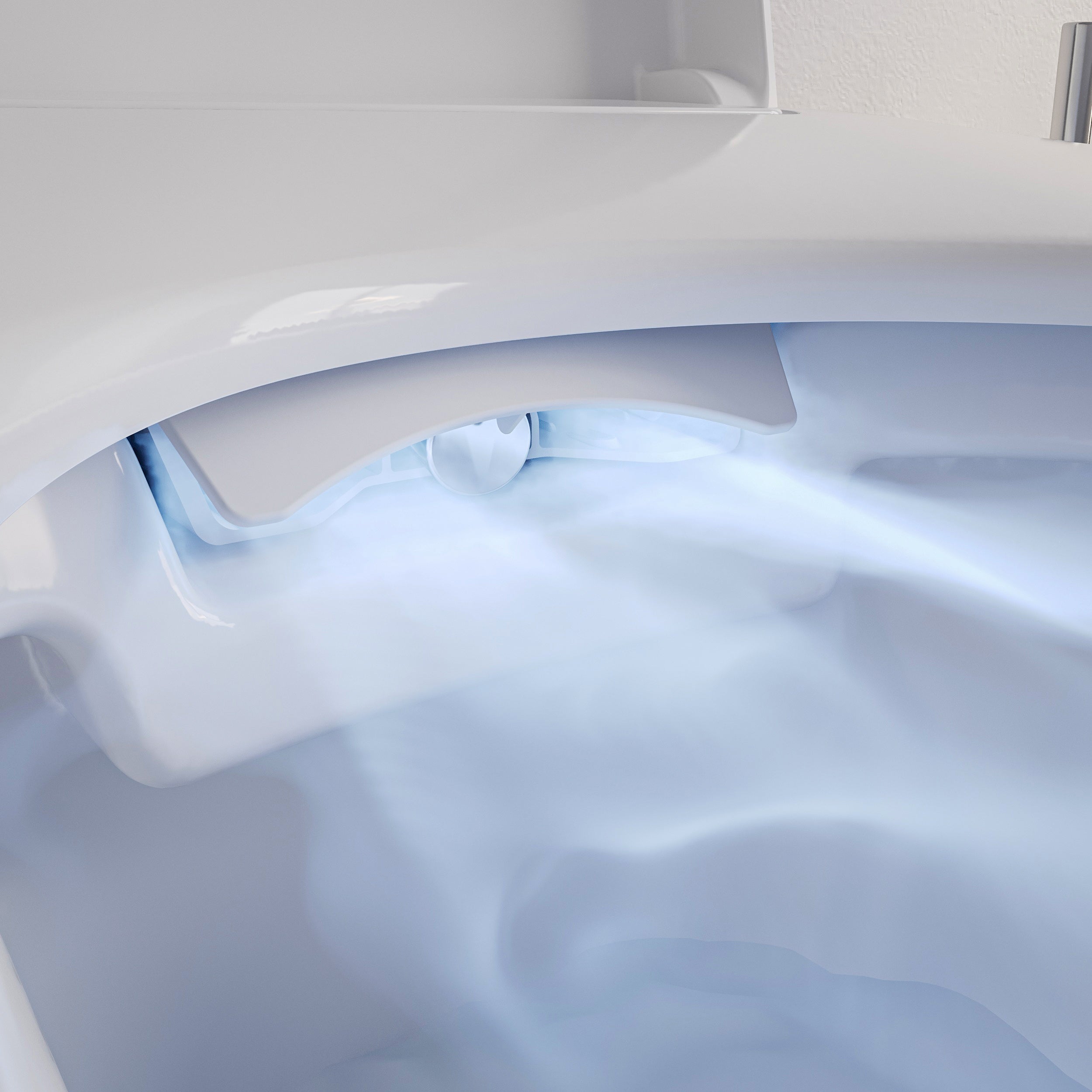

- Rimless shower toilet complete set with 180° vortex flushing technology for effective cleaning

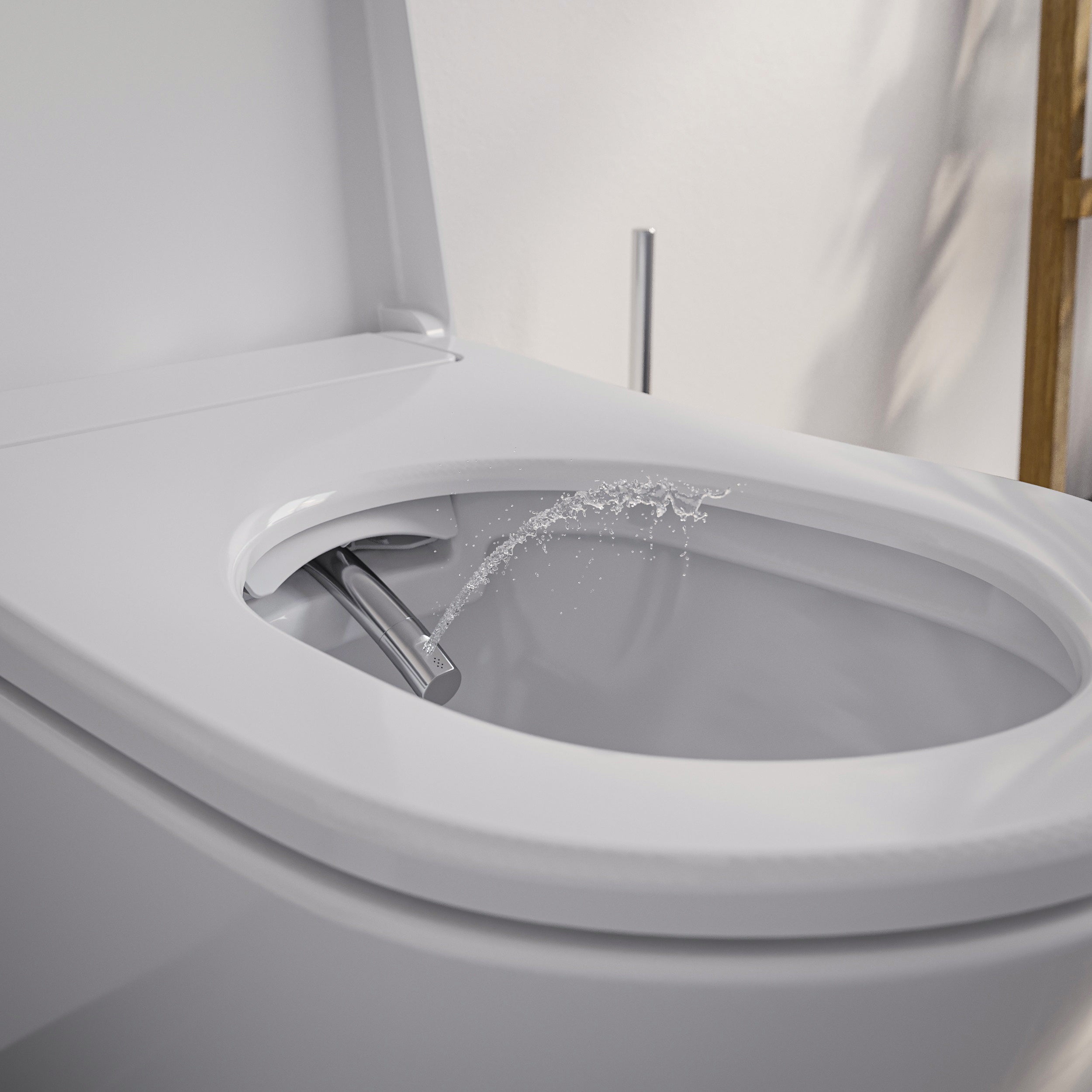

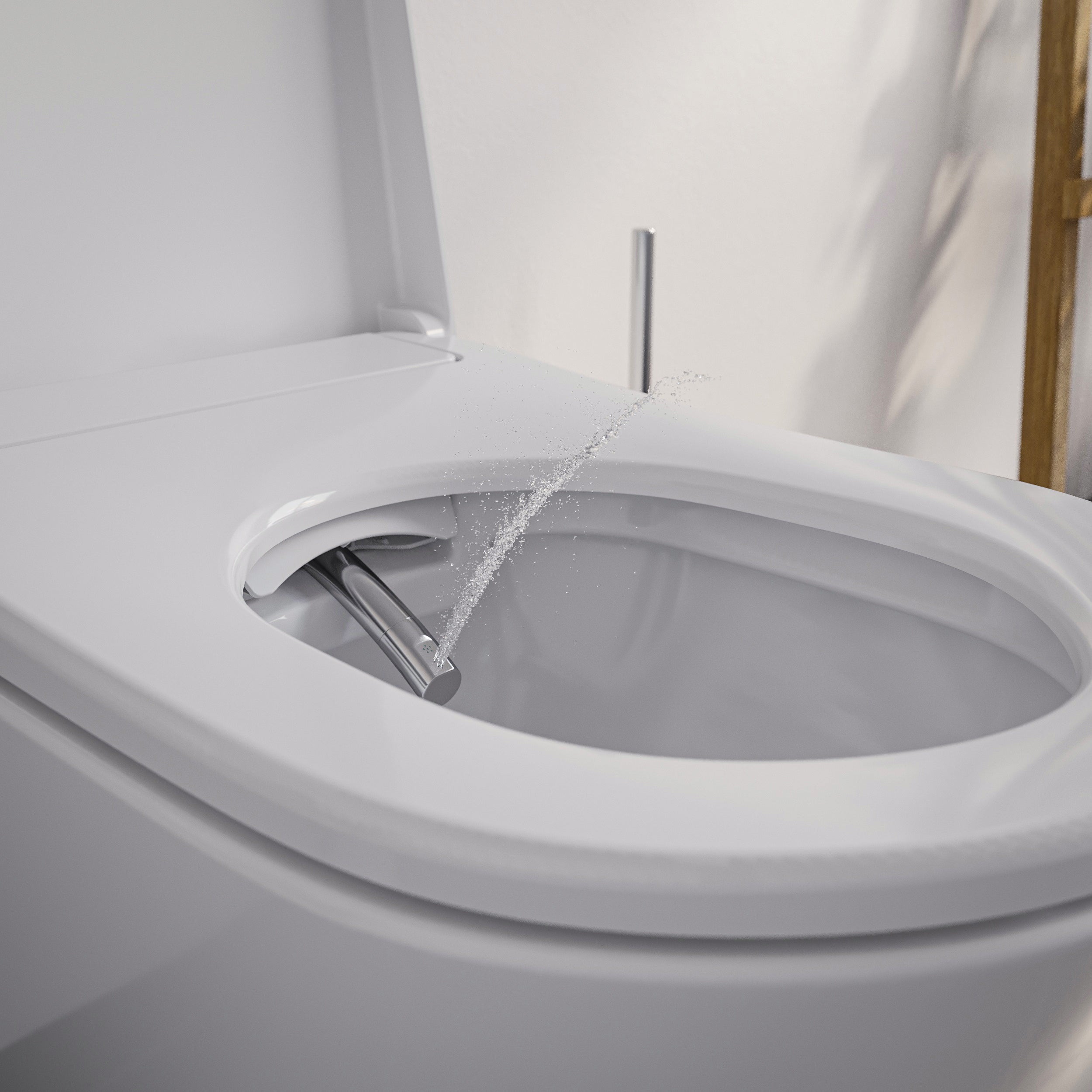

- Rear and lady shower with massage function
- 5-level adjustment of nozzle position, water volume, jet strength and temperature
- Soft-close seat with seat heating up to 37 °C and antibacterial surface

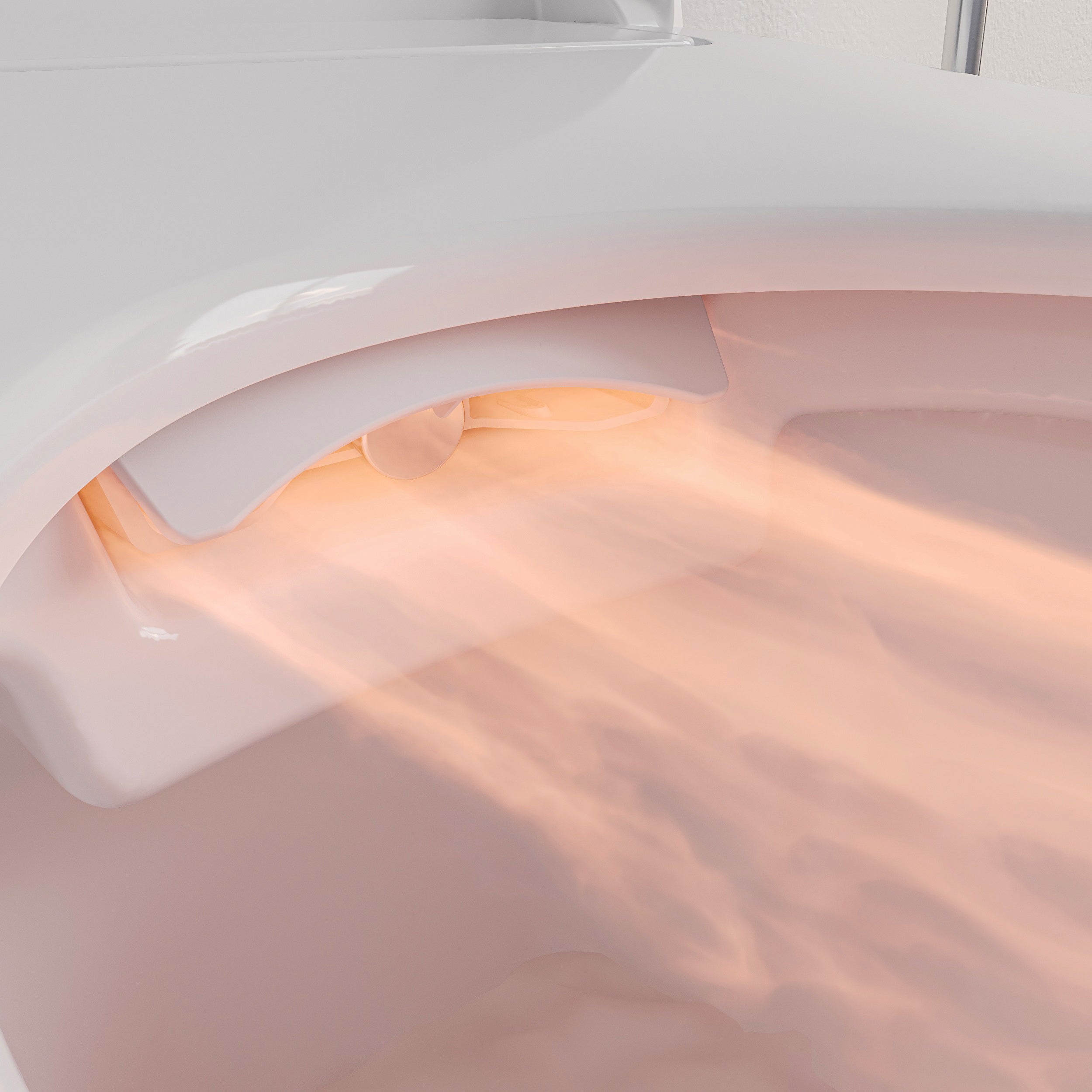

- Warm air drying with 5-level control and activated carbon filter for odor neutralization
- Removable stainless steel nozzle with automatic cleaning and integrated descaling function

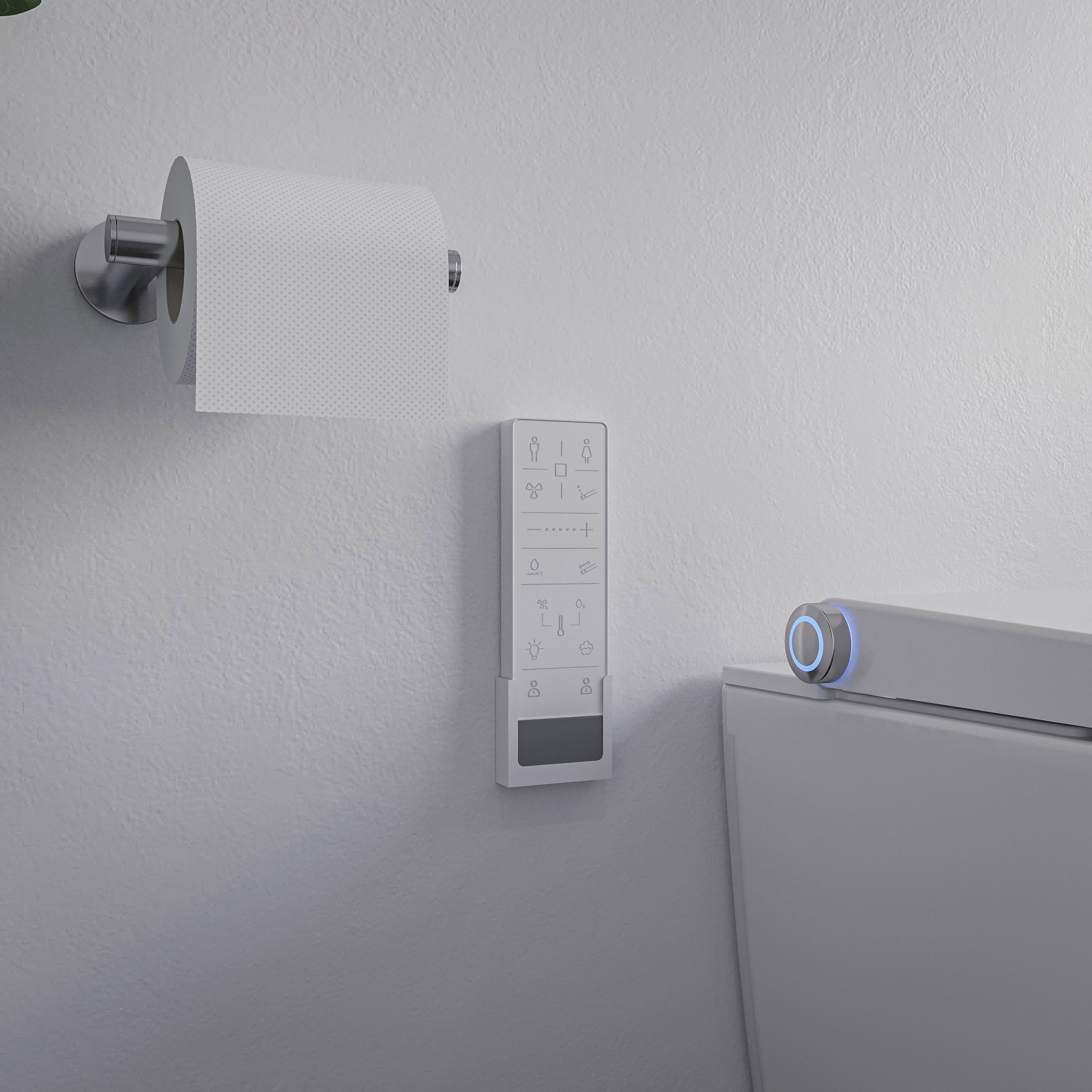

- Control via remote control or side control button, 2 user profiles can be stored

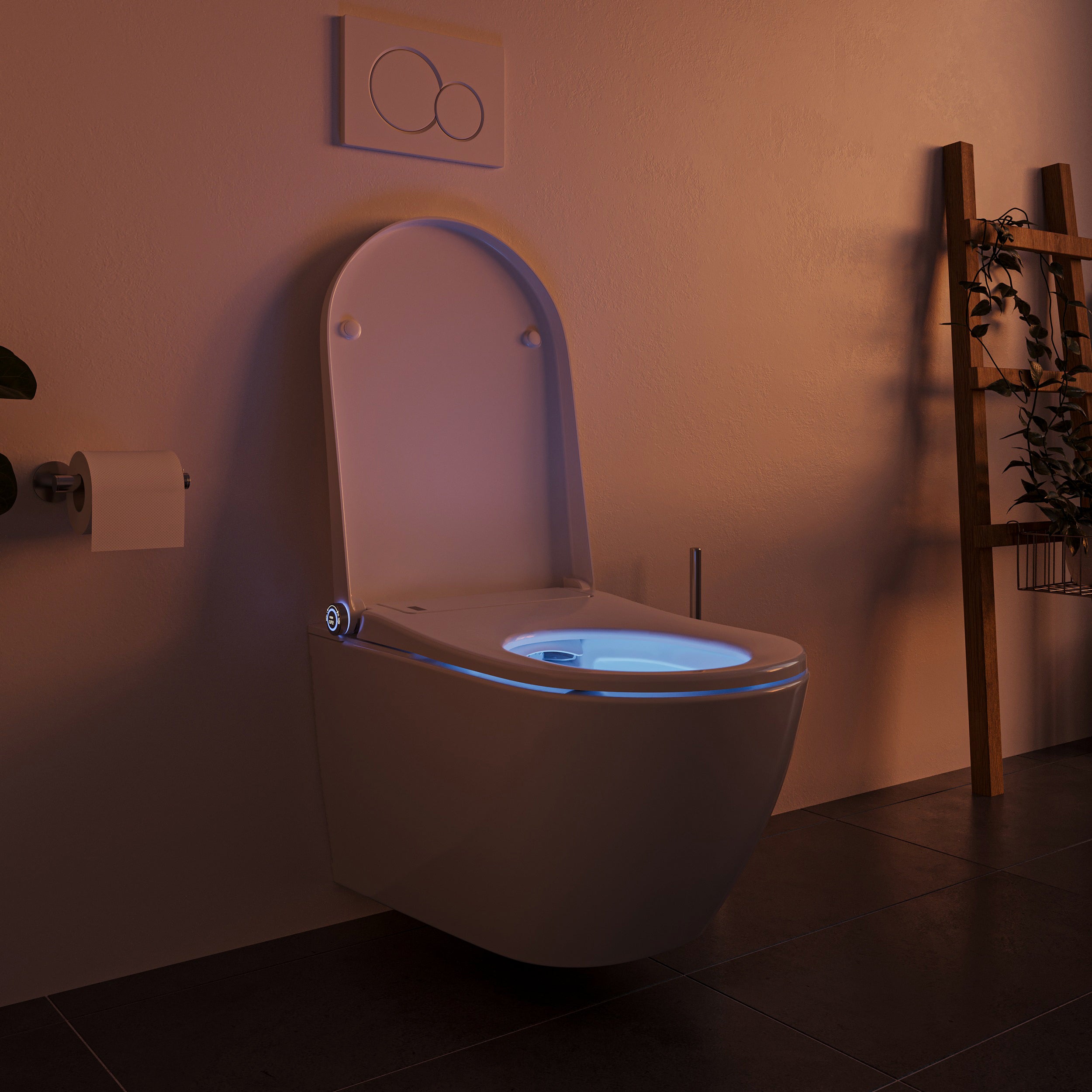

- LED night light and 10 years guaranteed spare parts availability
.jpg)

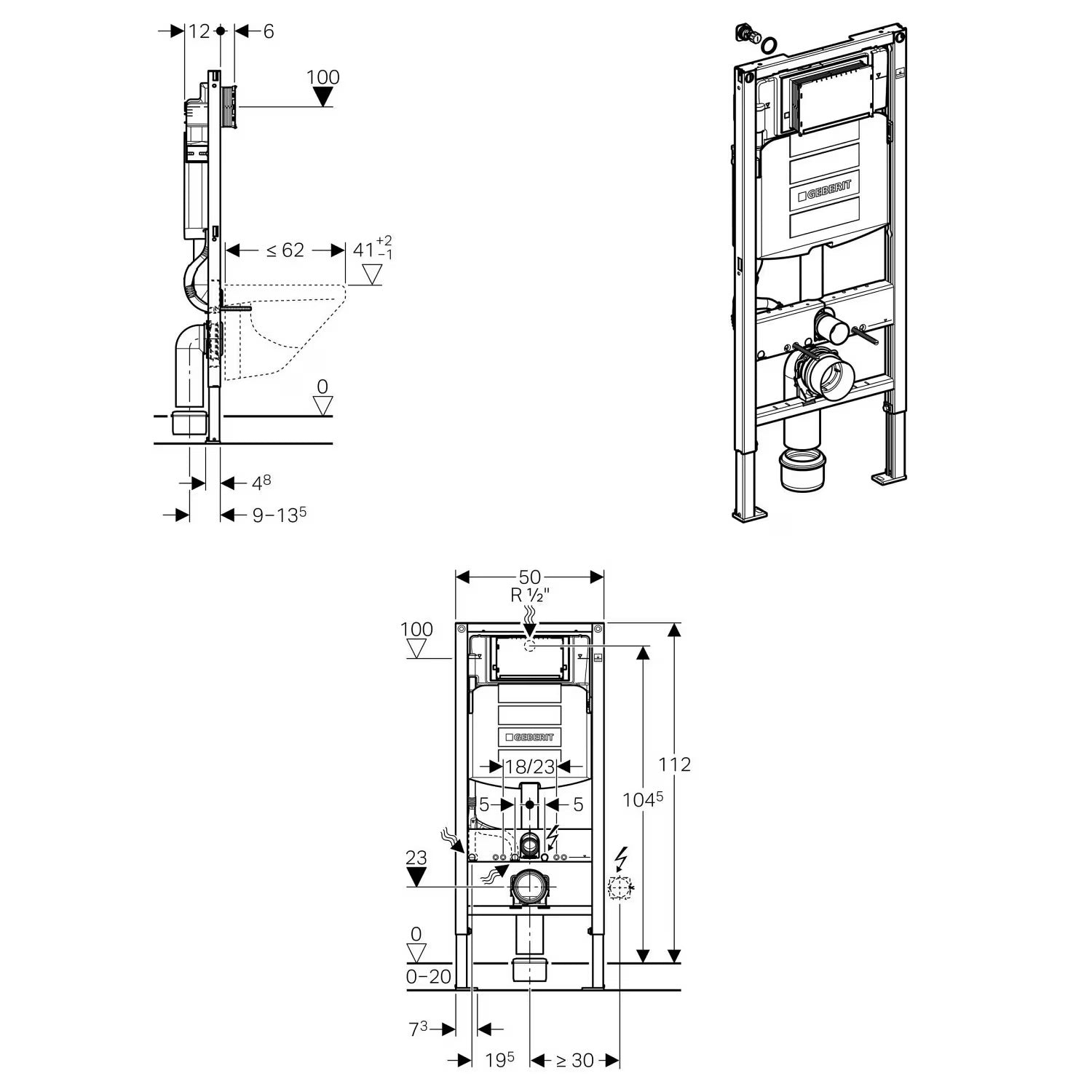

Geberit Duofix - reliable concealed technology for wall-hung WC
- Geberit Duofix pre-wall element: ideal for installing a wall-mounted shower toilet
- In this WC set already optimally matched to the BERNSTEIN shower toilet - facilitates installation and connection
- Self-supporting pre-wall element with powder-coated steel frame for high stability
- Height-adjustable, galvanized foot supports for flexible and precise installation
- Condensation-insulated concealed cistern with adjustable flush volume
- Dual-flush technology with the option of immediate re-flushing
- Tool-free maintenance and construction protection of the service opening for easy installation
