Shower toilet complete set PREMIUM 1102 with Geberit Duofix prewall element
With seat heating and descaling function - Black matt - Geberit actuator plate freely selectable
Product number: 173832
Product number: 173833
Product information

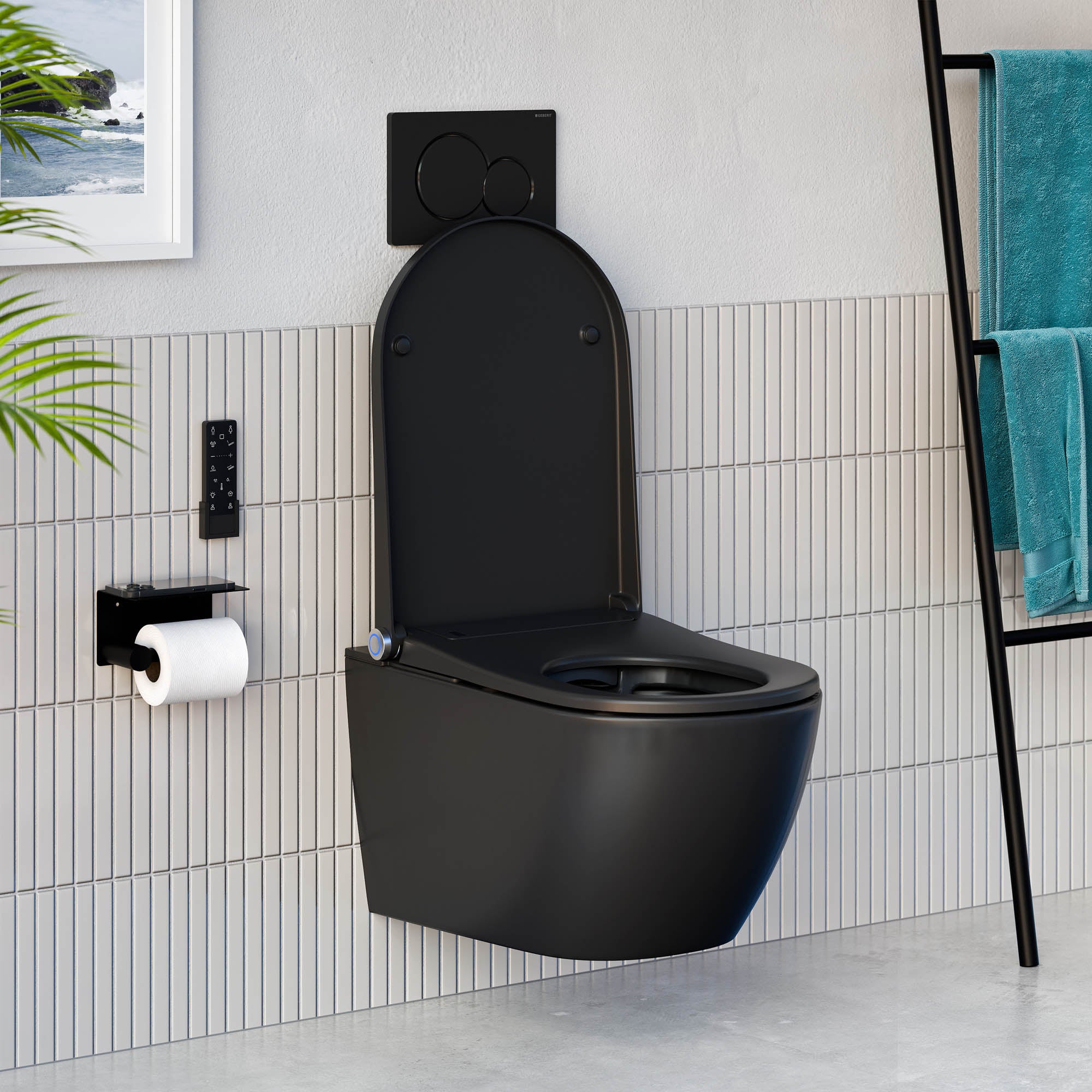

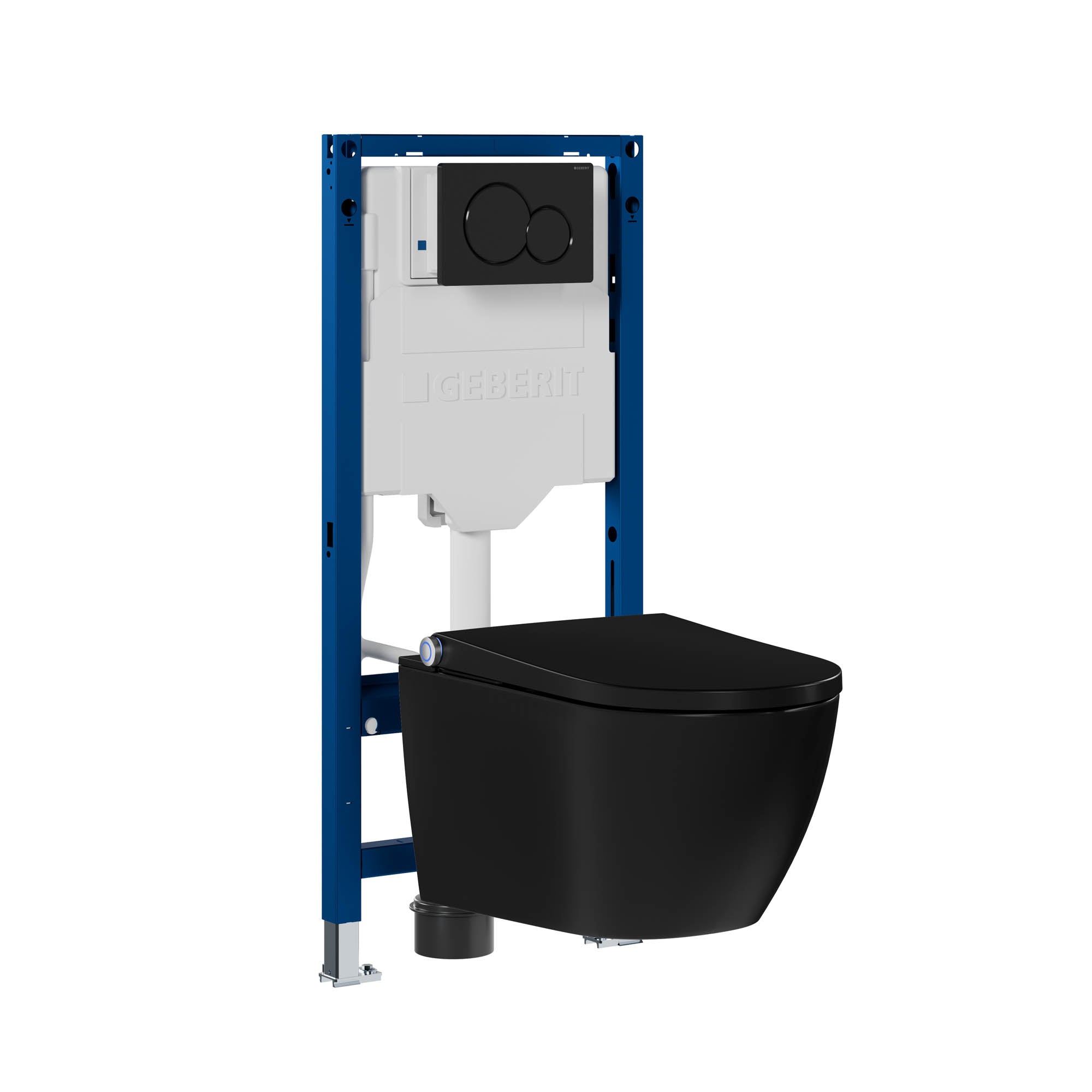

Black shower toilet complete set PREMIUM 1102 with Geberit Duofix & Sigma01 actuator plate

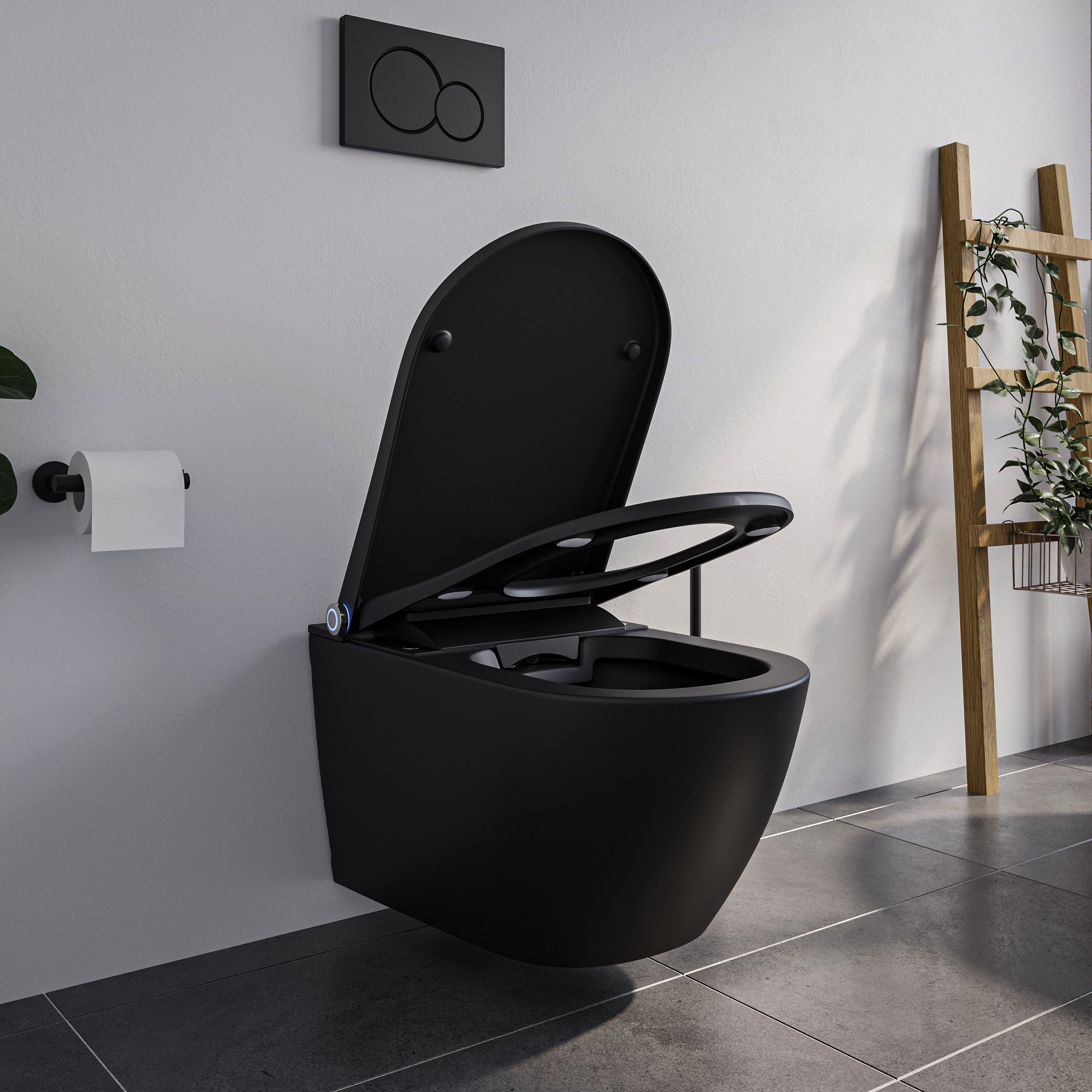

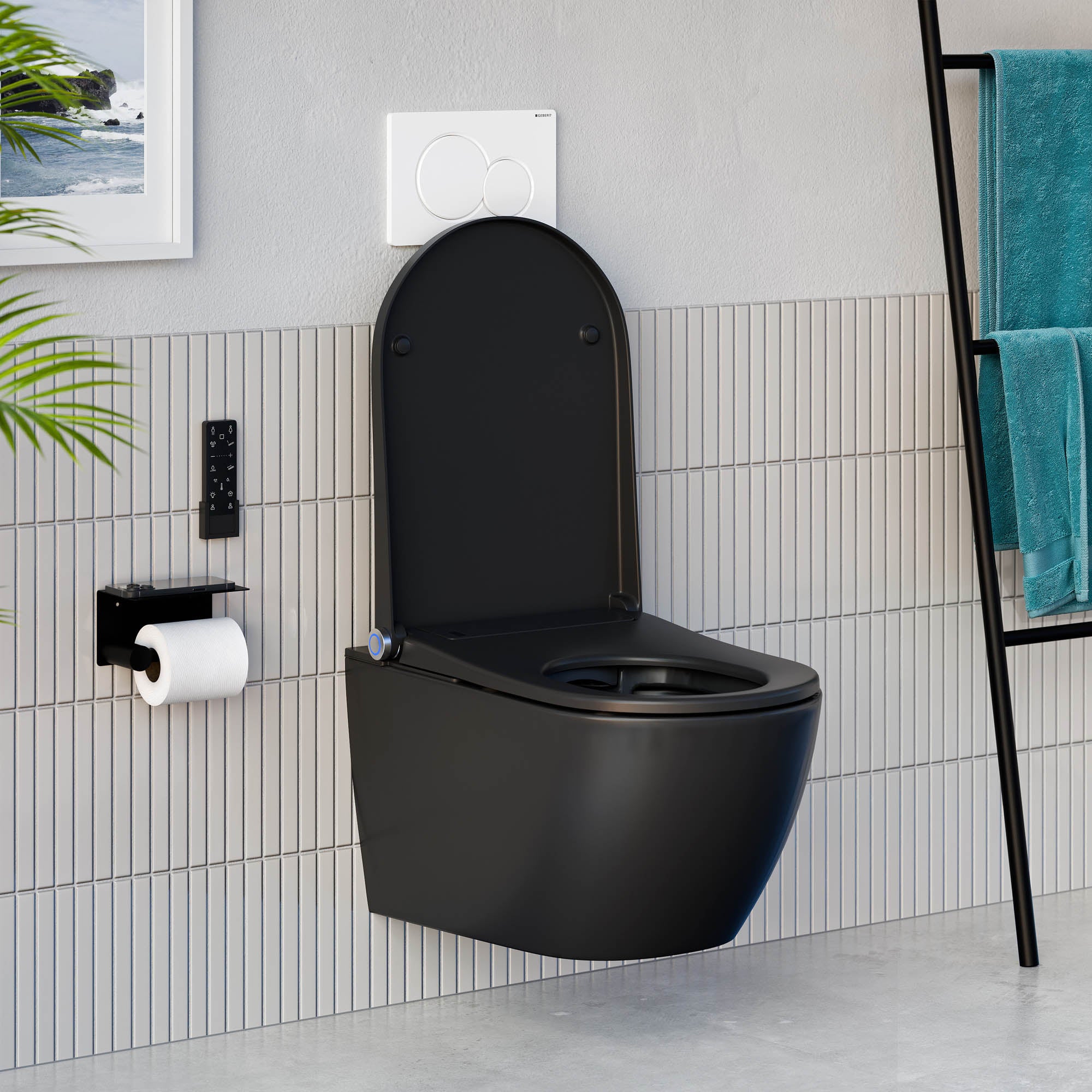

The Bernstein shower toilet PREMIUM 1102 in black combines modern hygiene technology with a clear, elegant bathroom design. The dark ceramic looks particularly high-quality and is an ideal match for modern bathroom concepts with black fittings or minimalist surfaces. In addition to the shower toilet, the WC complete set includes the Geberit Duofix prewall element, a Geberit Sigma actuator plate and a matching water connection set. All components of the WC complete set are coordinated with each other and enable safe installation of a wall-mounted shower toilet in new buildings or during bathroom renovation.
Shower toilet with heated seat and warm air dryer - the perfect toilet set as a complete package

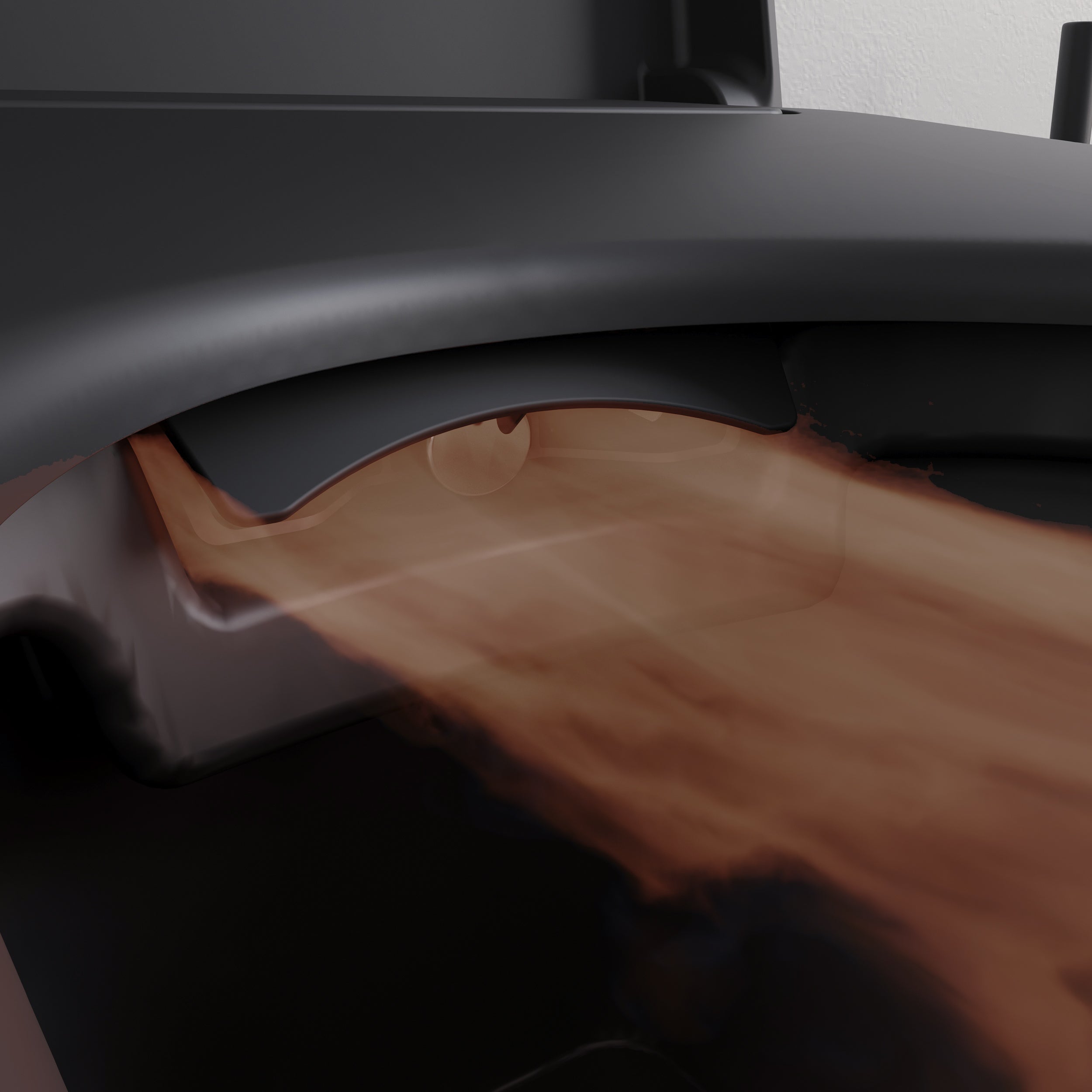

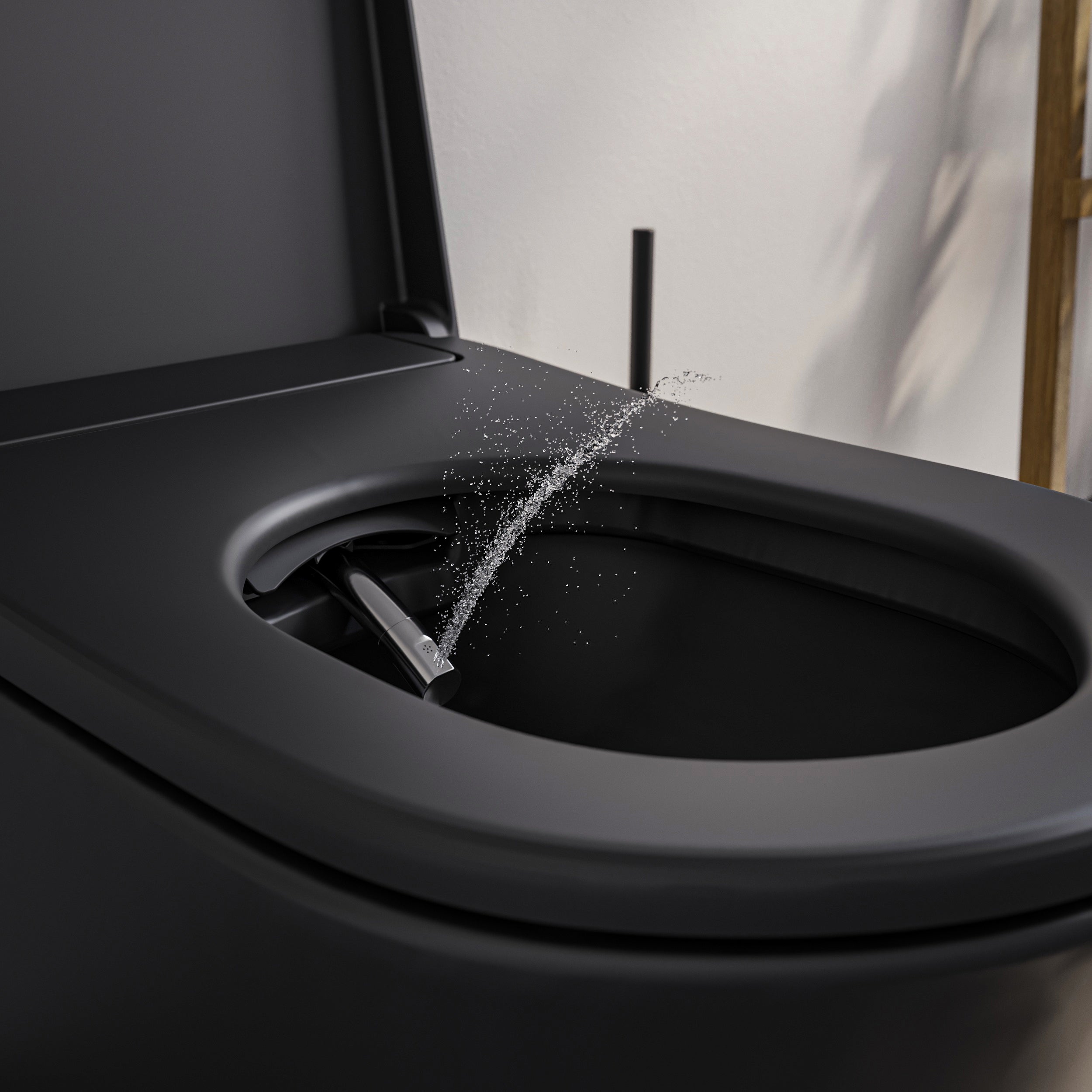

The rimless ceramic of the wall-hung WC set makes cleaning easier and reduces deposits. The integrated rear and lady shower cleans with a gentle water jet and massage function. Nozzle position, water temperature, water quantity and jet intensity can each be adjusted in five levels. Two user profiles store personal settings. The soft-close seat with seat heating up to 37 °C provides additional comfort. After cleaning, the warm air dryer takes over gentle drying. An activated carbon filter reduces odours, while the stainless steel nozzle cleans itself automatically before and after each use. The integrated descaling function supports permanently reliable use. This keeps your WC set clean and hygienic in the long term. The 180° vortex flushing technology cleans the WC ceramic particularly powerfully. Antimicrobial materials in the seat area further increase hygiene. Control is via remote control or the side rotary knob. Guaranteed availability of spare parts for ten years ensures long-term reliability.

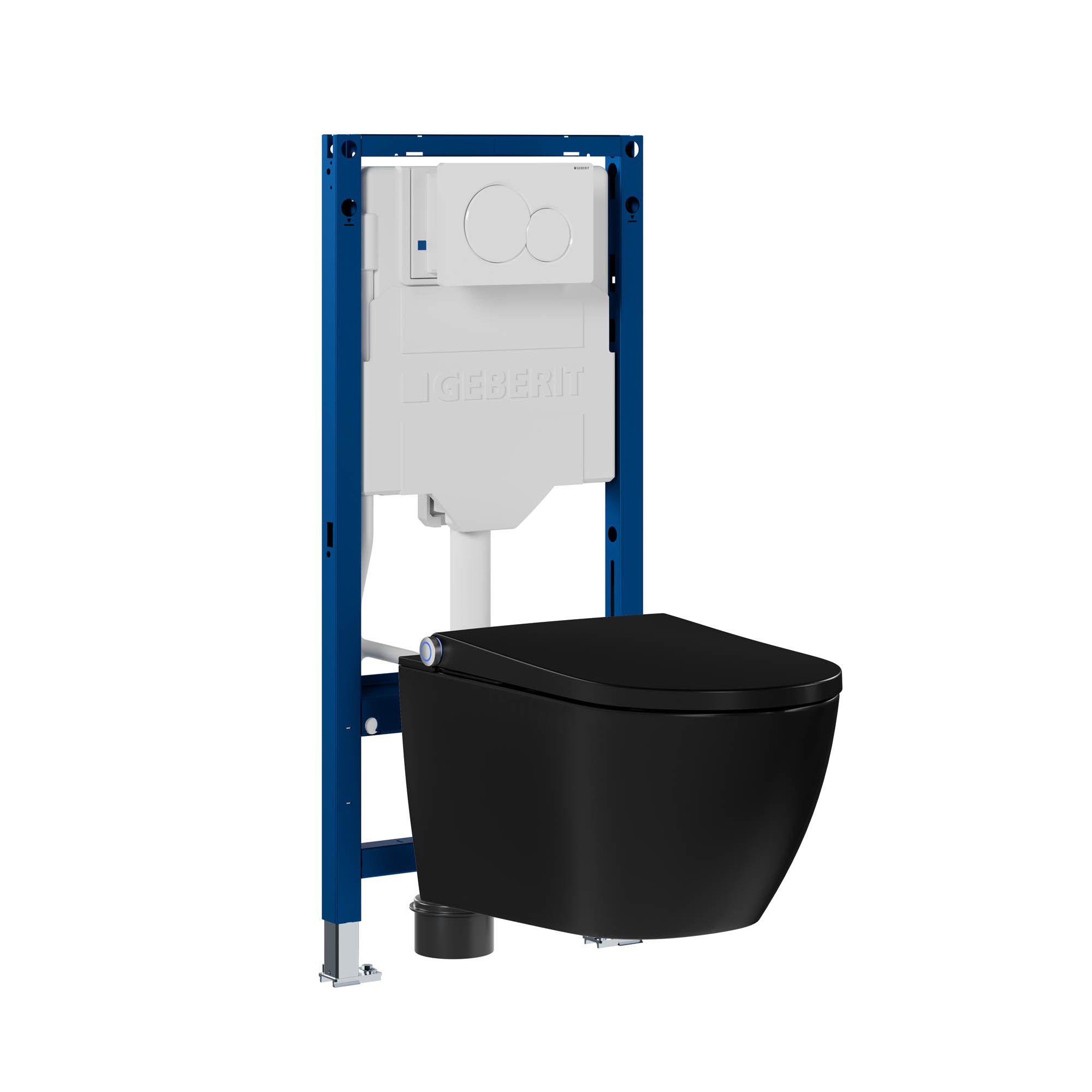

Geberit Duofix prewall element for stable installation of the toilet in the complete set
The Geberit Duofix prewall element offers a reliable concealed solution for wall-hung WCs. The self-supporting, powder-coated steel frame ensures stability. Height-adjustable, galvanized support feet make precise installation easier. The condensation-insulated concealed cistern allows an adjustable flush volume and supports economical water consumption. Maintenance work can be carried out without tools, while the construction protection safeguards the technology during installation.

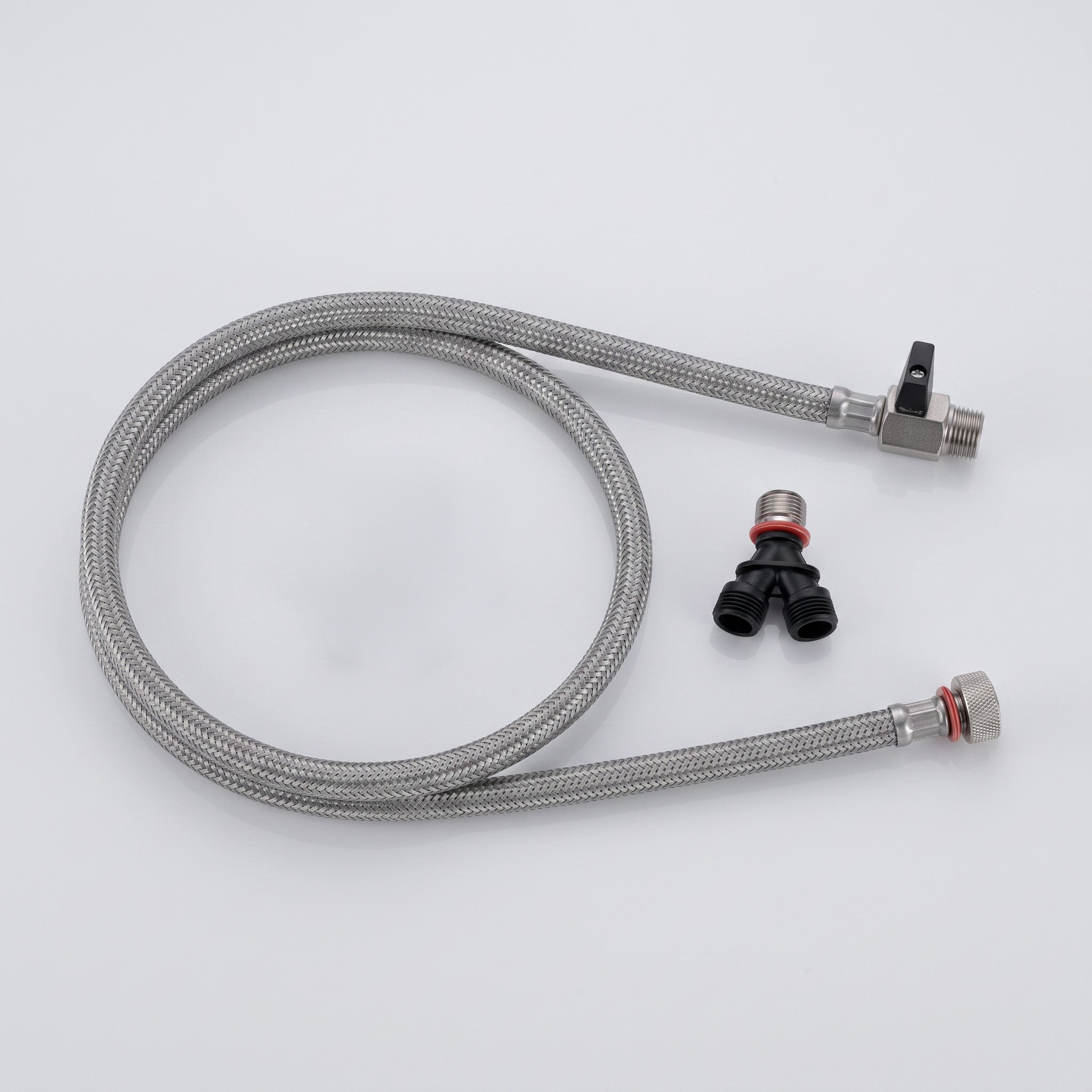

Actuator plate and water connection included in the set
The Geberit Sigma actuator plate with dual-flush technology complements the system or the WC complete set both functionally and visually. The colour can be chosen to match the bathroom design. The included connection set enables professional connection of the shower toilet to the water installation.
Dimensions and specifications
| SHOWER TOILET | |
| Model | PREMIUM 1102 |
|---|---|
| Material | Sanitary ceramic |
| Color | Matte black |

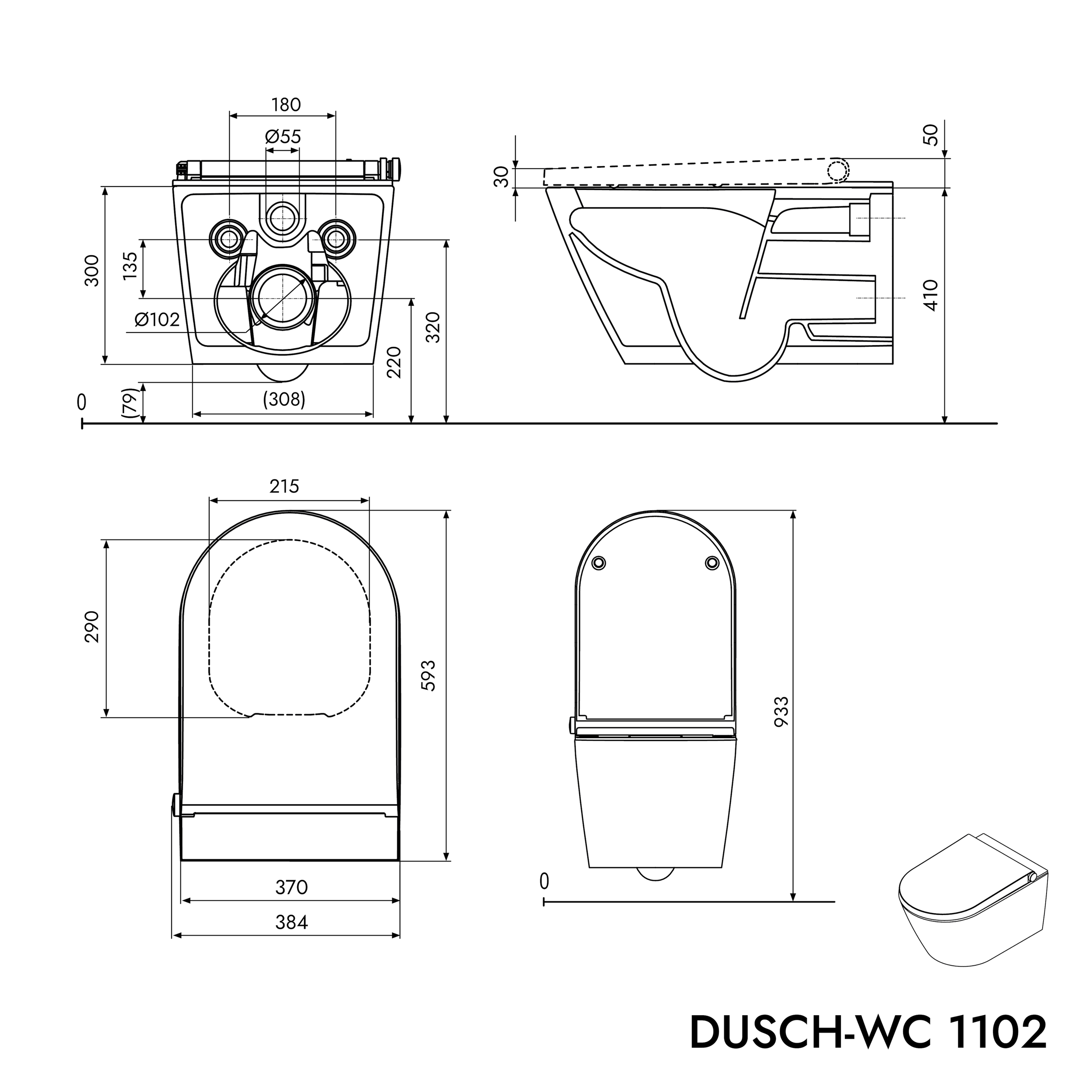

| Dimensions (D x W x H) | 59.3 x 38.4 x 30 cm |
| Weight | 33 kg (net) / 38 kg (gross) |
| Package dimensions | 65.5 x 44.5 x 46.5 cm |
| Connection | Power connection required |
| Mains voltage | 220–240 V, 50–60 Hz |
| Power | 950 W |
| Protection class | IPX4 |
| Closing function | Soft-close function |
| Cable length | 1.8 m |
| Certifications | EN 1717 |
| Toilet seat | UF plastic with antimicrobial coating Seat heating up to 37 °C LED night light |
| Scope of delivery | Shower toilet PREMIUM 1102 Remote control incl. holder (without batteries) Activated carbon filter Sound insulation mat Mounting material Installation instructions Operating instructions |

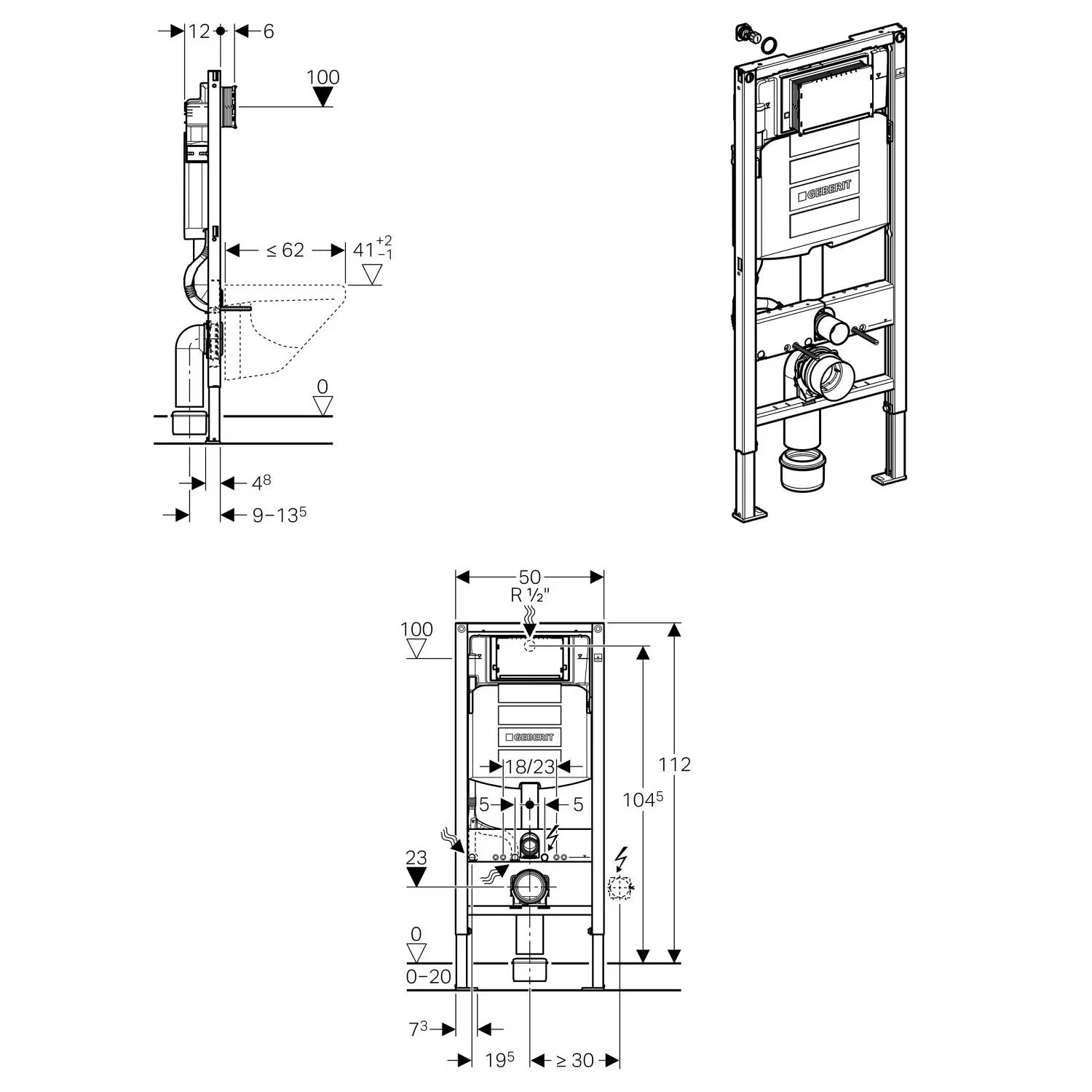

| CONCEALED CISTERN FRAME | |
| Model | Geberit Duofix |
|---|---|
| Cistern | Sigma UP |
| Material | Steel (frame) Plastic (cistern) |
| Color | Blue, powder-coated |
| Width | 50 cm |
| Height | 112–132 cm (adjustable) |
| Depth | 12 cm |
| Self-supporting construction | Yes |
| Foot supports | With anti-slip protection, galvanized, height-adjustable |
| Flush volume factory setting | 6 and 3 l |
| Large flush volume adjustment range | 4.5 / 6 / 7.5 l |
| Small flush volume adjustment range | 3–4 l |
| Flushing technology | Single-flush, dual-flush or flush/stop flush |
| Actuation | Front |
| Condensation-insulated concealed cistern | Yes |
| Position of the water connection | Rear top center |
| Maximum water temperature | 25 °C |
| Flush plate | Without |
| Shipping weight | approx. 18 kg |
| Scope of delivery | Water connection with integrated angle valve and handwheel Construction protection for service opening 2 protective plugs Connection set for toilet 90° connection bend made of PE-HD Transition sleeve made of PE-HD 2 threaded rods M12 Fastening material |
| WATER CONNECTION SET | |
| Material | Stainless steel, plastic, brass |
|---|---|
| Connection size water connection shower toilet | 1/2" |
| Inner diameter water connection shower toilet | DN8 |

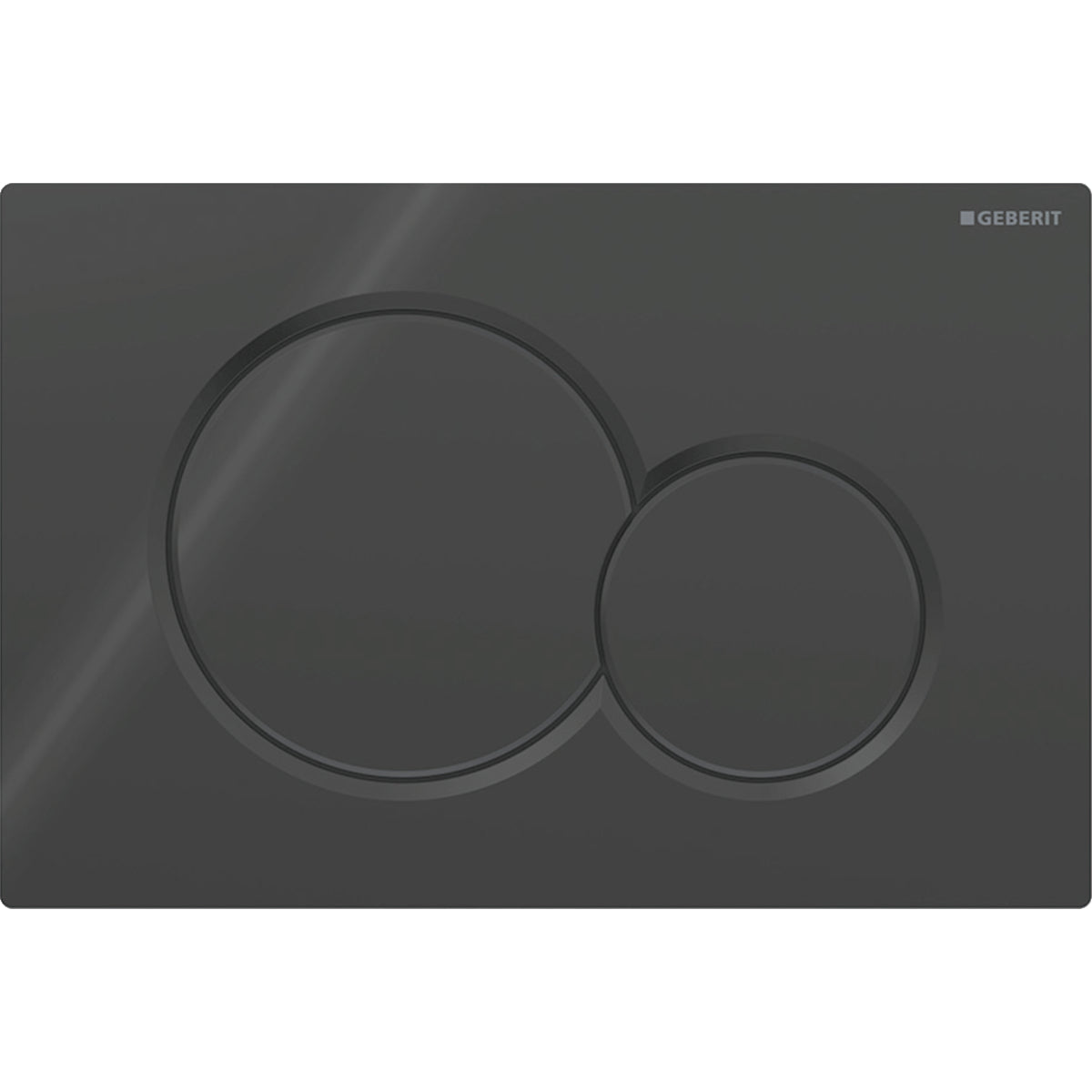

| FLUSH PLATE | |
| Model | Geberit Sigma01 |
|---|---|
| Dimensions | 24.6 x 16 x 1.3 cm (W x H x D) |
| Material | Plastic |
| Color selectable | White | Black |
| Finish | Glossy |
| Number of flush buttons | 2 |
| Flush operation | Mechanical |
| Type of installation | Surface-mounted |
Scope of delivery
- BERNSTEIN shower toilet PREMIUM 1102
- Geberit Duofix pre-wall element with Sigma concealed cistern
- Water connection set
- Geberit actuator plate Sigma01 in selected color
- Mounting materials
Downloads
Assembly instructions
Montageanleitung_1102_PREMIUM_030925.pdfElectrical note
Batteriegesetz-Elektro-Elektronikgeraete.pdfOperating instructions
Dusch_WC_Premium_1102_Anleitung_DE_I_2023.pdfCare instructions
Cleaning_and_care_instructions.pdf
Shipping costs
Product safety
Comfort and hygiene with the Bernstein shower toilet PREMIUM 1102
- Rimless ceramic in the WC set for particularly easy and hygienic cleaning

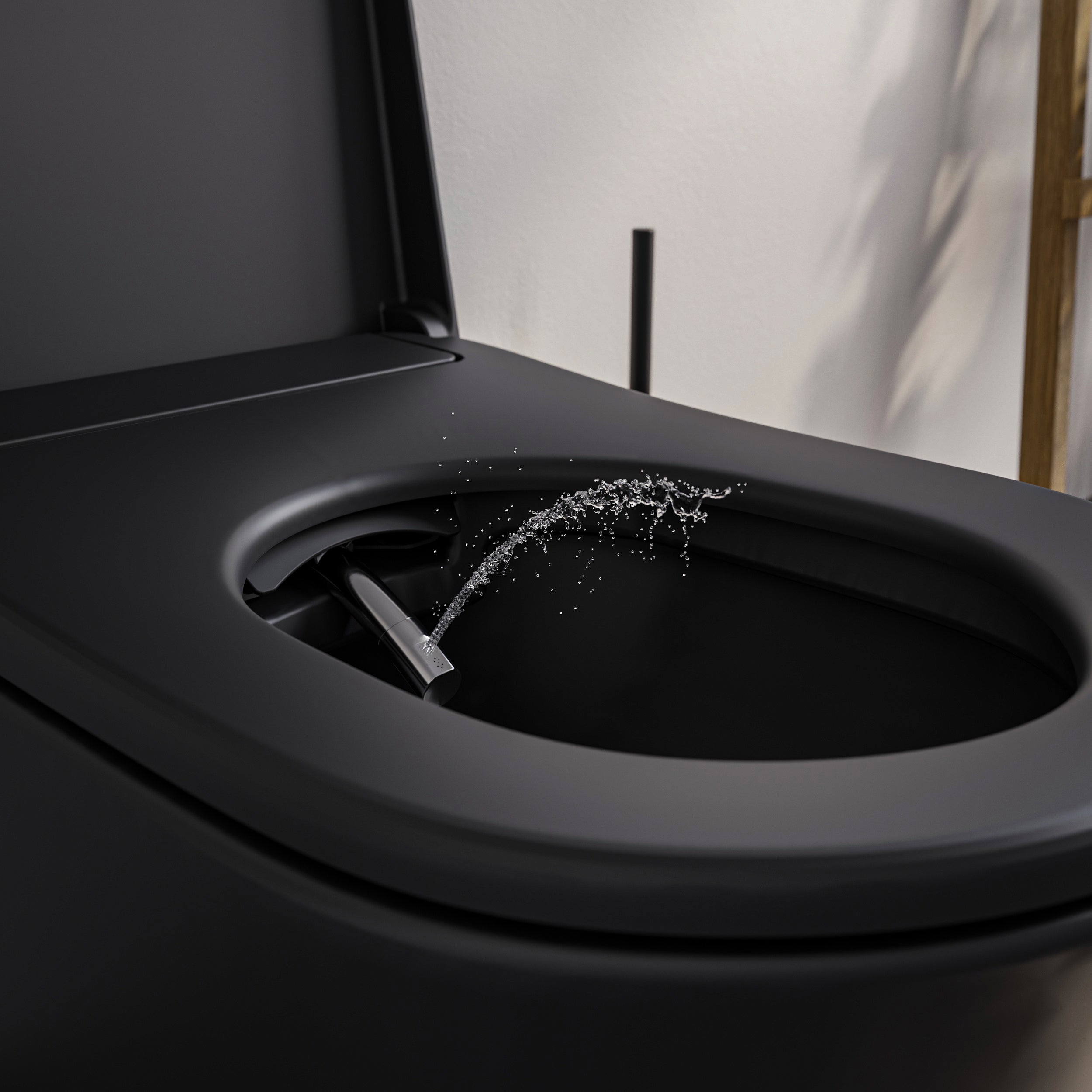

- Rear and lady shower with massage function for thorough cleaning
- Shower spray position, water volume, spray intensity and water temperature each adjustable in 5 levels
- Two user profiles for saving individual settings
- Soft-close seat with seat heating up to 37 °C
- Warm air drying for additional comfort after cleaning
- Activated carbon filter to reduce odors
- Self-cleaning stainless steel nozzle with automatic cleaning before and after each use
- Integrated descaling function for long-term functional reliability

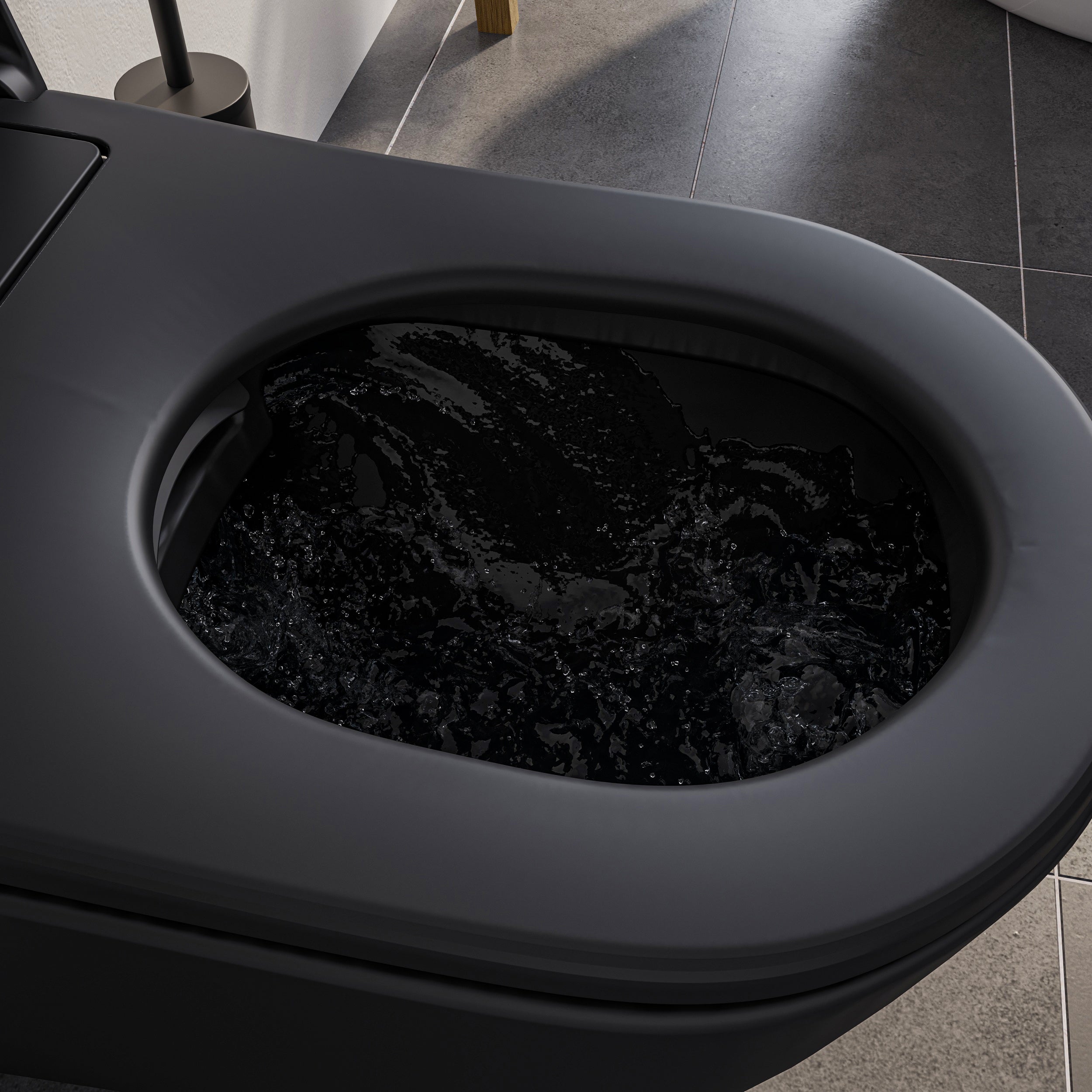

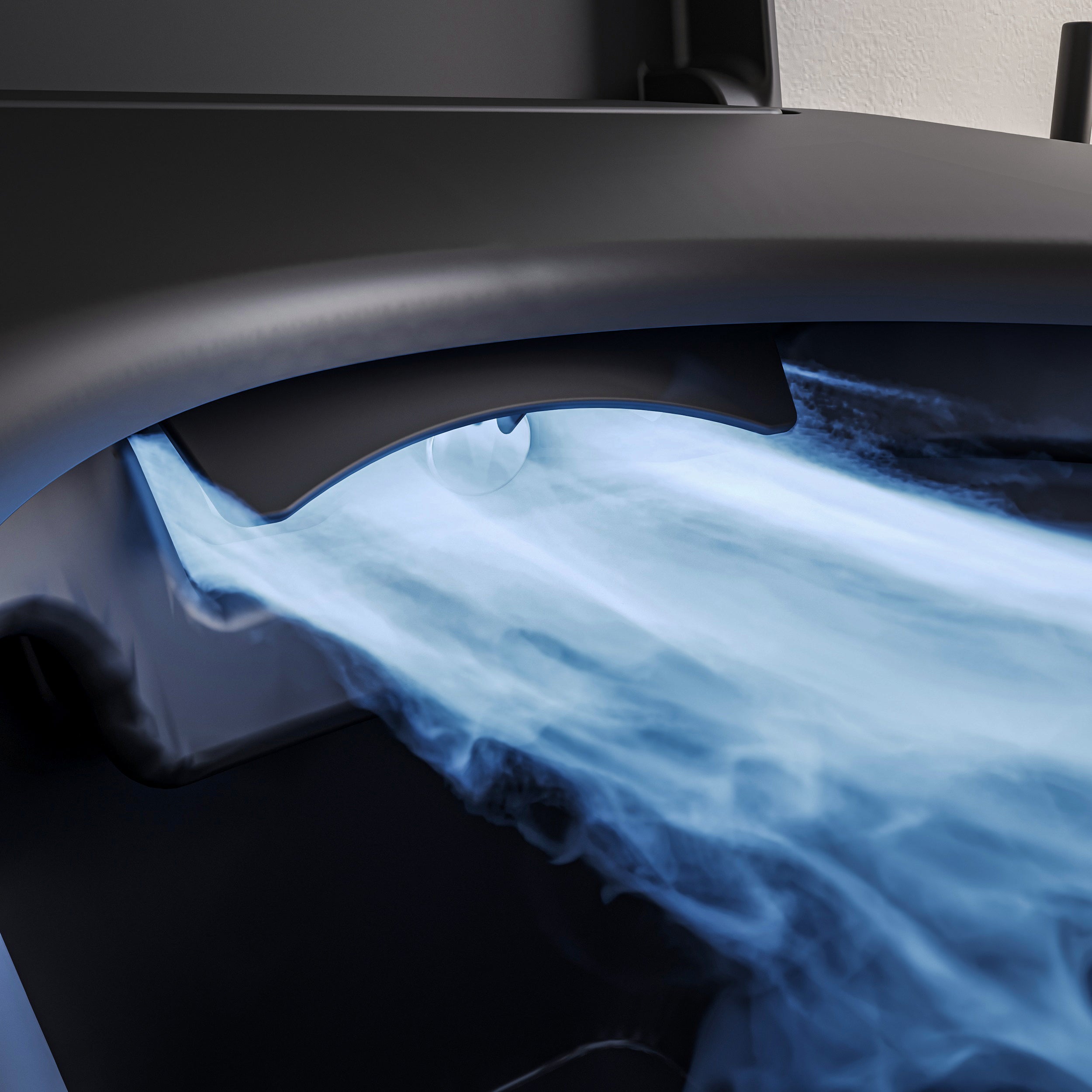

- Powerful 180° vortex flush technology in the rimless WC complete set
- Antimicrobial materials in the WC seat

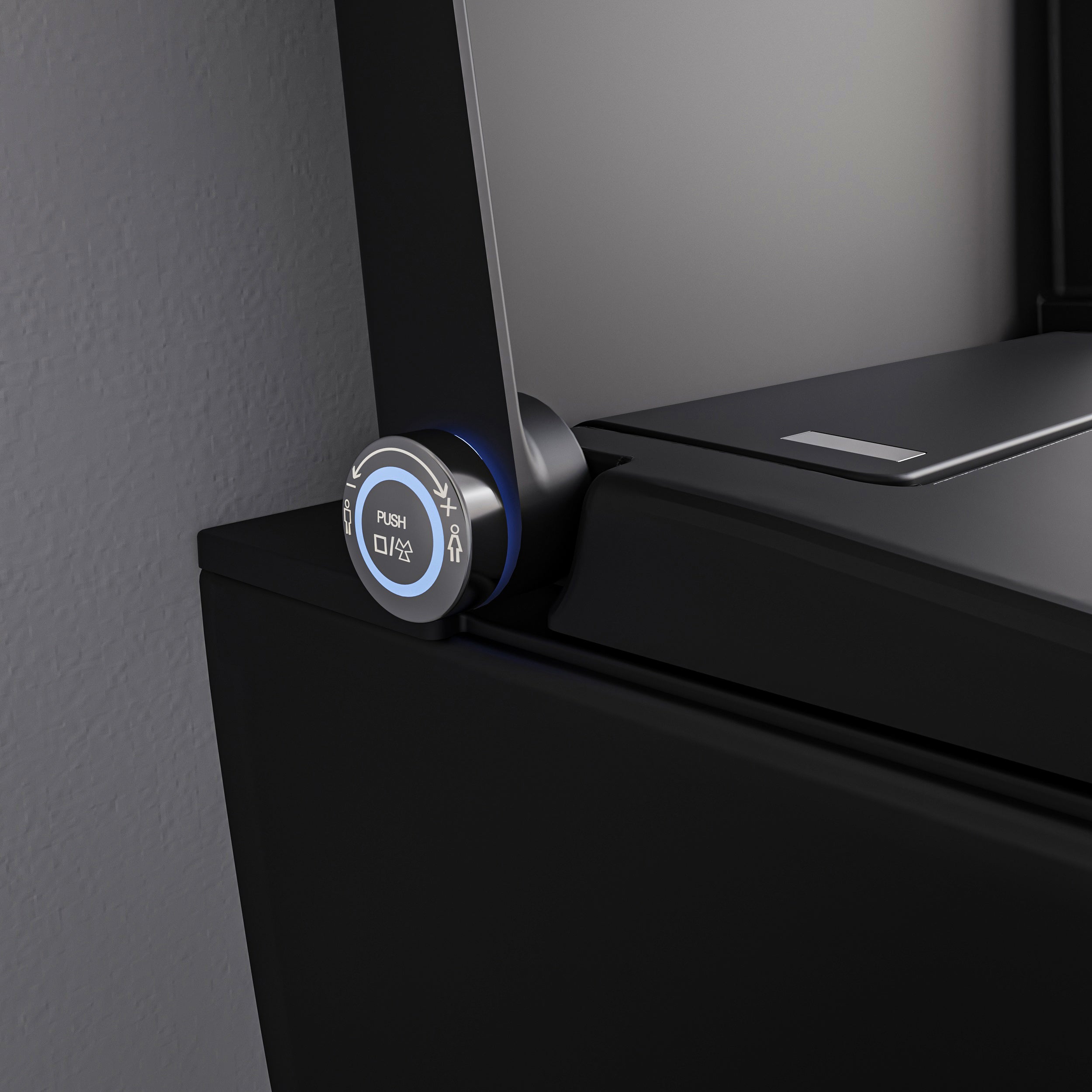

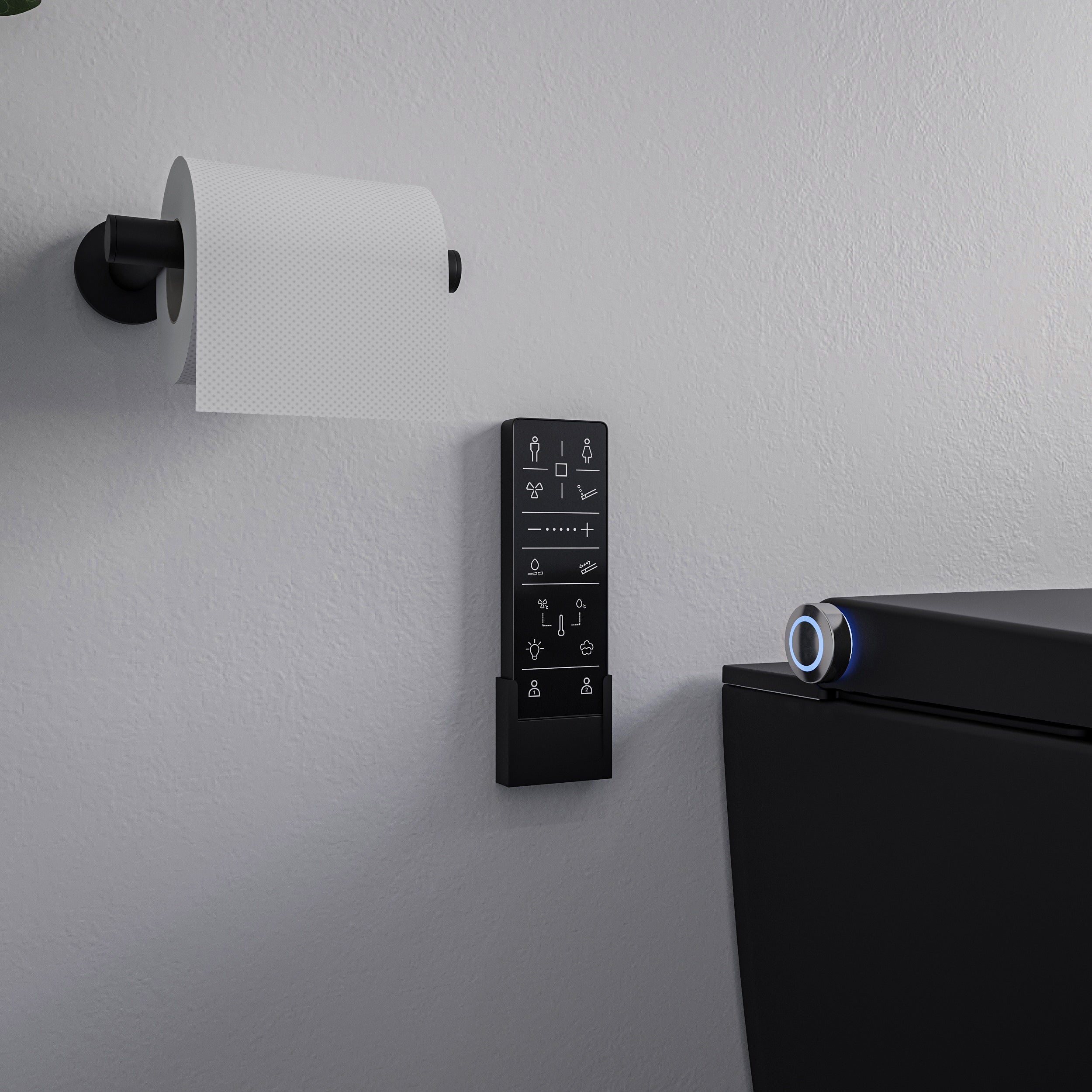

- Control via remote control or side rotary knob
- 10 years guaranteed spare parts availability
Geberit Duofix as a supporting element in the WC set
- Geberit Duofix pre-wall element for the installation of a wall-mounted shower toilet
- Already matched in the set to the BERNSTEIN shower toilet
- Self-supporting, powder-coated steel frame for high stability
- Height-adjustable, galvanized foot supports for precise installation of the WC set
- Condensation-insulated concealed cistern
- Adjustable flush volume for economical water consumption
- Dual-flush technology with the option of immediate re-flushing
- Tool-free maintenance for easy servicing
- Construction protection of the service opening protects the technology during installation
- Geberit Sigma actuator plate included in the WC set, color selectable
- Water connection set for professional connection of the shower toilet
