Stainless steel shower channel FlexM03
Floor drain for shower cabin - length selectable
Product number: 157421
Product number: 157418
Product number: 157423
Product number: 157419
Product number: 157420
Product information

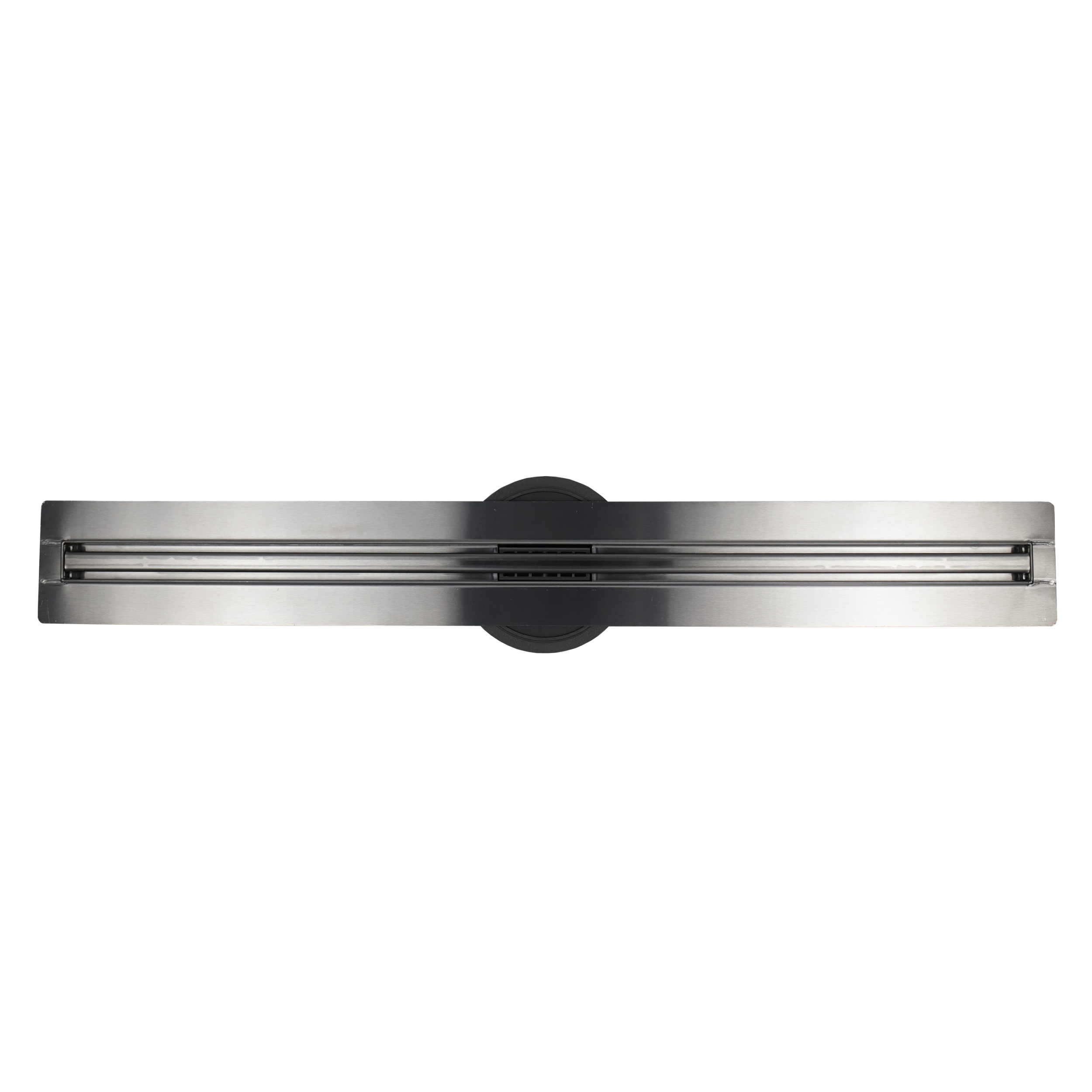

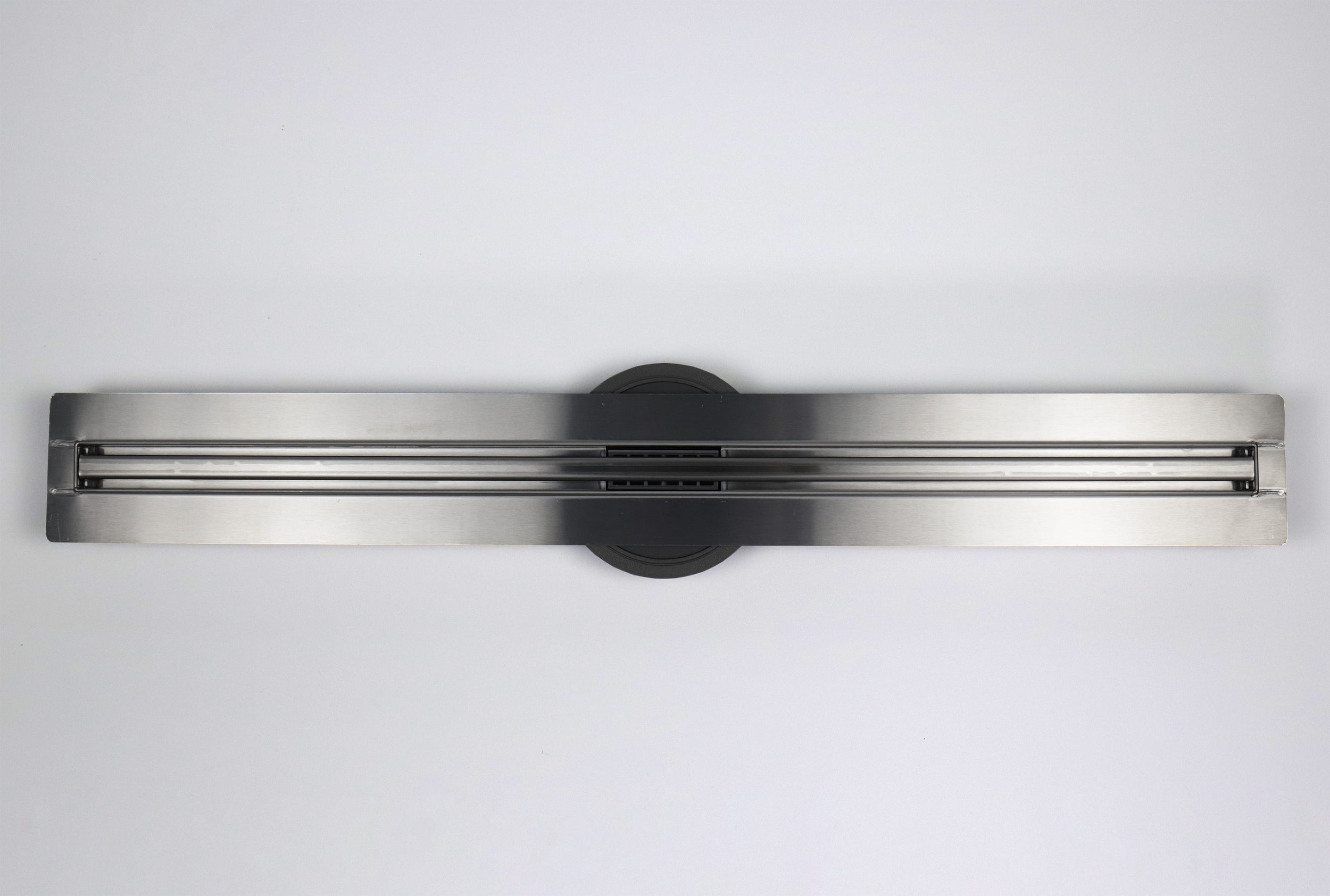

Stainless steel shower channel FlexM03 for shower cabins

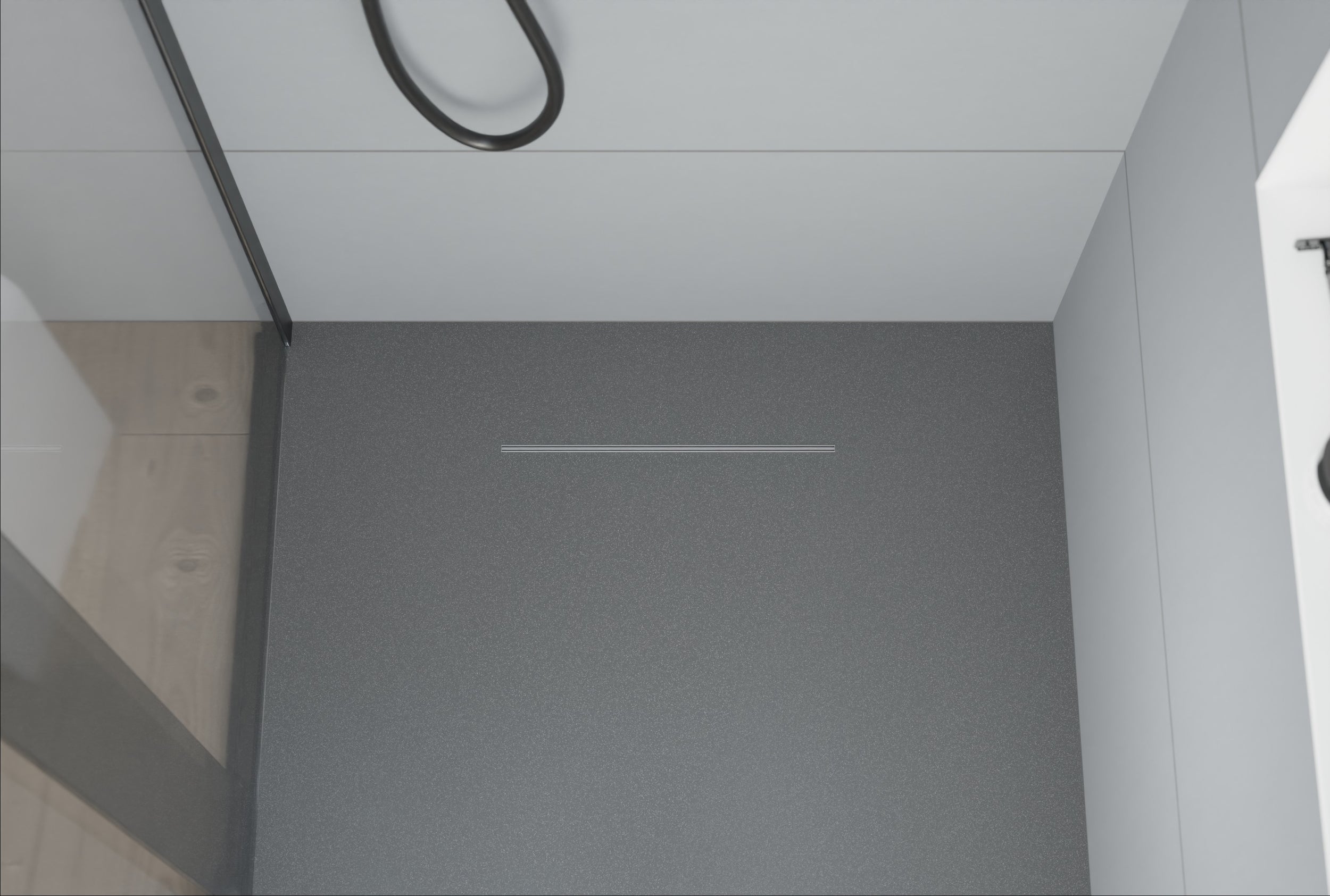

The BERNSTEIN shower channel is made of high-quality stainless steel and creates a barrier-free bathroom area for you. The shower is not only more comfortable to enter, but also makes the bathroom appear more elegant.

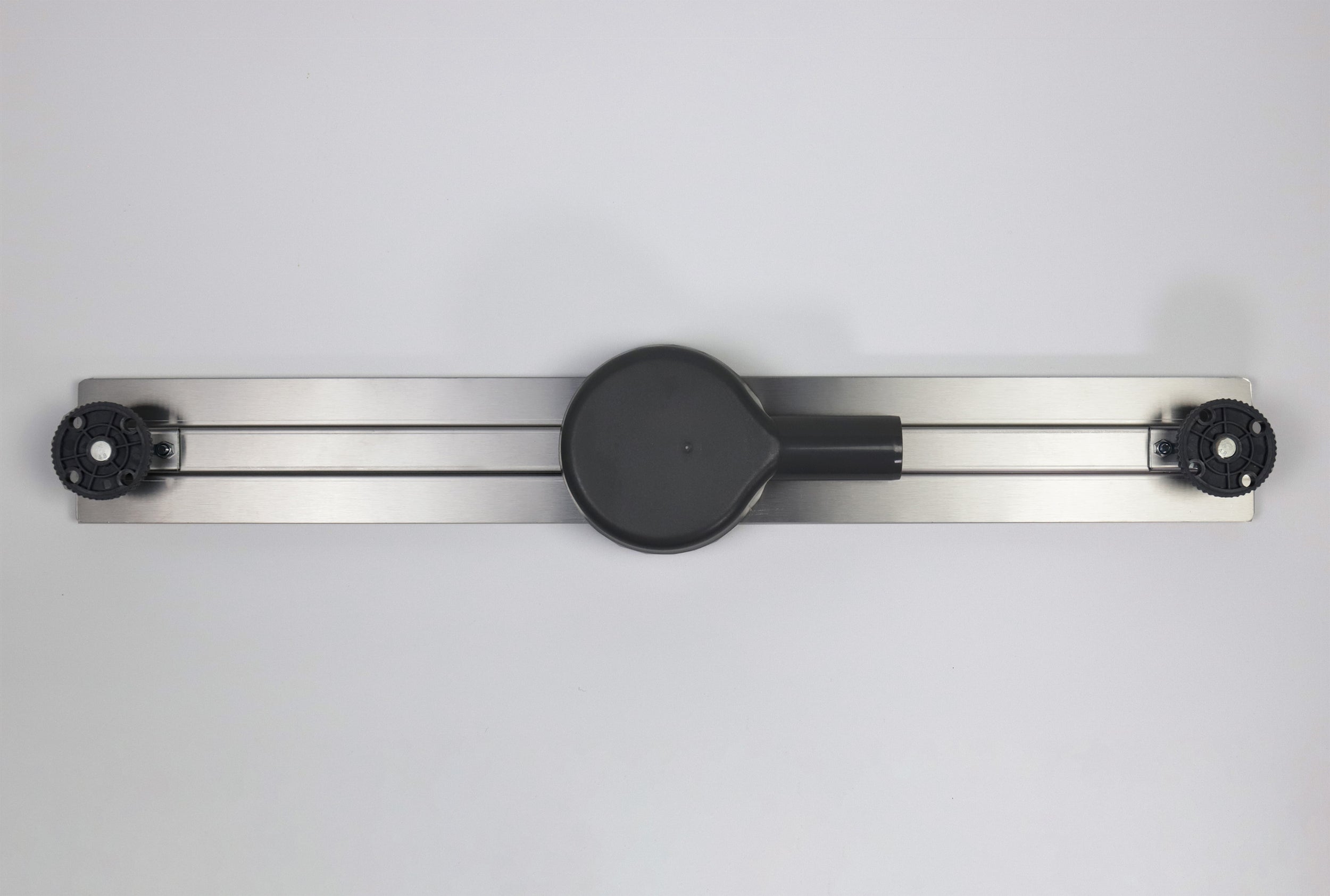

Thanks to the supplied anchor feet, easy installation is provided - here you can adjust the installation height according to your conditions. In addition, you can rotate the integrated siphon by 360° during installation - this gives you more flexibility.
Through the powerful drain, a water volume of 30 l/min with the hair strainer inserted and 40 l/min without hair strainer is quickly and easily drained away. Thanks to the removable cover, convenient access to the removable hair strainer is ensured. Cleaning is quick and easy. Additionally, the integrated odor trap prevents unpleasant odors.
Select the appropriate size now via the article variant - 60 cm, 70 cm, 80 cm, 90 cm or 100 cm.
Dimensions and specifications
Material | Stainless steel SUS304 |
Selectable length | 60cm | 70cm | 80cm | 90cm | 100cm |

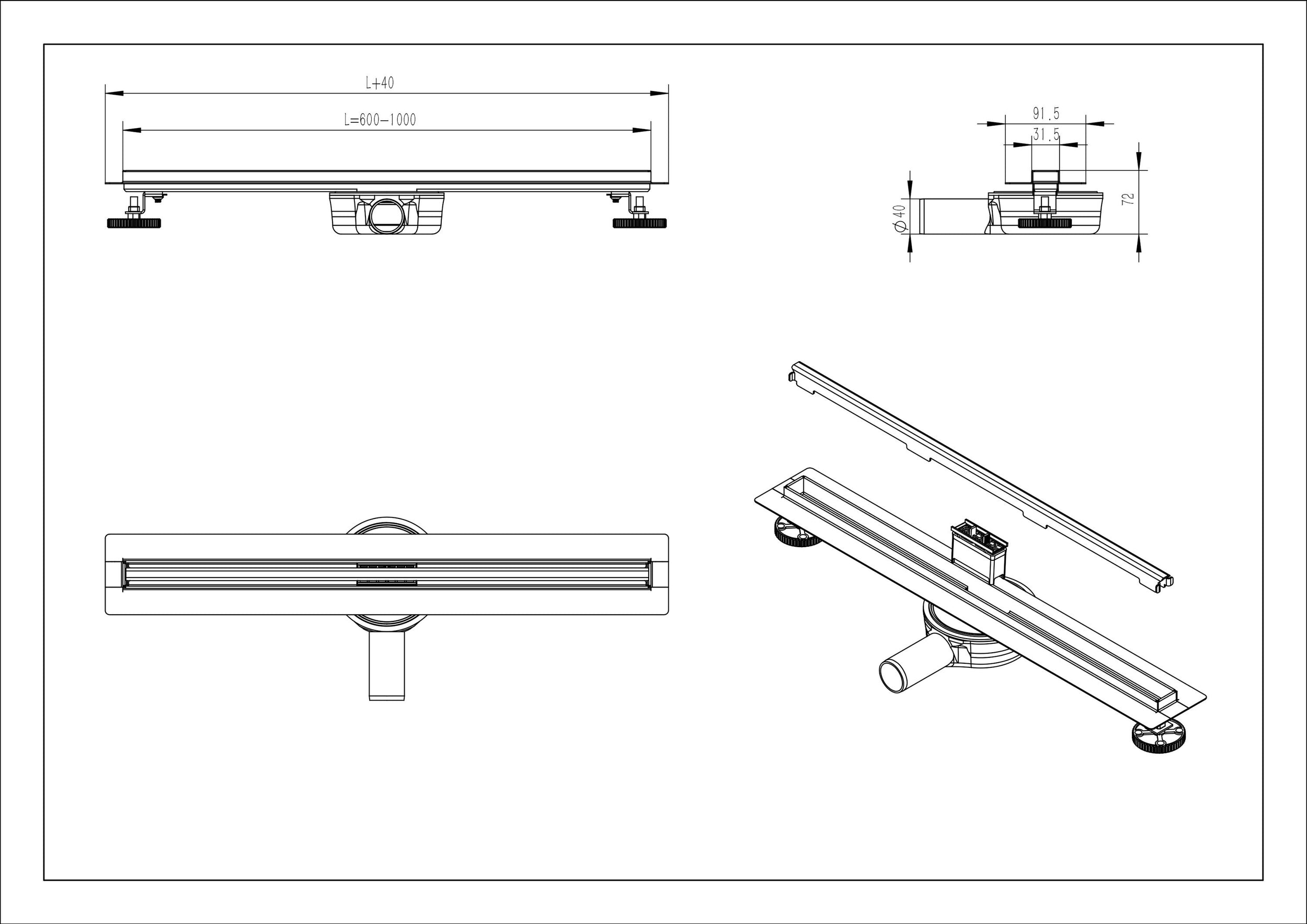

Dimensions | for detailed dimensions see drawing |
Drainage capacity | approx. 30 liters/min. |
Required installation height | approx. 72 mm |
Water seal height | approx. 39 mm |
Surrounding edge | approx. 20 mm |
Further details | Siphon can be rotated 360° |
40 mm outlet with adapter to 50 mm | |
Height-adjustable anchoring feet for precise installation |
Scope of delivery
- 1x stainless steel shower channel
- 1x odor trap
- 2x anchor feet, height-adjustable
Downloads
Assembly instructions
FlexM03_DE_EN_FR_IT_IV_2022.pdf
