Concealed thermostat fitting LAVOA
Brass - 1 consumer - 38 °C temperature lock
Product number: 167869
Product number: 167870
Product number: 168273
Product information

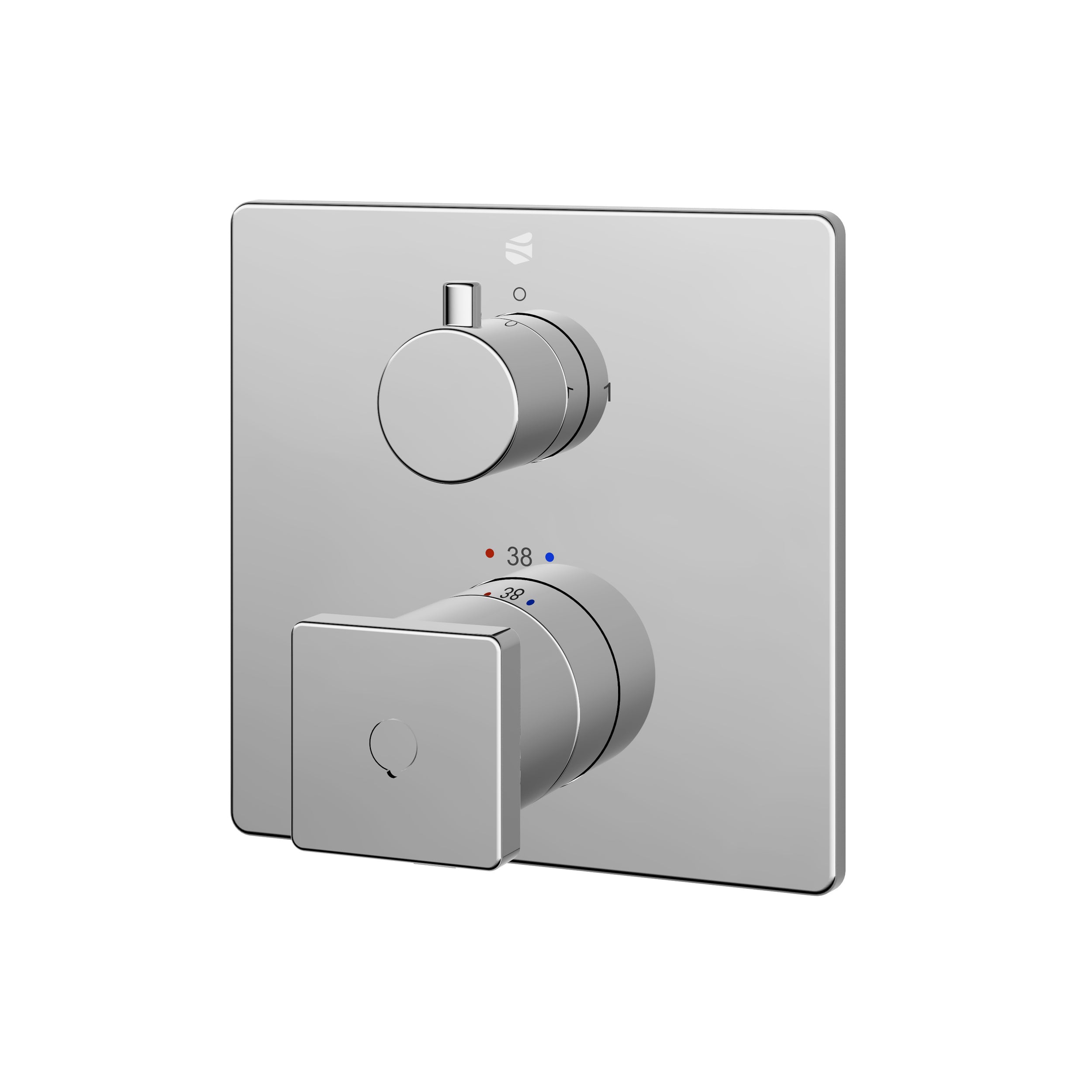

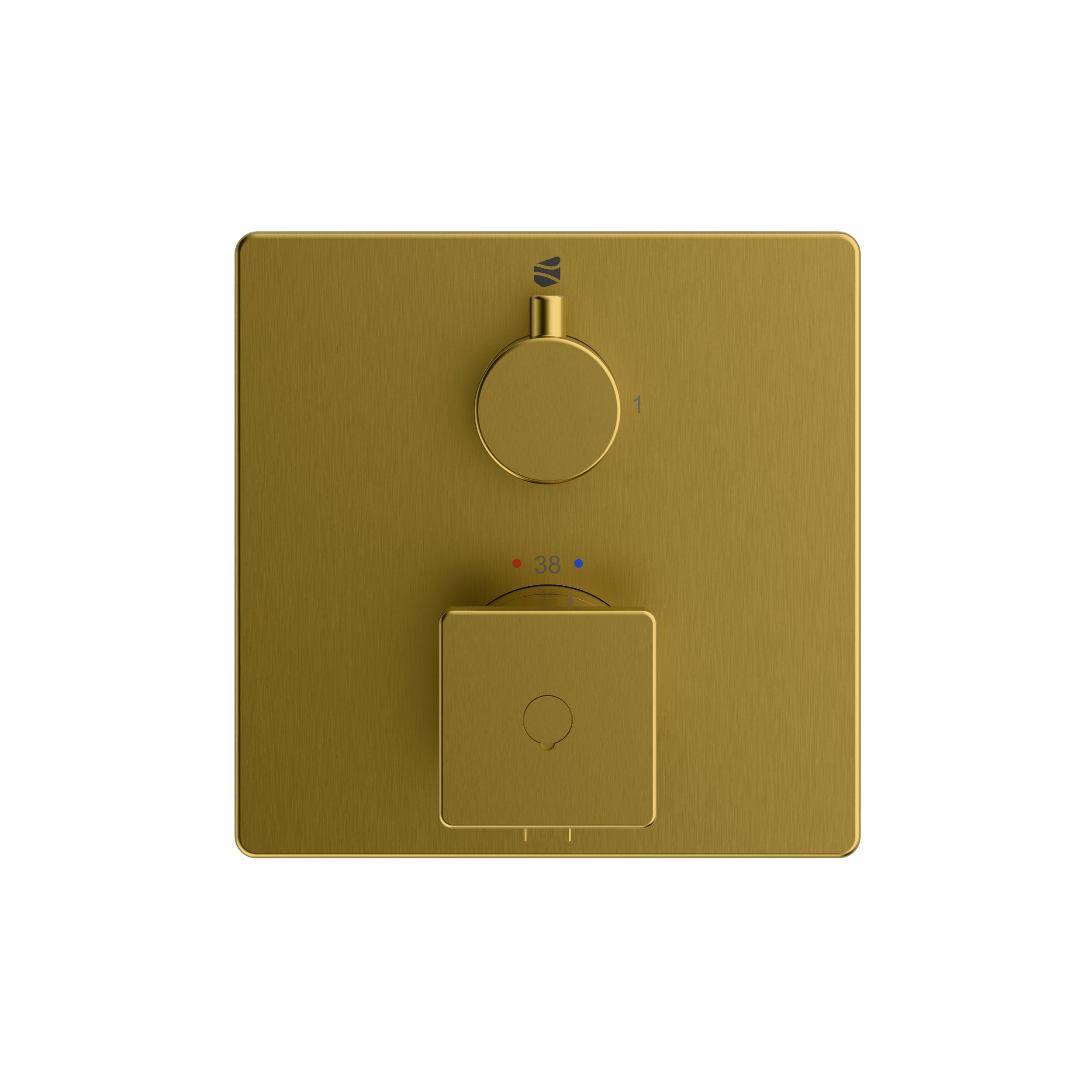

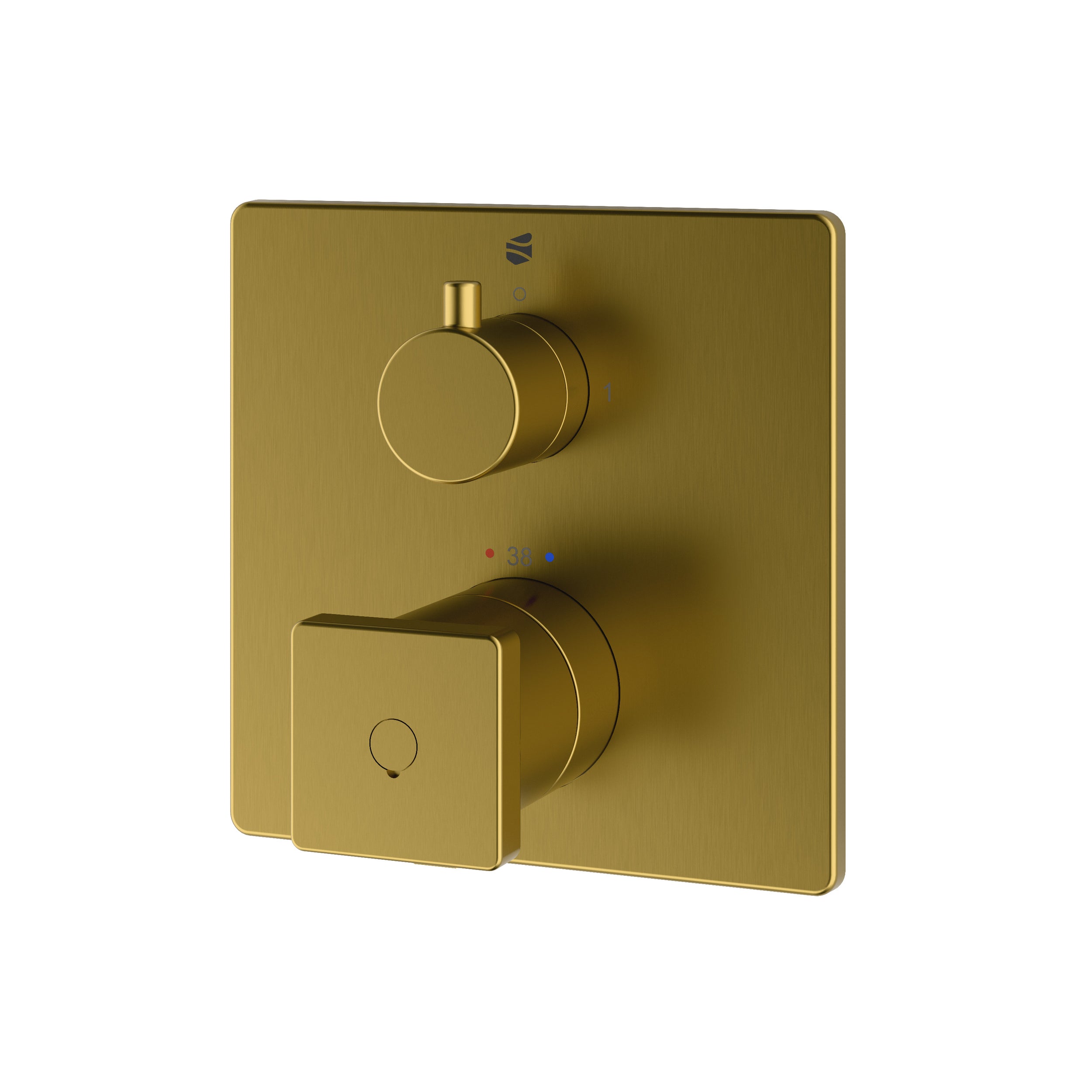

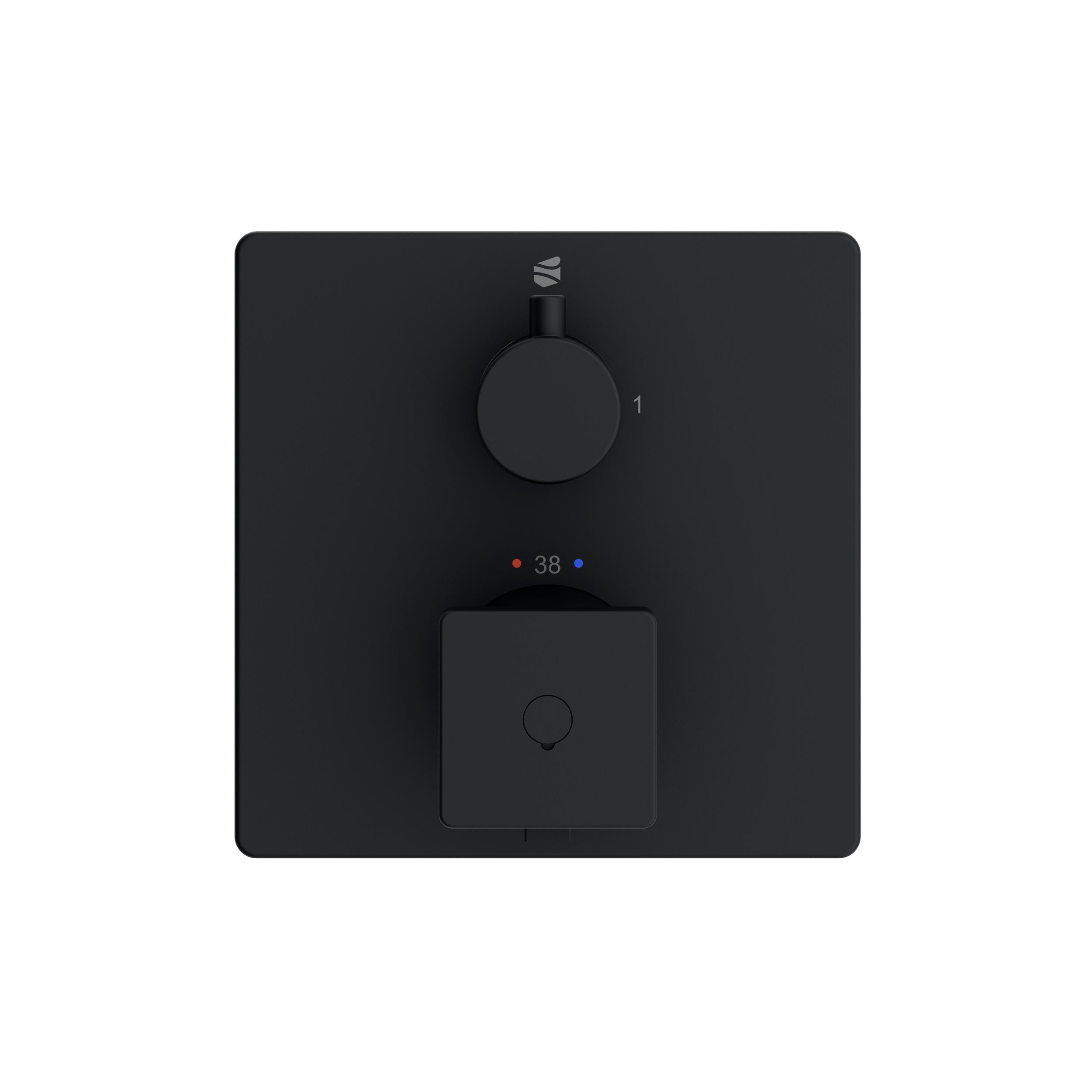

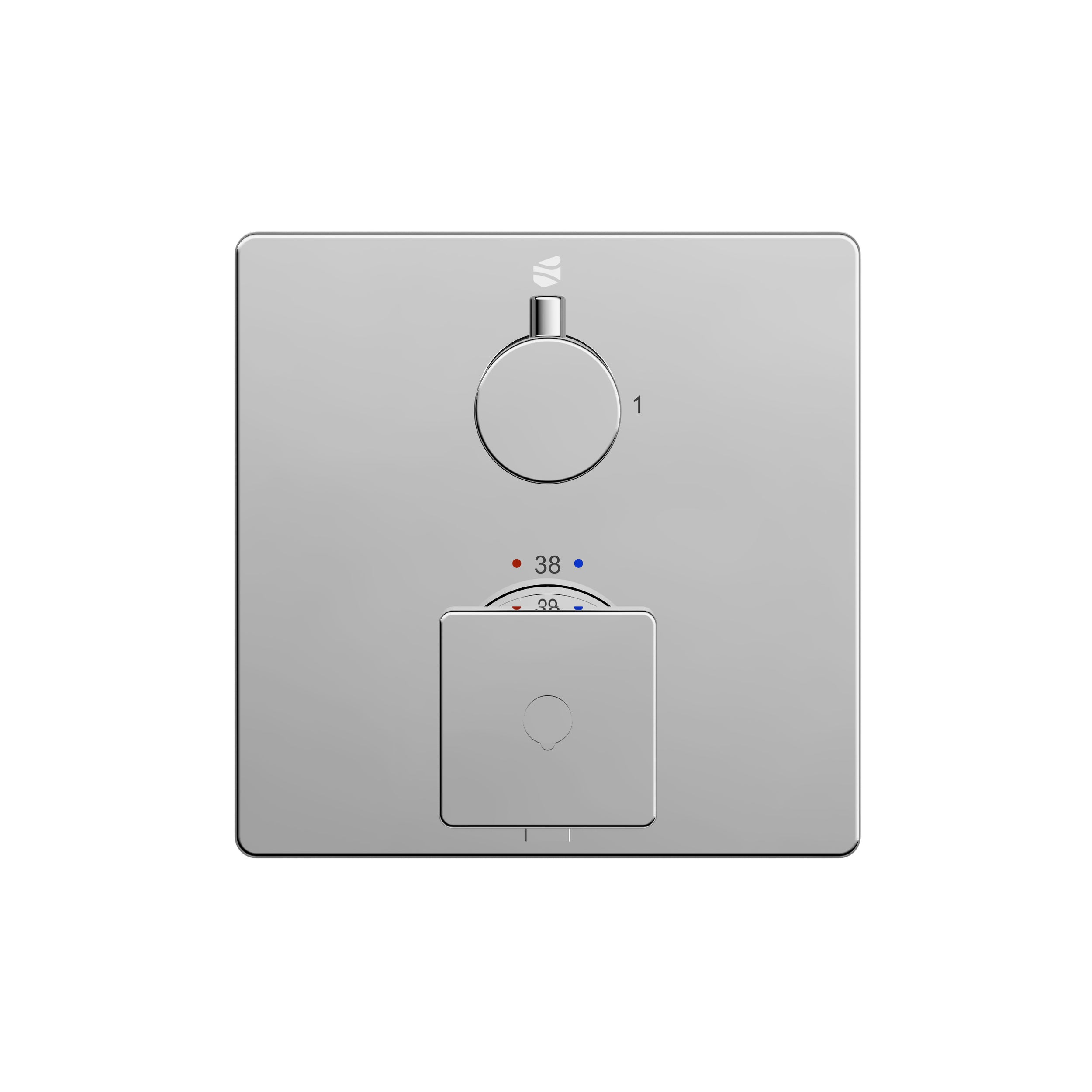

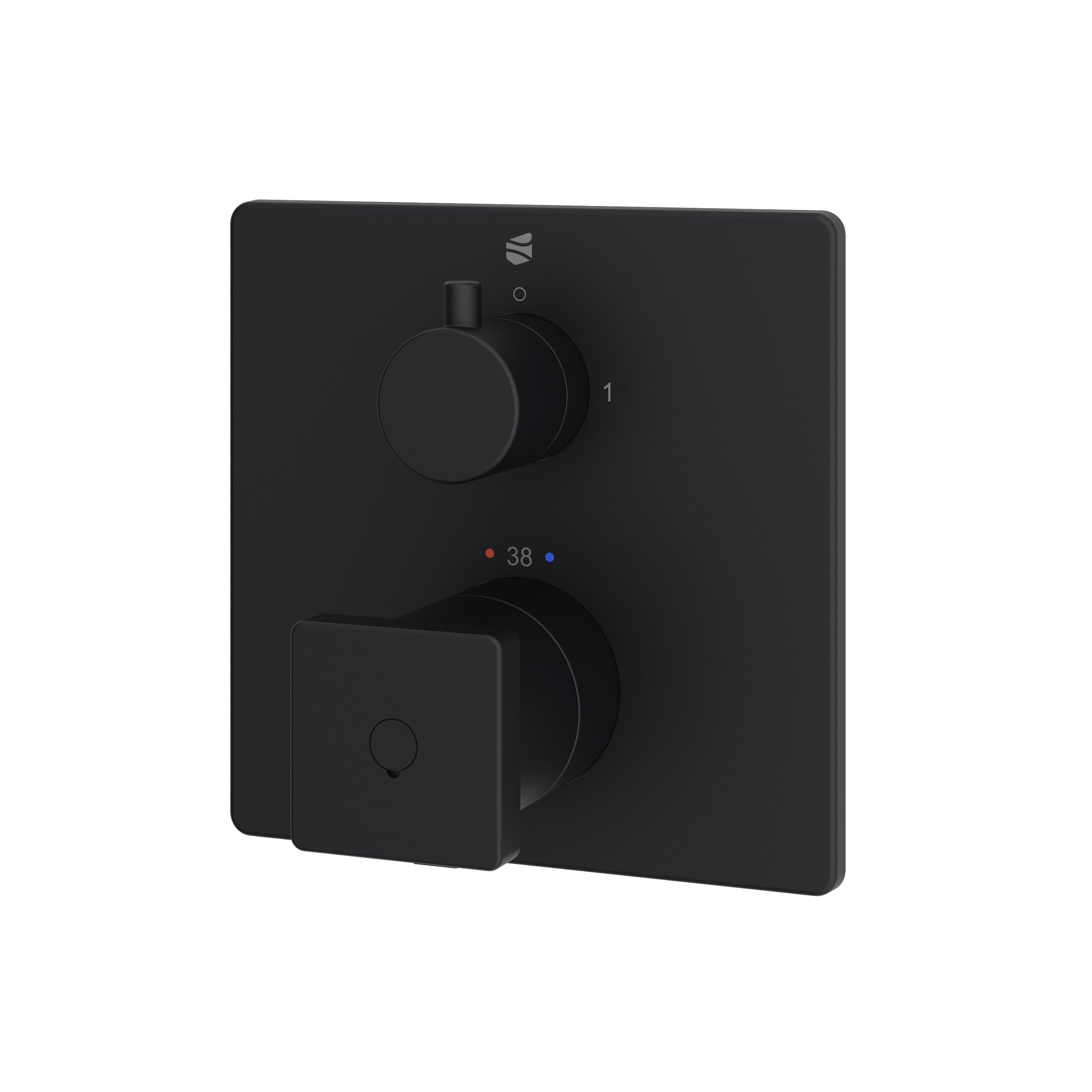

LAVOA flush-mounted thermostatic mixer for 1 consumer - precise temperature control with style
The LAVOA thermostatic mixer combines functionality, convenience and striking design. Its angular look with geometric lines stands out from the crowd - modern, architectural and extraordinary. The flush-mounted concealed installation creates a tidy look, leaving only what really matters visible: pure design and high-quality operation.
The intelligent thermostat function ensures a constant water temperature - even with fluctuating water pressure. Thanks to the integrated 38 °C safety stop, you are optimally protected against scalding. This makes the mixer tap particularly safe for households with children or senior citizens.
The mixer tap is designed for 1 consumer - ideal for an overhead or hand shower, for example - and its design fits in perfectly with the rest of the LAVOA series. You can choose from three high-quality finishes to stylishly complement any bathroom interior: chrome, matt black or brushed gold. The tap is also fully suitable for use with an instantaneous water heater, which guarantees maximum flexibility during installation.
With the LAVOA thermostatic mixer tap, you are opting for a high level of safety, minimalist design and a modern design language - perfect for style-conscious bathrooms with functional requirements.
Dimensions and specifications
Model | Series | Concealed Thermostat Fitting LAVOA |
Type of installation | Concealed |
Material | Brass |
Dimensions (W x H x D) | 143 x 143 x 70 mm |
Shape | angular |
Color | selectable |
Surface | glossy | matte | brushed |
Number of outlets | 1 |
Handle position | centered | one above the other |
Operation | single lever mixer |
Activation | unlock | turn |
Installation | concealed installation |
Thermostatic cartridge | Yes |
Suitable for instantaneous water heater | Yes |
Operating range | 1 bar to 5 bar, at max. 60 °C |
DIN connection | Yes |
Main body | Without, can be ordered separately |
Without decorative items |
Scope of delivery
- LAVOA concealed thermostatic mixer in selected color
- Installation instructions
- Without basic body
- Without decorative items
Downloads
Assembly instructions
MA_LAVOA_con-therm_060225.pdfCare instructions
CMA_Armaturen_050225-(1).pdf
