Product information

Stylish LAVOA bath mixer for modern bathrooms - concealed - 2 consumers

The LAVOA concealed bath mixer combines clear design with reliable technology - perfect for high-quality bathroom designs with a bath and shower option. Thanks to the operation of two consumers, you can switch between the bath spout and hand shower, for example - simply and conveniently using the integrated diverter.

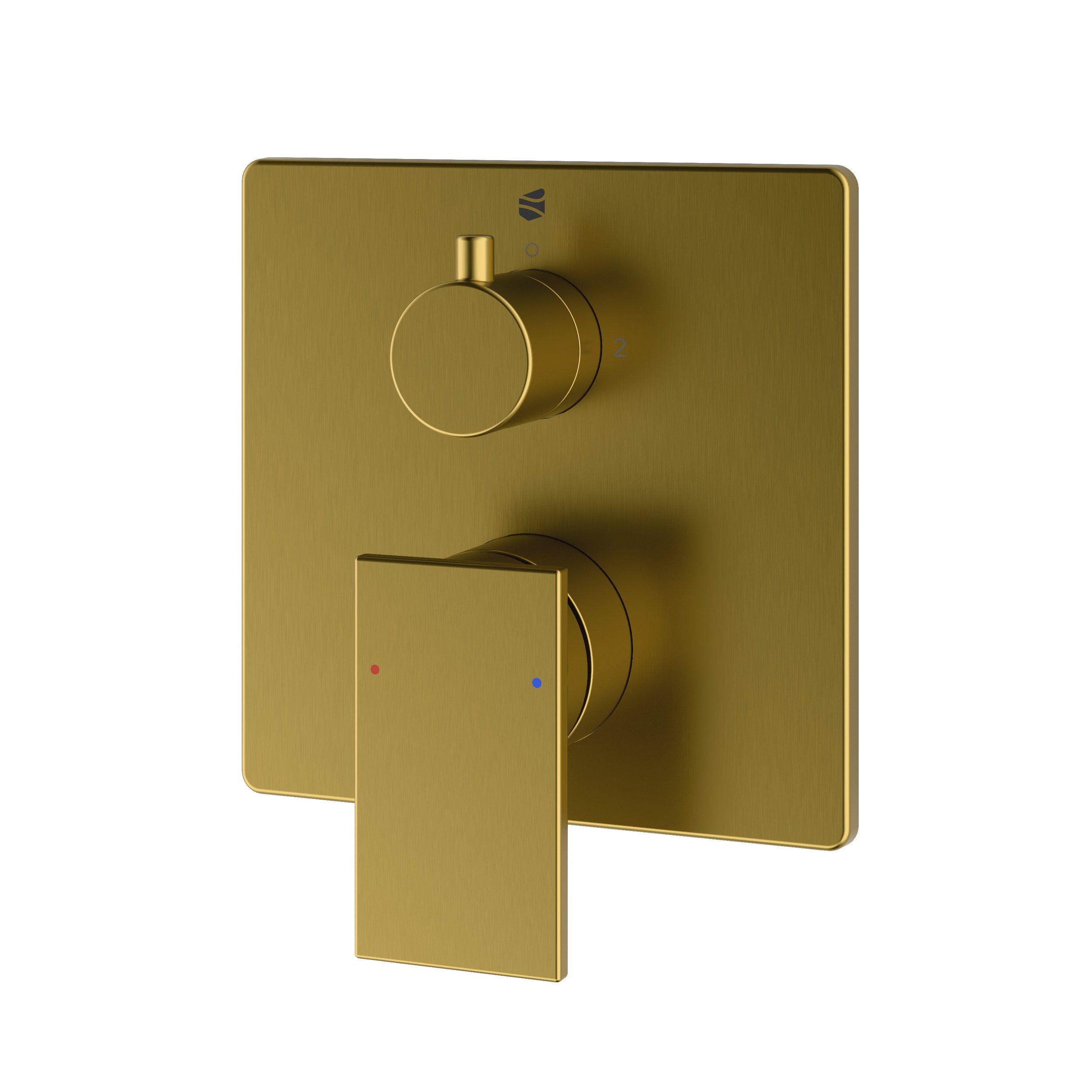

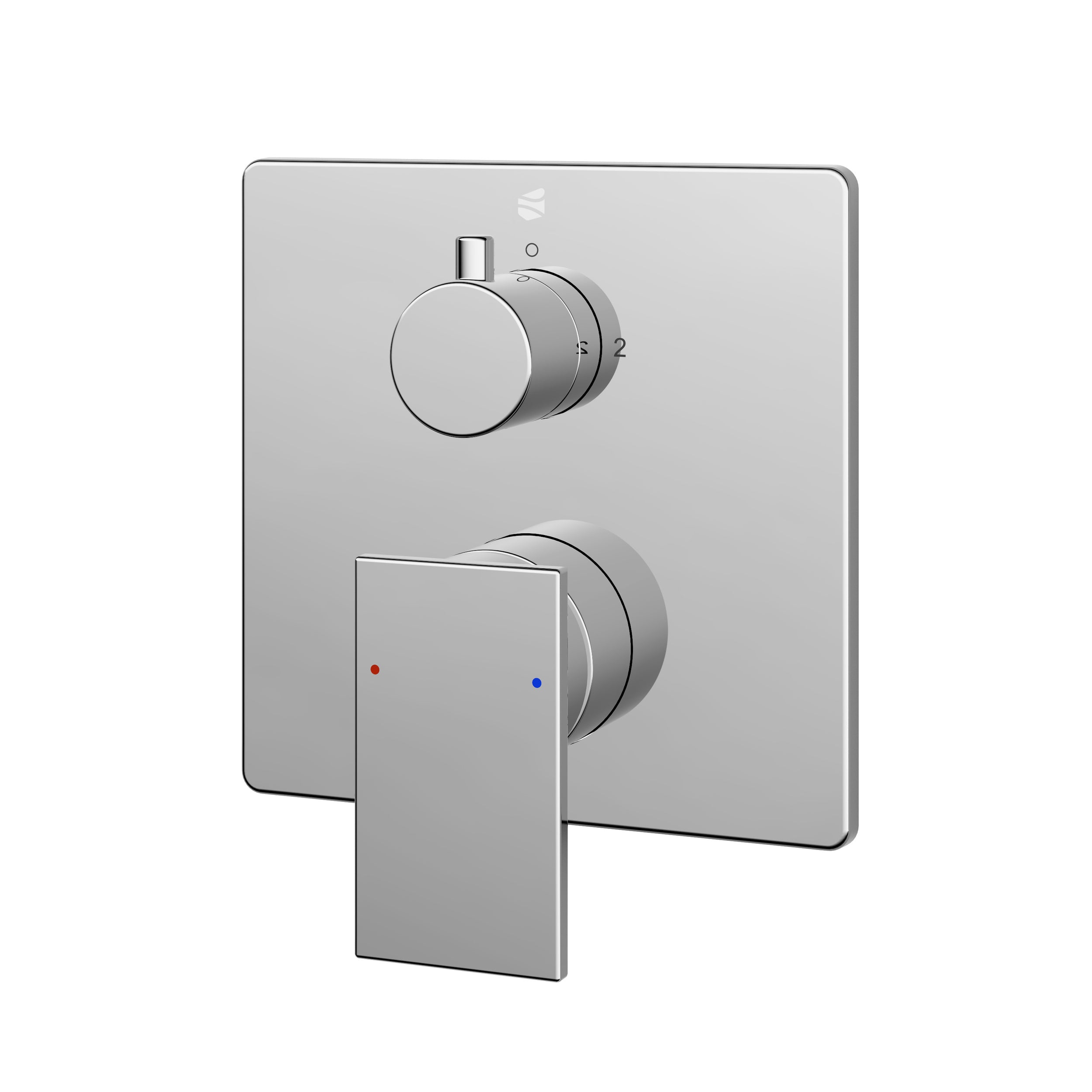

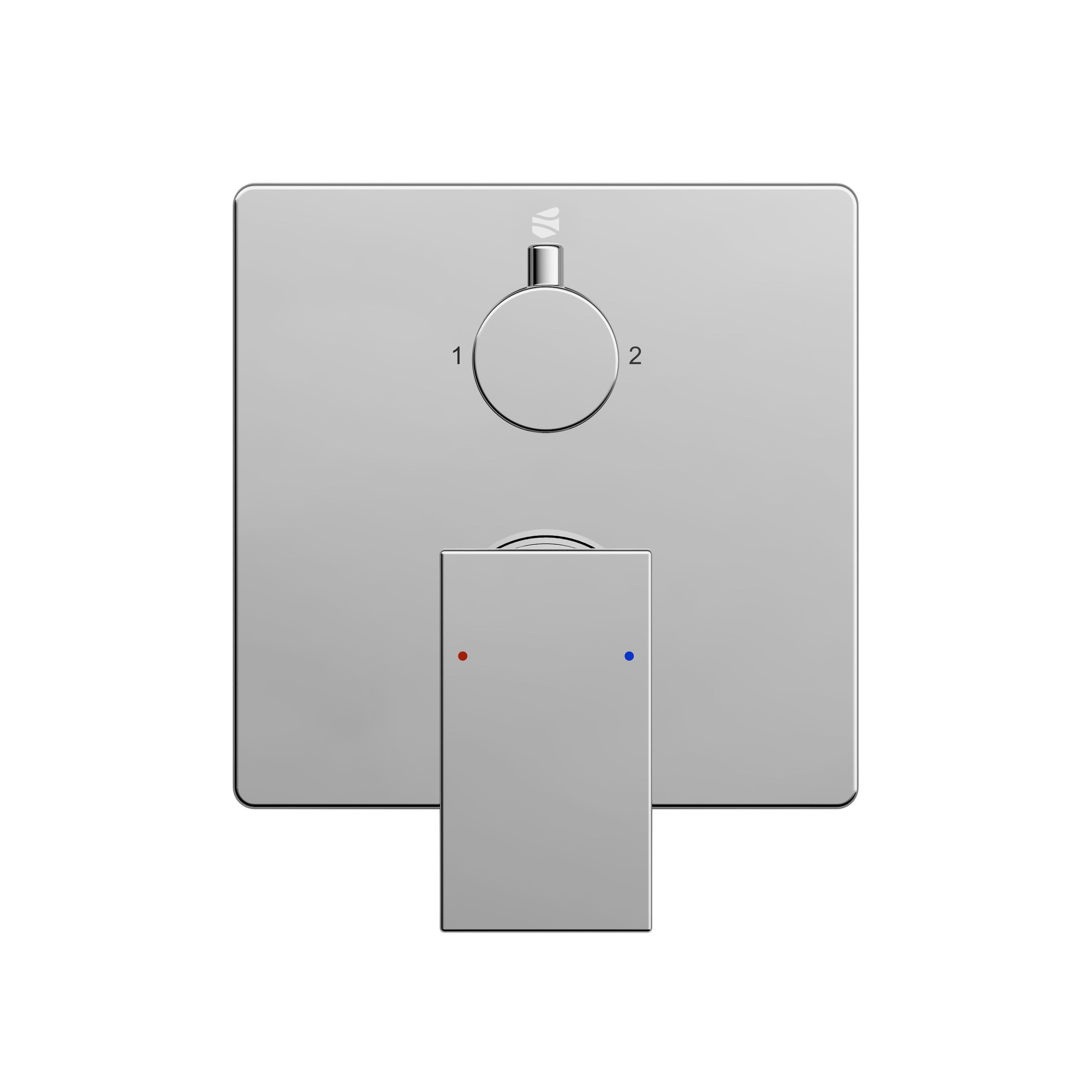

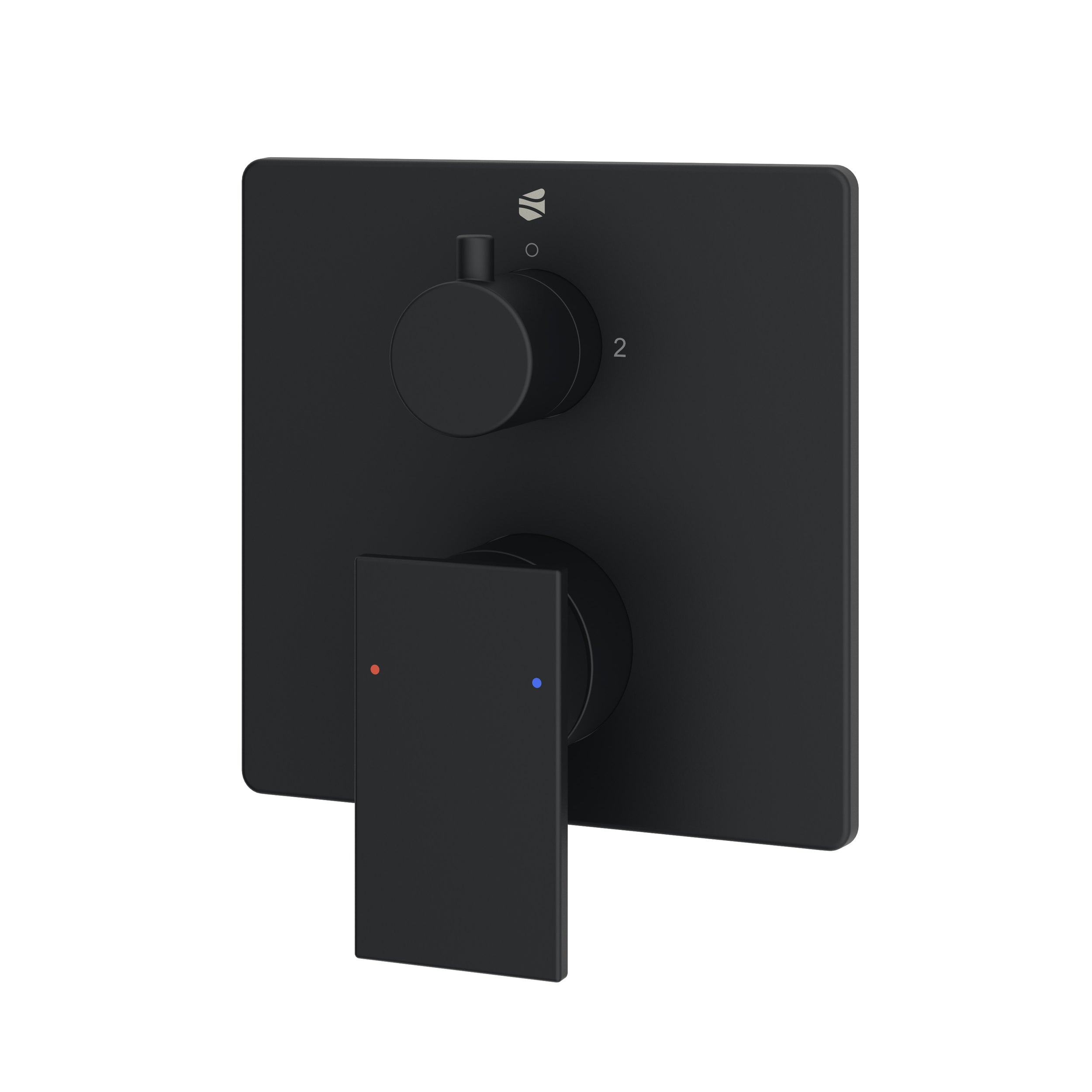

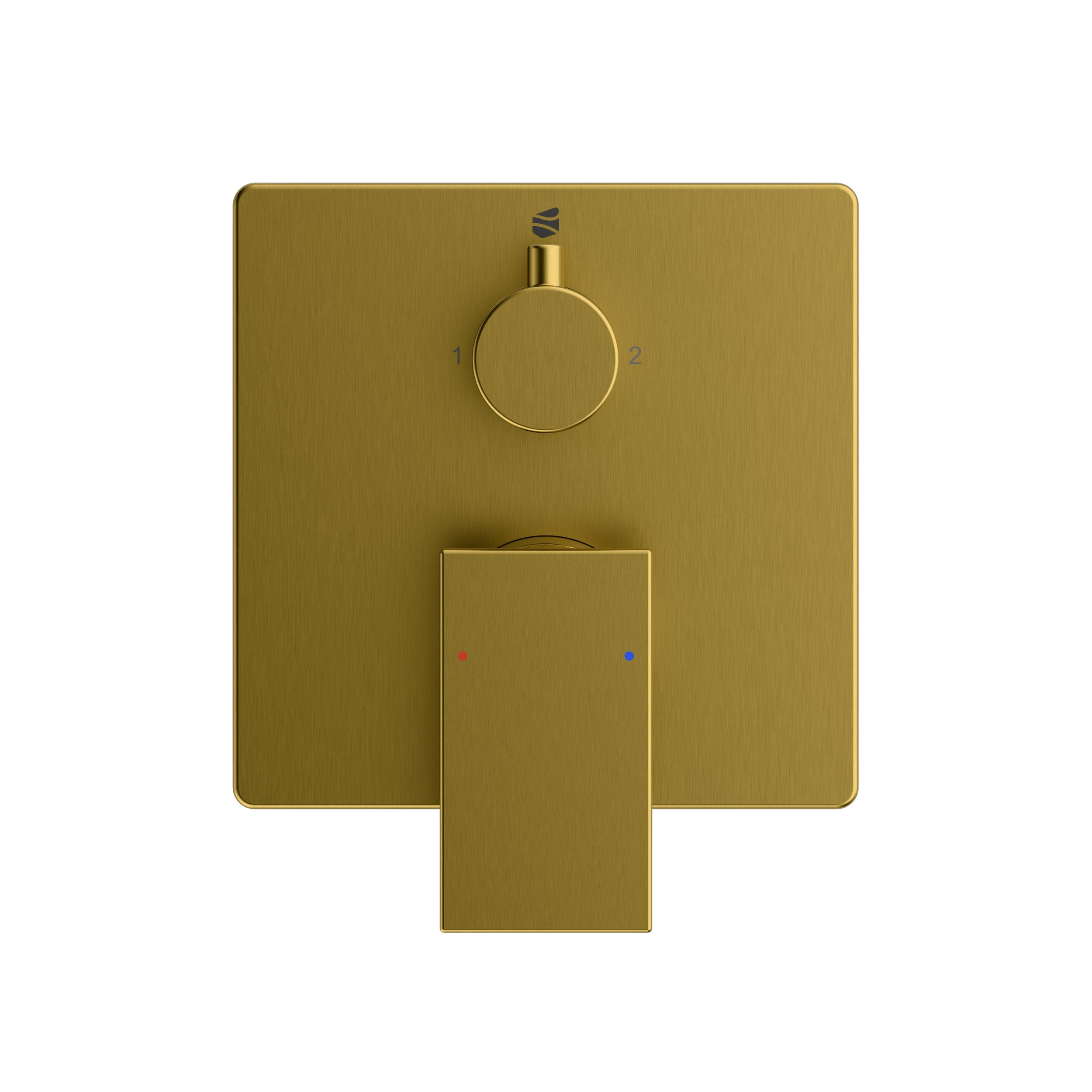

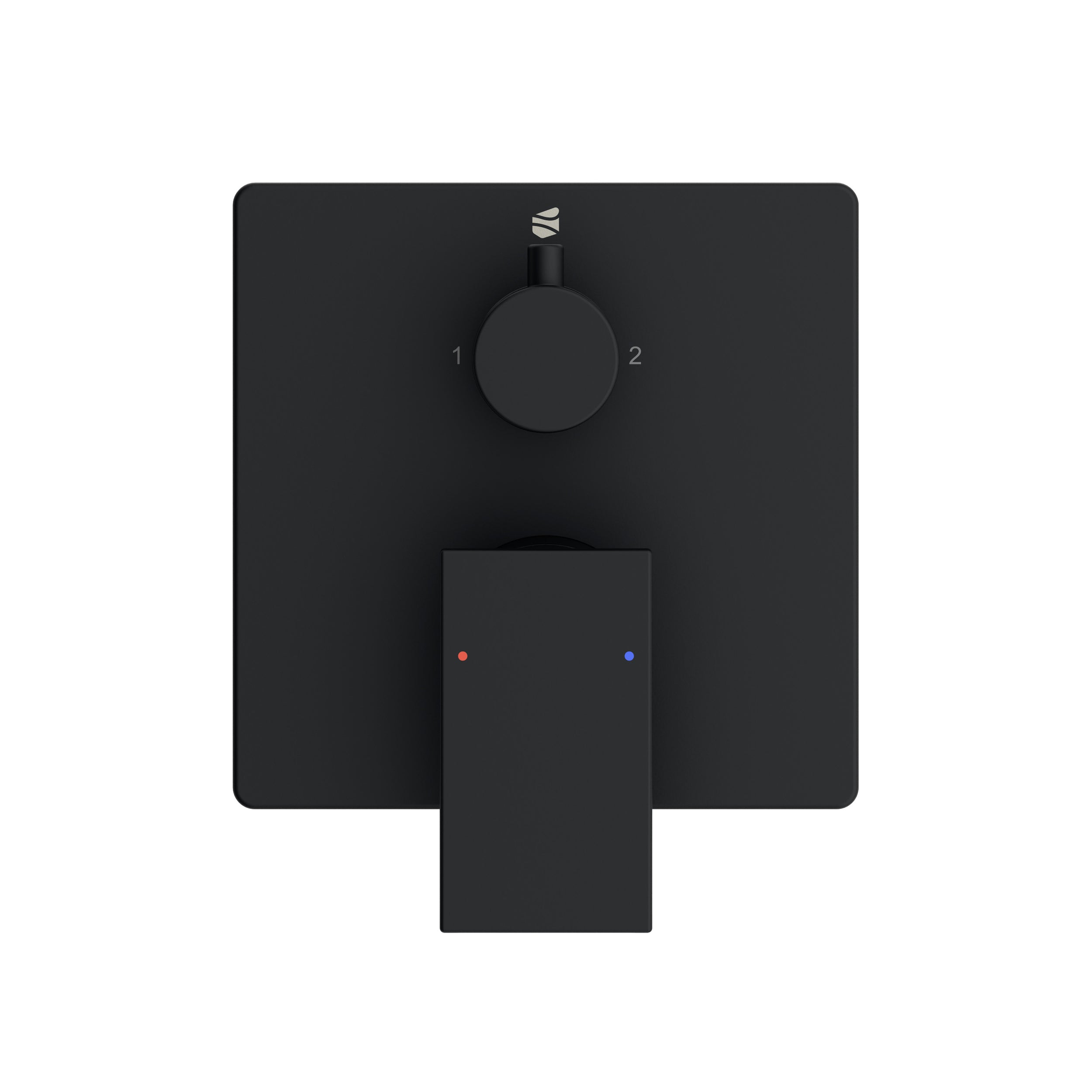

The solid mixer tap with its elegant finish is available in three timeless colors: chrome, matt black and brushed gold. The design goes perfectly with other components in the LAVOA series and creates a harmonious overall look in your bathroom. The precise temperature control is provided by a durable ceramic cartridge - reliable, convenient and drip-free.

With a flow rate of 16 l/min at 3 bar, this bath mixer is also suitable for use with a instantaneous water heater.

Dimensions and specifications

Model \| Series	Bath inlet-shower mixer LAVOA
Mounting type	Concealed
Material	Brass

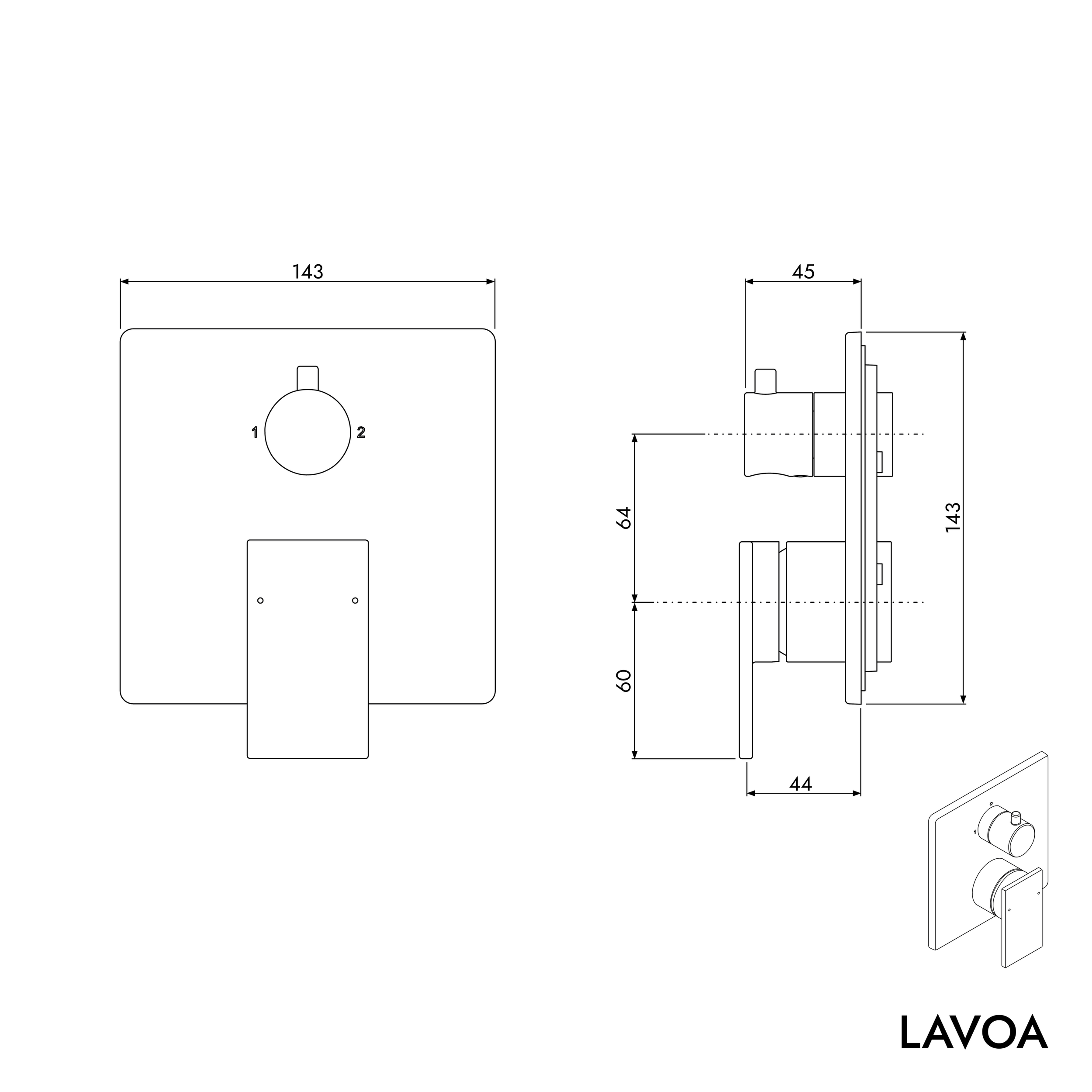

Dimensions (W x H x D)	143 x 143 x 45 mm
Shape	angular
Color	selectable
Surface	glossy \| matte \| brushed
Number of outlets	2
Handle position	centered \| one above the other
Operation	Two-lever mixer
Activation	Unlock \| Turn
Installation	Concealed installation
Ceramic mixing system	Yes
Diverter	Bath \| Hand shower
Suitable for instantaneous water heater	Yes
Operating range	1 bar to 5 bar, up to max. 60 °C
DIN connection	Yes
Body	Without, available separately
Without decorative items

Scope of delivery

LAVOA concealed bath mixer in selected color
Installation instructions
Without base
Without decorative items

Downloads

Assembly instructions

MA_LAVOA_con-lever_1-2_way_040425.pdf

Care instructions

CMA_Armaturen_050225-(1).pdf

Shipping costs

9,90 EUR

Delivery by parcel service

We ship small and light items via DHL and DPD. Shipping to parcel stations is not possible.

9,90 EUR

Delivery by parcel service

We ship small and light items via DHL and DPD. Shipping to parcel stations is not possible.

9,90 EUR

Delivery by parcel service

We ship small and light items via DHL and DPD. Shipping to parcel stations is not possible.

Product safety

Brand: Bernstein

Manufacturer information

NEXTREND - Ltd.
Weiherstraße 1
65439 Flörsheim a. M.
Germany
support@bernstein-badshop.de

Safety instructions

Fast shipping
In-house production
30 days
right of return
5-year warranty

Concealed bath mixer with diverter for 2 consumers
Perfect combination for bath and hand shower
Three elegant color variants: Chrome, matt black, brushed gold
High-quality finish made of solid brass
Temperature control via durable ceramic cartridge
Suitable for instantaneous water heaters - even with lower water pressure
Flow rate: 16 liters per minute at 3 bar
Matching design to the entire LAVOA series
Modern, flush-mounted appearance - ideal for minimalist bathroom concepts
Important: Please order the base body required for installation separately under “Recommended Accessories”.
